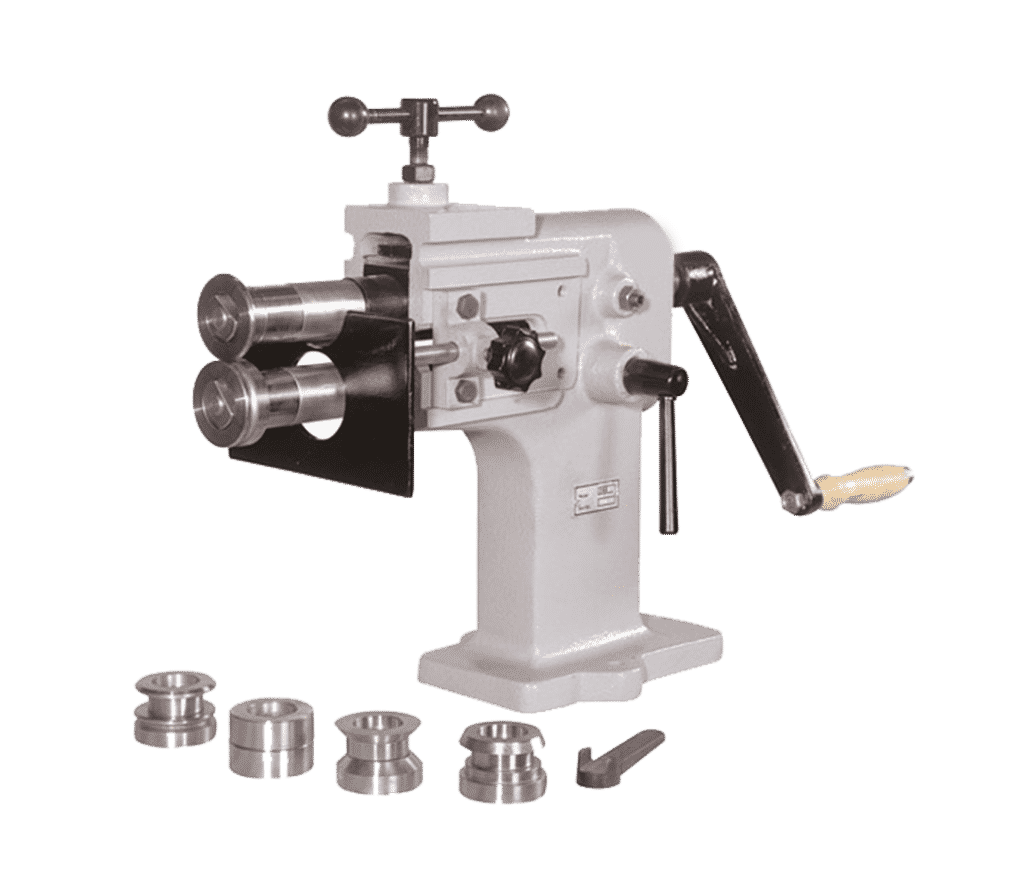

Morgan Rushworth MS 250/1.25 Manual Swaging Machine
The Morgan Rushworth range of MS, PS and HPS swaging machines are available in manual, powered and hydraulic variants. Swaging machines are designed to form various shapes to sheet material and are particularly suited for tubular ductwork applications. Easily interchangeable rolls are included as standard equipment to form the specific shape required.
| MODEL | MS 250/1.25 | |
| STOCK CODE | M7008 | |
| Capacity | mm | 1.25 |
| Roll Diameter | mm | 62 |
| Throat depth with gauge | mm | 120 |
| Throat depth without gauge | mm | 260 |
| Shaft Diameter | Ø mm | 26 |
| Length | mm | 600 |
| Width | mm | 550 |
| Height | mm | 350 |
| Weight | kg | 50 |
Features
- Steel welded frame
- Adjustable idler roll
- Adjustable end stop
- Reduction motor with brake – PS and HPS
- Hydraulic top roll adjustment – HPS 400
- 3 sets of standard rolls – PS 250, PS 400 and HPS 400
- 5 sets of standard rolls – MS 125 and PS 125
Options
- Optional special rolls available
