Morgan Rushworth MBR Manual Sheet Bending Rolls

The Morgan Rushworth MBR top roll to slip models range from 1.5mm – 3mm with a maximum bending length up to 2050mm. The rugged heavy duty cast iron frame ensures long working life. The asymmetric roll configuration enables pre bending capability.

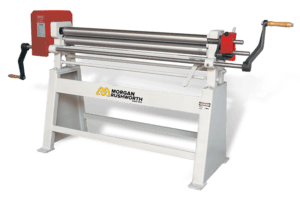

Morgan Rushworth MBR Manual Sheet Bending Rolls imageMorgan Rushworth MBR Manual Sheet Bending Rolls image
Morgan Rushworth MBR Manual Sheet Bending Rolls image 2Morgan Rushworth MBR Manual Sheet Bending Rolls image 2
Asymmetrical Bending DiagramAsymmetrical Bending Diagram

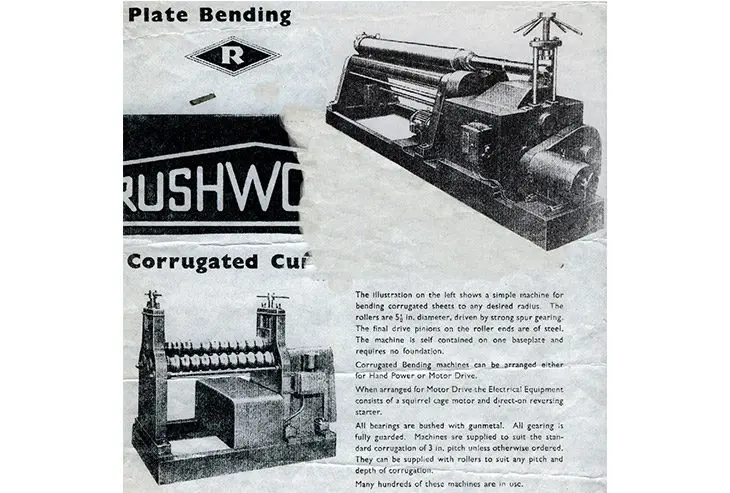

Newspaper article about the history of Morgan Rushworth bending rollsNewspaper article about the history of Morgan Rushworth bending rolls
Morgan Rushworth MBR Manual Sheet Bending Rolls image 5

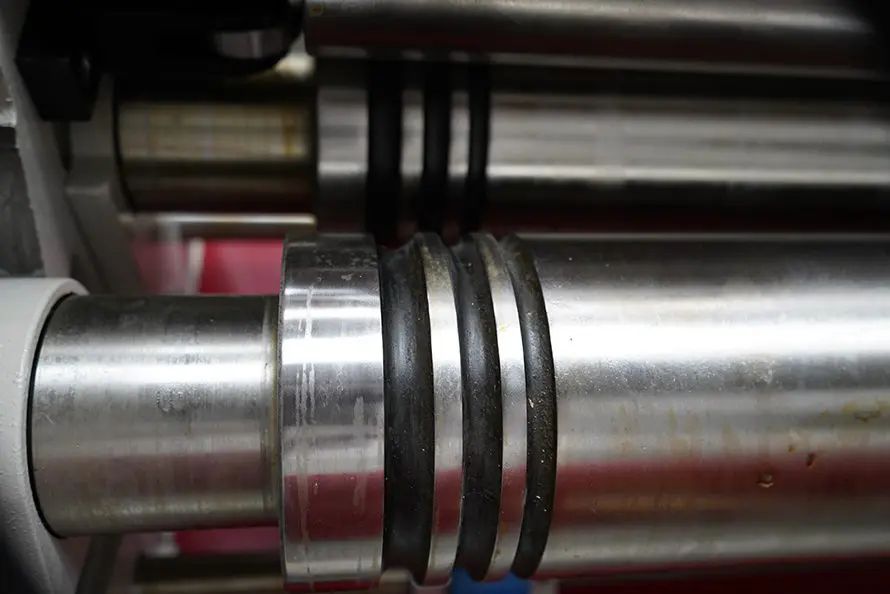

Round Bar Grooves
Morgan Rushworth MBR Manual Sheet Bending Rolls image 5
Morgan Rushworth MBR Manual Sheet Bending Rolls image 6

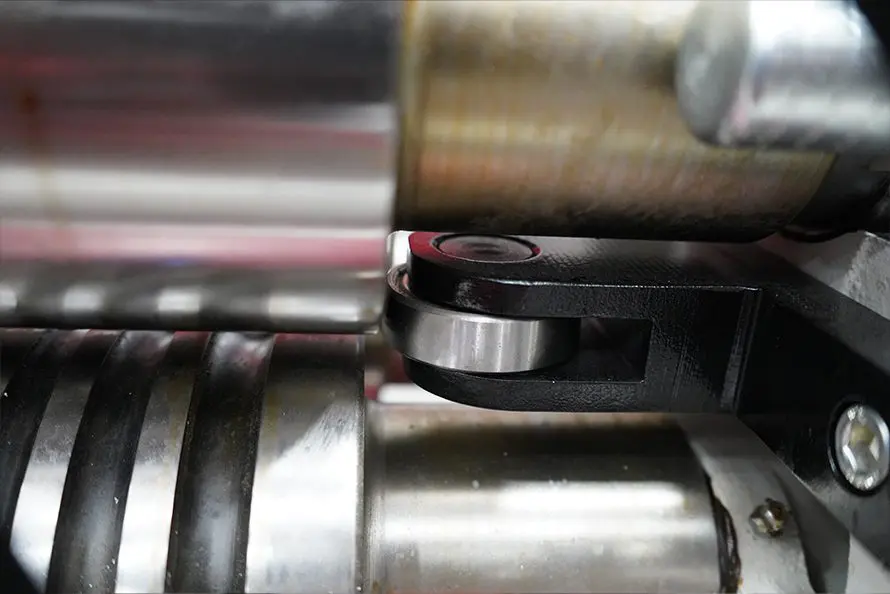

Cone Rolling Wheel
Morgan Rushworth MBR Manual Sheet Bending Rolls image 6
Morgan Rushworth MBR Manual Sheet Bending Rolls image 7

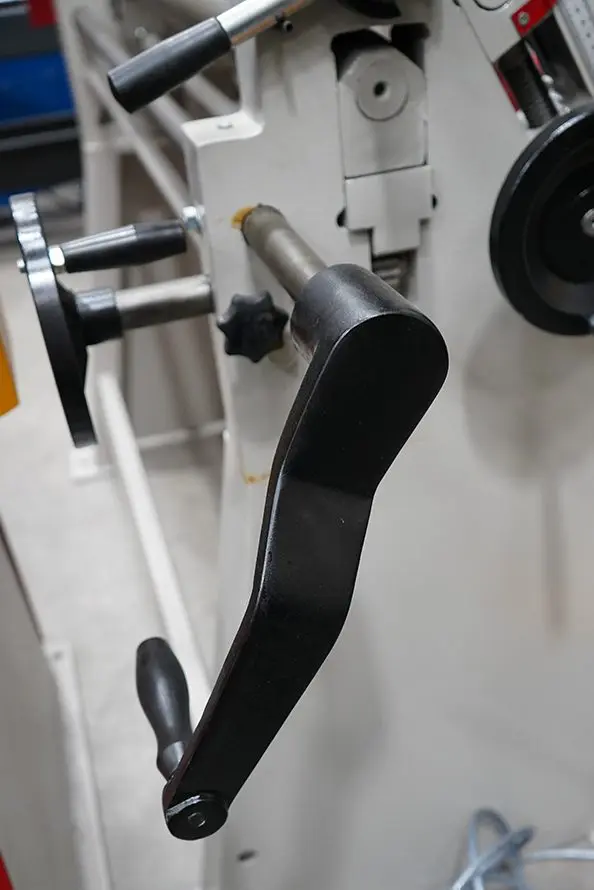

Manual Rotation Handle
Morgan Rushworth MBR Manual Sheet Bending Rolls image 7
Morgan Rushworth MBR Manual Sheet Bending Rolls image 8

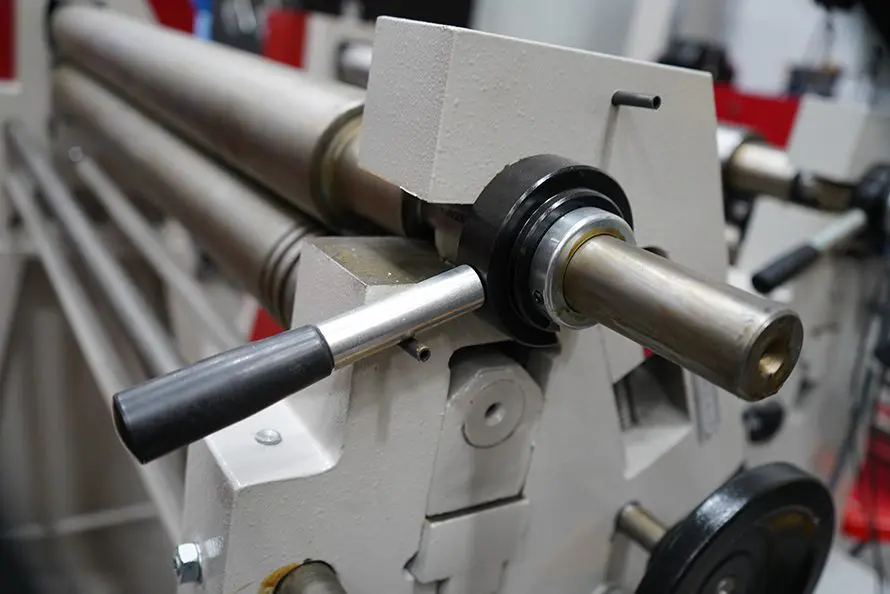

Top Slip Roll
Morgan Rushworth MBR Manual Sheet Bending Rolls image 8
MODEL STOCK CODE BENDING LENGTH PRE BENDING MAX THICKNESS TOP ROLL DIA LENGTH HEIGHT WIDTH WEIGHT
mm mm mm mm mm mm mm kg
MBR 1050/70 M3003 1050 1.5 1.8 70 1800 1100 700 320
MBR 1050/90 M3004 1050 3 3.3 90 2100 1130 800 490
MBR 1250/75 M3005 1250 1.5 2 75 2300 1100 800 460
MBR 1250/90 M3006 1250 2.5 3 90 2350 1130 800 510
MBR 1550/70 M3007 1550 1 1.2 70 2100 1100 700 520
MBR 1550/90 M3008 1550 2.2 2.5 90 2600 1130 800 590
MBR 2050/95 M3009 2050 1.5 1.8 95 3030 1130 800 600

Capacities are given for 250 N/mm² plate yielding strength

Features

  • Top roll to slip
  • Manual rotation
  • Cone bending
  • Crowned Rolls
  • Manually adjusted side roll for up and down translation
  • Manual pinching of bottom roll
  • Round bar grooves

Options

  • With / Without body (MBR)
  • Induction hardened rolls
  • Parallel Rolls
  • Powered side roll up and down translation
  • DRO for side roll position
