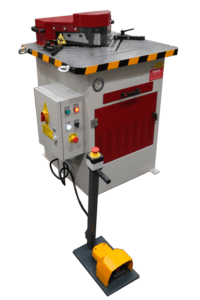

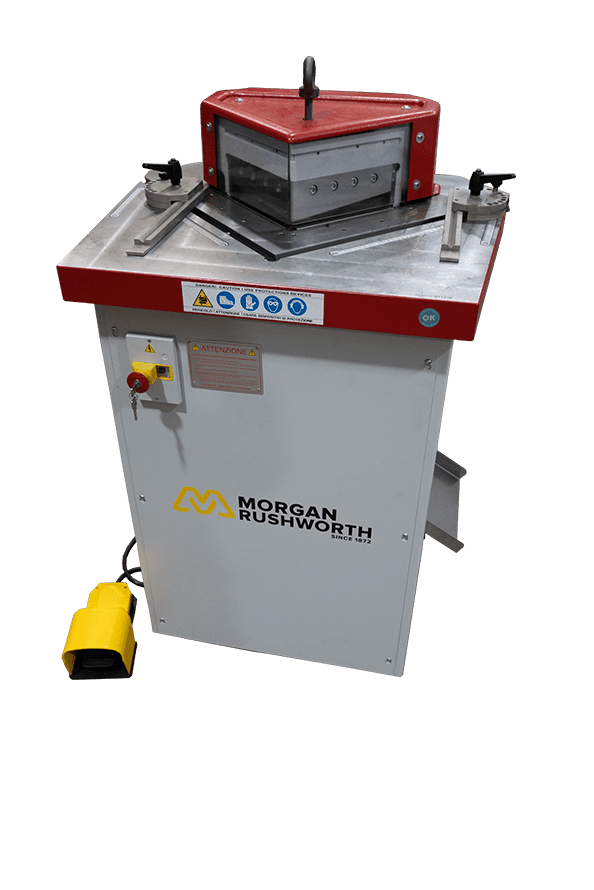

Morgan Rushworth HFA Hydraulic Corner Notching Machine
The HFA hydraulic corner notching machines have a cutting capacity of 220mm x 6mm or 220mm x 8mm at a fixed angle of 90 Degrees. With a rigid head and GS500 cast iron workbench, these corner notchers are designed for a long working life.
| MODEL | STOCKCODE | BLADE ANGLE | CUTTING LENGTH | CUTTING CAPACITY | CUTTING CAPACITY | MOTOR | STROKES PER MINUTE | WORK TABLE | LENGTH | WIDTH | HEIGHT | WEIGHT |
| mm | mm | M/Steel mm | S/Steel mm | Kw | mm | mm | mm | mm | kg | |||
| HFA 220/6 | M4000 | 90° | 220 | 6 | 4 | 3 | 35 | 650 x 650 | 650 | 750 | 1050 | 540 |
| HFA 220/8 | 90° | 220 | 8 | 5 | 3 | 40 | 650 x 780 | 700 | 750 | 1100 | 650 |
Features

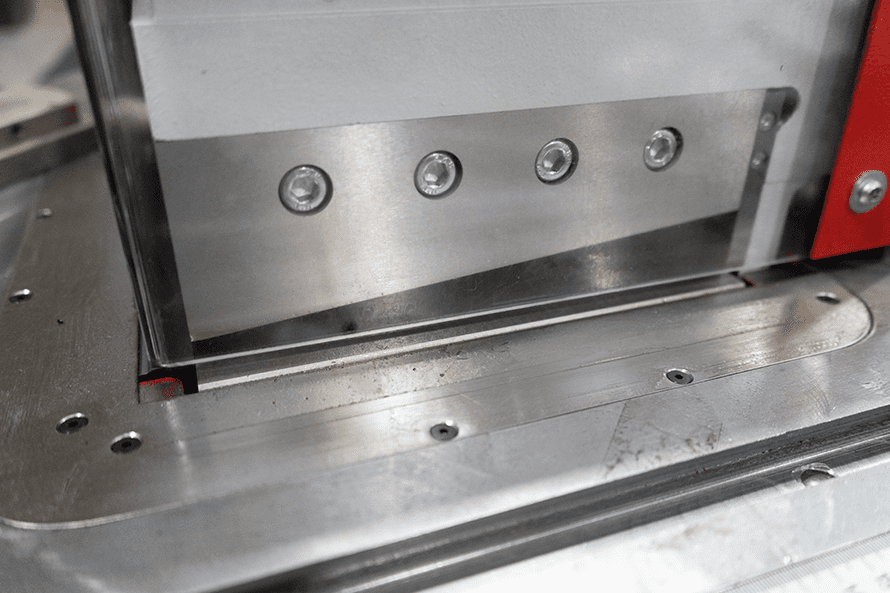

- Rigid head and GS500 cast iron workbench with conical grooves for optimal adherance of the squares.
- Cut can start from top of blades or from the base.
- Automatic adjustment of gap between blades from 1 to 6mm/8mm (patented).

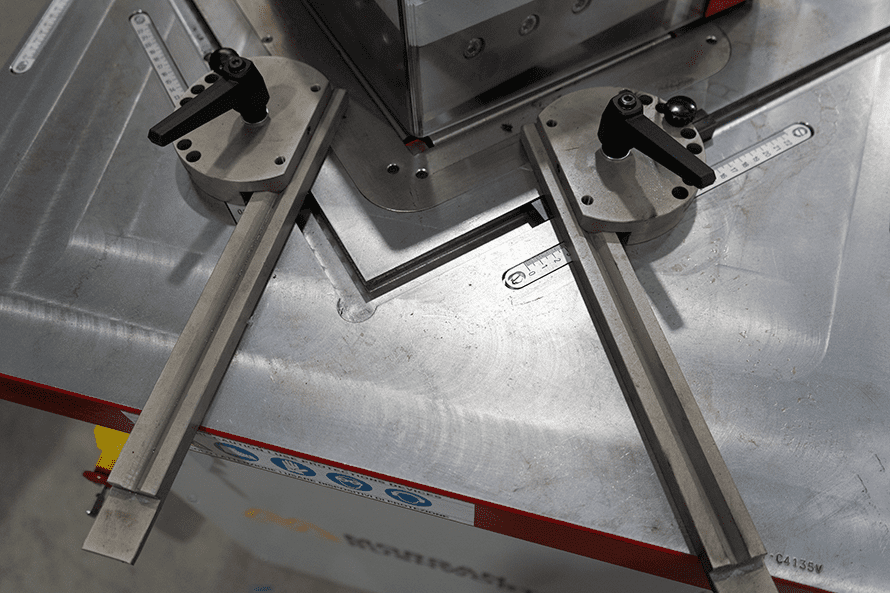

- Set of goniometric squares.
Options
- Stainless steel cutting blades.
