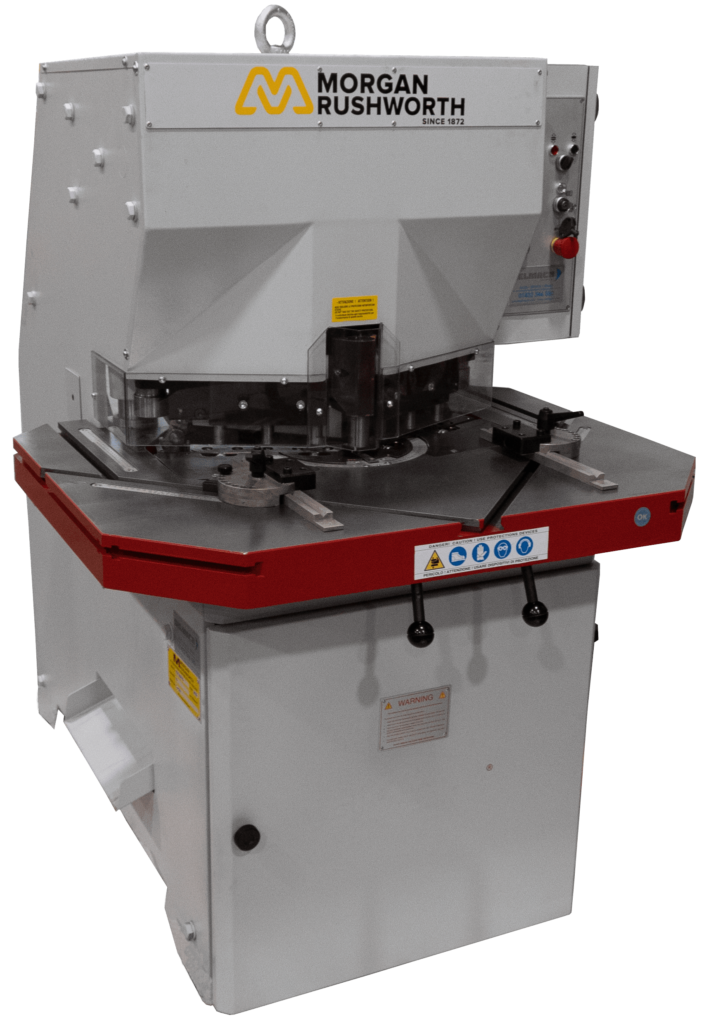

Morgan Rushworth HVA Hydraulic Corner Notching Machine
The HVA hydraulic corner notching machine has a cutting capacity of 220mm x 6mm or 250mm x 10mm with a variable angle. With a rigid head and GS500 cast iron workbench, these corner notchers are designed for a long working life.
| MODEL | STOCKCODE | BLADE ANGLE | CUTTING LENGTH | CUTTING CAPACITY | CUTTING CAPACITY | MOTOR | STROKES PER MINUTE | WORK TABLE | LENGTH |
| mm | mm | M/Steel mm | S/Steel mm | Kw | mm | mm | |||
| HVA 220/6 | M4001 | 30° – 140° | 220 | 6 | 4 | 3 | 35 | 950 x 890 | 950 |
| HVA 250/10 | M4002 | 30° – 135° | 250 | 10 | 6 | 5.5 | 40 | 1020 x 800 | 1430 |
Features

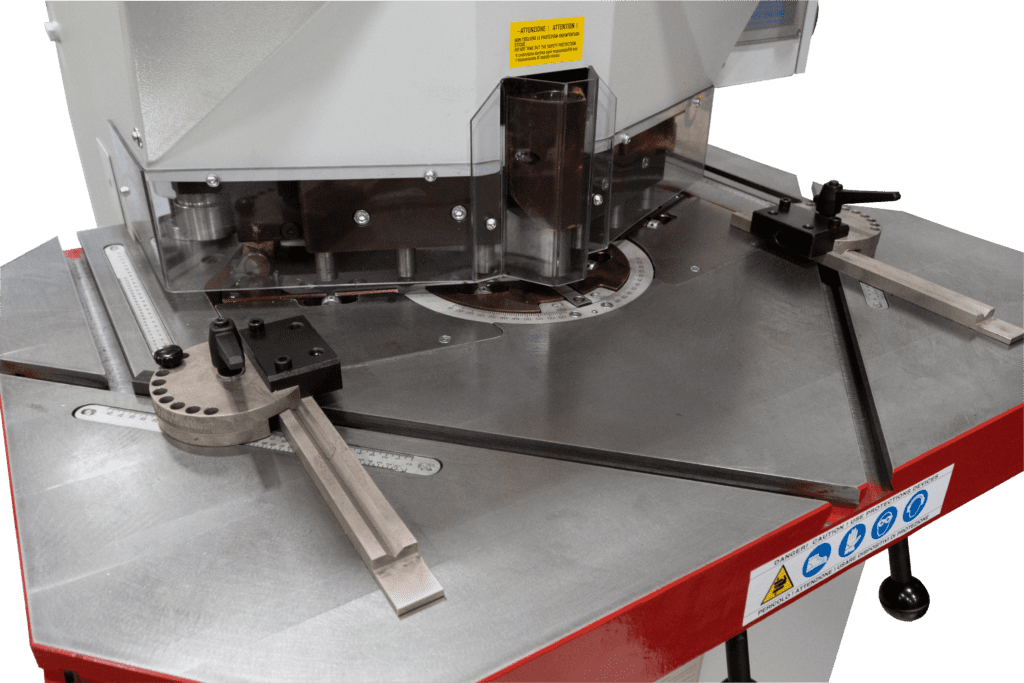

- Rigid head and GS500 cast iron workbench with conical grooves for optimal adherence of the squares.
- Cut can start from top of blades or from the base.
- Automatic adjustment of gap between blades from 1 to 6mm (patented).

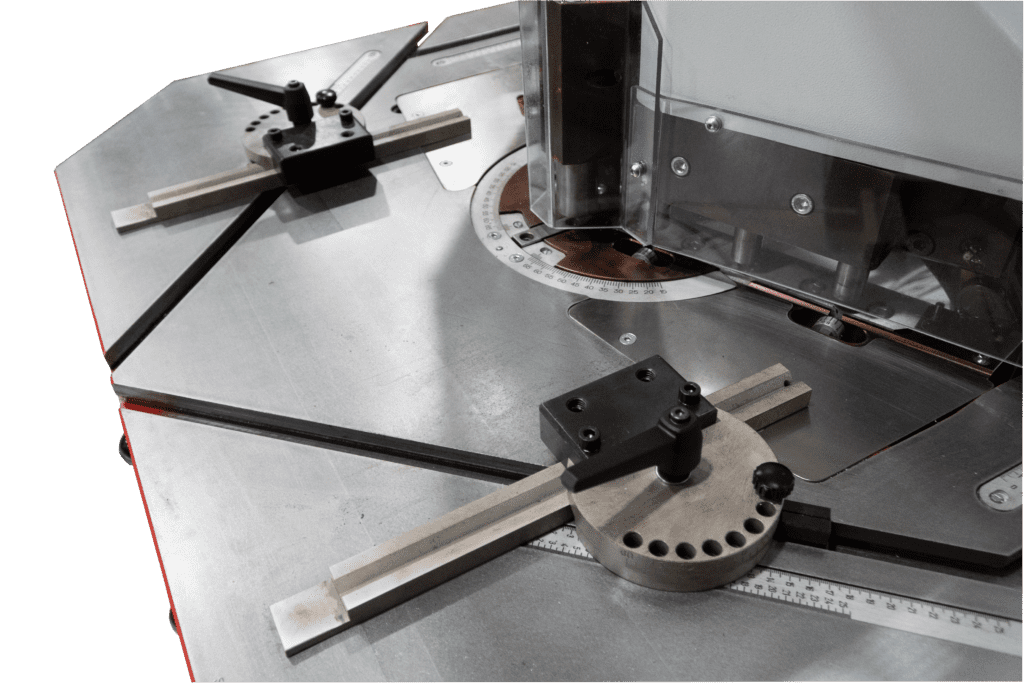

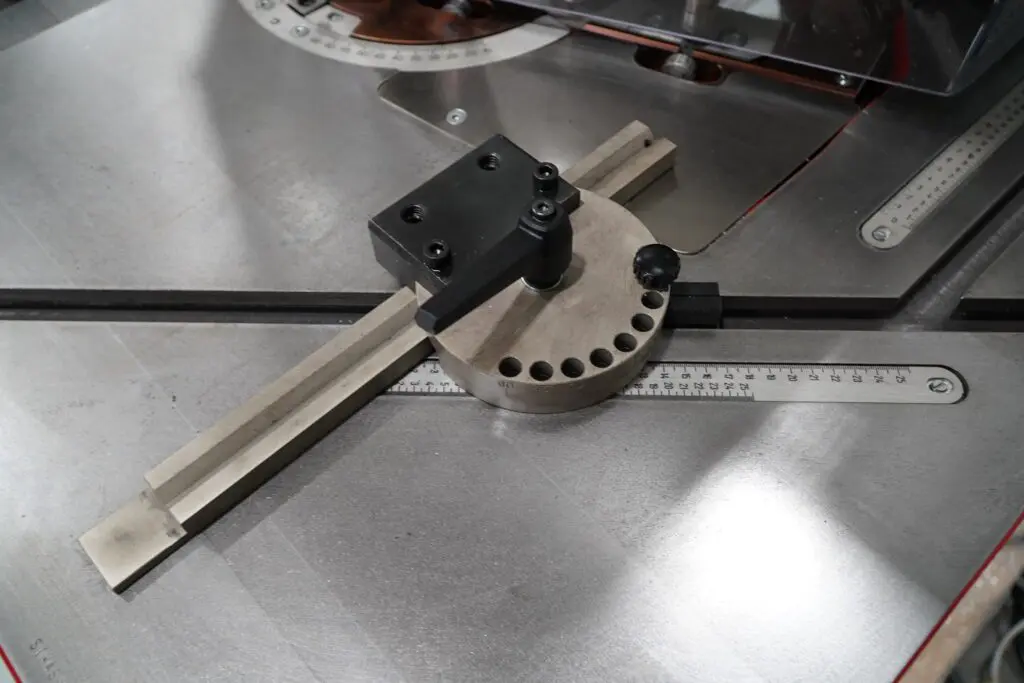

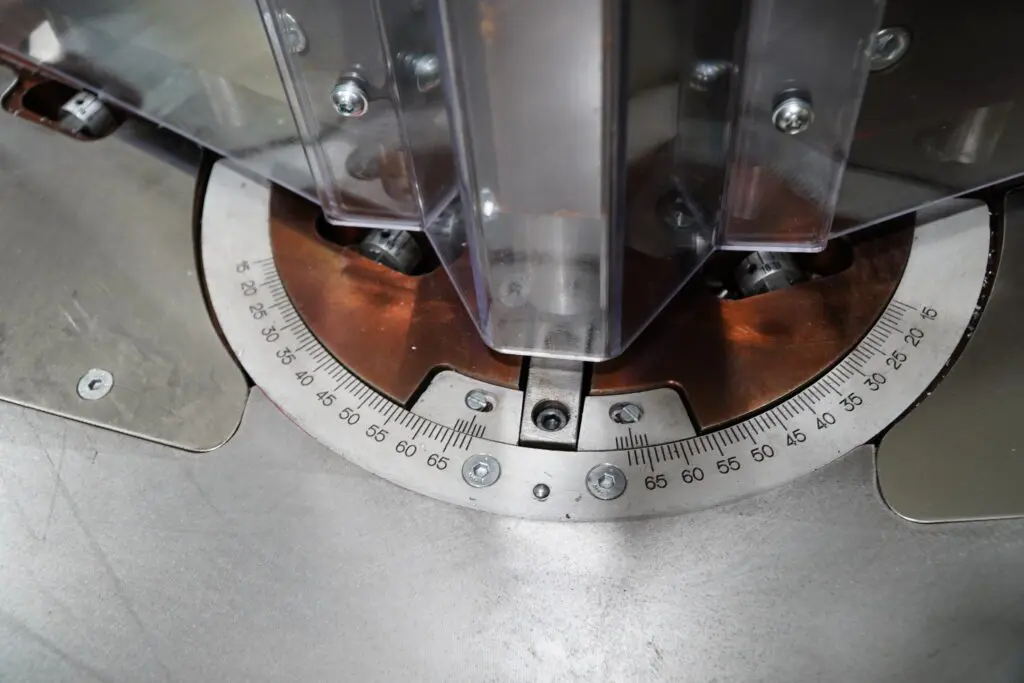

- Set of goniometric squares.
Options
- Stainless steel cutting blades.
