Morgan Rushworth HSW Hydraulic Steelworker 415V
The Morgan Rushworth HSW 45 and HSW 60 are compact universal hydraulic steelworkers with 5 work stations and have been designed for volume production with maximum efficiency. Punching, shearing, cropping, notching can be instantly carried out by pressing the movable foot pedal. The low power inch mode on each work station enables correct workpiece positioning and tool alignment. The machines are supplied with a centralised lubrication system ensuring a easy, simple maintenance programme. Adjustable hold downs are situated on all work stations to ensure safe accurate processing of material. A 1m ruled length stop is supplied as standard equipment. Selmach Machinery has two models of steelworkers which range from 60 to 175 tonnes. Our HST machines are twin operated machines providing power and accuracy whilst our HSW provide single food pedal operation and are designed with volume, production and efficiency in mind.
| MODEL | HSW 45 | HSW 60 | |
| STOCK CODE | M9001 | M9002 | |
| PUNCHING | |||
| Diameter x Maximum Thickness | mm | 22 x 15 | 28 x 15 |
| Maximum Diameter x Thickness | mm | 38 x 8 | 38 x 11 |
| Stroke Length | mm | 50 | 55 |
| Throat Depth | mm | 175 | 220 |
| Largest Hole Diameter – Standard | mm | 38 | 38 |
| Largest Hole Diameter – Optional | mm | 110 | 110 |
| SHEARING | |||
| Flat Bar – Width x Maximum Thickness | mm | 200 x 15 | 200 x 20 |
| Flat Bar – Maximum Width x Thickness | mm | 300 x 12 | 300 x 15 |
| Angle Flange Trim – max 45° | mm | 80 x 10 | 80 x 10 |
| ANGLE CUTTING | |||
| 90° Cut | mm | 100 x 10 | 127 x 12 |
| 45° Mitre (true int./ext.) | mm | 70 x 6 | 80 x 8 |
| SECTION CUTTING | |||
| Round/Square | mm | 30/25 | 40/35 |
| Channel/Beam – (Optional) | mm | 80 x 45 | 80 x 45 |
| Tee – (Optional) | mm | 40 x 5 | 40 x 5 |
| NOTCHING | |||
| Material Thickness | mm | 8 | 10 |
| Width – Rectangle | mm | 35 | 42 |
| Depth – Rectangle | mm | 75 | 100 |
| Depth – Vee | mm | 60 | 60 |
| TUBE NOTCH (OPTIONAL) | |||
| Maximum Outside Diameter | mm | 60 | 60 |
| BENDING (OPTIONAL) | |||
| Bar Bending – Maximum Capacities | mm | 100 x 12 | 150 x 12 |
| Sheet Bending – Maximum Capacities | mm | – | – |
| TECHNICAL DATA | |||
| Motor Power | kW | 4 | 4 |
| Weight | kg | 1180 | 1440 |
| Length | mm | 1450 | 1520 |
| Width | mm | 590 | 590 |
| Height | mm | 1620 | 1700 |
| based on material strength of 450 N/mm2 |
Features
- Built-in LED Lighting System
- Punch station with fully adjustable ram stroke
- Low power inching for tool alignment

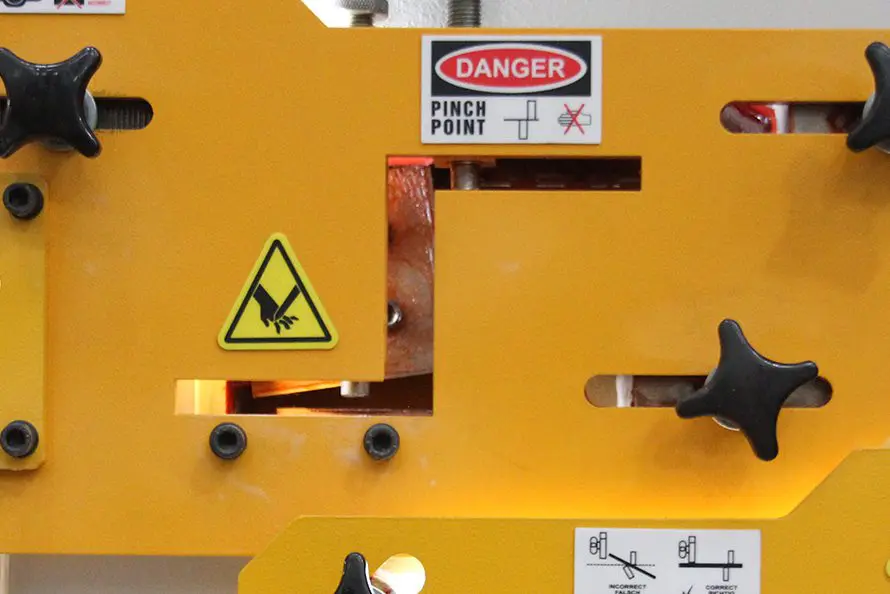

- Angle station for cropping angle iron at any angle from 90° to 45° with either internal or external mitres

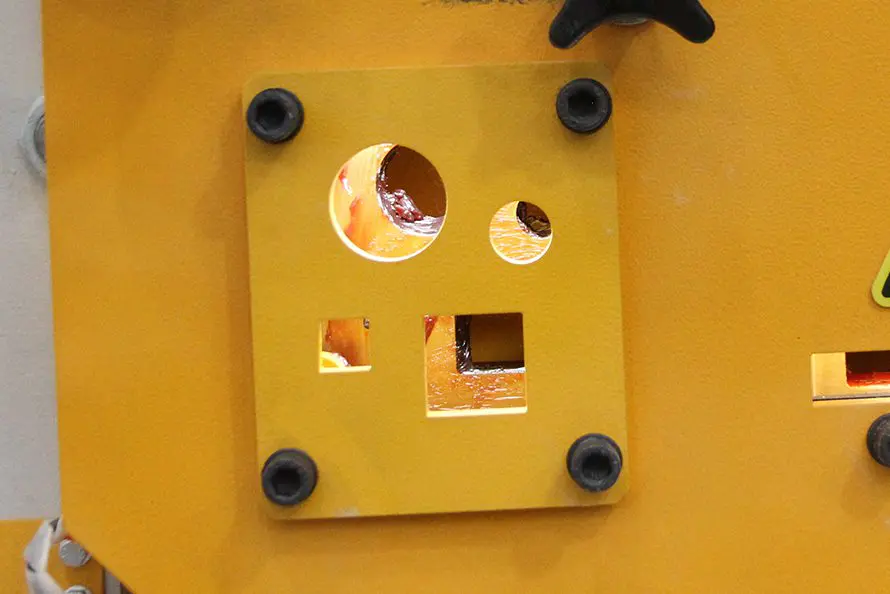

- Section cutting station for cropping round and square bar

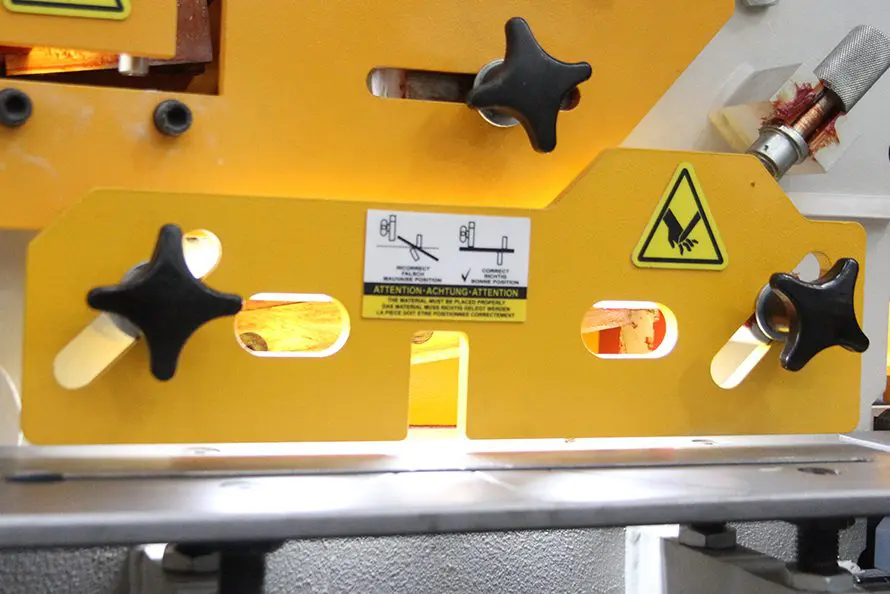

- Shear station for cutting both thin and thick material without requiring blade gap or cutting angle adjustment. Can also be used for cropping the leg of angle iron
- 1 metre ruled length stop covering all cropping/shearing stations for repetitive work

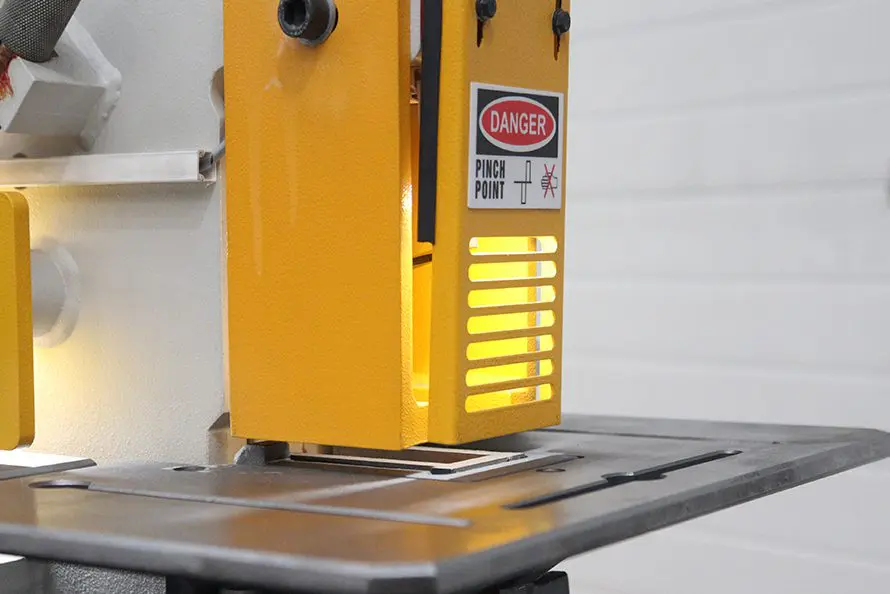

- Notching station with rectangular notch
- Centralised lubrication system
- Comprehensive safety guards
Options
- Tooling for special applications
- Flat bar bending unit at notch end

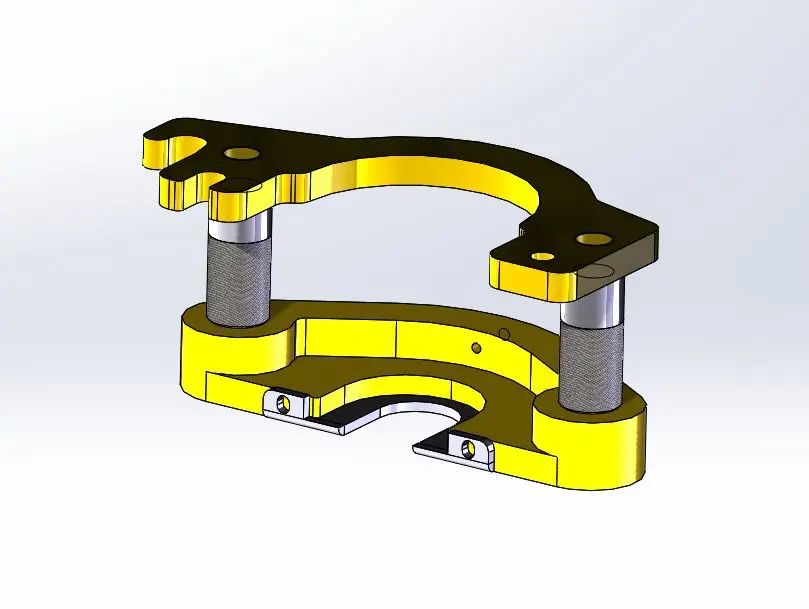

- Minimum Deform Stripper Assembly
