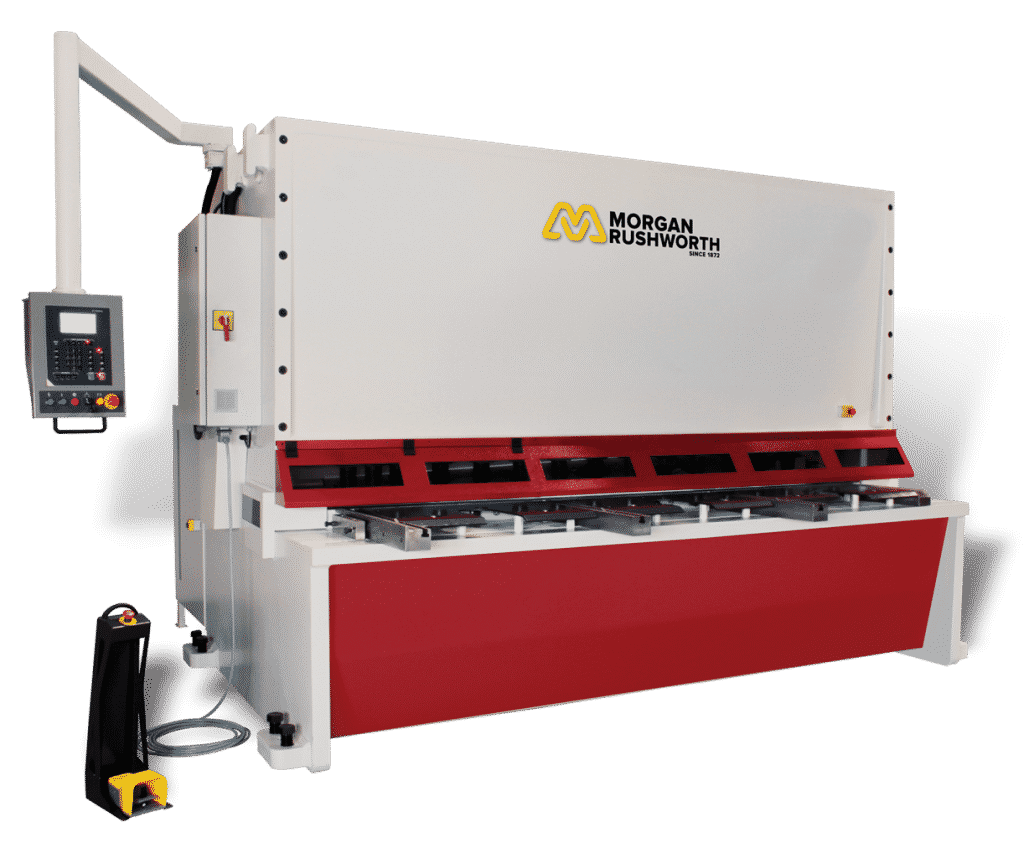

Morgan Rushworth HSVS Hydraulic Variable Rake CNC Guillotine
The Morgan Rushworth HSVS range of variable rake CNC sheet metal guillotines are heavy duty, strong machines designed for a long working life. The CNC controller automatically calculates and adjusts the blade gap, the back gauge position, cutting angle and stroke length simultaneously once the data is entered. Therefore the strokes per minute cutting cycle is significantly increased. The cutting angle automatically adjusts according to material thickness minimising the twisting of sheet during the cutting cycle.
| MODEL | STOCK CODE | CUTTING LENGTH | CUTTING CAPACITY (45 kg/mm2) | CUTTING CAPACITY (70 kg/mm2) | CUTTING ANGLE | STROKES PER MINUTE | No. OF HOLD DOWNS | WORKING PRESSURE | MAIN MOTOR | BACKGAUGE MOTOR | BACKGAUGE TRAVEL | OIL CAPACITY | No. OF SHEET SUPPORT ARMS | TABLE LENGTH | THROAT DEPTH | TABLE HEIGHT | TRANSPORT WIDTH | MACHINE WIDTH | LENGTH | WIDTH | HEIGHT | WEIGHT |
| mm | mm | mm | deg | kg/cm2 | kw | kw | mm | lt | _A mm | _F mm | _G mm | _C mm | _C+E mm | _L mm | _C+D+E mm | _H mm | kg | |||||
| HSVS CNC 3100/6 | M1080 | 3070 | 6 | 4 | 0.5-1.5 | 10–32 | 16 | 260 | 11 | 0.37 | 1000 | 240 | 2 | 3450 | 350 | 800 | 1650 | 2700 | 3880 | 3190 | 2100 | 7800 |
| HSVS CNC 3100/10 | M1081 | 3070 | 10 | 6 | 0.5-2.0 | 12–18 | 15 | 260 | 22 | 0.37 | 1000 | 360 | 2 | 3480 | 350 | 800 | 1800 | 2850 | 3910 | 3300 | 2200 | 11000 |
| HSVS CNC 3100/13 | M1082 | 3070 | 13 | 8 | 0.5-2.5 | 9–14 | 15 | 260 | 30 | 0.37 | 1000 | 360 | 2 | 3520 | 350 | 800 | 1920 | 2970 | 3950 | 3385 | 2300 | 13000 |
| HSVS CNC 3100/16 | M1083 | 3070 | 16 | 10 | 0.5-3.0 | 8–14 | 15 | 260 | 30 | 0.55 | 1000 | 400 | 2 | 3540 | 350 | 900 | 1965 | 3015 | 3970 | 3380 | 2480 | 16500 |
| HSVS CNC 3100/20 | M1084 | 3070 | 20 | 13 | 0.5-3.0 | 6–10 | 16 | 260 | 37 | 0.55 | 1000 | 400 | 2 | 3580 | 350 | 1000 | 2350 | 3400 | 4010 | 3620 | 2700 | 21000 |
| HSVS CNC 3100/25 | M1085 | 3070 | 25 | 16 | 0.5-3.5 | 4–6 | 15 | 260 | 45 | 0.55 | 1000 | 600 | 2 | 3560 | 350 | 1100 | 2280 | 3330 | 3990 | 3605 | 3220 | 23000 |
| HSVS CNC 4100/6 | M1086 | 4070 | 6 | 4 | 0.5-1.5 | 16–25 | 21 | 260 | 11 | 0.55 | 1000 | 360 | 3 | 4460 | 350 | 900 | 2000 | 3050 | 4890 | 3450 | 2250 | 12000 |
| HSVS CNC 4100/10 | M1087 | 4070 | 10 | 6 | 0.5-2.0 | 9–14 | 21 | 260 | 22 | 0.55 | 1000 | 360 | 3 | 4500 | 350 | 900 | 1920 | 2970 | 4930 | 3380 | 2360 | 15000 |
| HSVS CNC 4100/13 | M1088 | 4070 | 13 | 8 | 0.5-2.5 | 7–14 | 21 | 260 | 30 | 0.55 | 1000 | 400 | 3 | 4520 | 350 | 1000 | 2280 | 3330 | 4950 | 3645 | 2630 | 18000 |
| HSVS CNC 4100/16 | M1089 | 4070 | 16 | 10 | 0.5-3.0 | 7–12 | 21 | 260 | 30 | 0.55 | 1000 | 400 | 3 | 4540 | 350 | 1000 | 2300 | 3350 | 4970 | 3630 | 2800 | 23500 |
| HSVS CNC 4100/20 | M1090 | 4070 | 20 | 13 | 0.5-3.0 | 6–9 | 21 | 260 | 37 | 0.55 | 1000 | 400 | 3 | 4570 | 350 | 1100 | 2350 | 3400 | 5000 | 3630 | 2900 | 26000 |
| HSVS CNC 6100/6 | M1091 | 6070 | 6 | 4 | 0.5-2.0 | 12–18 | 30 | 260 | 18.5 | 0.55 | 1000 | 360 | 4 | 6460 | 350 | 1000 | 2200 | 3250 | 6890 | 4130 | 2690 | 22000 |
| HSVS CNC 6100/10 | M1092 | 6070 | 10 | 6 | 0.5-2.0 | 6–10 | 30 | 260 | 22 | 0.55 | 1000 | 400 | 4 | 6480 | 350 | 1000 | 2200 | 3250 | 6910 | 4045 | 2750 | 30000 |
| HSVS CNC 6100/13 | M1093 | 6070 | 13 | 8 | 0.5-2.5 | 6–10 | 30 | 260 | 30 | 0.75 | 1000 | 400 | 4 | 6520 | 350 | 1200 | 2350 | 3400 | 6950 | 4200 | 3090 | 38000 |
| HSVS CNC 6100/16 | M1094 | 6070 | 16 | 10 | 0.5-3.0 | 5–9 | 30 | 260 | 37 | 0.75 | 1000 | 400 | 4 | 6540 | 350 | 1200 | 2500 | 3550 | 6970 | 4420 | 3250 | 43000 |
| HSVS CNC 6100/20 | M1095 | 6070 | 20 | 13 | 1.0-3.0 | 5–9 | 30 | 260 | 37 | 0.75 | 1000 | 600 | 4 | 6560 | 350 | 1200 | 2500 | 3550 | 6990 | 4280 | 3330 | 48000 |
Features
- Variable rake design

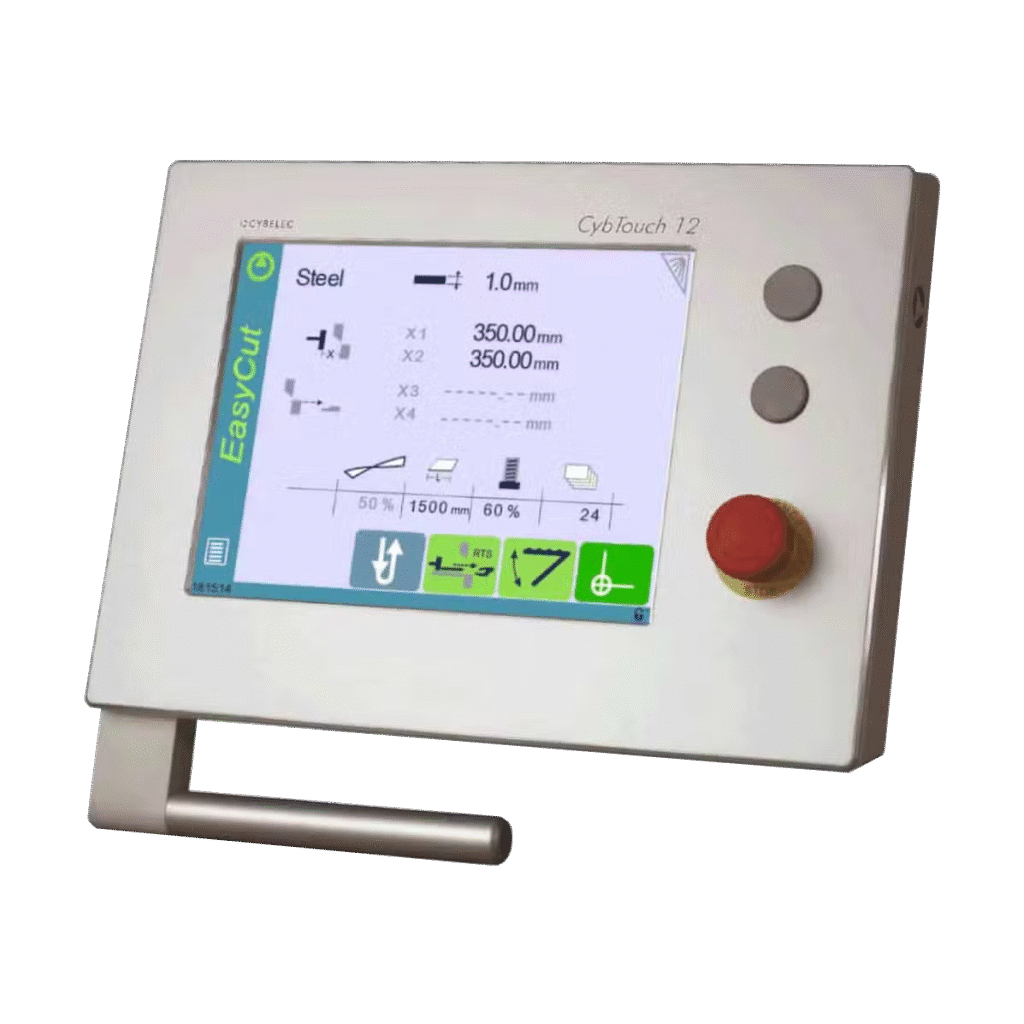

- Cybelec DNC60 CNC controlling blade gap, back gauge, stroke and cutting angle
- Adjustable stroke length to reduce stroke time when cutting narrower widths
- Digital stroke counter
- 1000mm powered ball screw backgauge with swing away feature for longer cutting lengths
- Back gauge retract feature
- High quality stainless grade top and bottom blades
- Top blade with 2 cutting edges and bottom blade with 4 cutting edges
- Cutting line illumination
- Front finger guards with windows
- Side throat guards
- Compact low-maintenance hydraulic system
- Hydraulic overload protection
- Powerful material hold downs to prevent sheet sliding during cutting action
- Support table with roller bearings
- 1000mm Front squaring arm with measuring scale, tee slot and flip stop
- 1000mm Front support arms
- Foot pedal for single or continuous cutting cycles
- Photo cell rear guards
- Centralised lubrication system
Options
- Pneumatic rear sheet support system
- Anti twist device
- Hydraulic automatic swing away back gauge in lieu of standard powered
- Angle gauge
- Tee slots and flip stops on front support arms
- 1 metre lift up finger guard with interlock switch
- Front CE light guards in lieu of standard fixed front guards
