Morgan Rushworth HSV Vertical Hydraulic Steelworker 415V

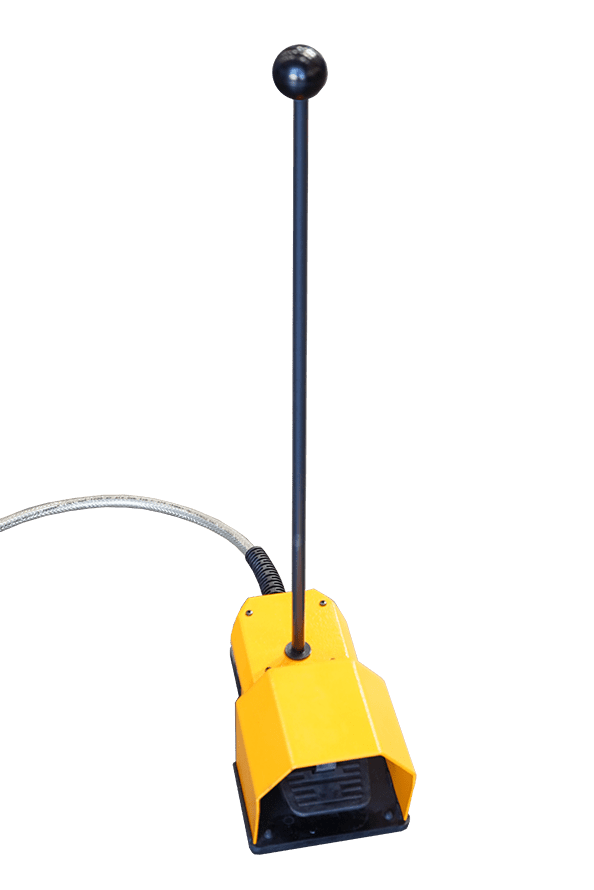

The Morgan Rushworth HSV hydraulic vertical steelworkers supplied with standard tooling including repetition support tables at punch, shear and the notch stations. This compact universal hydraulic steelworker features 5 work stations and have been designed for volume production with maximum efficiency. Punching, shearing, cropping, notching can be instantly carried out by pressing the movable foot pedal. Comprehensive safety guards are fitted as standard on all work stations. The system gives accurate power inching to all five work stations and allows the machine to be stopped at any position giving safe accurate tool setting and work positioning. The vertical ram system ensures maximum shearing quality on angle material.
A 1m auto crop ruled length stop is supplied as standard.
TECHNICAL DATA
| MODEL | HSV 70 | |
| STOCK CODE | M9017 | |
| PUNCHING | ||
| Diameter x Maximum Thickness | mm | 22 x 20 |
| Maximum Diameter x Thickness | mm | 38 x 11 |
| Stroke Length | mm | 40 |
| Throat Depth | mm | 240 |
| SHEARING | ||
| Flat Bar – Width x Maximum Thickness | mm | 350 x 15 |
| Flat Bar – Maximum Width x Thickness | mm | 250 x 19 |
| Angle Flange Trim – max 45° | mm | 70 x 7 |
| ANGLE CUTTING | ||
| 90° Cut | mm | 130 x 13 |
| 45° Mitre (true int./ext.) | mm | 70 x 10 |
| SECTION CUTTING | ||
| Round/Square | mm | 40 – 38 |
| NOTCHING | ||
| Material Thickness | mm | 8 |
| Width – Rectangle | mm | 50.8 |
| Depth – Rectangle | mm | 90 |
| BENDING (OPTIONAL) | ||
| Bar Bending – Maximum Capacities | mm | 110 x 8 |
| Sheet Bending – Maximum Capacities | mm | 250 x 6 |
| Motor Power | kW | 5.5 |
| Weight | kg | 1215 |
| Length | mm | 1180 |
| Width | mm | 950 |
| Height | mm | 1920 |
| based on material strength of 450 N/mm2 |
Features
- Built-in LED Lighting System
- Punch station with fully adjustable ram stroke
- Low power inching for tool alignment

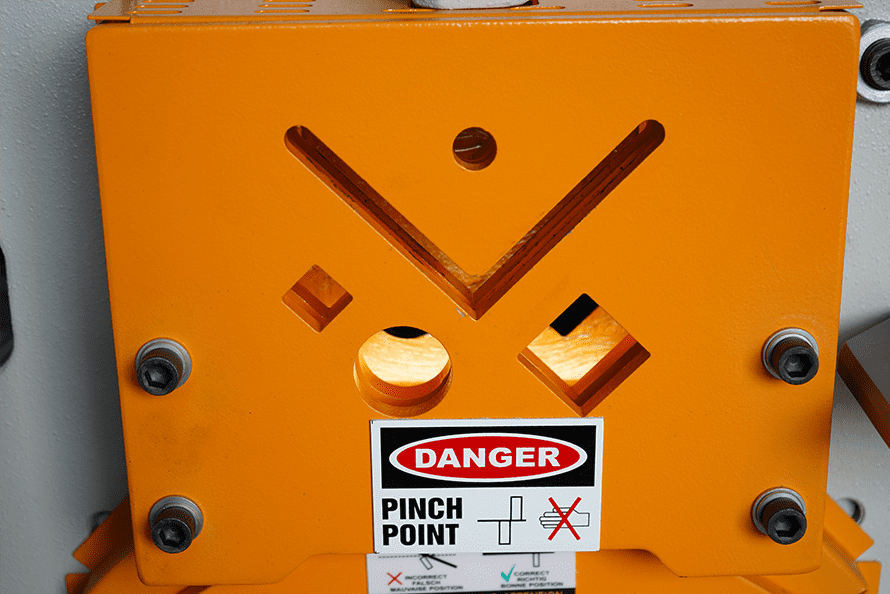

- Angle station for cropping angle iron at any angle from 90° to 45° with either internal or external mitres

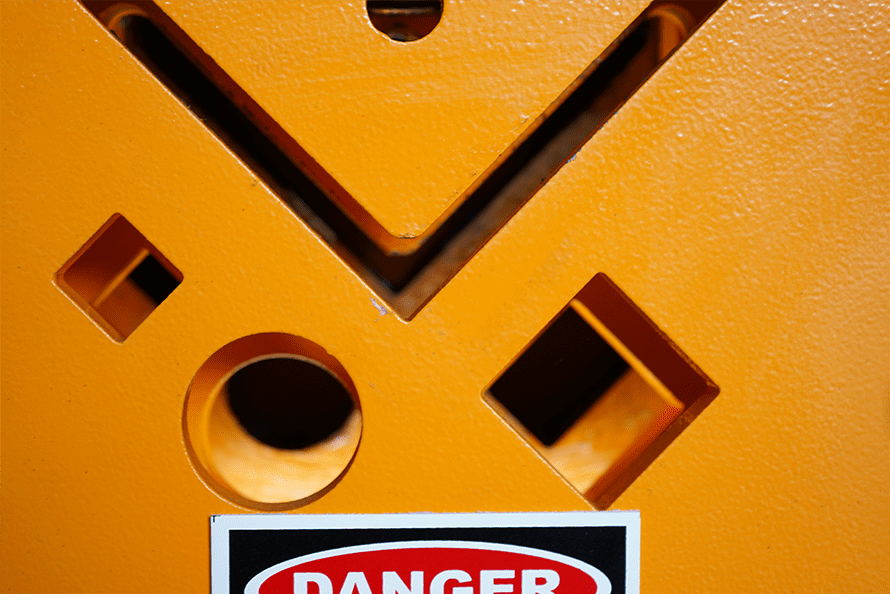

- Section cutting station for cropping round and square bar

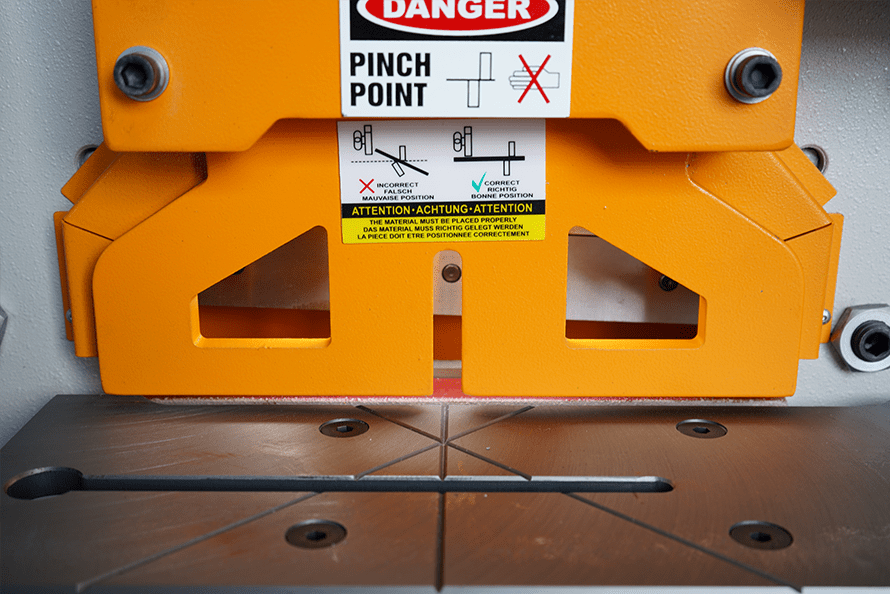

- Shear station for cutting both thin and thick material without requiring blade gap or cutting angle adjustment. Can also be used for cropping the leg of angle iron

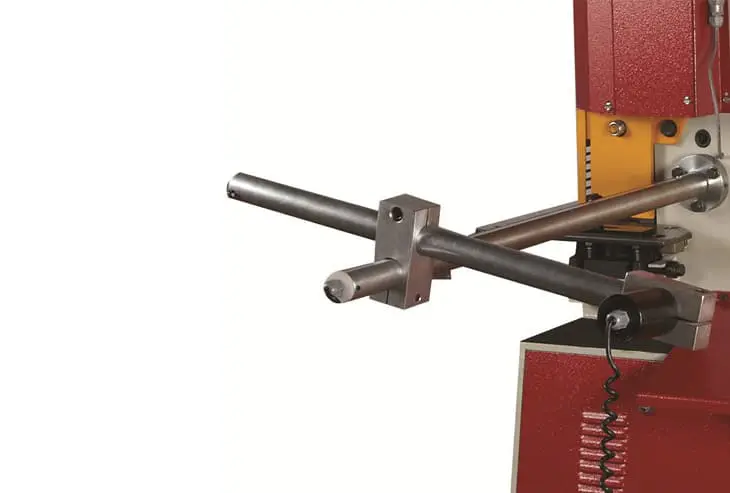

- 1 metre ruled length stop covering all cropping/shearing stations for repetitive work

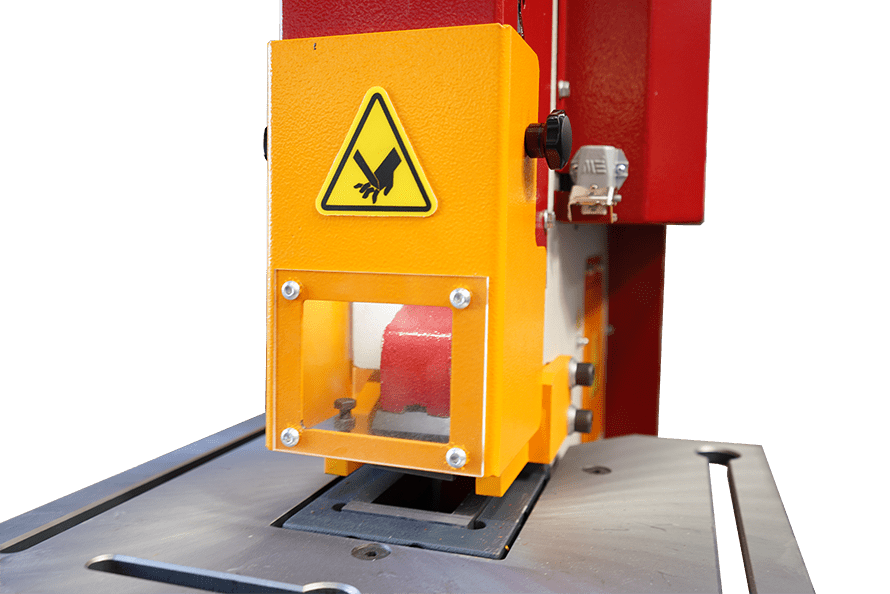

- Notching station with rectangular notch
- Comprehensive safety guards
Options
- Tooling for special applications
- Flat bar bending unit at punch end
