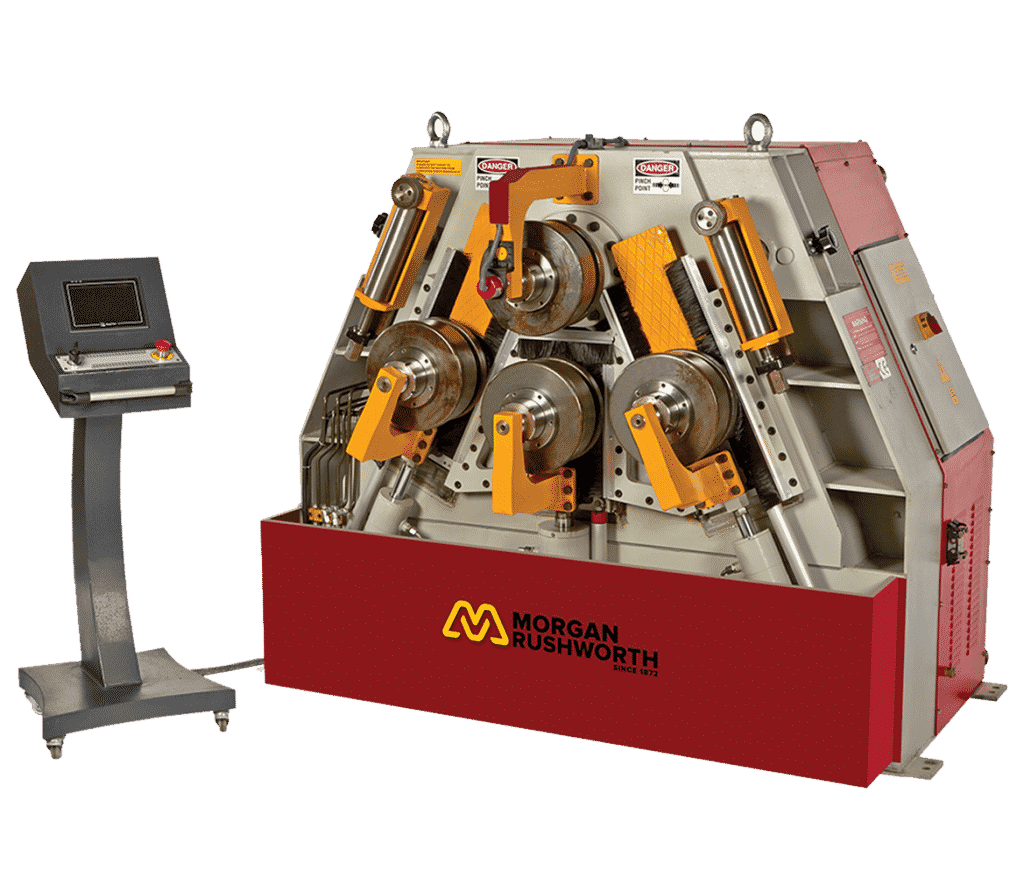

Morgan Rushworth HSR-4 Hydraulic Section Ring Rolling Machine
The Morgan Rushworth HSR-4 is a revolution in section bending. This unique new 4 roll machine brings all the benefits of 4 roll plate bending to section bending. The finished product has significantly reduced flat end, compared to 3 roll machines, due to the double pinching process. The optional touch screen NC Control allows for greater repeat-ability and accuracy with the ability to save down configurations.
| Flat Bar on Edge at 800mm | 80 x 20mm |
|---|---|
| Flat Bar as Flat at 600mm | 125 x 25mm |
| Square Bar at 500mm | 45 x 45mm |
| Round Bar at 500mm | 50mm |
| Round Tube at 1200mm | 100 x 2.5mm |
| Round Pipe at 800mm | 88.9 x 5.5mm |
| Rectangular Hollow Section at 800mm | 80 x 25 x 3mm |
| Square Hollow Section at 1300mm | 70 x 70 x 3mm |
| Angle Iron Toe Out at 800mm | 80 x 80 x 8mm |
| Angle Iron Toe In at 700mm | 70 x 70 x 7mm |
| Tee Section Toe Out at 800mm | 80 x 9mm |
| Tee Section Toe In at 800mm | 70 x 8mm |
| Tee Section Toe Up/Down at 800mm | 80 x 9mm |
| Channel Legs Out at 900mm | UPN 120 mm |
| Channel Legs In at 1000mm | UPN 120 mm |
| Power | 5.5 kw |
| Rolls Diameter | 260mm |
| Shafts Diameter | 80mm |
| Bending Speed | 5.2m/min |
|---|---|
| Length | 1700mm |
| Width | 1450mm |
| Height | 1200mm |
| Weight | 2000kg |
Features
- Unique 4 Roll Design
- Ability to double pinch material ensuring minimal flat on end of bend
- 2 rolls driven
- Hydraulic adjustment of lower pinch roll
- Hydraulic adjustment of two bending rolls
- Hardened and ground high tensile roll shafts
- Standard modular rolls suitable to bend a wide range of profiles
- Induction hardened and ground rolls
- Smooth rolls ensure minimum material marking
- Manual lateral guide rolls with adjustment in one axis
- Steel welded frame

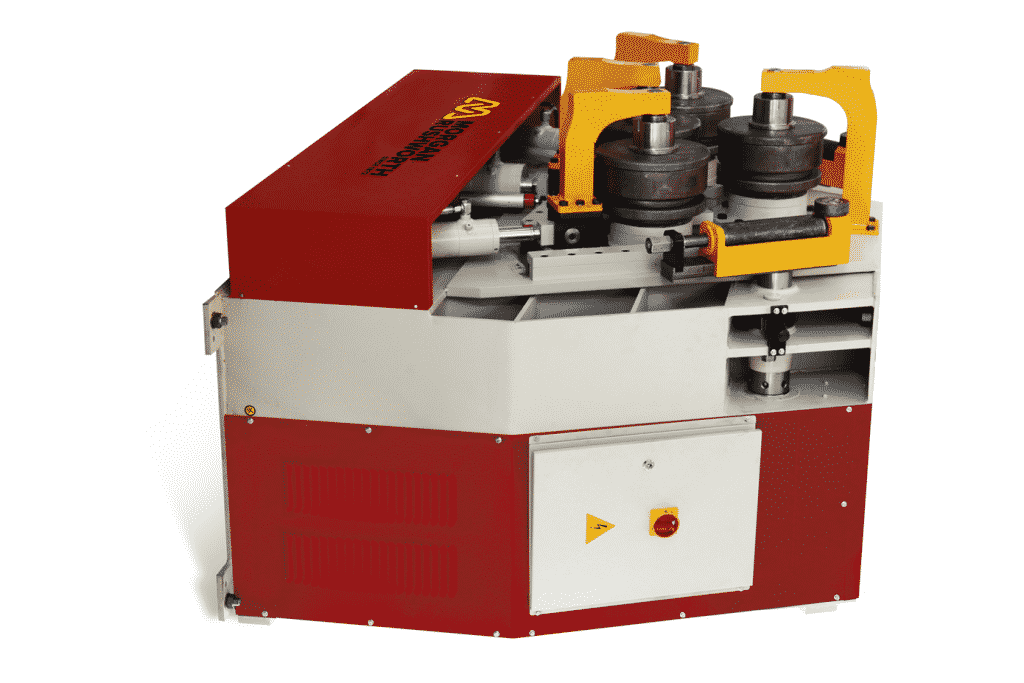

- Horizontal and vertical working positions
- Mobile control panel
Options
- 3 rolls driven
- Manual lateral guide rolls with adjustment in one axis
- 4-axis NC control unit; controls position of lower pinch roll, both bending rolls and the feeding of the material. Includes 100 program memories
