Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v

The Morgan Rushworth HSR-3 range of hydraulic section bending machines are designed to roll various material sections and are available with shaft diameters from 40mm up to 120mm. All models are equipped with twin hydraulic rams to position the lower rolls, providing pre- bending capability and the convenience of performing the bending operation with the material in the horizontal position. All of the HSR-3 machines can be operated in either the vertical or horizontal plane. The standard rolls supplied with the machine are hardened and have been designed to bend most sections, with the exception of round tube for which tools are available as an option. Lateral guide rolls ensure straight and true bending, or if required can be adjusted in order to spiral the material.

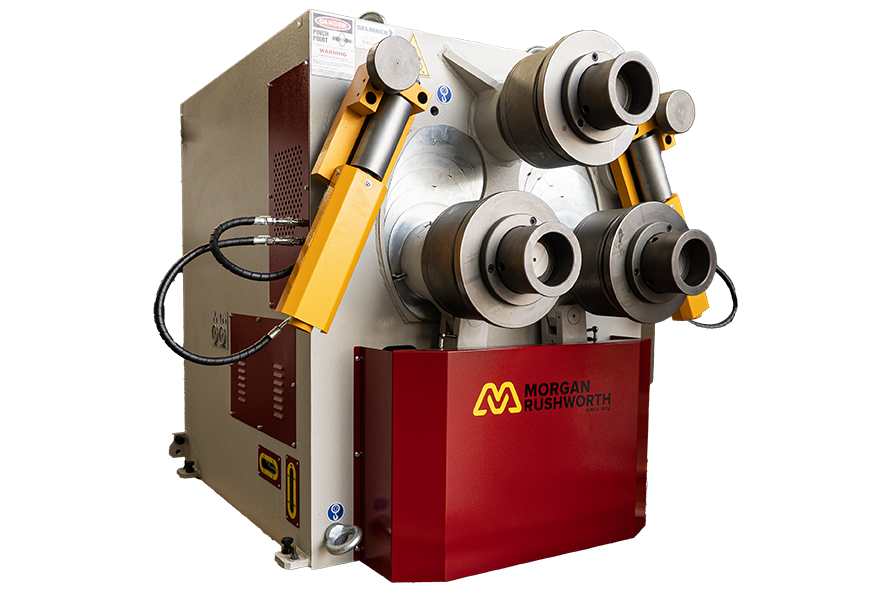

Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v imageMorgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 2

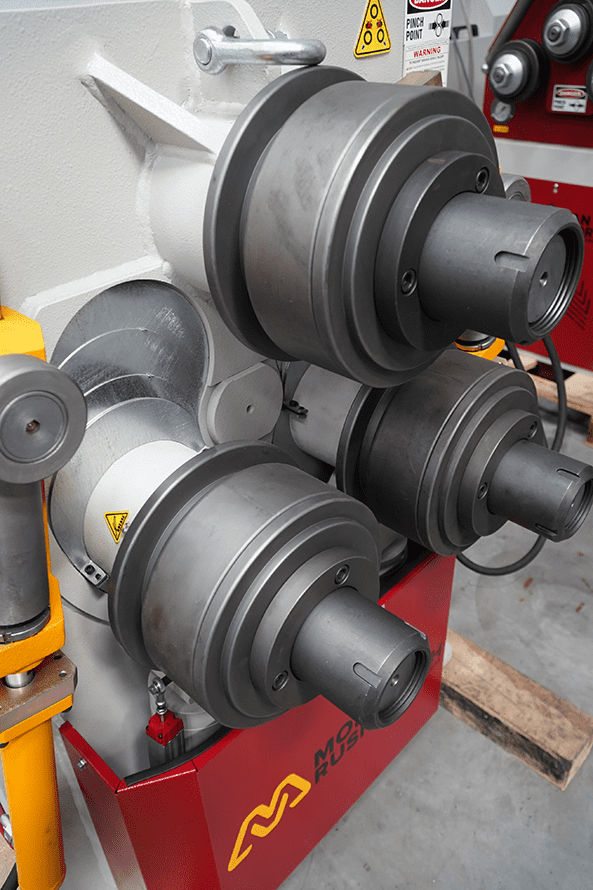

Tooling
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 2
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 3

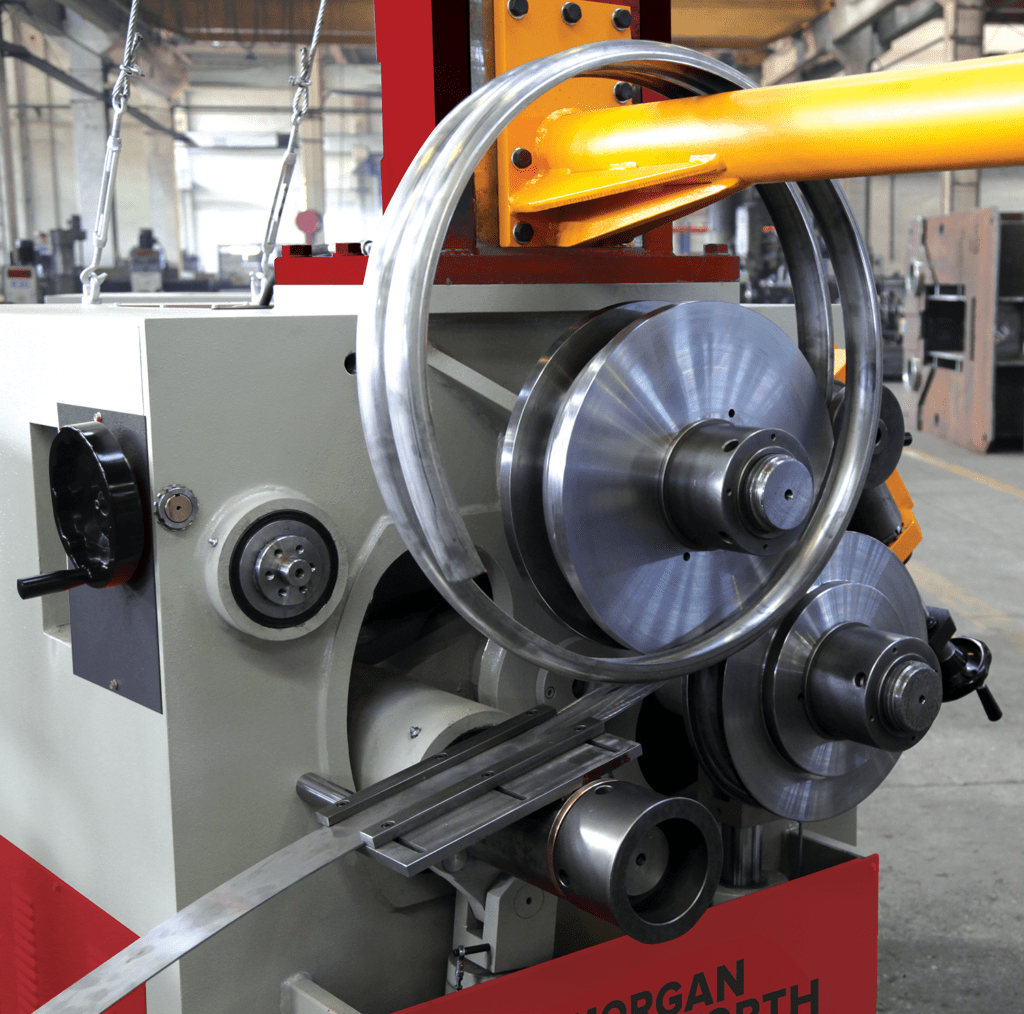

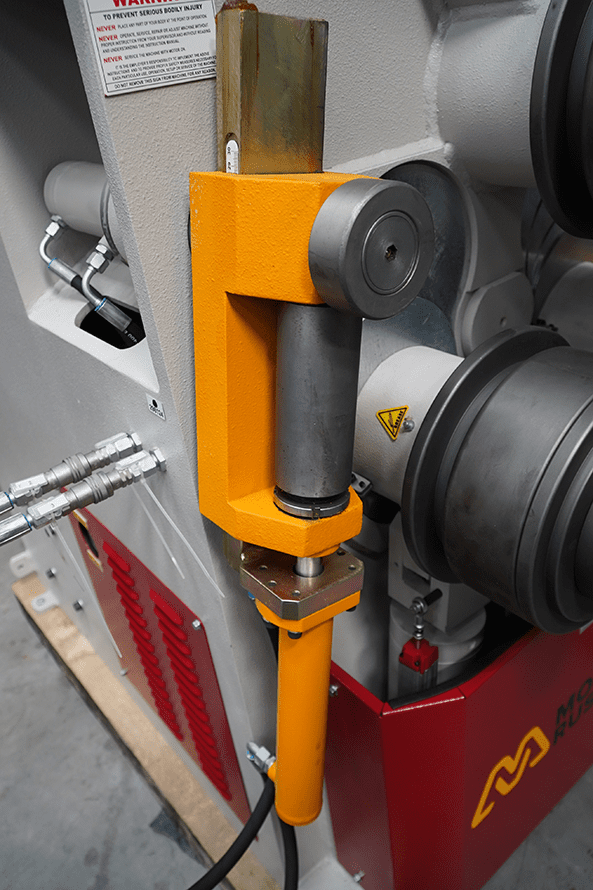

Lateral Guide Rolls
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 3
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 4Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 4
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 5
Hydraulics Gauge
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 5
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 6

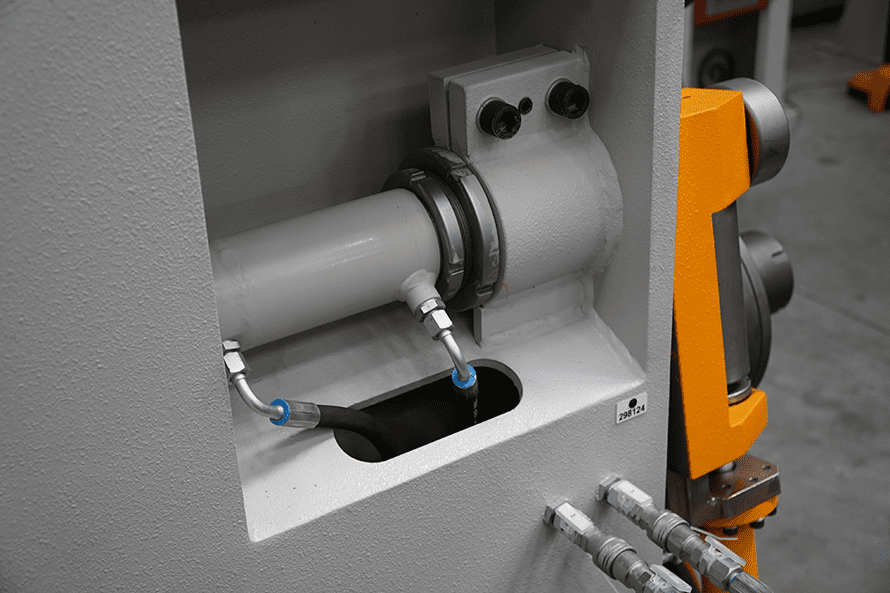

Heavy-Duty Hydraulics
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 6
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 7

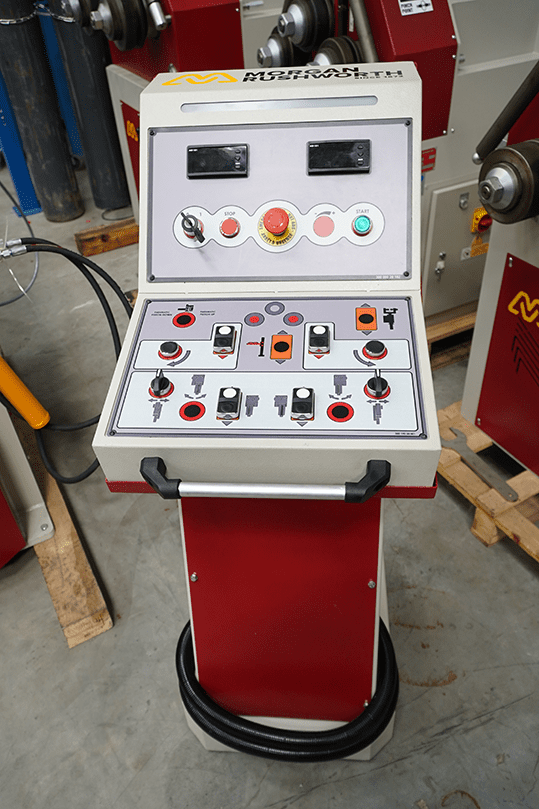

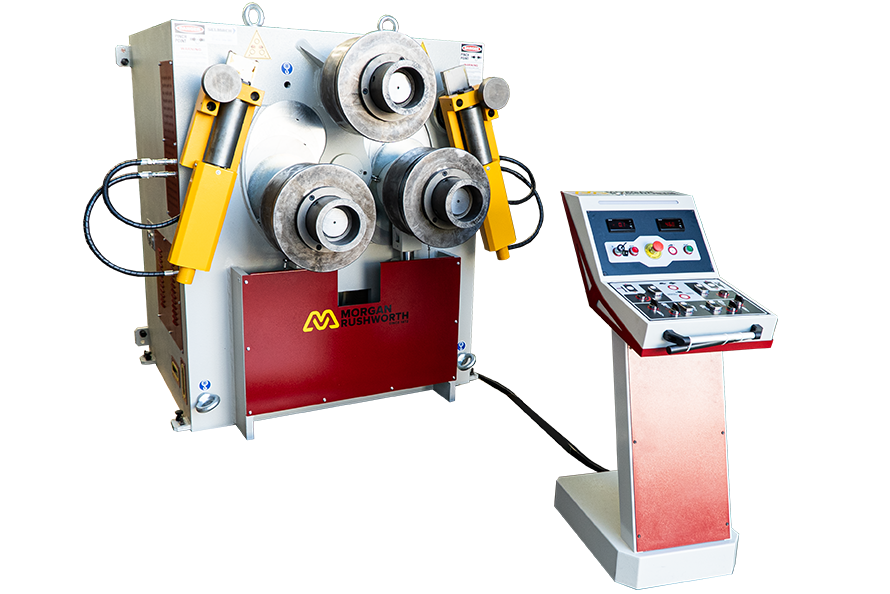

Controller
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 7
Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 8Morgan Rushworth HSR-3 Hydraulic Ring Rolling Machine 415v image 8
MODEL   HSR-3 40/140 HSR-3 60/180 HSR-3 80/245 HSR-3 100/315 HSR-3 120/390 HSR-3 180/460 HSR-3 240/550 HS-3 280/660 HSR-3 300/740 HSR-3 360/800 HSR-3 550/800
STOCK CODE M6027 M6016 M6017 M6018 M6019
Shaft diameter mm 35 60 80 100 120 180 – 160 240 – 220 280-260 300 – 280 360 -360 360 -360
Roll diameter mm 137 180 245 315 390 460 550 660 740 800 800
Rolling speed m/min 7 5 6 7 2 – 7.5 0 – 7 0 – 7 0 – 7 7 7 7
Power kW 1.1 3 4 7.5 15 15 30 37 64 70 99
Length mm 1050 1200 1450 2000 2000 2400 3360 3800 4350 6580 6580
Width mm 500 850 1000 1450 1650 2000 2240 2850 3350 4820 4820
Height mm 1250 1200 1400 1700 1900 1695 2055 2220 2250 4090 4310
Weight kg 350 1000 1700 3650 4770 9250 16900 18500 26400 48000 61500

For bending capacities, see our capacities chart

Features

  • All three rolls driven for excellent traction
  • Smooth rolls ensure minimum material marking
  • Hardened rolls
  • Movable control panel
  • Digital read out indicating both lower roll position
  • Overload protection device
  • Hydraulically adjusted lateral guide rolls in 2 axis
  • Hydraulically powered rotation

Options

  • Tube rolls
  • Variable speed of rotation
  • Spiral bending device
  • NC control system
  • CNC control system

The Morgan Rushworth HSR-3 range of hydraulic section bending machines are designed to roll various material sections and are available with shaft diameters from 40mm up to 120mm. All models are equipped with twin hydraulic rams to position the lower rolls, providing pre- bending capability and the convenience of performing the bending operation with the material in the horizontal position. All of the HSR-3 machines can be operated in either the vertical or horizontal plane. The standard rolls supplied with the machine are hardened and have been designed to bend most sections, with the exception of round tube for which tools are available as an option. Lateral guide rolls ensure straight and true bending, or if required can be adjusted in order to spiral the material.

The optional Morgan Rushworth NC controller provides automation, greater control and increased production to section bending. The controller can be used in manual, semi-automatic and automatic modes. Roll positions are indicated on the control panel and in manual mode can be used similar to a conventional digital read out system. The controller can also be used in teach mode where the bending is carried out manually with all rolling and pre-bending functions recorded and then locked in the memory. If necessary the program can then be edited to fine tune as required. Alternatively a program can be entered line by line into the controller, carry out a test bend and again be edited if required. The NC unit has a 500 program capacity with up to 200 lines per program. Program storage may be further increased with the use of USB flash memory.
