Morgan Rushworth HSPD Hydraulic Double Punching Machine 415V

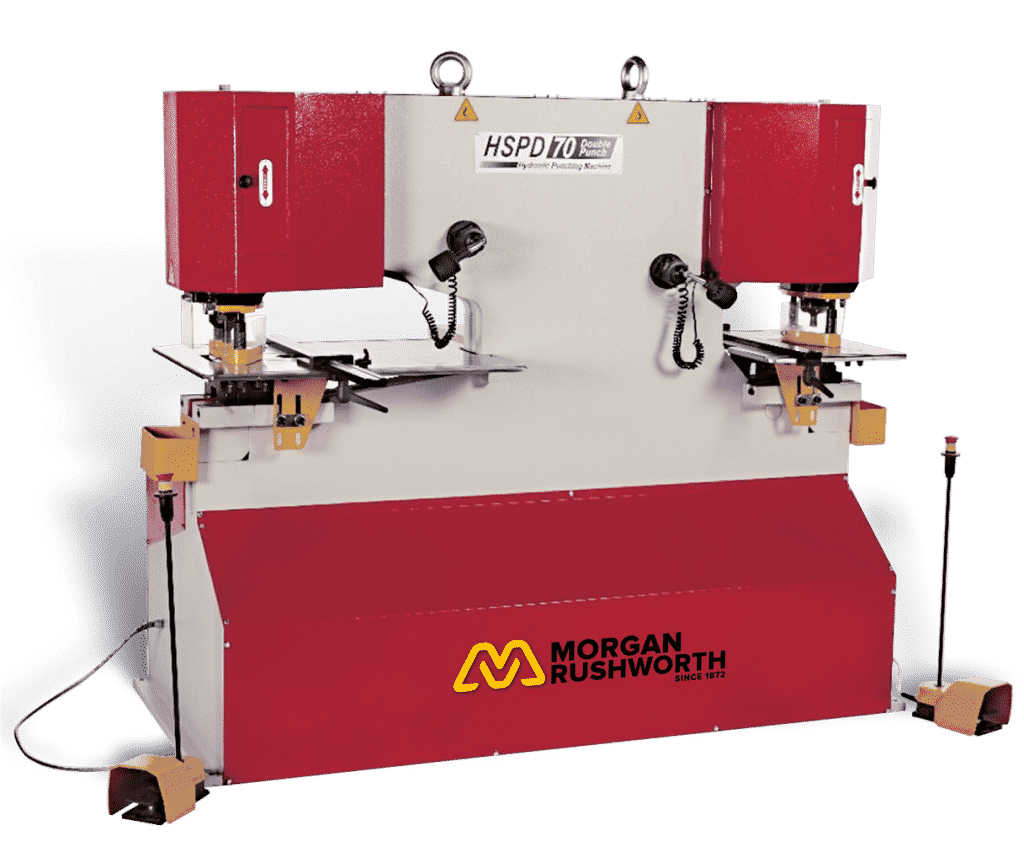

The Morgan Rushworth hydraulic punching machines are available in models from 70 tonne up to 175 tonne capacity. All double punch models are equipped with a 625mm deep throat one end and a 305mm the other as standard configuration. The heavy-duty support table with adjustable backstop, universal die holder for the punching of plate, flat bar, angle iron and flange of channel and beam are all included in the standard execution. The punching machines are also available in single-ended configuration. The standard machine allows punching of up to 57mm diameter without additional equipment. The front section of the support table can be removed in order to punch angle-iron leg down. A wide range of options are available including bar bending, sheet bending and corner notching.
| MODEL | HSPD 70 | HSPD 95 | HSPD 125 | HSPD 175 | |||||
| STOCK CODE | M9011 | M9012 | M9013 | M9014 | |||||
| Punching | |||||||||
| Diameter X Maximum Thickness | mm | 26 x 20 | 33 x 20 | 34 x 26 | 40 x 32 | ||||
| Maximum Diameter X Thickness | mm | 57 x 10 | 57 x 12 | 57 x 16 | 57 x 22 | ||||
| Stroke Length | mm | 55 | 80 | 80 | 80 | ||||
| Throat Depth | mm | 625 | 625 | 625 | 625 | ||||
| Largest Hole Diameter – Standard | mm | 57 | 57 | 57 | 57 | ||||
| Largest Hole Diameter (Optional) | mm | 110 | 110 | 110 | 110 | ||||
| Tube Notch (Optional) | |||||||||
| Maximum Outside Diameter | mm | 83 | 108 | 108 | 165 | ||||
| Bending (Optional) | |||||||||
| Bar Bending – Maximum Capacities | mm | 200 x 15 | 250 x 20 | 250 x 22 | 250 x 25 | ||||
| Sheet Bending – Maximum Capacities | mm | 500 x 3 | 500 x 3 | 700 x 3 | 700 x 4 | ||||
| Corner Notching (Optional) | |||||||||
| Maximum Capacity | mm | 250 x 6 | 250 x 6 | 250 x 6 | 250 x 6 | ||||
| Technical Data | |||||||||
| Motor Power | kW | 5.5 | 7.5 | 11 | 11 | ||||
| Length | mm | 1900 | 2250 | 2350 | 2800 | ||||
| Width | mm | 950 | 950 | 950 | 1100 | ||||
| Height | mm | 1800 | 1920 | 1970 | 2160 | ||||
| Weight | kg | 2900 | 3700 | 4600 | 6750 |
Features
- Double punching stations
- Deep throat one end – 625mm
- Standard throat one end – 305mm
- Full stroke adjustment
- Low power inching
- Punch table with multipurpose bolster – Removable table block for overhang channel/joist flange punching
- Low maintenance
- Overload relief on hydraulic system
- Swing away punch stripper unit
- Easy change punch holder
- Punch table with guides
- Work station guard
Options
- Large hole attachments
- Bending units
- Special tooling & accessories
