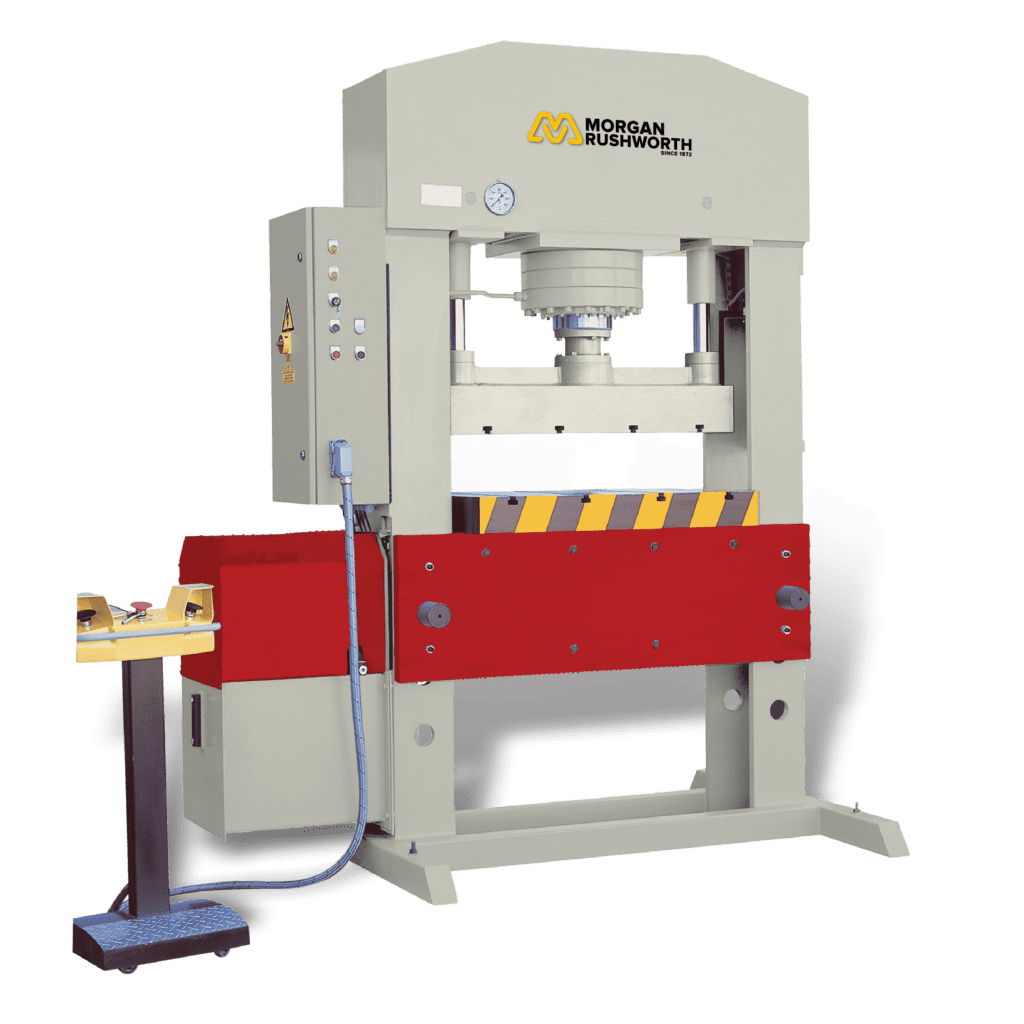

Morgan Rushworth HFPX Hydraulic H Frame Press 415V
The heavily constructed HFPX H-Frame presses are ideal for a whole variety of bending, forming, pressing and straightening operations. These models include many features of the popular HFP models but with the addition of heavy top and bottom ram plates with tee slots for easy fixture of tools, adjustable limit switches for ram stroke and return, and twin guidance pistons in addition to the main ram.
| MODEL | Stock code | Power | Distance between Frames | Stroke | Advance speed | Working speed | Return speed | Motor power | Length | Width | Height | Weight |
| Tonnes | mm | mm | mm/sec | mm/sec | mm/sec | kW | mm | mm | mm | Kg | ||
| HFPX 1020/100 | M4512 | 100 | 1020 | 300 | 8 | 5 | 10 | 7.5 | 2100 | 1000 | 2270 | 1985 |
| HFPX 1520/100 | M4513 | 100 | 1520 | 300 | 8 | 5 | 10 | 7.5 | 2600 | 1000 | 2400 | 2500 |
| HFPX 1020/150 | M4514 | 150 | 1020 | 300 | 9 | 5 | 10 | 11 | 2100 | 1000 | 2270 | 2450 |
| HFPX 1520/150 | M4515 | 150 | 1520 | 300 | 9 | 5 | 10 | 11 | 2600 | 1000 | 2400 | 3200 |
Features

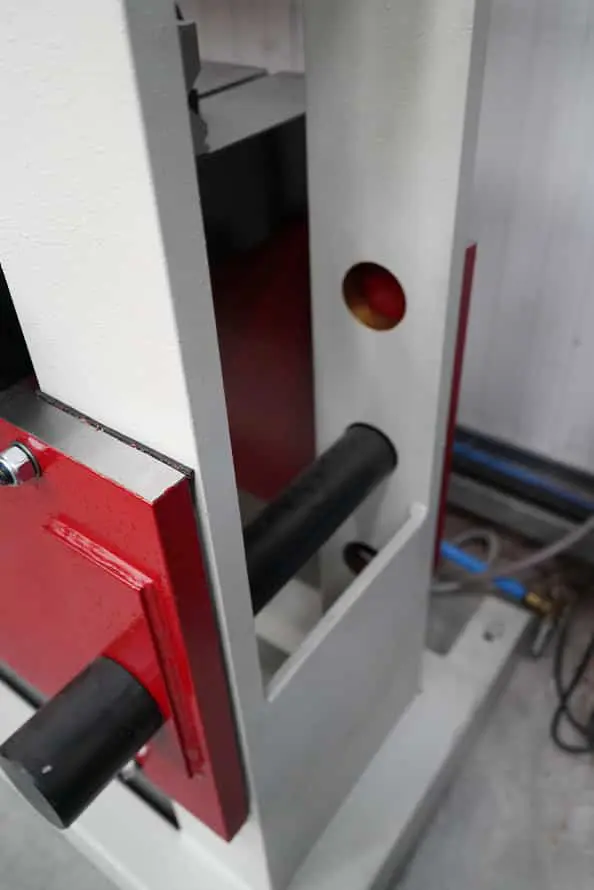

- Easily adjusted bed height with two hardened pins
- Top and bottom ram plates with tee slots
- Quiet hydraulic system
- Hydraulic cylinder mounted above providing vertical pressure
- Twin guide pistons in addition to the main ram

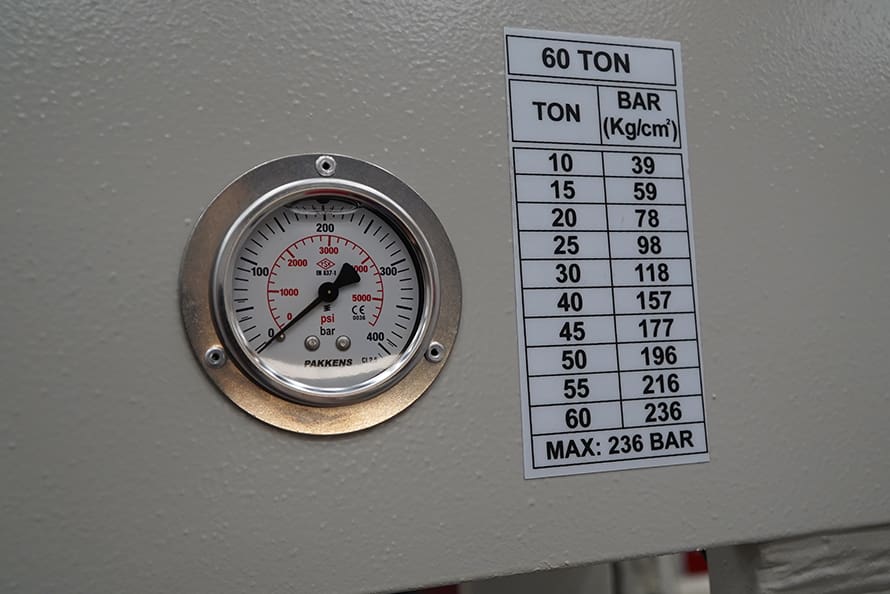

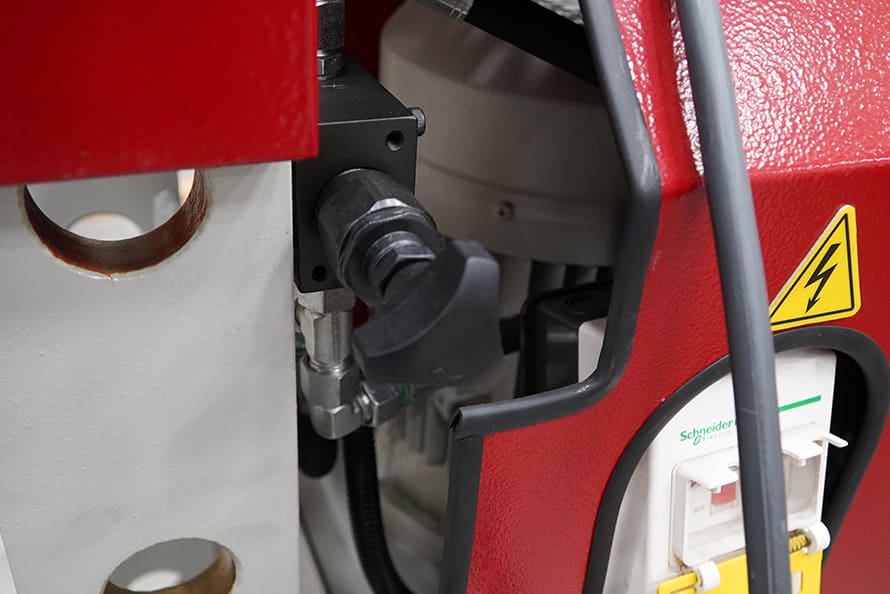

- Stepless pressure adjustment
- Stepless stroke adjustment with limit switches controlling the ram stroke and return
- Control console with two handed operation
- Ideal for low or high volume operation
Options

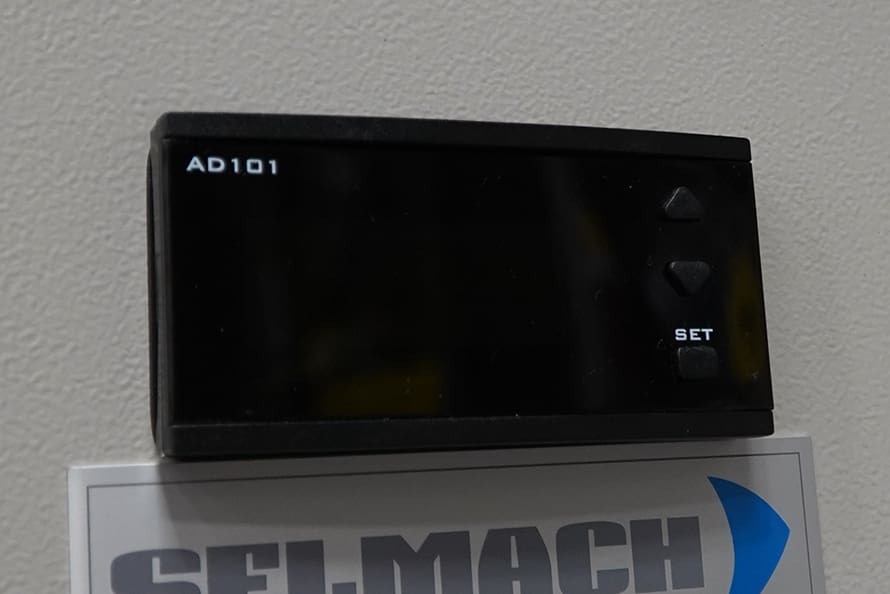

- Digital Read Out

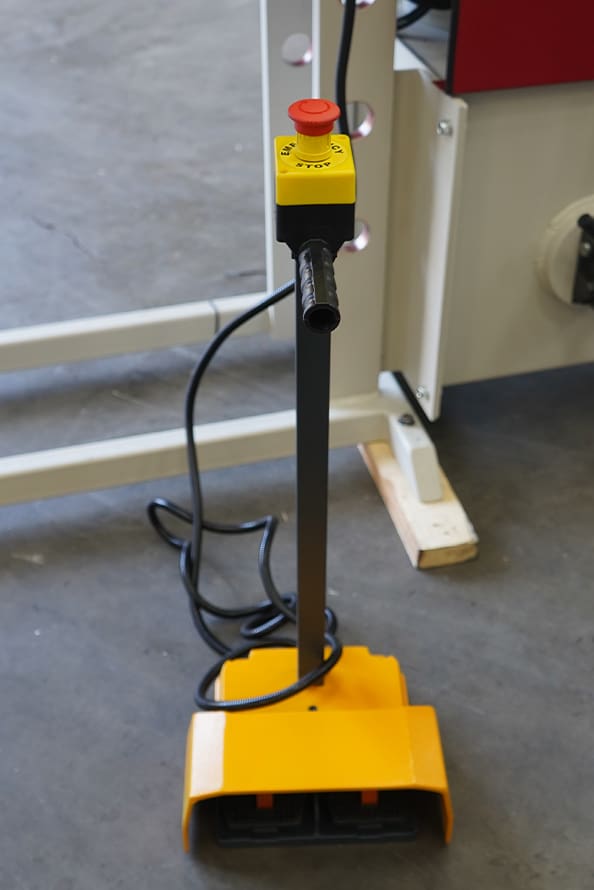

- Control console with Foot Pedal Control

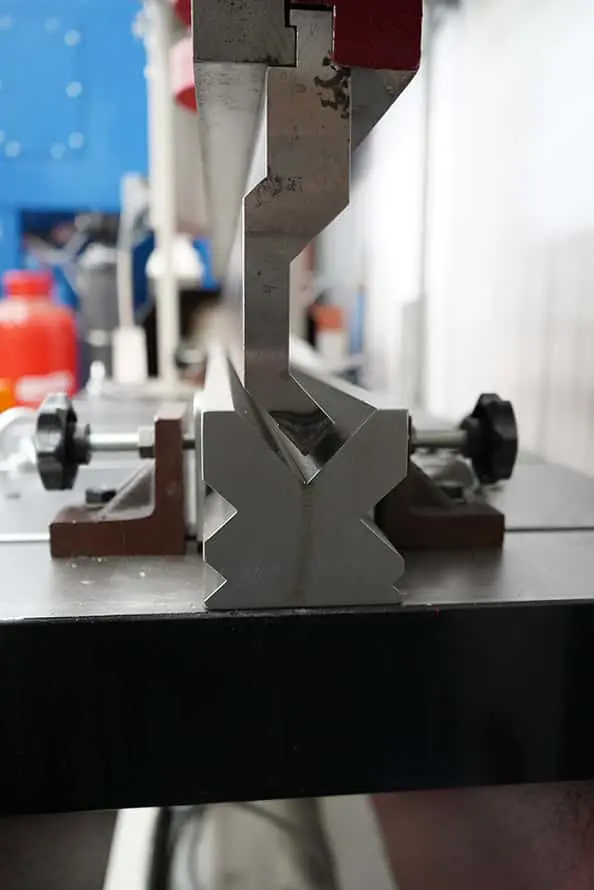

- Press Brake Tooling
- 5-Face Die
- Customised T-Slot Table
- 750mm or 1000mm manual back gauge
