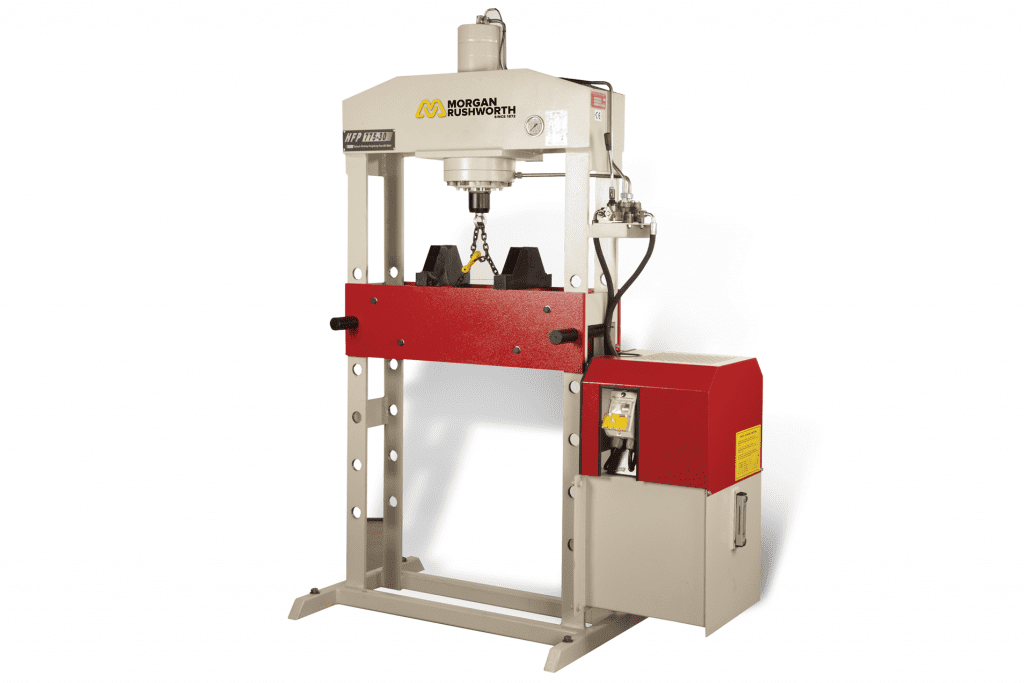

Morgan Rushworth HFP Hydraulic H Frame Press 415V
The HFP H frame press is ideal for a whole variety of bending, forming, pressing, straightening and a whole variety of operations. The hydraulic system is equipped with a manometer and a joystick lever to control the operation. A pair of V blocks are supplied as standard equipment.

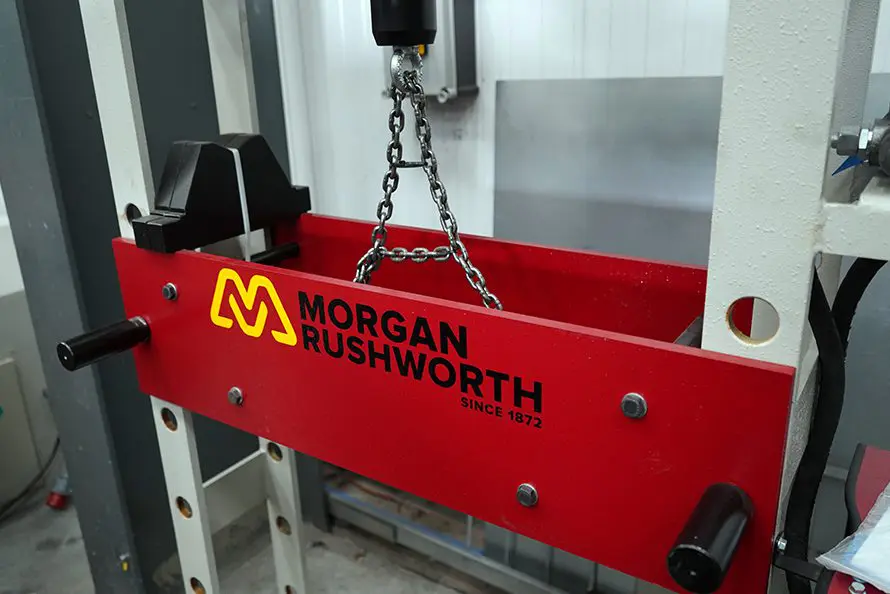

Adjustable bed for a variety of Jigs and Supports
Hydraulic Hand Control

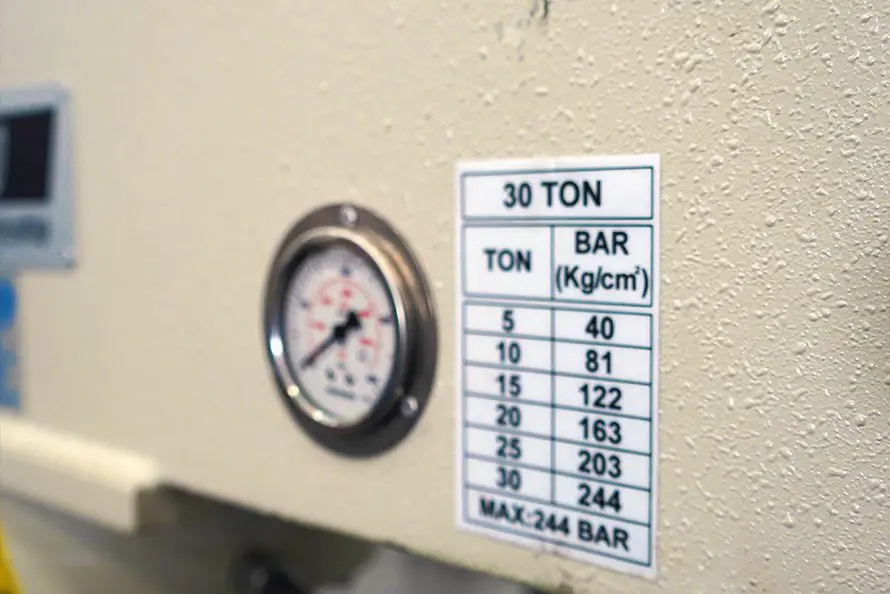

Pressure Gauge

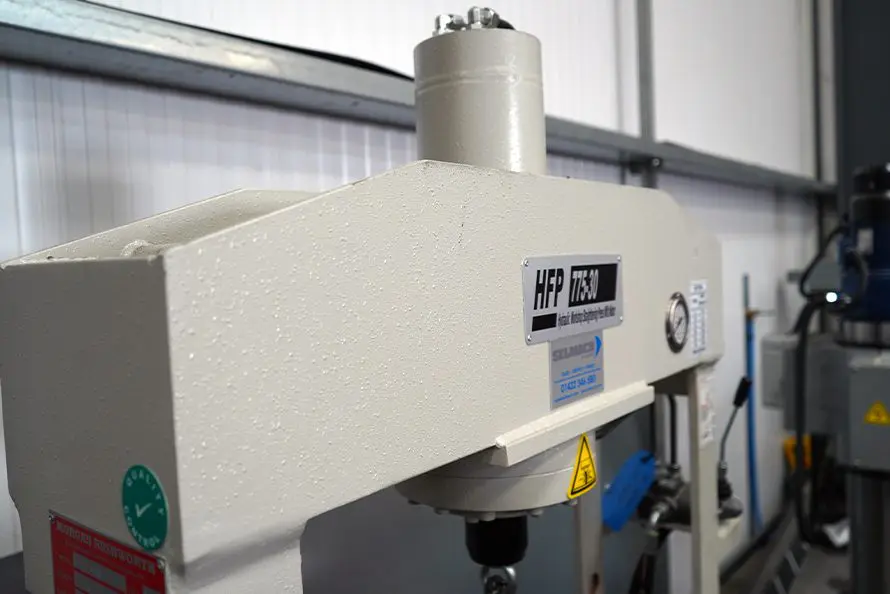

Vertical Hydraulic Ram (Top View)

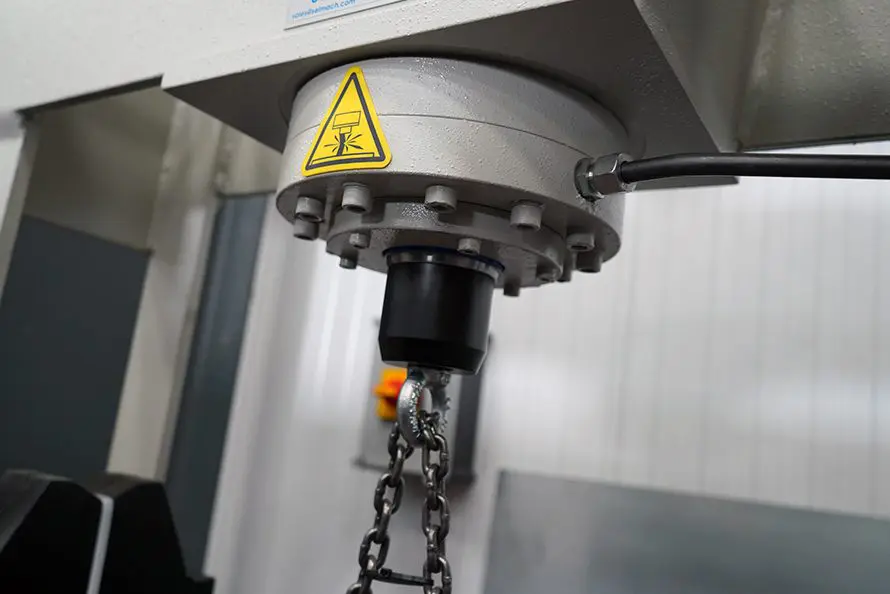

Vertical Hydraulic Ram
| MODEL | Stock code | Power | Distance between Frames | Stroke | Advance speed | Working speed | Return speed | Motor power | Length | Width | Height | Weight |
| Tonnes | mm | mm | mm/sec | mm/sec | mm/sec | kW | mm | mm | mm | Kg | ||
| HFP 775/30 | M4500 | 30 | 775 | 200 | 8 | 5 | 10 | 3 | 1500 | 700 | 1800 | 410 |

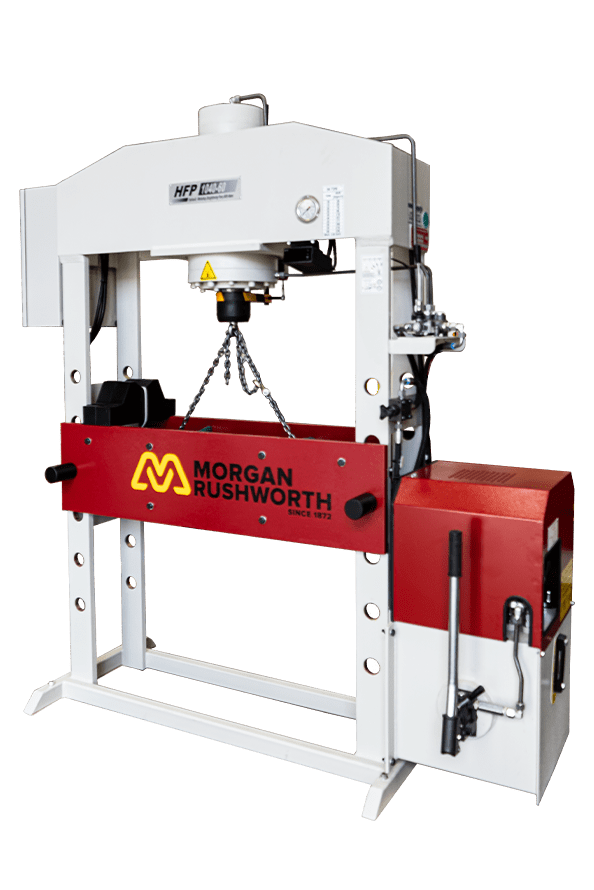

| HFP 1040/60 | M4501 | 60 | 1040 | 250 | 8 | 4 | 10 | 4 | 1850 | 700 | 2100 | 790 |

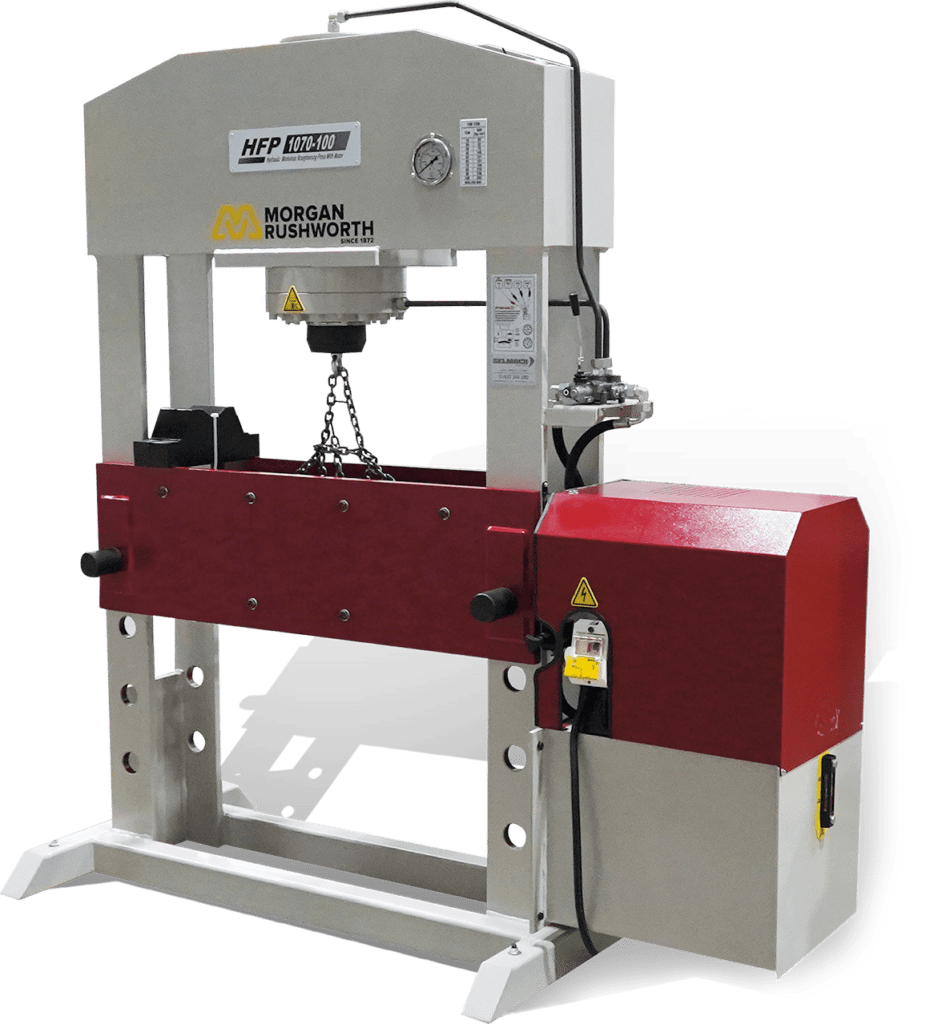

| HFP 1070/100 | M4502 | 100 | 1070 | 300 | 8 | 5 | 10 | 5.5 | 2050 | 1000 | 2200 | 1520 |
| HFP 1570/100 | M4503 | 100 | 1570 | 300 | 9 | 5 | 10 | 5.5 | 2500 | 1000 | 2200 | 1900 |
| HFP 1070/150 | M4504 | 150 | 1070 | 300 | 9 | 5 | 10 | 11 | 2050 | 1000 | 2270 | 1620 |
| HFP 1570/150 | M4505 | 150 | 1570 | 300 | 9 | 5 | 10 | 11 | 2500 | 1000 | 2270 | 2150 |
Features
- Easily adjusted bed height with two hardened pins
- Bed designed to accept a variety of supports and jigs according to customer requirements
- Quiet hydraulic system
- Hydraulic cylinder mounted above providing vertical pressure
- Ideal for low or high volume operation.
Options

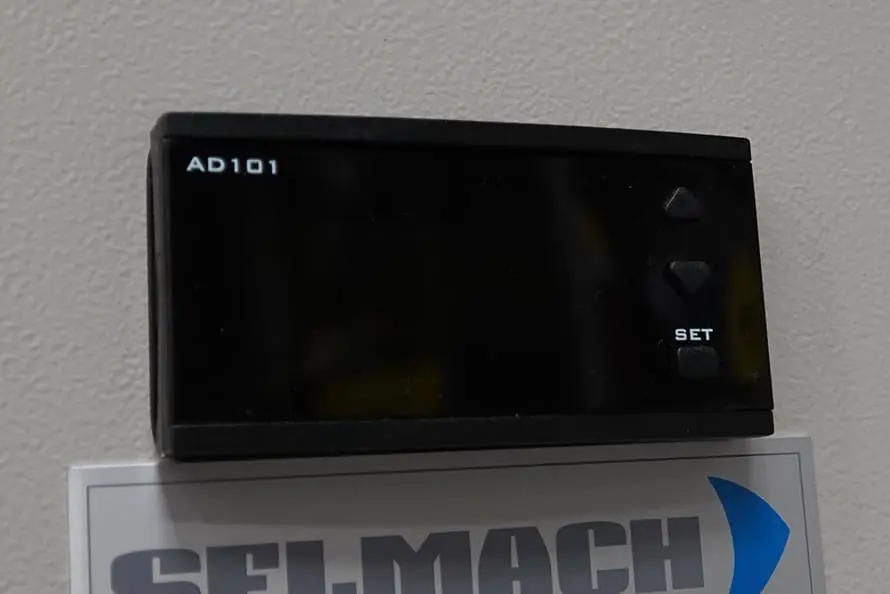

- Digital Read Out
- Limit Switch

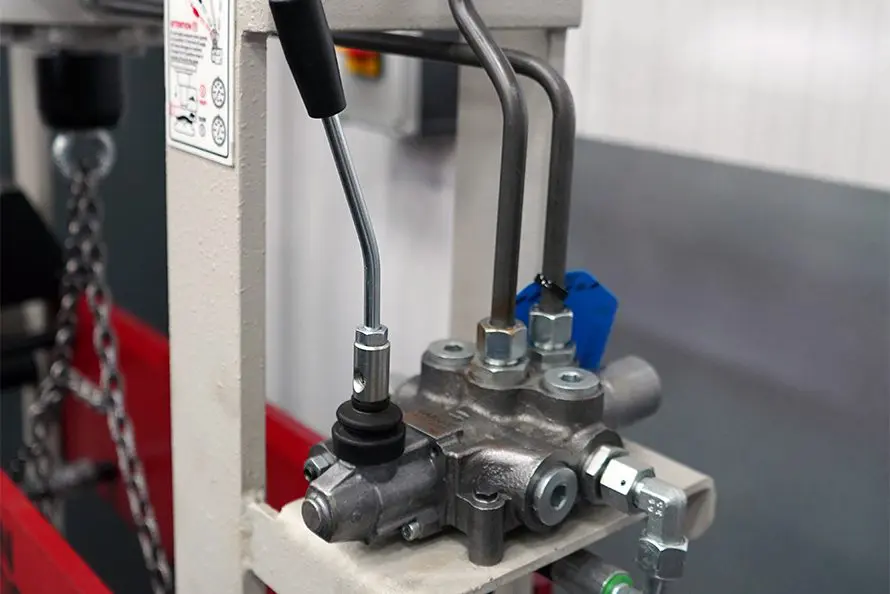

- Hand Pump

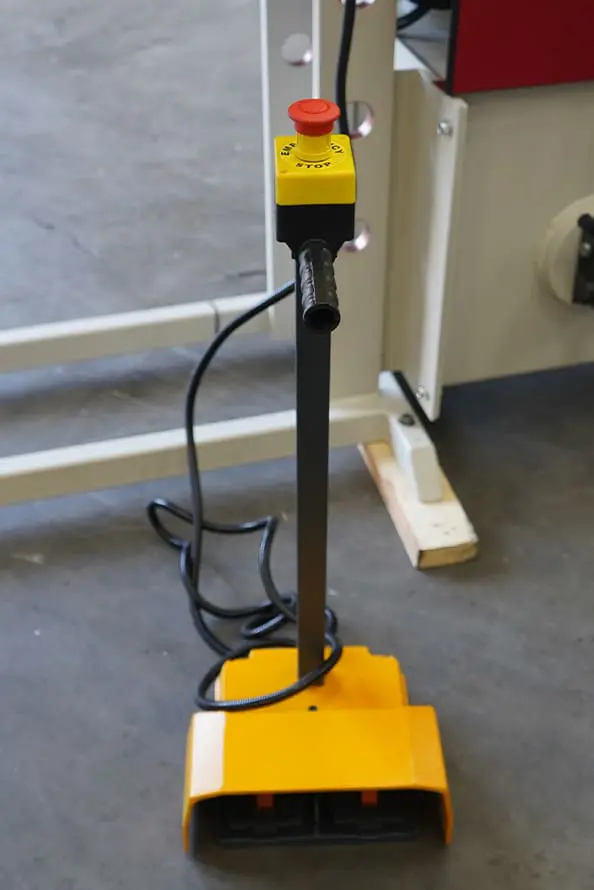

- Foot Pedal Control (instead of joystick)
- Foot Pedal Control with Limit Switch (instead of joystick)
