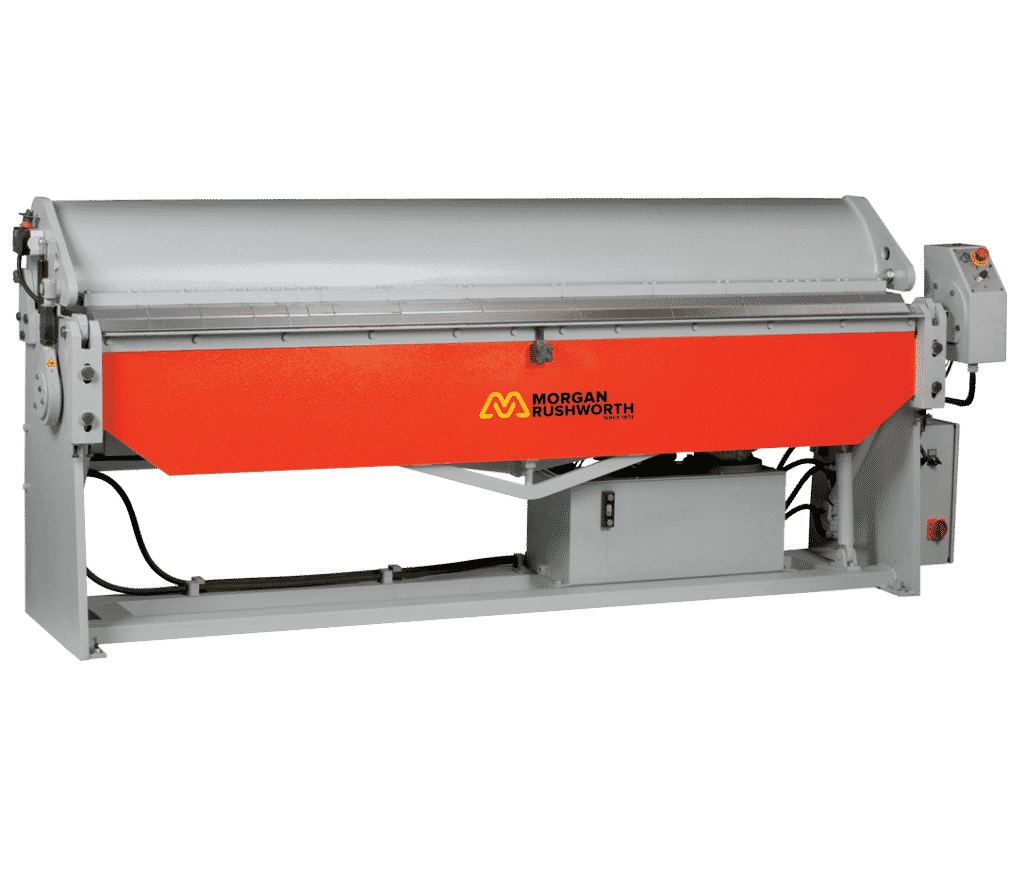

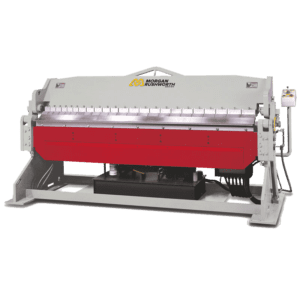

Morgan Rushworth HBP Hydraulic Box & Pan Folder
The Morgan Rushworth hydraulic HBP range provide powerful folding with adjustable automatic Angle setting device. The easy to use 4- way joystick controls beam clamping, folding, return and beam unclamping functions. The Morgan Rushworth HBP range offers high speed, increased productivity and are a cost effective alternative to press brake machines. The Morgan Rushworth HBP rang have 45° angled fingers which are hardened and ground and supplied in varying widths for ultimate versatility.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES
| MODEL | HBP1270/3.0 | HBP2540/3.0 | HBP3050/2.0 | |
| STOCK CODE | M2006 | M2007 | M2008 | |
| Capacity | mm | 3 | 3 | 2 |
| Bending Length | mm | 1270 | 2540 | 3050 |
| Clamping Beam Lift | mm | 50 | 50 | 50 |
| Tray Depth | mm | 210 | 210 | 210 |
| Min. Return Bend (1/2 Capacity) | mm | 25 | 25 | 25 |
| Maximum Folding Angle | 135° | 135° | 135° | |
| Backgauge | mm | 450 | 450 | 450 |
| Quantity & Size of Fingers | mm | 1 x 63, 1 x 76, 1 x 89, | 1 x 63, 1 x 76, 1 x 89 | 1 x 63, 1 x 76, 1 x 89, 1 x 102, |
| 2 x 102, 3 x 127, 3 x 152 | 1 x 102, 3 x 127, 4 x 152, 4 x 305 | 3 x 127, 4 x 152, 1 x 203, 5 x 305 | ||
| Motor | kW | 4 | 4 | 4 |
| Length | mm | 1780 | 3050 | 3560 |
| Width | mm | 700 | 770 | 770 |
| Height | mm | 1260 | 1260 | 1260 |
| Weight | kg | 950 | 1850 | 2210 |
Features
- Heavy duty hydraulic range
- 4-way joystick control, providing ‘inching’ of the powered clamping & folding
- 45°blades
- Folding angle stop for repetition folds
- Crowning of the folding beam reinforcing angle
- Adjustment of the clamping and folding beams
- Safe clamping speed
- 450mm manual ruled backgauge
