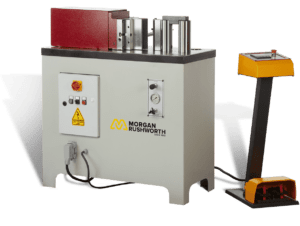

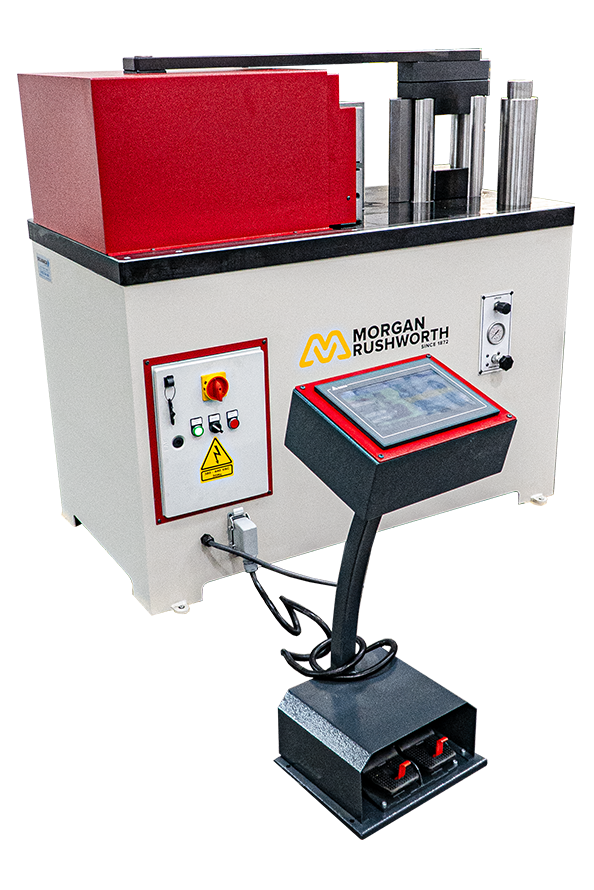

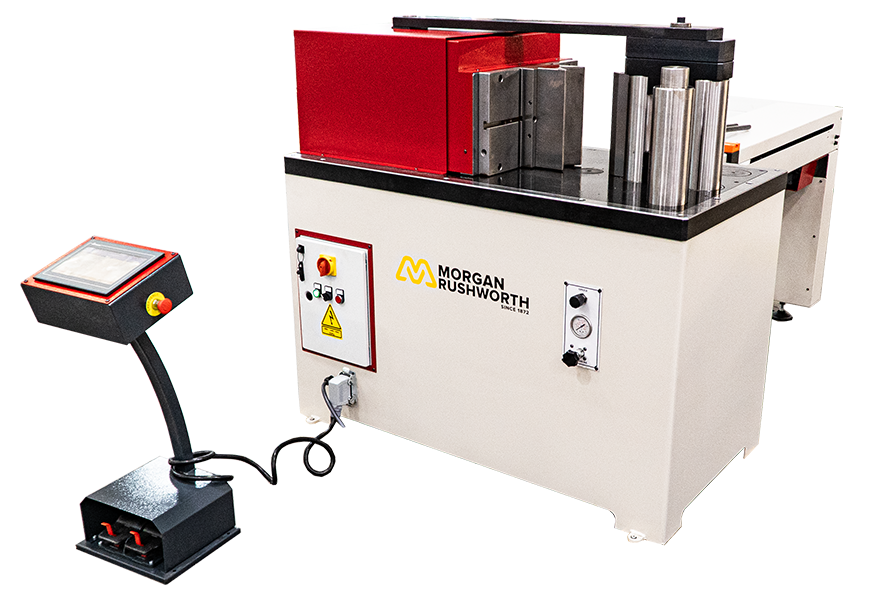

Morgan Rushworth HBM Horizontal Bending Press 415V With NC Controller

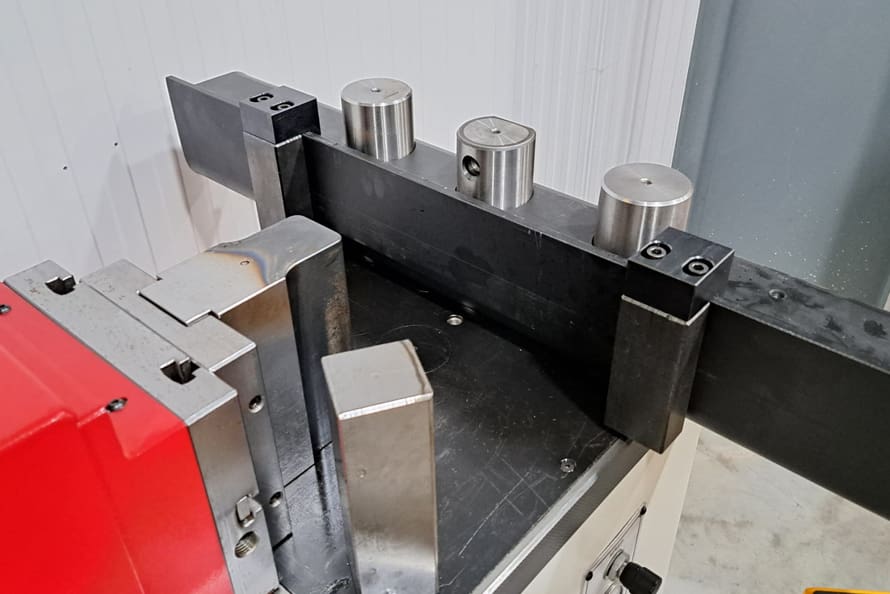

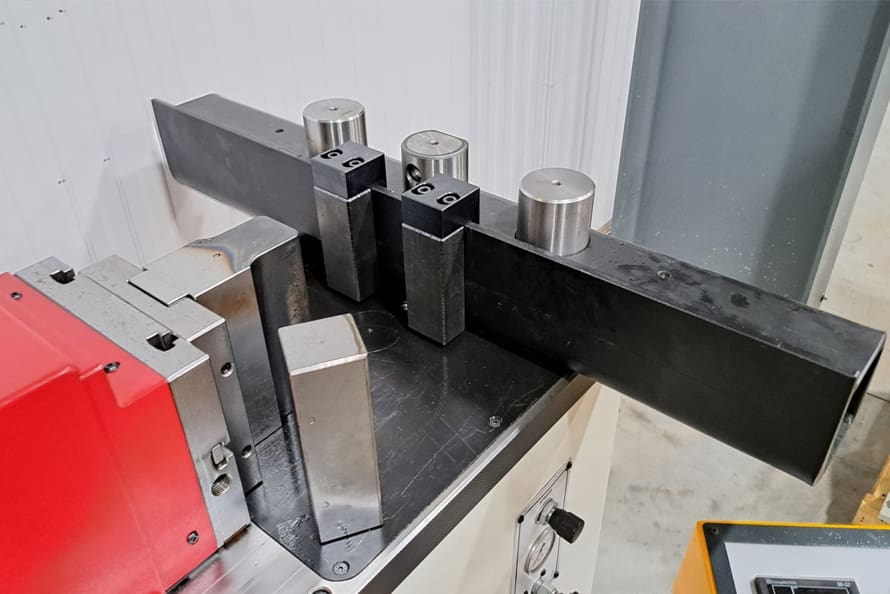

The Morgan Rushworth HBM Horizontal Bending Press range of machines are available with capacities from 10 ton up to 100 ton, fitted with an NC Controller for repeated bends. These machines have proved capable of performing a whole variety of bending applications. It is very easy to manufacture specialised tooling such as pipe bending, bar straightening and angle bending brackets and cleats. The forward and return bending stroke travel can be set with minimum travel, sufficient enough to reload the material therefore reducing cycle time.

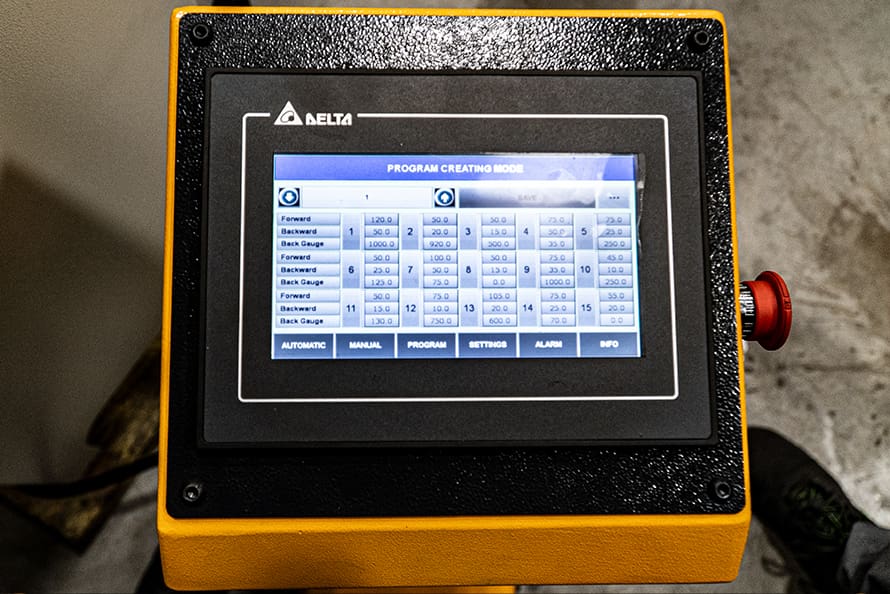

These machines are extremely adaptable and capable of a wide range of bending applications. Speak to us about your requirements, and what tooling you would need. The NC Controller is capable of storing 99 programmes, consisting of 15 steps each. The machine can also be fitted with an optional automatic back gauge for increased productivity.
Or why not browse our range of heavy duty press brakes too?
| MODEL | HBM 10/150 | HBM 20/200 | HBM 30/250 | HBM 40/250 | HBM 50/300 | HBM 80/300 | HBM 100/300 | |
| STOCK CODE | M4520NC | M4521NC | M4522NC | M4523NC | M4524NC | M4525NC | M4526NC | |
| Max Pressure at 200 Bars | ton | 10 | 20 | 30 | 40 | 50 | 80 | 100 |
| Oil Tank Capacity | lt | 12 | 12 | 40 | 40 | 60 | 120 | 120 |
| Bending Capacity Flat Material | mm | 150 x 8 | 200 x 12 | 250 x 12 | 250 x 24 | 300 x 15 | 300 x 20 | 300 x 25 |
| Bending Capacity Round Tubes | mm | 42 x 3.2 | 48 x 4.0 | 60 x 4.0 | 60 x 5.0 | 76 x 4.0 | 90 x 9 | 114 x 10 |
| Max Stroke | mm | 185 | 185 | 285 | 285 | 285 | 285 | 285 |
| Diameter of Bolts | mm | 60 | 80 | 80 | 80 | 90 | 105 | 105 |
| Height of Toolings | mm | 150 | 200 | 250 | 250 | 300 | 300 | 300 |
| Working Speed | mm/sec | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Return Speed | mm/sec | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Motor Power | kw | 1.1 | 2.2 | 3 | 4 | 5.5 | 10 | 10 |
| Net Weight | kg | 250 | 530 | 1050 | 1050 | 1450 | 1700 | 1700 |
| Size of the Table (LxW) | mm | 450 x 900 | 480 x 1060 | 660 x 1250 | 660 x 1250 | 600 x 1250 | 750 x 1425 | 750 x 1425 |
| Working Height | mm | 915 | 930 | 930 | 930 | 930 | 930 | 930 |
| Length of the Machine | mm | 900 | 1150 | 1250 | 1250 | 1400 | 1430 | 1430 |
| Width of the Machine | mm | 450 | 480 | 650 | 650 | 600 | 750 | 750 |
| Height of the machine | mm | 1130 | 1200 | 1250 | 1250 | 1500 | 1450 | 1450 |
| Size of Packing (LxWxH) | mm | 100 x 500 x 1500 | 600 x 1150 x 1700 | 700 x 1280 x 1750 | 700 x 1280 x 1750 | 1450 x 650x 1800 | 1500 x 750 x 1800 | 1500 x 750 x 1800 |
Features
- Built according to EC Safety Directives (CE-Mark Approved)
- Heavy duty frame
- Stroke adjustment by digital readout

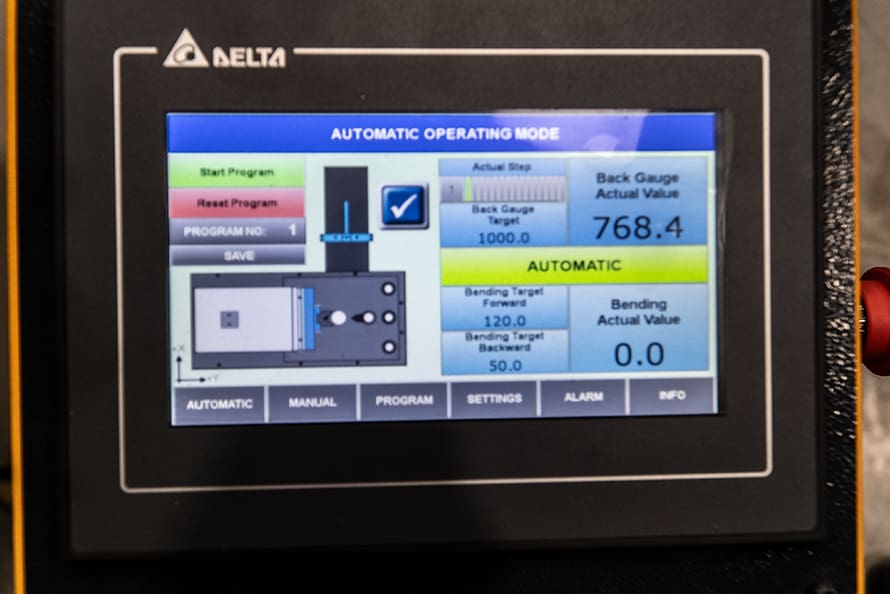

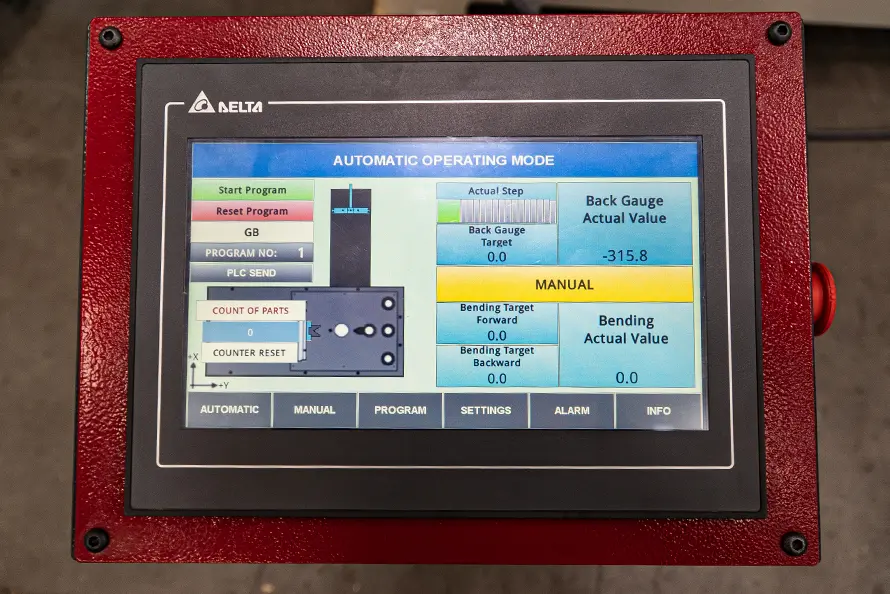

- Manual or automatic working system
- All tooling and pins are induction hardened and ground
- Operation by foot pedal

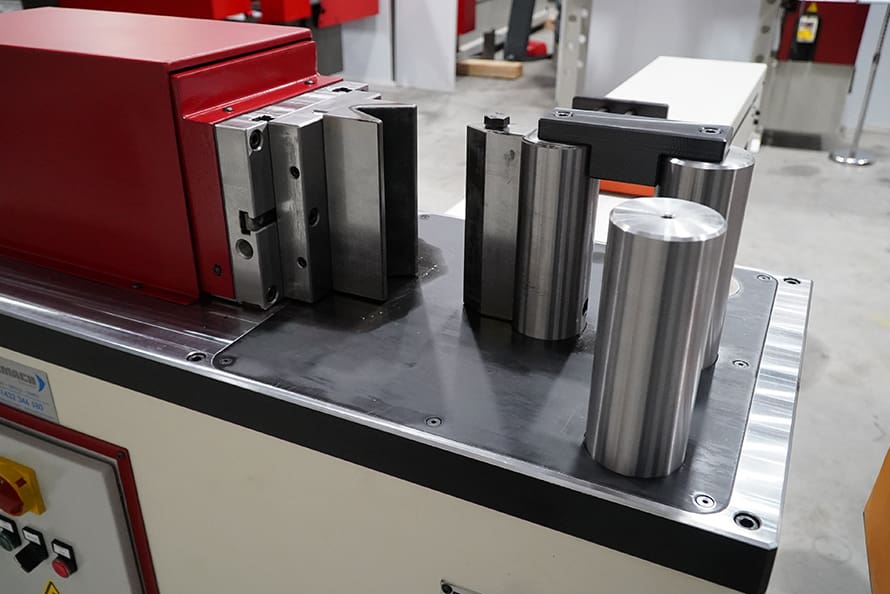

- 1 set of flat bar bending tooling as standard
- Tooling height 150-300mm

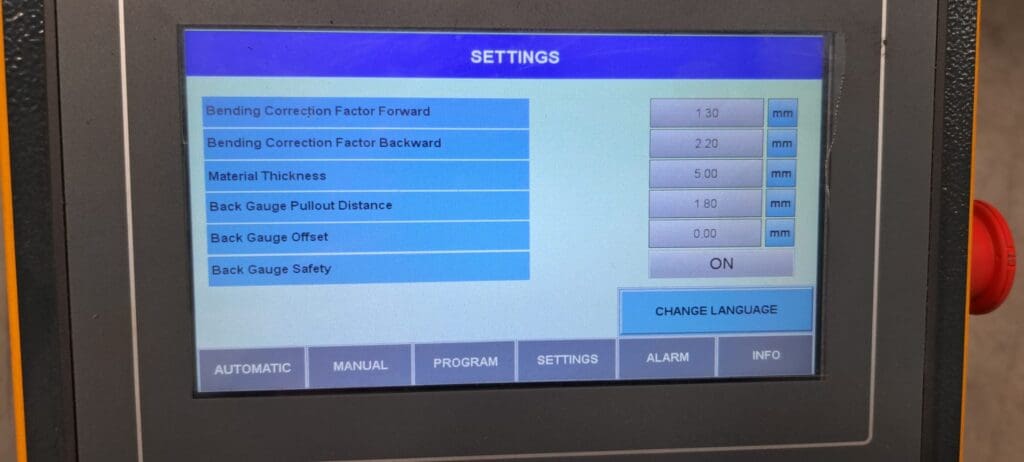

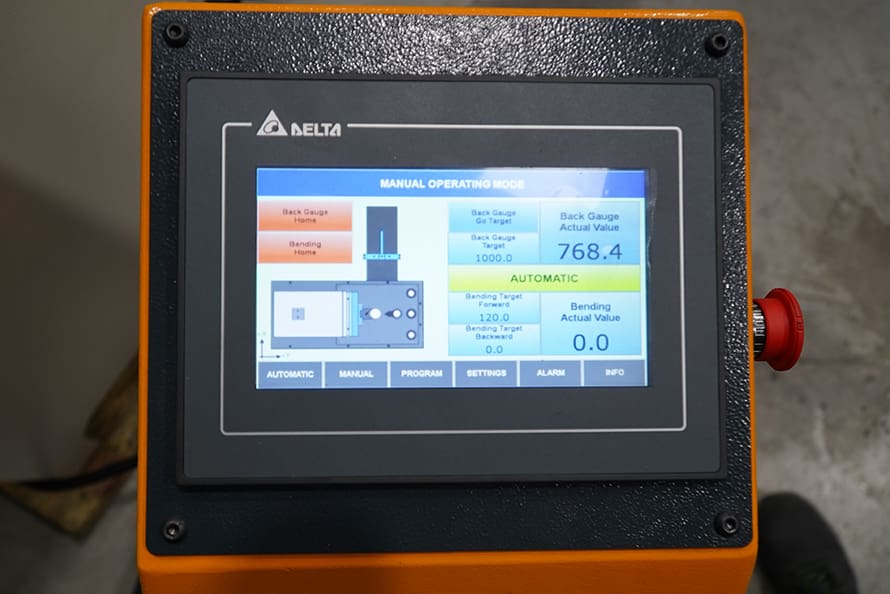

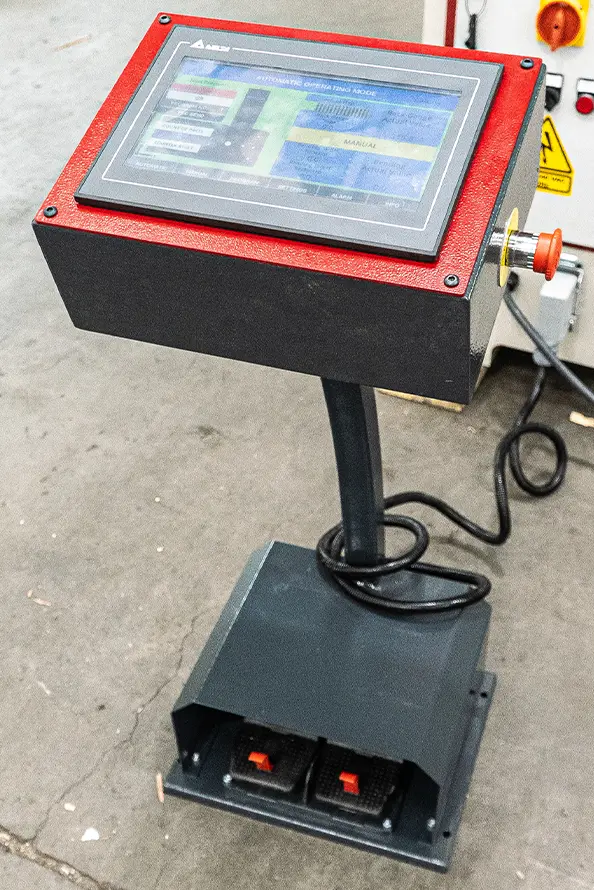

- NC Controller consisting of up to 99 programmes, with up to 15 steps each.
- Extremely adaptable and capable of a wide range of bending applications
- Stroke regulation by means of sensitive electric limit switches
- Adjustable bending pressure
- Large range of special tooling available
- Ideal for one off or production applications
- 1 years warranty
Options
- Cutting, punching, straightening, pipe bending tools are available

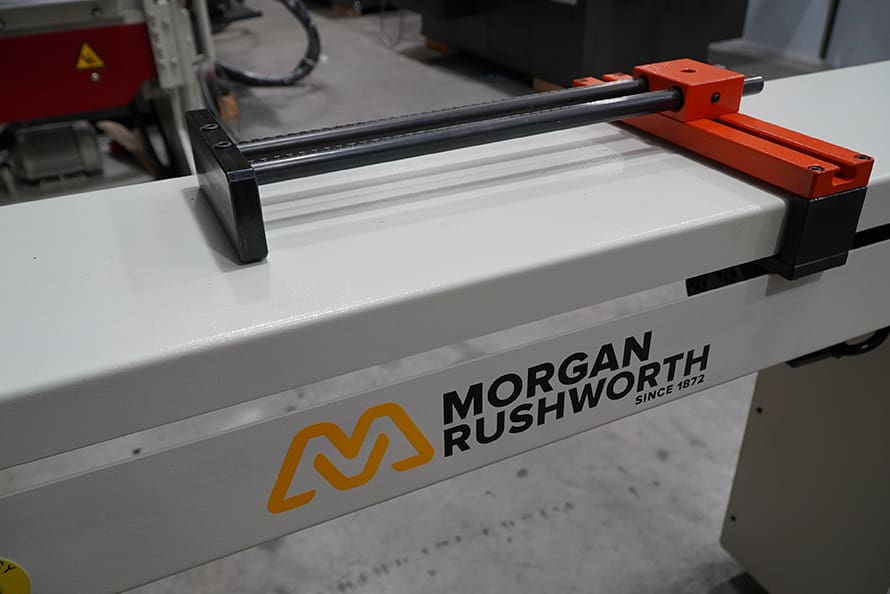

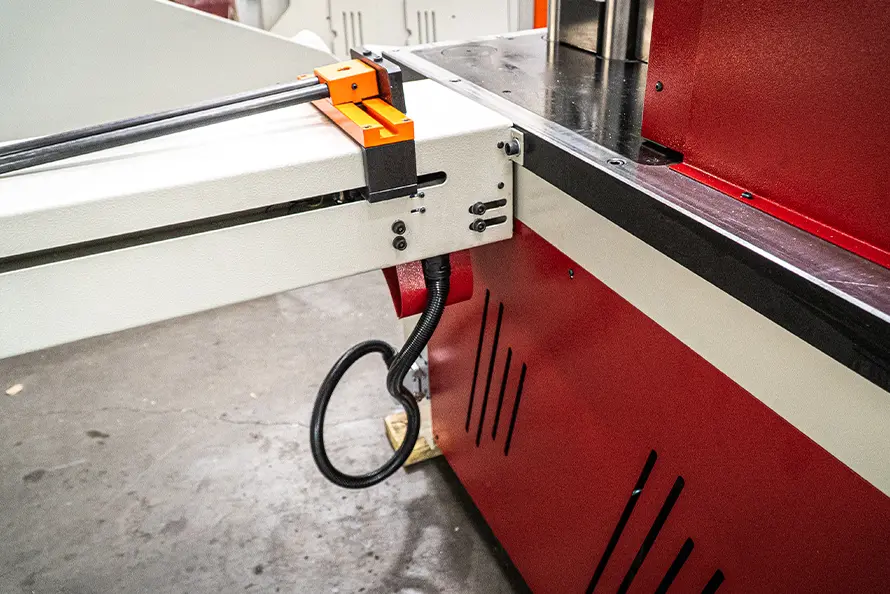

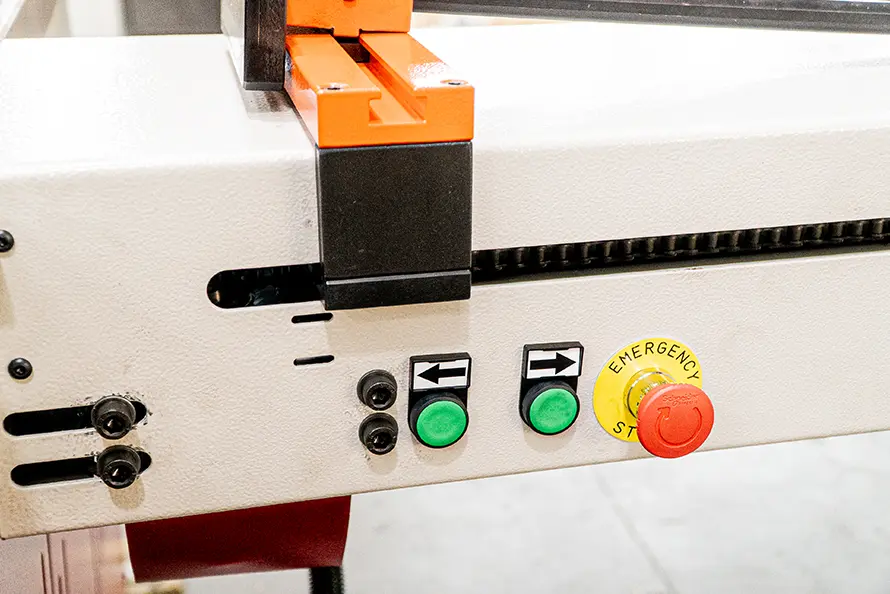

- Upgrade to an automatic back-gauge for additional productivity
