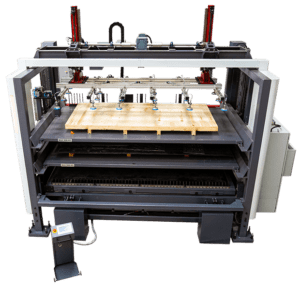

Morgan Rushworth Fibre Laser Tower System

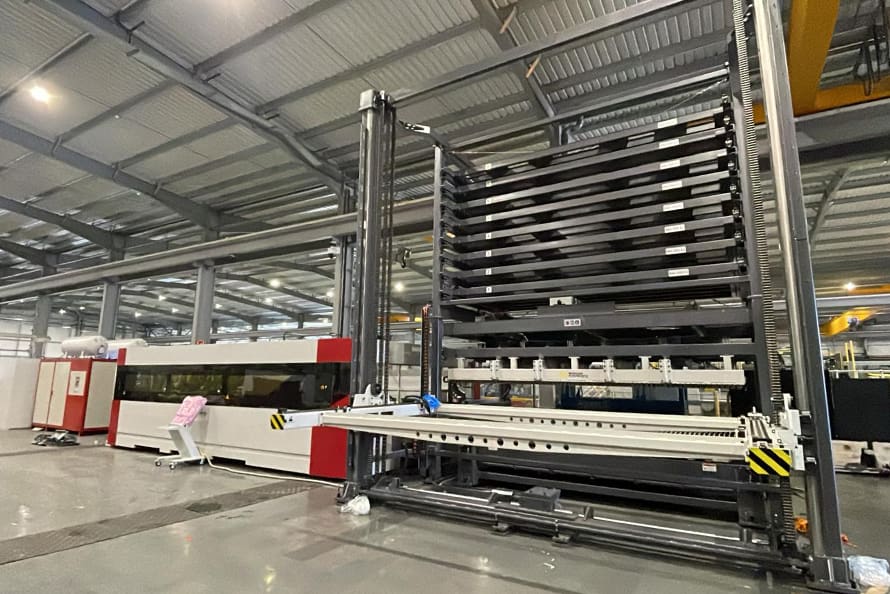

The Morgan Rushworth Tower System allows you to get the maximum throughput from your Fibre Laser cutting machine. This tower stacker enables you to run machines at optimum speed, with continual loading and unloading of sheet material and cut parts. The Morgan Rushworth Tower System is easily integrated into your production. All stages, all the way to fully automated production, are possible. The tower is able to store raw material, load sheets for cutting, unload cut parts and automatically cycle through those steps. It’s easy to set-up and quickly installed, with a minimal footprint, enabling fully automatic production.

With a correctly configured system, the Fibre Laser can be left running overnight or on weekends to maximise productivity.

Optimised flow of material and cut parts ensures that your Laser is cutting for the highest possible amount of time.

Compatible with the Morgan Rushworth XR and Morgan Rushworth XS Fibre Laser Machines.

Morgan Rushworth Fibre Laser Tower System imageMorgan Rushworth Fibre Laser Tower System image
Morgan Rushworth Fibre Laser Tower System image 2
3000KG Shelf Capacity
Morgan Rushworth Fibre Laser Tower System image 2
Morgan Rushworth Fibre Laser Tower System image 3

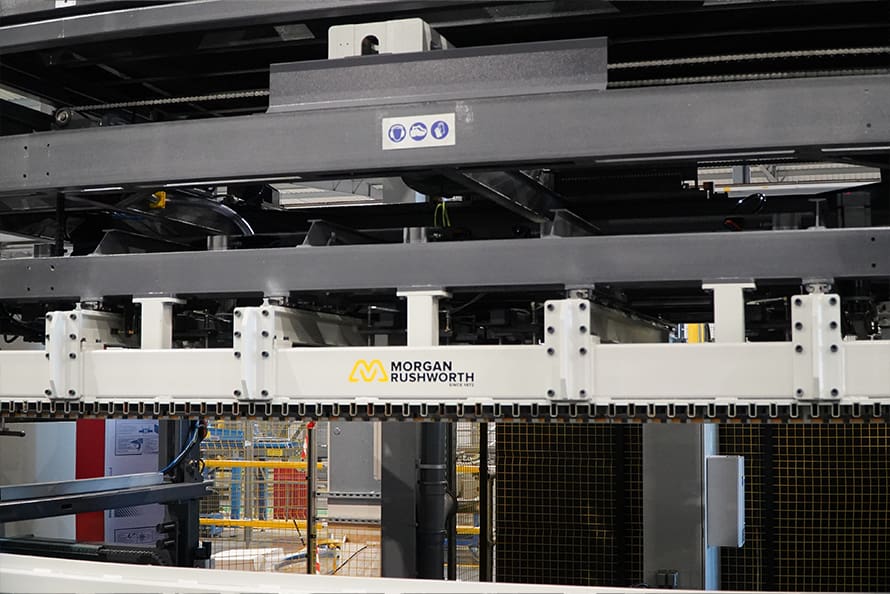

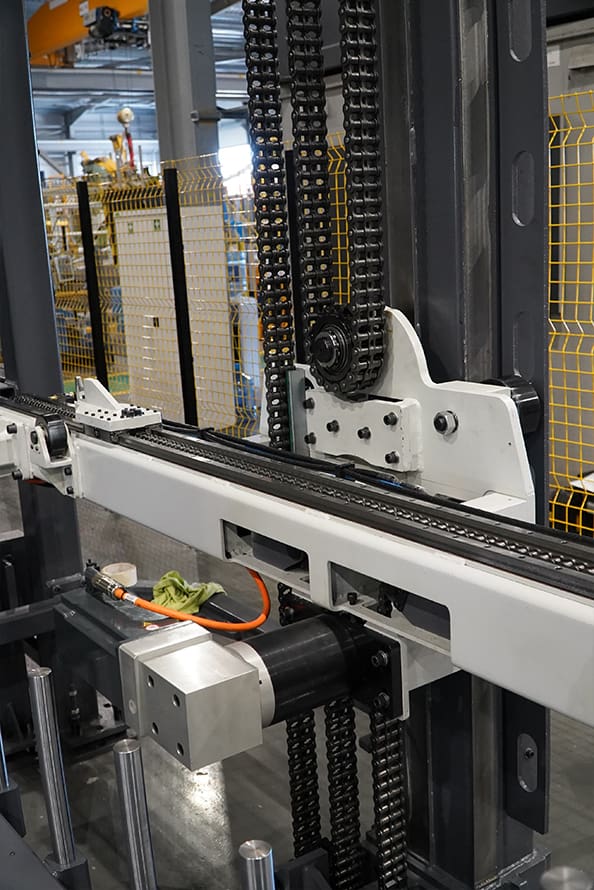

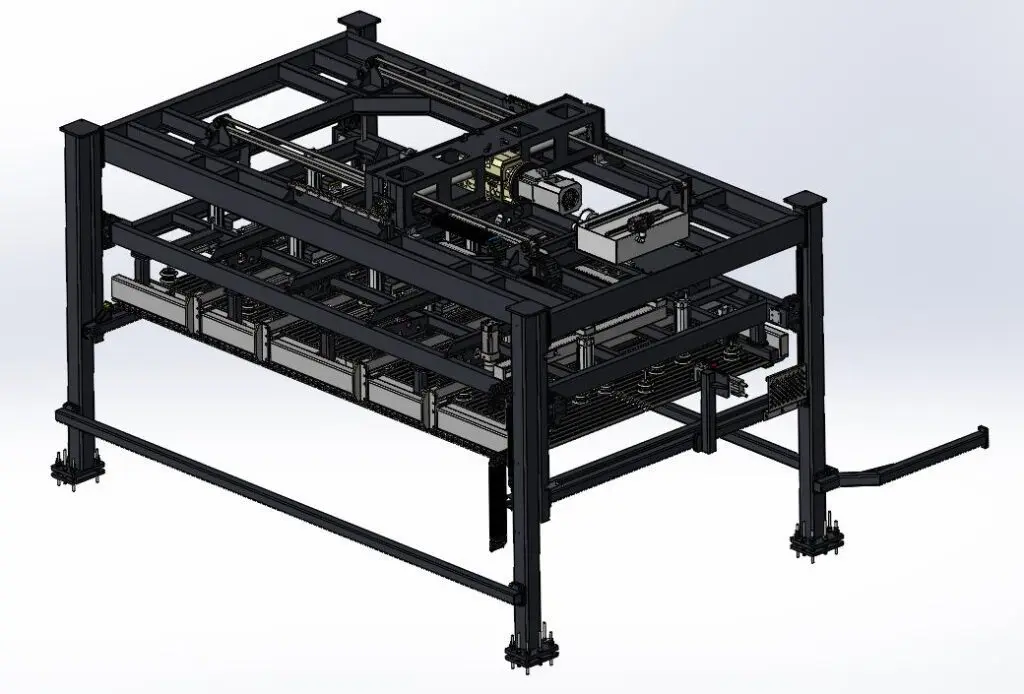

Stacking System
Morgan Rushworth Fibre Laser Tower System image 3
Morgan Rushworth Fibre Laser Tower System image 4

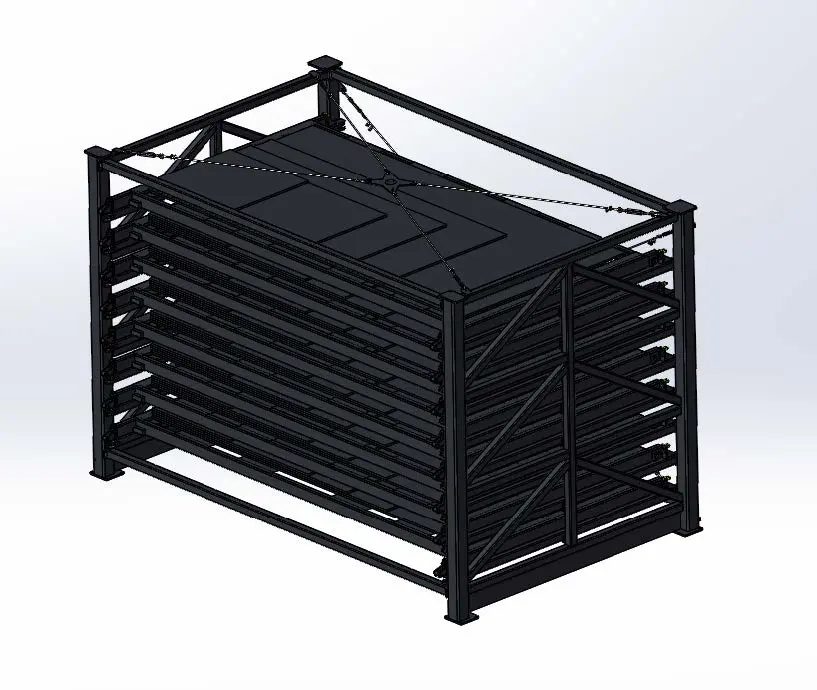

Additional Storage Shelves
Morgan Rushworth Fibre Laser Tower System image 4
Morgan Rushworth Fibre Laser Tower System image 5

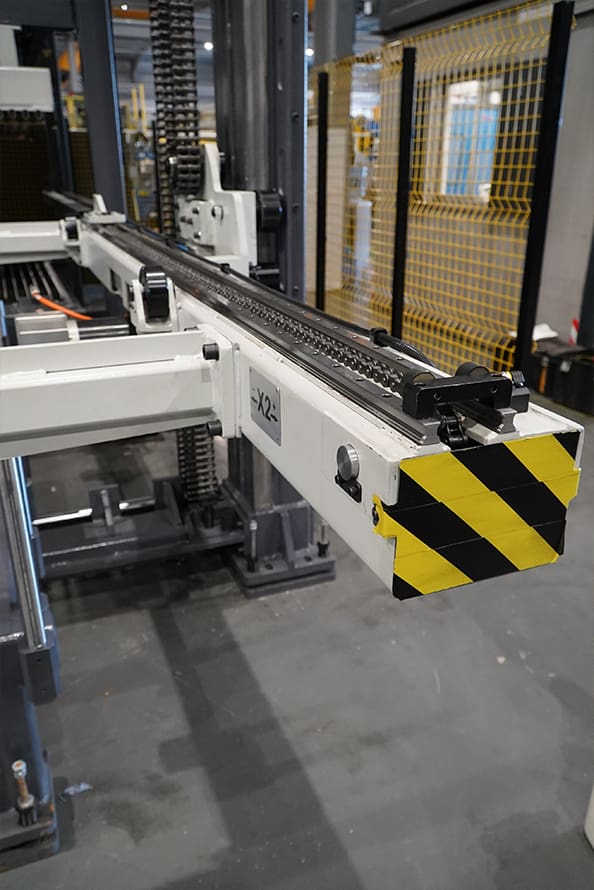

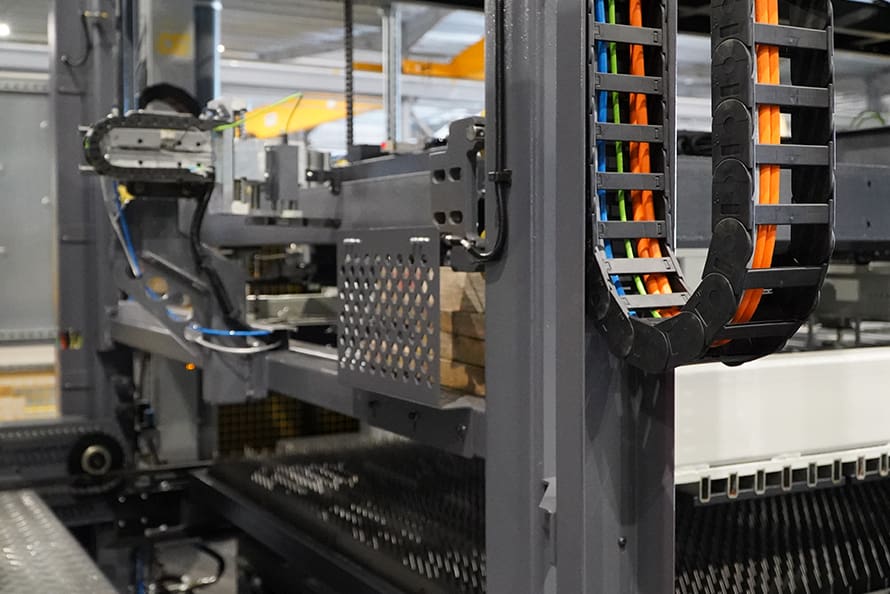

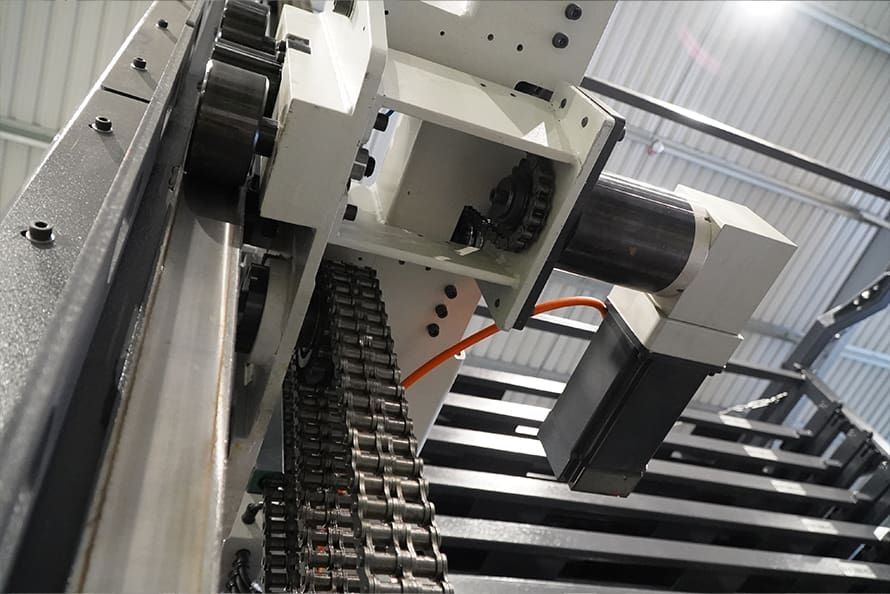

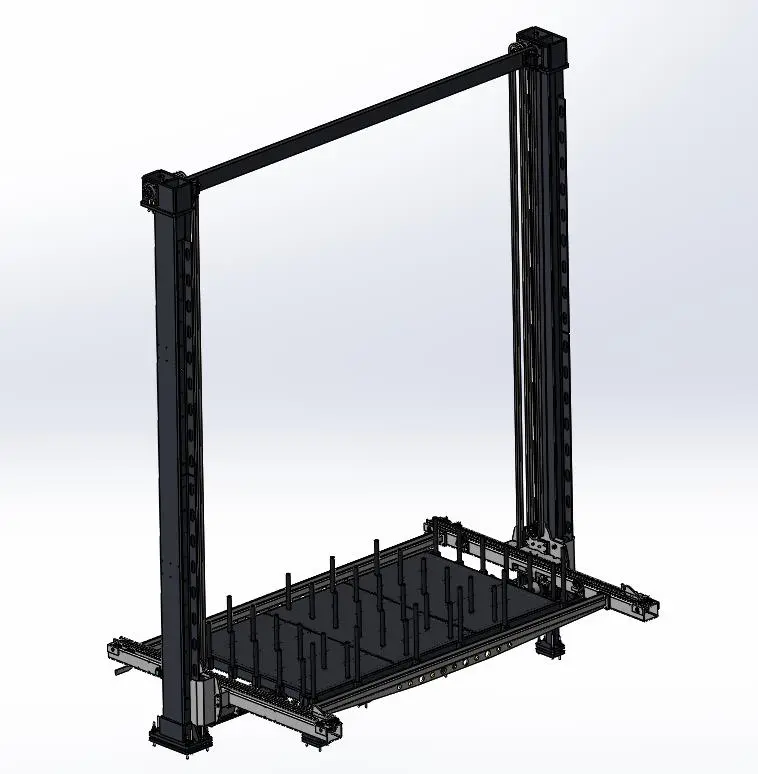

Loading Arm
Morgan Rushworth Fibre Laser Tower System image 5
Morgan Rushworth Fibre Laser Tower System image 6

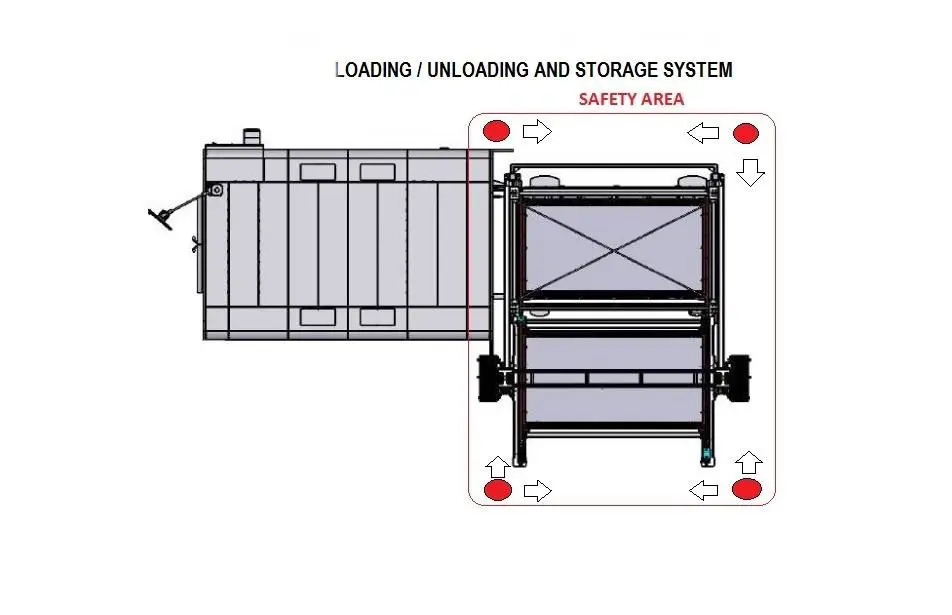

Floorplan
Morgan Rushworth Fibre Laser Tower System image 6
Morgan Rushworth Fibre Laser Tower System image 7

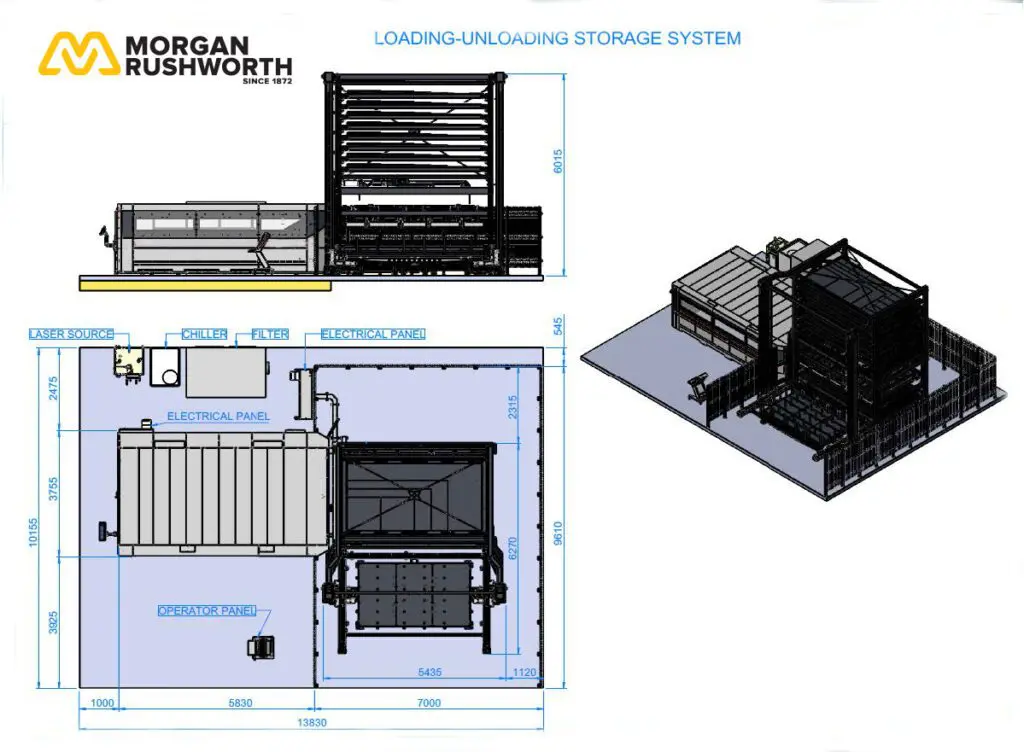

Floorplan
Morgan Rushworth Fibre Laser Tower System image 7
Automated Loading and Unloading Tower System
Max. Sheet Size mm 2,000 x 4,000
Max. Load per Compartment mm 3,000
Lifting Speed m/min 15

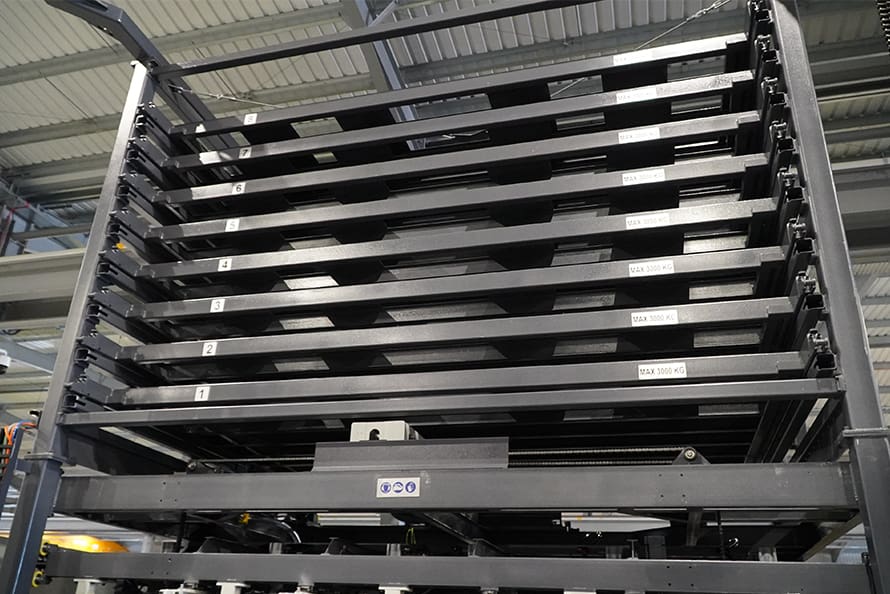

Number of compartments 8 Units
Loading & Unloading Positioning Accuracy mm ±1
Capacity of Loading and Unloading System kg 1,300
Electrical Requirement kW 35
Pneumatic Requirement bar 6
Pneumatic Consumption lt/min 1,000
Length mm 5,435
Width mm 6,270
Height mm 6,015

Features

  • Compatible with the XR & XS Fibre Laser Cutting Machines
  • Automatic loading and storage of raw material
  • Automatic unloading of parts and scraps
  • Allows fully automatic running

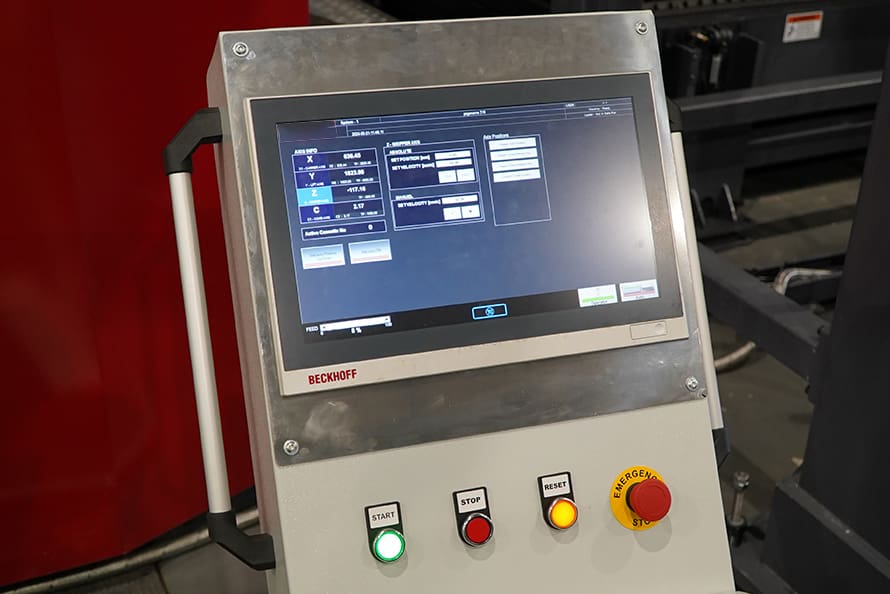

  • Beckhoff Motors
  • Bonfiglioli Gearbox
  • Rexroth linear guideways
  • Schmalz-festo pneumatics
  • Beckhoff, Siemens,
  • Schneider and Omron electrical components
