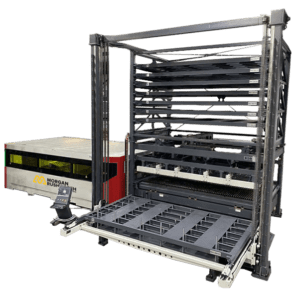

Morgan Rushworth Fibre Laser Compact Tower System

The Morgan Rushworth Compact Tower System allows you to get the maximum throughput from your Fibre Laser cutting machine. This tower stacker enables you to run machines at faster speeds, with continual loading and unloading of sheet material and cut parts, reducing the amount of time between cuts, and maximising the use of the operator’s time.

The Morgan Rushworth Compact Tower System is easily integrated into your production. Handle mirror-finish sheets with ease, as the efficient compact tower system can load and unload sheets with minimal tooling marks, grease or scratches.

Compatible with the Morgan Rushworth XR and Morgan Rushworth XS Fibre Laser Machines.

Morgan Rushworth Fibre Laser Compact Tower System imageMorgan Rushworth Fibre Laser Compact Tower System image
Video thumbnail showing the Morgan Rushworth Fibre Laser Compact Tower System
Morgan Rushworth Fibre Laser Compact Tower System image 3

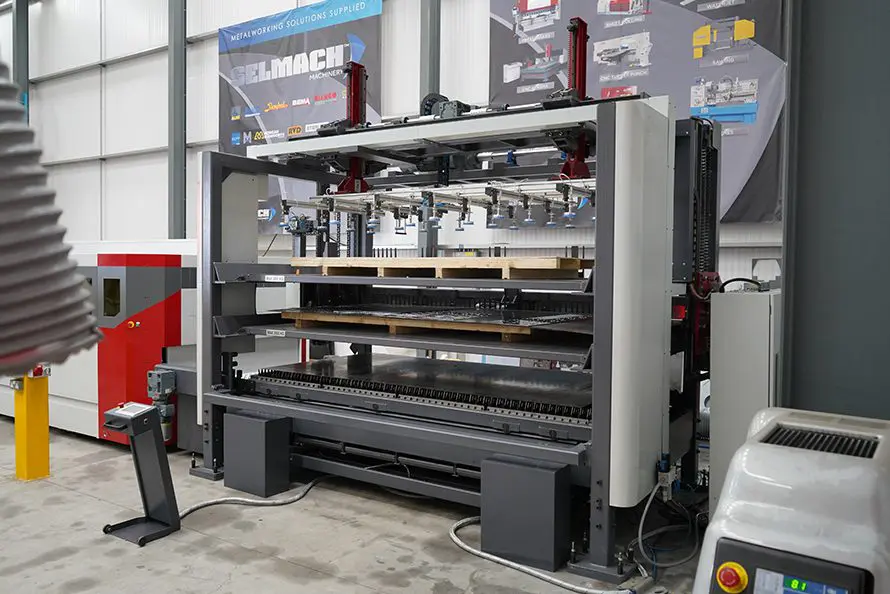

Compact Tower with XR Fibre Laser
Morgan Rushworth Fibre Laser Compact Tower System image 3
Morgan Rushworth Fibre Laser Compact Tower System image 4

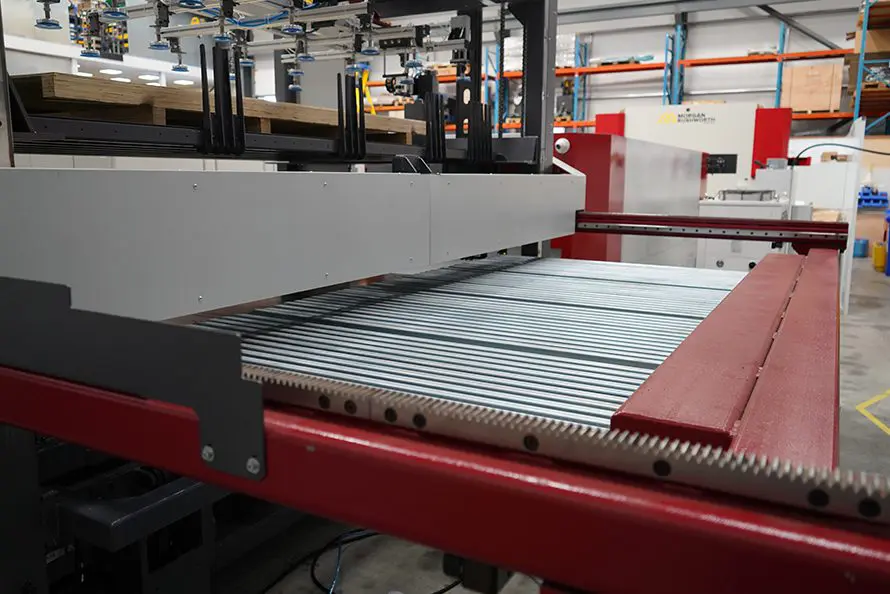

Comb Arm
Morgan Rushworth Fibre Laser Compact Tower System image 4
Morgan Rushworth Fibre Laser Compact Tower System image 5

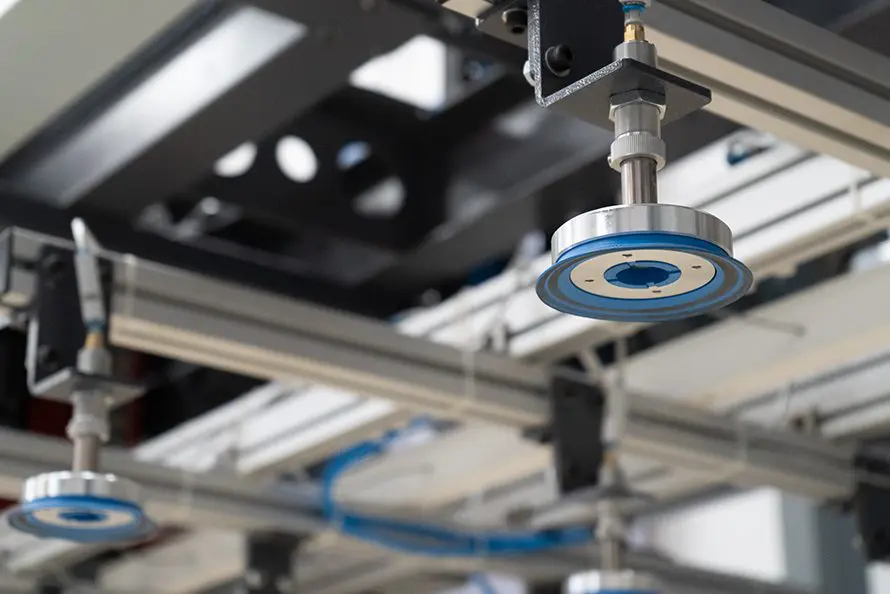

Pneumatic Suction Pads
Morgan Rushworth Fibre Laser Compact Tower System image 5
Morgan Rushworth Fibre Laser Compact Tower System image 6

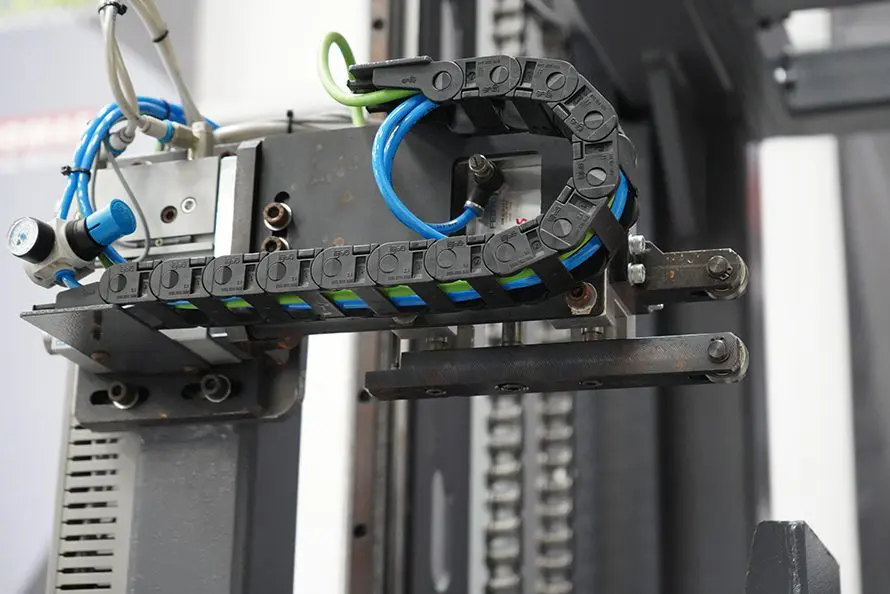

Sheet Thickness Measurement Device
Morgan Rushworth Fibre Laser Compact Tower System image 6
Morgan Rushworth Fibre Laser Compact Tower System image 7

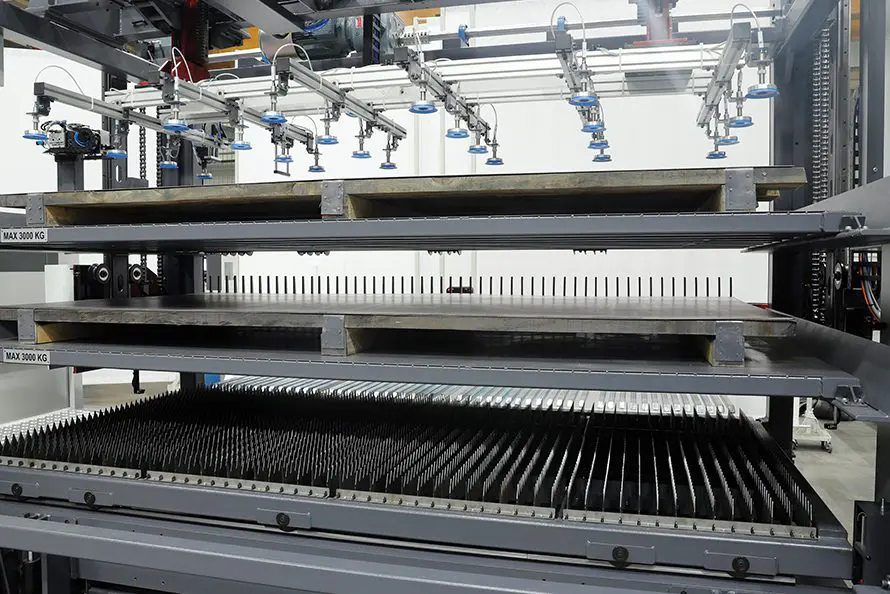

Loading Tables & Shelves
Morgan Rushworth Fibre Laser Compact Tower System image 7
Morgan Rushworth Fibre Laser Compact Tower System image 8

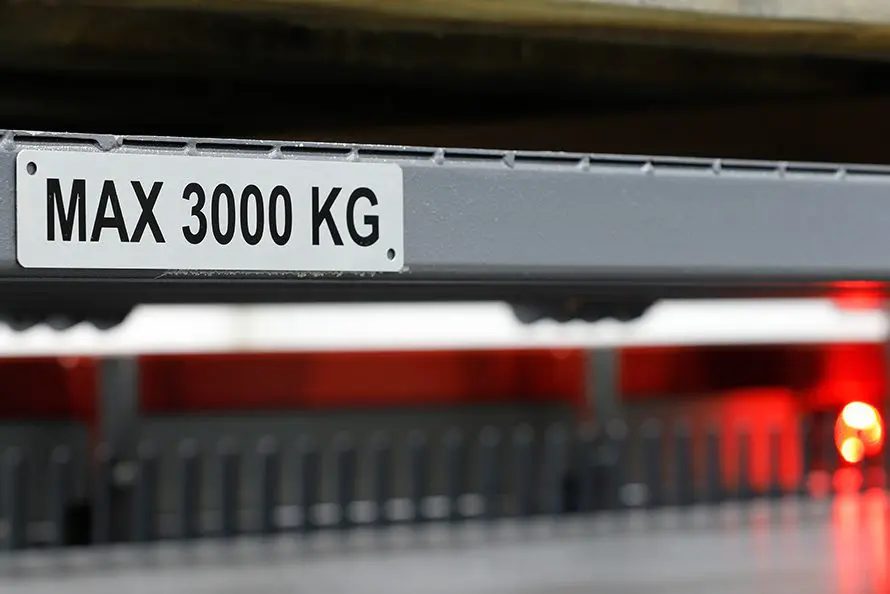

3000KG Shelf Capacity
Morgan Rushworth Fibre Laser Compact Tower System image 8
Morgan Rushworth Fibre Laser Compact Tower System image 9

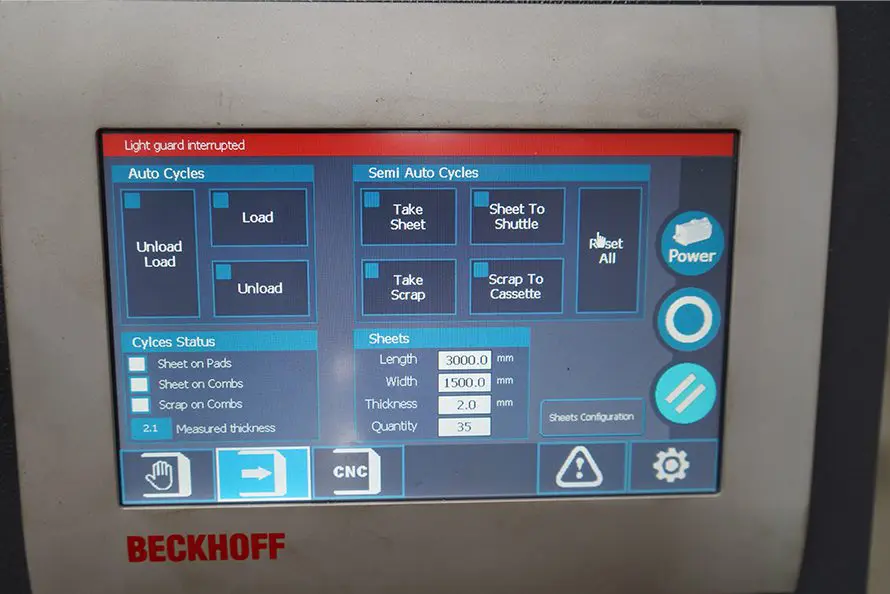

Beckhoff Controller
Morgan Rushworth Fibre Laser Compact Tower System image 9
Compact Automated Loading and Unloading Tower System
Max. Sheet Size mm 1,500 x 3,000
Min. Sheet Size mm 1,000 x 1,000
Max. Sheet Weight (Handling) kg 600
Max. Material Stacking Weight (On Pallet) kg 3,000
Max. Sheet Thickness mm 16
Number of compartments 2 Units (New Stock and Scrap)
Max. Loading and Unloading Course mm 220 (Including Pallet)
Loading & Unloading Cycle Time* seconds 135
Cycle Time: Starts with taking scrap sheet from transfer table to pull over on a pallet and then take a new sheet from the pallet to the transfer table

Features

  • Compatible with the XR & XS Fibre Laser Cutting Machines
  • Automatic loading and storage of raw material
  • Automatic unloading of parts and scraps
  • Allows fully automatic running
  • Sits in place of the standard pallet exchange, so no additional footprint taken up for the machine
  • Pallet rack for raw material

Options
