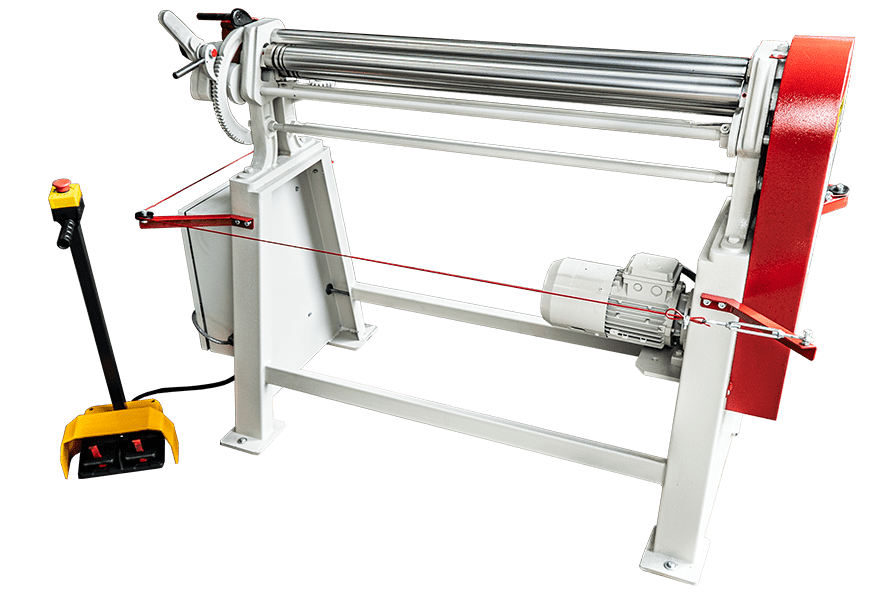

Morgan Rushworth DPR Manual Sheet Metal Bending Rolls

Main view - Morgan-Rushworth-DBR-Manual-3-Roll-Bending-Roll

The Morgan Rushworth DPR Manual Bending Sheet Roll range from 0.6mm – 0.8mm with bending lengths up to 1050mm. All models are of asymmetric design providing pre bending capability. The top slip roll allows removal of cylindrical components.

Main view - Morgan-Rushworth-DBR-Manual-3-Roll-Bending-Roll
Main view - Morgan-Rushworth-DBR-Manual-3-Roll-Bending-RollMain view - Morgan-Rushworth-DBR-Manual-3-Roll-Bending-Roll
Morgan Rushworth DPR Manual Sheet Metal Bending Rolls image 2

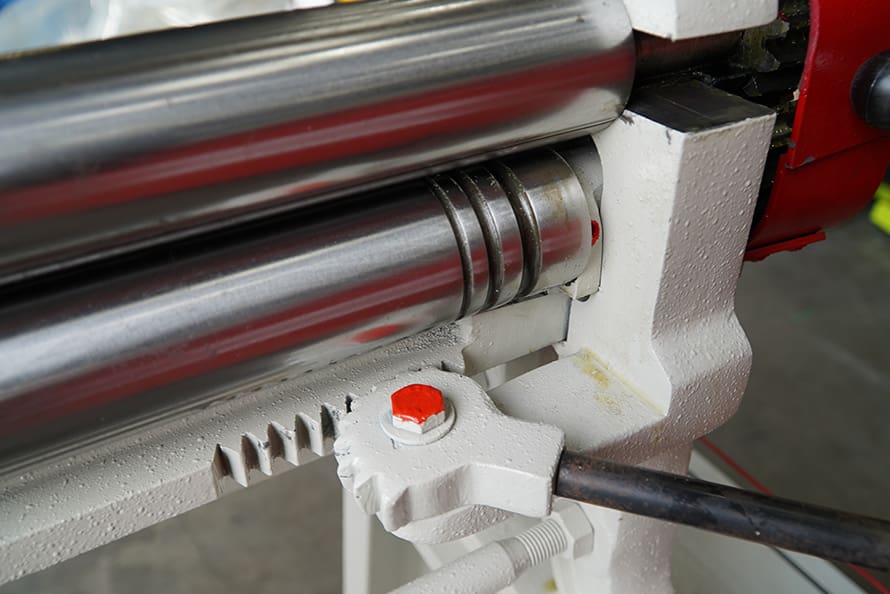

Round Bar Grooves
Morgan Rushworth DPR Manual Sheet Metal Bending Rolls image 2
Morgan Rushworth DPR Manual Sheet Metal Bending Rolls image 3
Cone Rolling Wheel
Morgan Rushworth DPR Manual Sheet Metal Bending Rolls image 3
Morgan Rushworth DPR Manual Sheet Metal Bending Rolls image 4

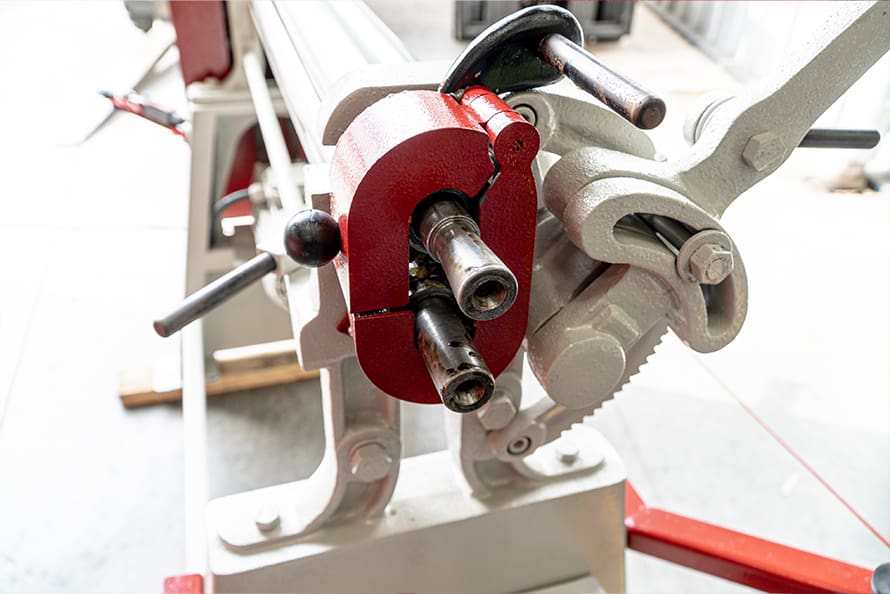

Top Slip Roll
Morgan Rushworth DPR Manual Sheet Metal Bending Rolls image 4
Morgan Rushworth DPR Manual Sheet Metal Bending Rolls image 5
Manual Rotation Handle
Morgan Rushworth DPR Manual Sheet Metal Bending Rolls image 5
Asymmetrical Bending DiagramAsymmetrical Bending Diagram
Newspaper article about the history of Morgan Rushworth bending rollsNewspaper article about the history of Morgan Rushworth bending rolls
MODEL STOCK CODE BENDING LENGTH PRE BENDING MAX THICKNESS TOP ROLL DIA LENGTH HEIGHT WIDTH WEIGHT
mm mm mm mm mm mm mm kg
DPR 1050/46 M3609 1050 0.6 0.8 46 1500 1120 700 210
DPR 1050/56 M3610 1050 0.8 1 56 1500 1120 700 240

Capacities are given for 250 N/mm² plate yielding strength

Features

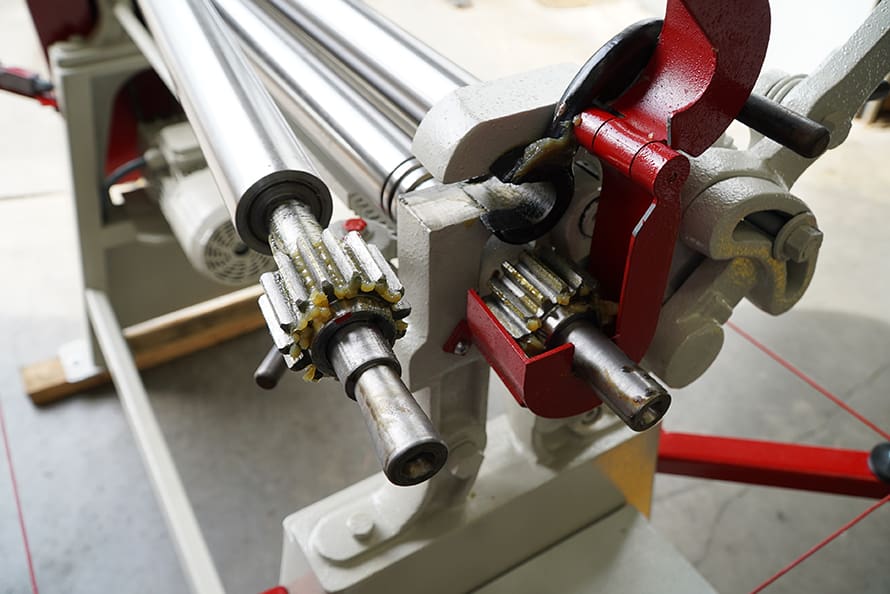

  • Top roll to slip
  • Manual rotation
  • Cone bending
  • Crowned Rolls
  • Manually adjusted side roll for up and down translation

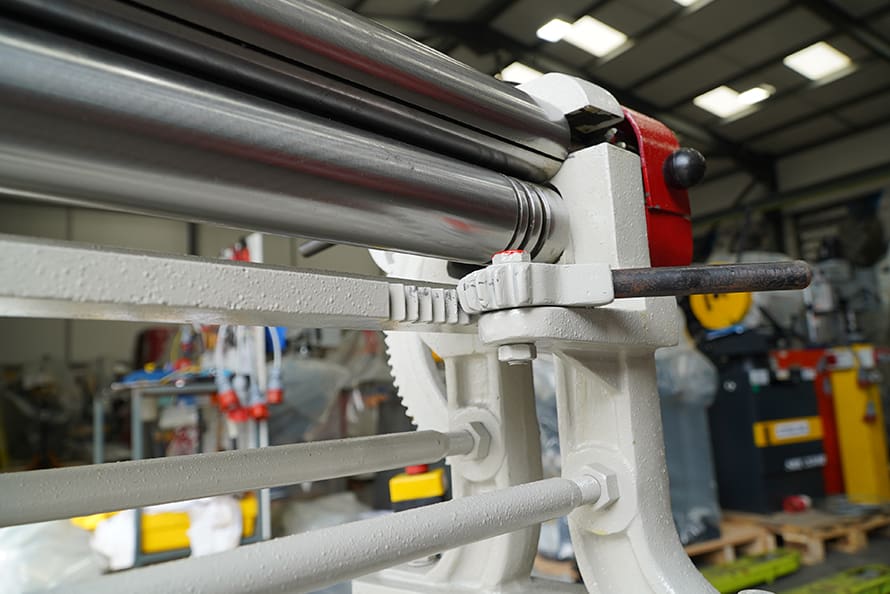

  • Manual pinching of bottom roll
  • Round bar grooves

Options

  • Induction hardened rolls
  • Parallel Rolls
  • Powered side roll up and down translation
  • DRO for side roll position
