Morgan Rushworth DPBH-4 Hydraulic 4 Roll Plate Bending Rolls

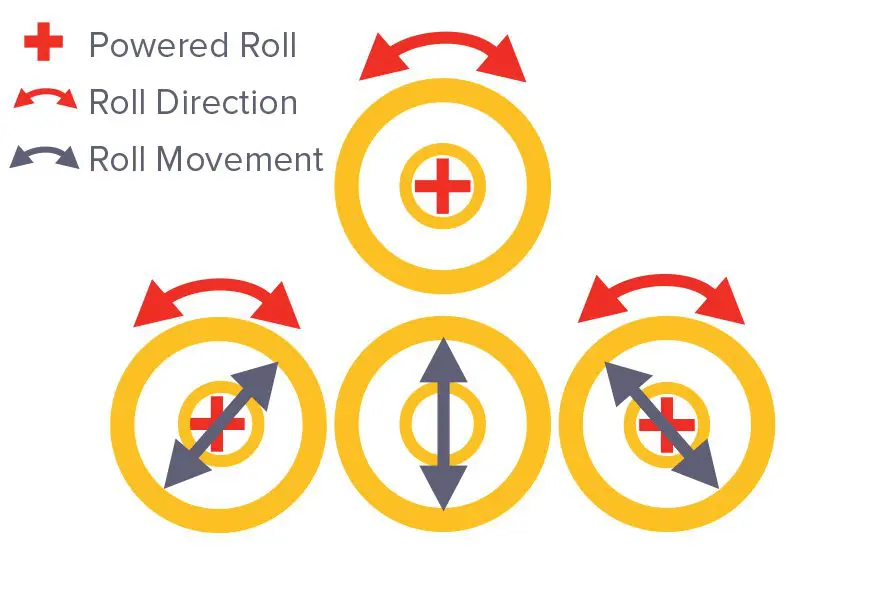

The Morgan Rushworth DPBH-4 hydraulic bending rolls are available with roll diameters ranging from 280mm up to the large 680mm machines. The 4 roll design is extremely powerful, with 3 of the rolls hydraulically driven and the fourth lower roll hydraulically adjusted up and down to pinch the material into position. The feature greatly assists the operator, especially during multiple radius bending as the work piece is always held. All models have hydraulic drop end and are supplied with DRO to all three adjusting rolls to indicate roll position.

Morgan Rushworth DPBH-4 Hydraulic 4 Roll Plate Bending Rolls imageMorgan Rushworth DPBH-4 Hydraulic 4 Roll Plate Bending Rolls image
Video thumbnail showing the Morgan Rushworth DPBH-4 Hydraulic 4 Roll Plate Bending Rolls
Morgan Rushworth DPBH-4 Hydraulic 4 Roll Plate Bending Rolls image 3Morgan Rushworth DPBH-4 Hydraulic 4 Roll Plate Bending Rolls image 3
MODEL STOCK CODE BENDING LENGTH PRE BENDING MAX THICKNESS TOP/BOTTOM ROLL dia SIDE ROLLS dia MOTOR LENGTH WIDTH HEIGHT WEIGHT
mm mm mm mm mm kw mm mm mm kg
DPBH-4 2050/280 M3543 2050 16 20 280 220 15 4750 1650 1800 8550
DPBH-4 2050/320 M3544 2050 20 25 320 240 18.5 4800 1800 1900 10240
DPBH-4 2050/350 M3545 2050 25 30 350 260 22 5000 2200 1900 1190
DPBH-4 2050/380 M3546 2050 30 40 380 300 30 5100 2300 2000 13200
DPBH-4 2050/400 M3547 2050 35 45 400 300 38.5 5200 2350 2300 14990
DPBH-4 2050/460 M3548 2050 40 50 460 380 38.5 5250 2350 2600 20050
DPBH-4 2050/500 M3549 2050 50 55 500 400 45 5400 2490 2600 31000
DPBH-4 2050/550 M3550 2050 50 60 550 450 66 5500 2860 2900 40150
DPBH-4 2550/280 M3551 2550 12 16 280 220 15 5250 1700 1800 9200
DPBH-4 2550/320 M3552 2550 16 20 320 240 18.5 5300 1800 1900 11300
DPBH-4 2550/350 M3553 2550 20 25 350 260 22 5400 2200 1900 13200
DPBH-4 2550/380 M3554 2550 25 30 380 300 30 5450 2290 2000 16720
DPBH-4 2550/400 M3555 2550 30 40 400 300 38.5 5700 2320 2300 17950
DPBH-4 2550/460 M3556 2550 35 45 460 380 38.5 6000 2400 2600 22450
DPBH-4 2550/500 M3557 2550 40 50 500 400 45 6000 2510 2600 32980
DPBH-4 2550/550 M3558 2550 45 55 550 450 66 6000 2860 2900 43560
DPBH-4 3100/280 M3559 3100 10 12 280 220 15 5800 1720 1800 10040
DPBH-4 3100/320 M3560 3100 12 16 320 240 18.5 5950 1810 1900 12980
DPBH-4 3100/350 M3561 3100 16 20 350 260 22 6100 2280 1900 15090
DPBH-4 3100/380 M3562 3100 20 25 380 300 30 6150 2320 2000 18200
DPBH-4 3100/400 M3563 3100 25 30 400 300 38.5 6250 2340 2300 20060
DPBH-4 3100/460 M3564 3100 30 40 460 380 38.5 6400 2390 2600 24660
DPBH-4 3100/500 M3565 3100 35 45 500 400 45 6550 2470 2600 36070
DPBH-4 3100/550 M3566 3100 40 50 550 450 66 6720 2680 2900 46790
DPBH-4 3100/580 M3567 3100 45 60 580 480 73 7180 2920 2980 55200
DPBH-4 3100/620 M3568 3100 60 70 620 520 123 7300 3280 3200 62100
DPBH-4 3100/680 M3569 3100 70 85 680 580 150 7750 3480 3550 82360
DPBH-4 4100/280 M3570 4100 6 8 280 220 15 6500 1740 1800 13100
DPBH-4 4100/320 M3571 4100 8 10 320 240 18.5 6700 1830 1900 16070
DPBH-4 4100/350 M3572 4100 10 12 350 260 22 6920 2290 1900 18750
DPBH-4 4100/380 M3573 4100 12 16 380 300 30 7040 2340 2000 22350
DPBH-4 4100/400 M3574 4100 16 20 400 300 38.5 7250 2390 2300 25070
DPBH-4 4100/460 M3575 4100 20 25 460 380 38.5 7340 2560 2600 31100
DPBH-4 4100/500 M3576 4100 25 35 500 400 45 7430 2600 2600 41870
DPBH-4 4100/550 M3577 4100 30 40 550 450 66 7650 2880 2900 54310

Capacities are given for 250 N/mm² plate yielding strength

Features

  • Hydraulic driven rolls

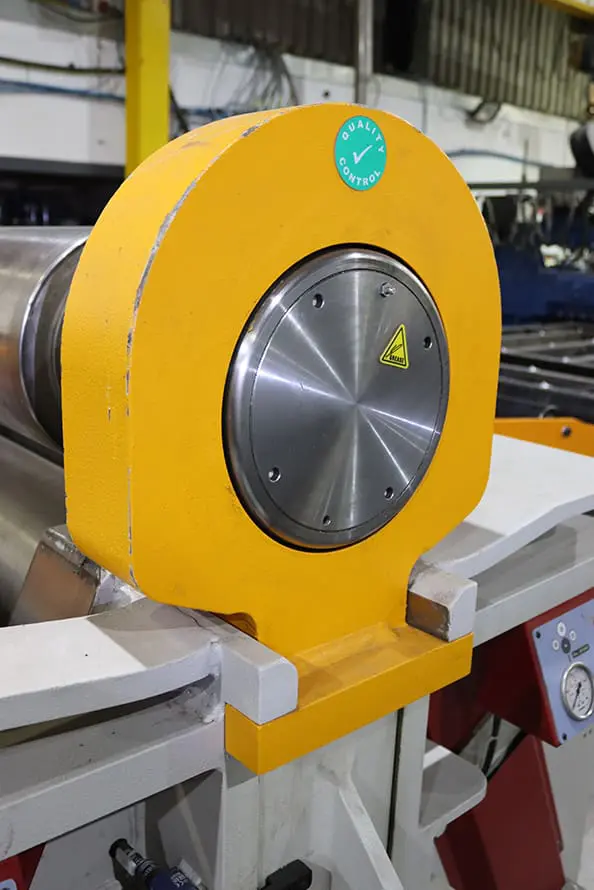

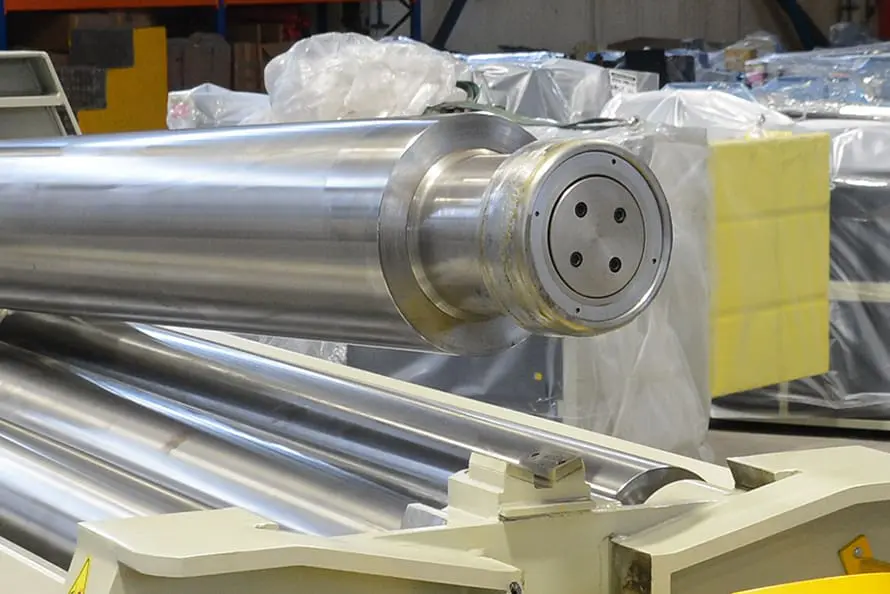

  • Hydraulic drop end and top roll tilt
  • Hydraulic up and down roll movement
  • Hydraulic pinching
  • Induction hardened rolls
  • DRO for both side rolls
  • Double pre-bending to front and rear edge of plate
  • Cone bending device
  • Welded steel construction
  • Safety trip wire around the machine
  • Mobile control panel
  • Two speed
  • Central lubrication system

Options

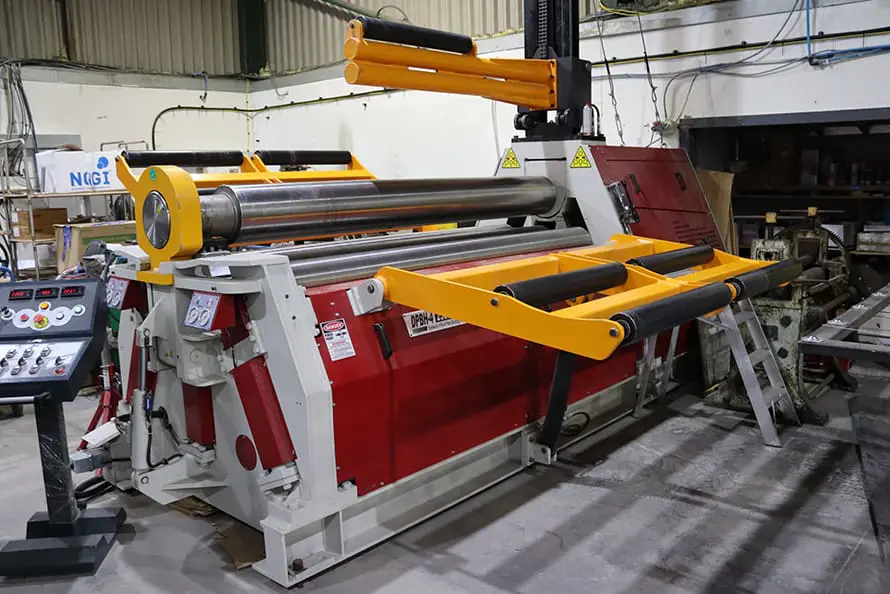

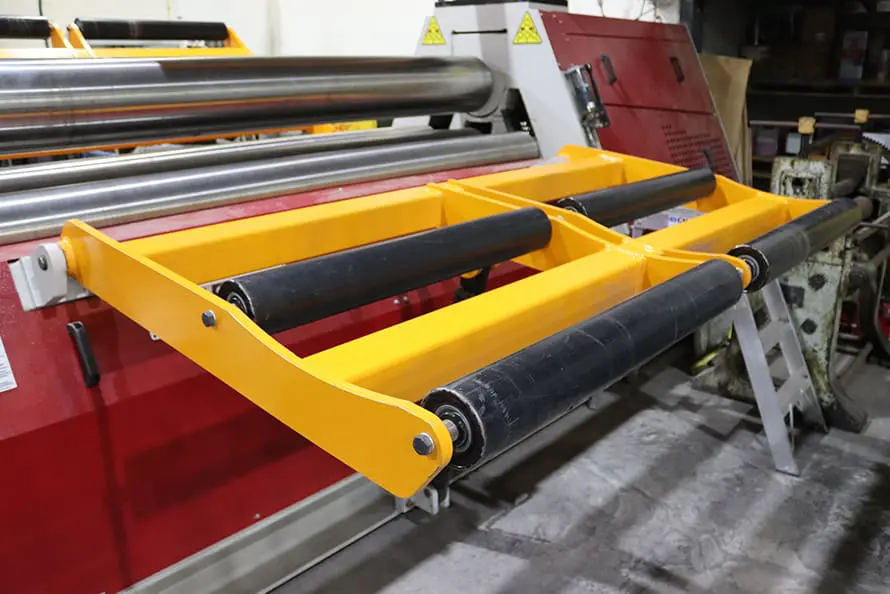

  • Side and central sheet supports
  • Ground and polished rolls
  • Variable speed
  • NC or CNC controller
