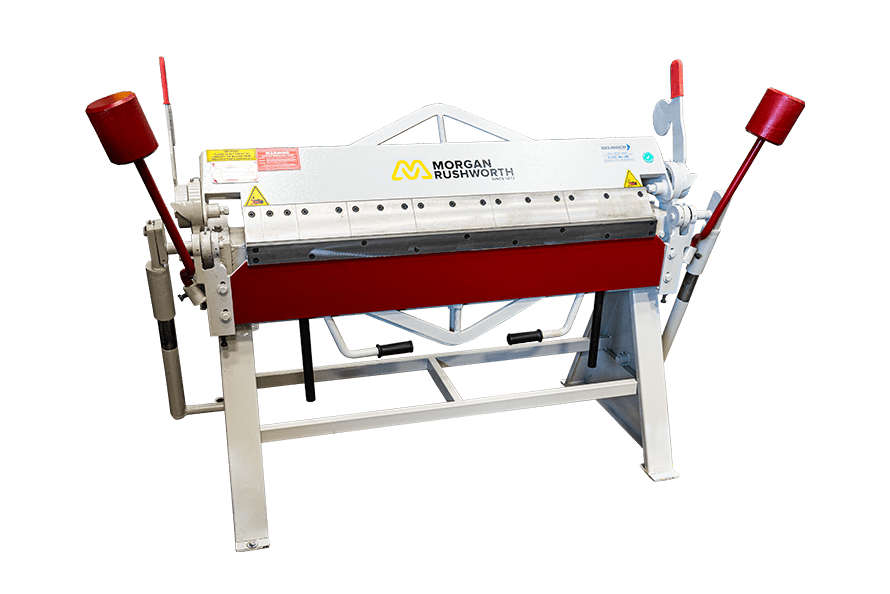

Morgan Rushworth BPC Box & Pan Folder
The heavy duty Morgan Rushworth Manual Box and Pan Folder is available in a 1270mm width. Intended for working with sheet metal material they have a capacity of up to 2mm thick. All models feature 45° hardened and ground segmented fingers allowing both straight and box & pan folding in a range of materials. The counterbalance weights assist the operator, especially with repetitive cycles.
This model has now been discontinued in favour of a even more heavily-constructed version, our Morgan Rushworth BP Counterbalance Box & Pan Folder
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES
| MODEL | BP1260/2.0 | |
| STOCK CODE | M2017 | |
| Capacity | mm | 2.0 |
| Bending Length | mm | 1260 |

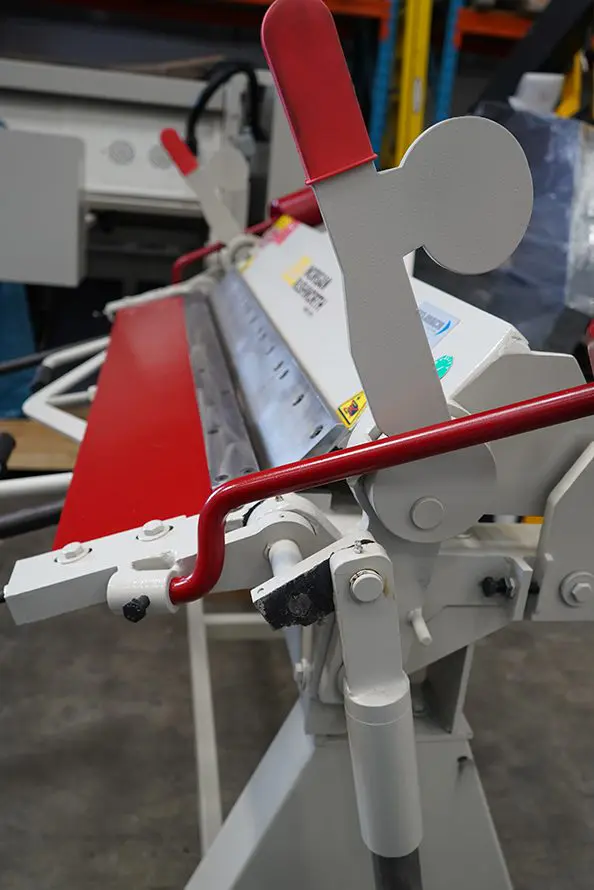

| Maximum Folding Angle | 135° | |
| Quantity & Size of Fingers | mm | 1 x 50, 1 x 100, 1 x 150 |
| 1 x 200, 2 x 250, 1 x 300 | ||
| Length | mm | 1580 |
| Width | mm | 500 |
| Height | mm | 1250 |
| Weight | kg | 400 |
Features
- Box and pan design
- Adjustable angle stops

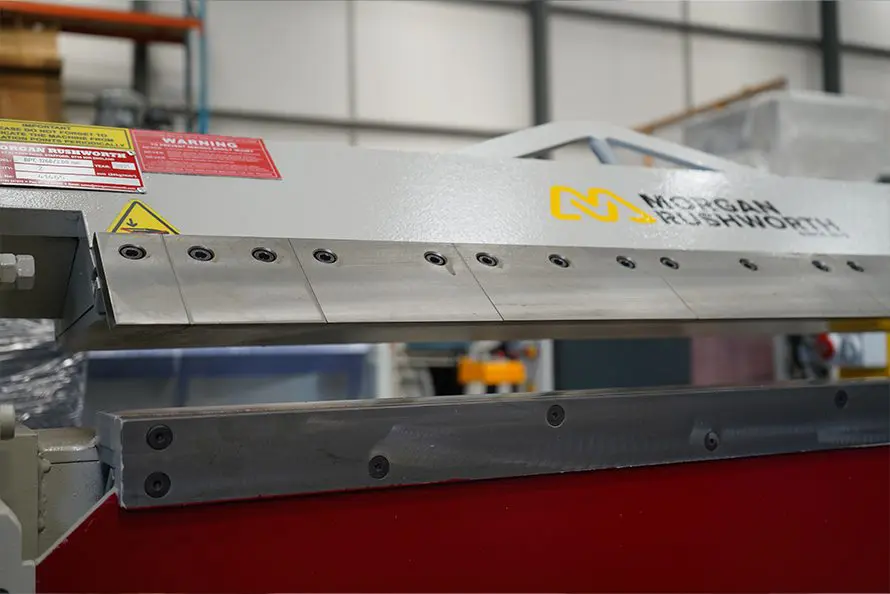

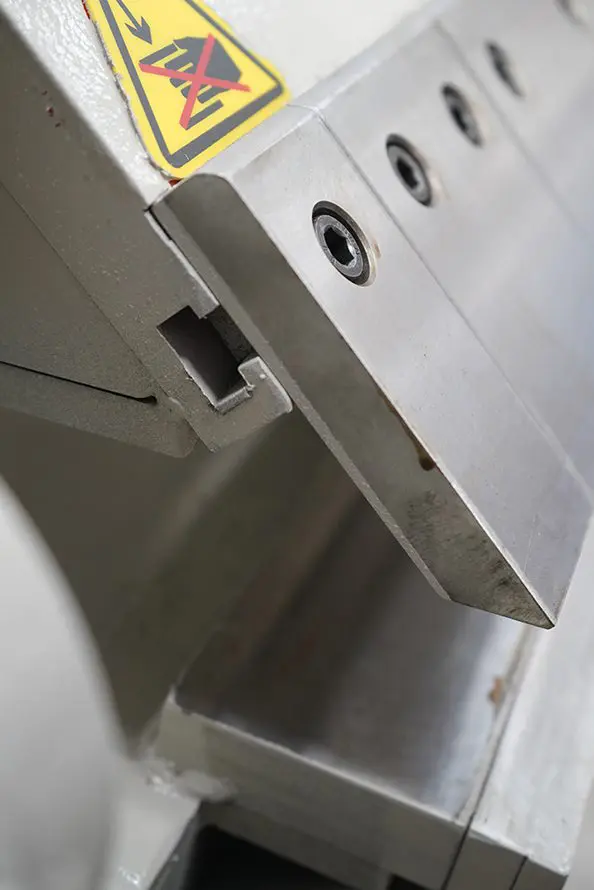

- 45° hardened and ground clamping beam fingers
- Various clamping beam segment sizes supplied
- Counterbalance weights to assist operator
- Adjustable bending radius for material thickness
- Manual crowning of clamping and folding beams
Options
The heavy duty Morgan Rushworth Manual Box and Pan Folder is available in a 1270mm width. Intended for working with sheet metal material they have a capacity of up to 2mm thick. All models feature 45° hardened and ground segmented fingers allowing both straight and box & pan folding in a range of materials. The counterbalance weights assist the operator, especially with repetitive cycles.
