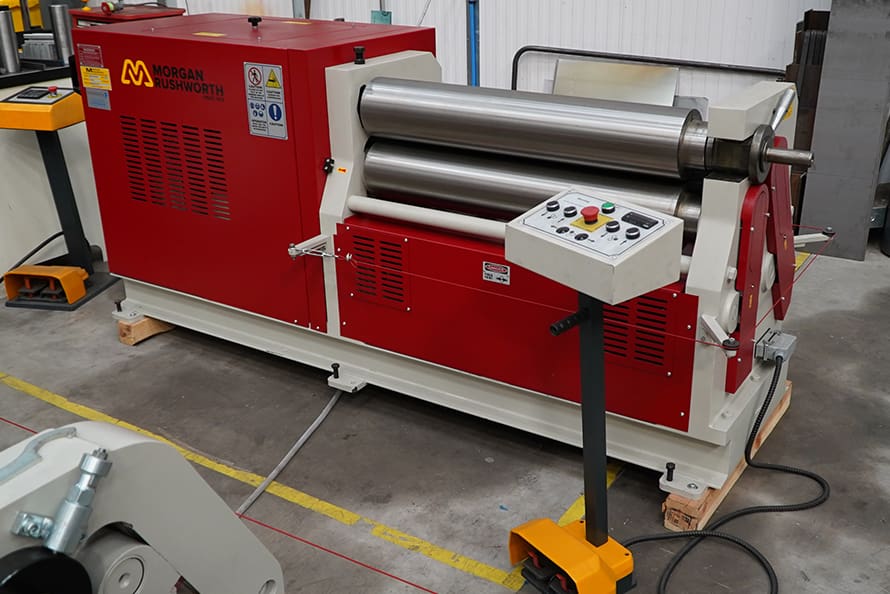

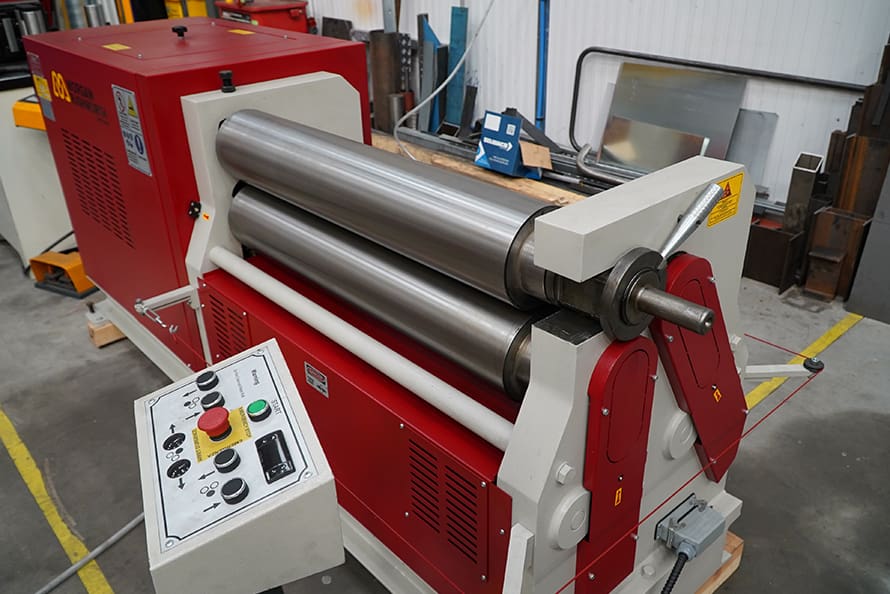

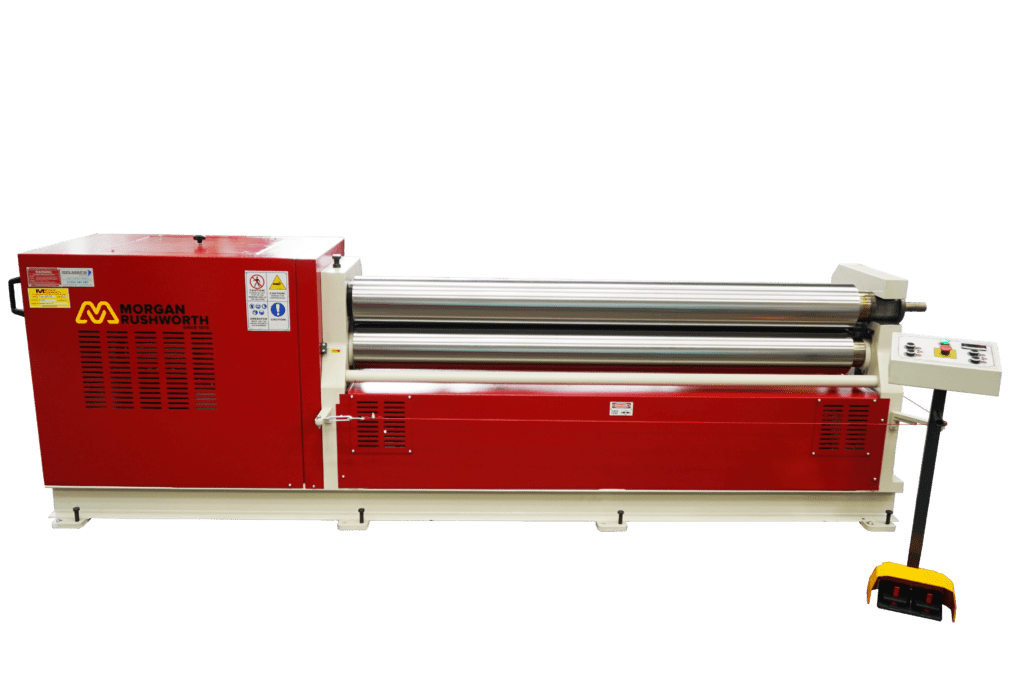

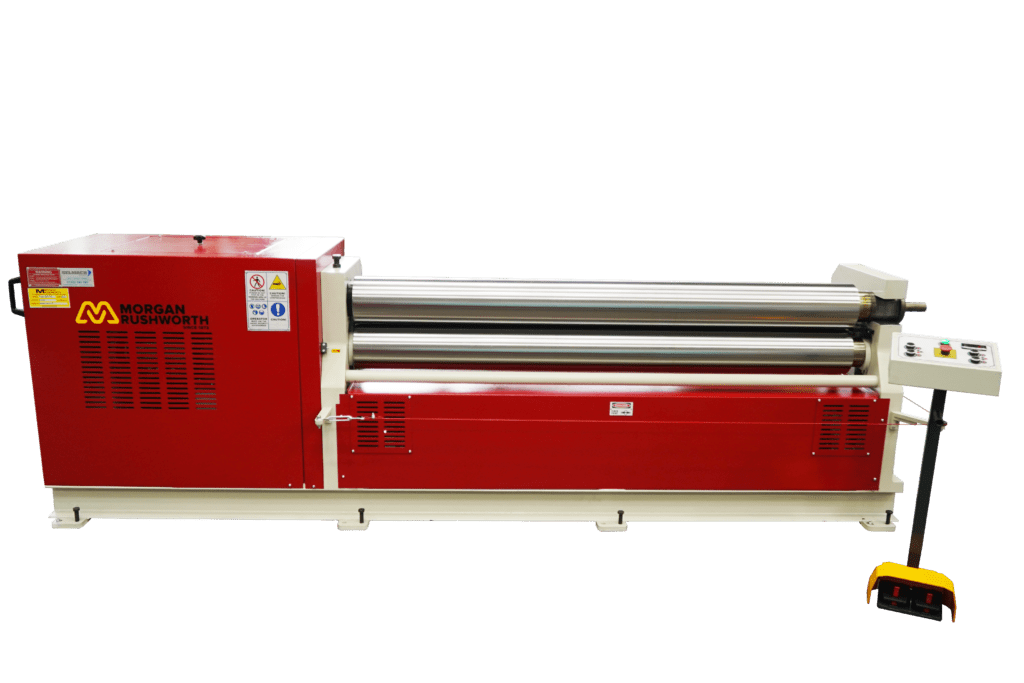

Morgan Rushworth ASBR Powered Bending Rolls
The Morgan Rushworth ASBR Powered Bending Rolls build on the heavy duty design of the smaller SBR models by adding standard features such as powered pre-bending roll adjustment and induction hardened roils as standard. The asymmetric design provides pre-bending capability on the machine and the top slip roll allows quick removal of cylindrical components.
An optional digital read out can be fitted to the pre-bending roll for repeatability.
| MODEL | STOCK CODE | BENDING LENGTH | PRE BENDING | MAX THICKNESS | TOP ROLL DIA. | MIN BEND DIA. | MOTOR | BENDING SPEED | LENGTH | HEIGHT | WIDTH | WEIGHT |
| mm | mm | mm | mm | mm | kW | m/min | mm | mm | mm | kg | ||
| ASBR 1050/130 | 1050 | 5 | 6 | 130 | 195 | 2.2 | 5 | 2750 | 1020 | 650 | 1200 | |
| ASBR 1050/150 | M3125 | 1050 | 6 | 7 | 150 | 225 | 3 | 5 | 2750 | 1040 | 800 | 1350 |
| ASBR 1050/170 | 1050 | 7 | 8 | 170 | 255 | 4 | 5 | 2850 | 1050 | 720 | 1600 | |
| ASBR 1050/190 | M3126 | 1050 | 8 | 9 | 190 | 285 | 4 | 5 | 2850 | 1070 | 890 | 1600 |
| ASBR 1550/140 | M3027 | 1600 | 4 | 5 | 140 | 210 | 2.2 | 6 | 2800 | 1060 | 750 | 1450 |
| ASBR 1550/170 | M3028 | 1600 | 6 | 7 | 170 | 255 | 4 | 4.5 | 3150 | 1130 | 820 | 1900 |
| ASBR 2050/170 | M3029 | 2100 | 4 | 5 | 170 | 255 | 4 | 4.5 | 3650 | 1130 | 820 | 2300 |
| ASBR 2050/190 | M3030 | 2100 | 5 | 6 | 190 | 285 | 4 | 5 | 3900 | 1200 | 920 | 3600 |
| ASBR 2050/200 | M3031 | 2100 | 6 | 7 | 200 | 300 | 5.5 | 5 | 3900 | 1250 | 950 | 3800 |
| ASBR 2550/140 | M3032 | 2600 | 2 | 3 | 140 | 225 | 2.2 | 6 | 3150 | 1130 | 820 | 1900 |
| ASBR 2550/170 | M3033 | 2600 | 3 | 4 | 170 | 255 | 4 | 4.5 | 4150 | 1130 | 820 | 2750 |
| ASBR 2550/190 | M3034 | 2600 | 4 | 5 | 190 | 285 | 4 | 5 | 4400 | 1200 | 920 | 4200 |
| ASBR 2550/200 | M3035 | 2600 | 7 | 6 | 200 | 300 | 5.5 | 5 | 4400 | 1250 | 950 | 4400 |
| ASBR 3050/170 | M3036 | 3100 | 2 | 3 | 170 | 255 | 4 | 4.5 | 4650 | 1130 | 820 | 3200 |
| ASBR 3050/190 | M3037 | 3100 | 3 | 4 | 190 | 285 | 4 | 5 | 4650 | 1200 | 920 | 4600 |
| ASBR 3050/200 | M3038 | 3100 | 4 | 5 | 200 | 300 | 5.5 | 5 | 4650 | 1250 | 950 | 4800 |
Capacities are given for 250 N/mm² plate yielding strength
Features

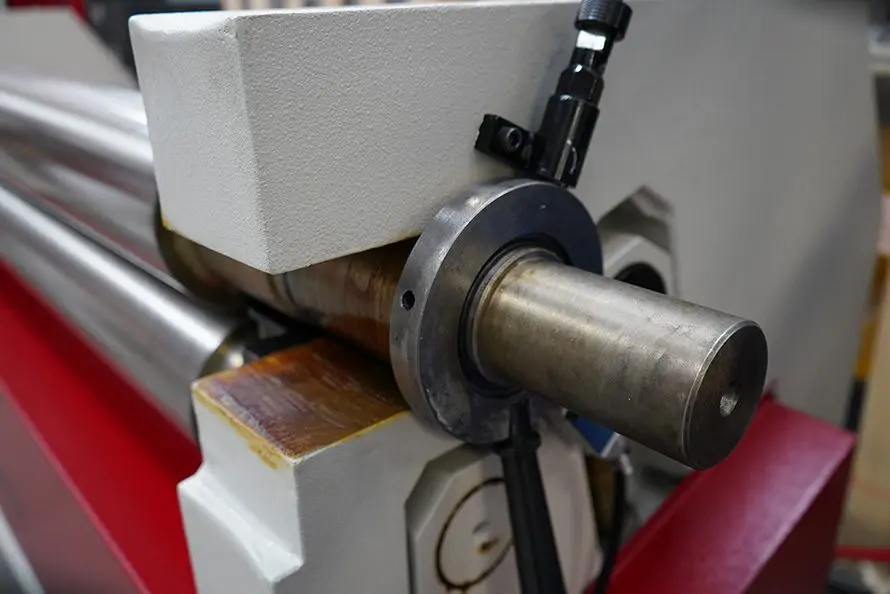

- Top roll to slip
- Heavy duty strong welded steel construction
- Motorised side roll for up and down translation
- Induction hardened rolls

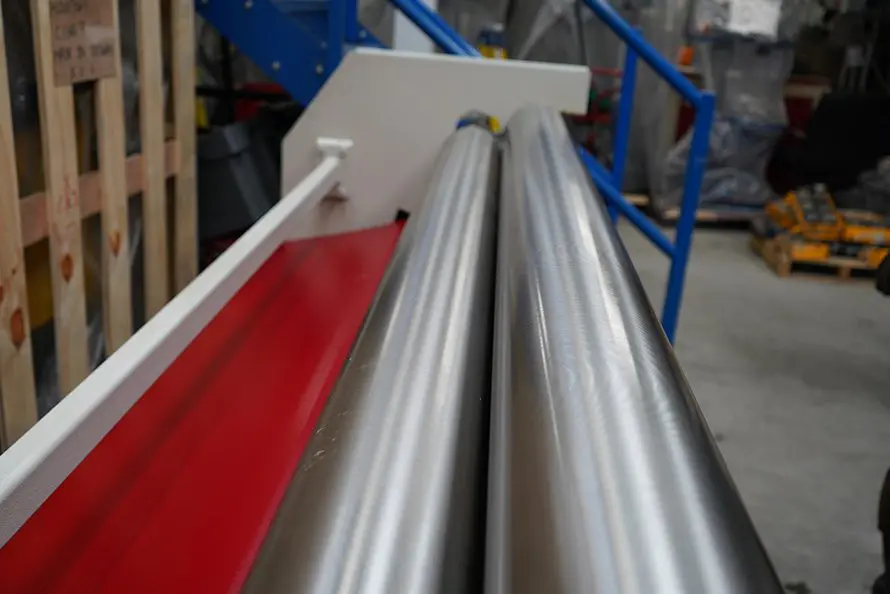

- Crowned Rolls
- Asymmetric roll configuration
- Cone bending device
- High powered production range
Options

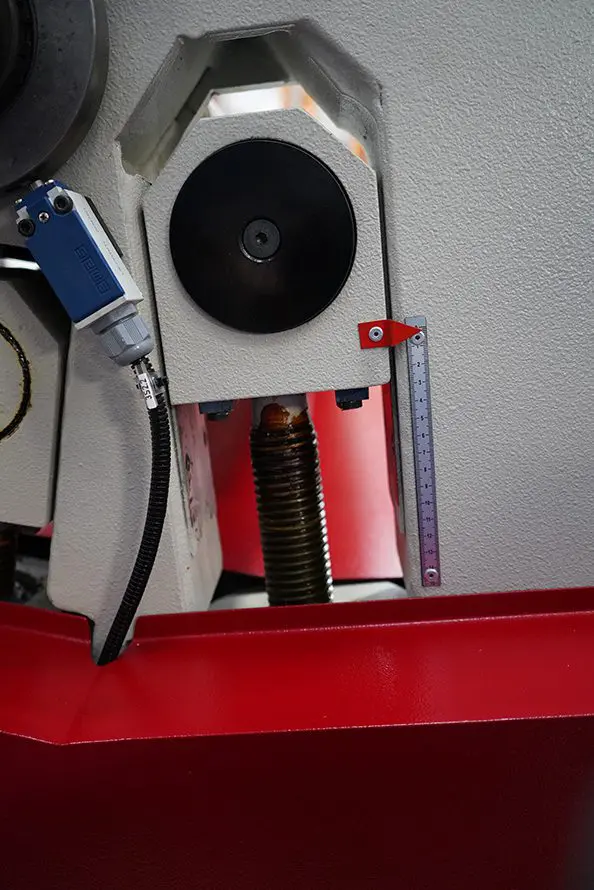

- Powered lower roll up and down movement for pinching
- Parallel Rolls
- Extended rolls for profile bending
- DRO for side roll position
