Morgan Rushworth ASBH Powered Hydraulic Bending Rolls

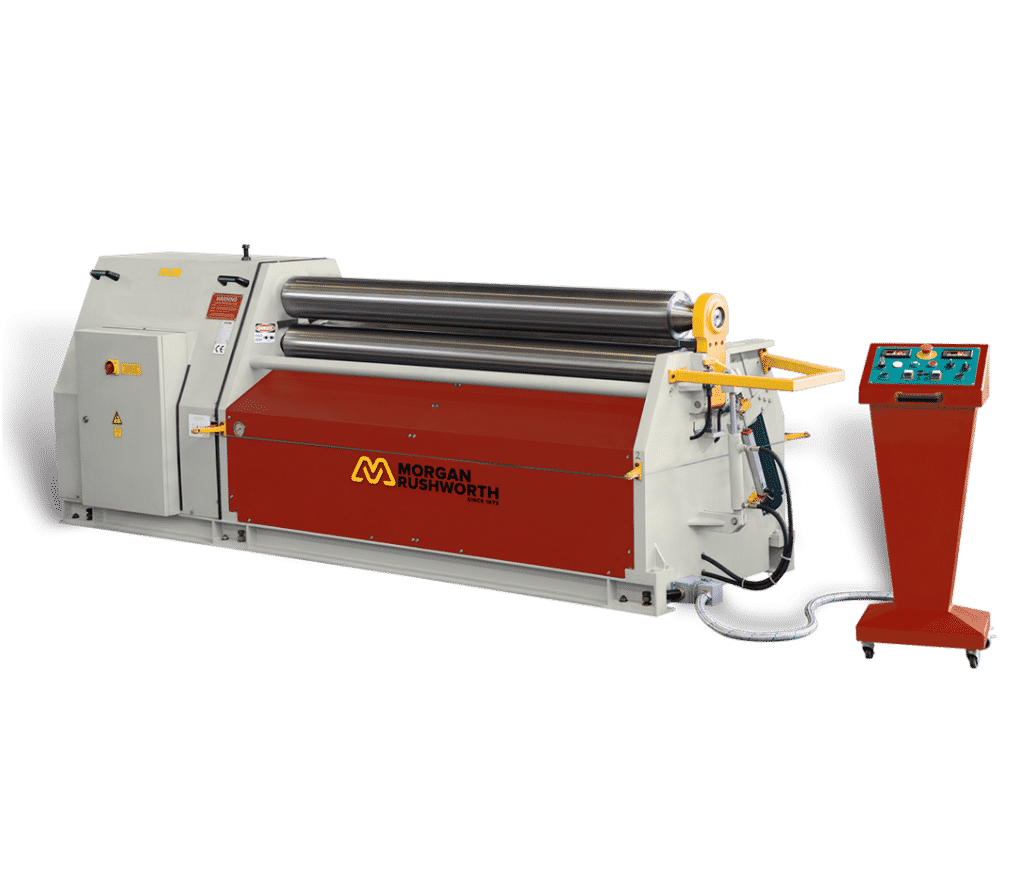

Main view - Morgan-Rushworth-ASBH-3-Roll-Powered-Bending-Rolls

The powerful ASBH models feature the hydraulic side roll up and lower roll and down translation ensuring powerful and quick pre-bending of material. The hydraulic drop end enables quick ejecting of rolled material. Induction hardened rolls feature as standard. ASBH machines are available up to 3050mm bending widths.

Main view - Morgan-Rushworth-ASBH-3-Roll-Powered-Bending-Rolls
Main view - Morgan-Rushworth-ASBH-3-Roll-Powered-Bending-RollsMain view - Morgan-Rushworth-ASBH-3-Roll-Powered-Bending-Rolls

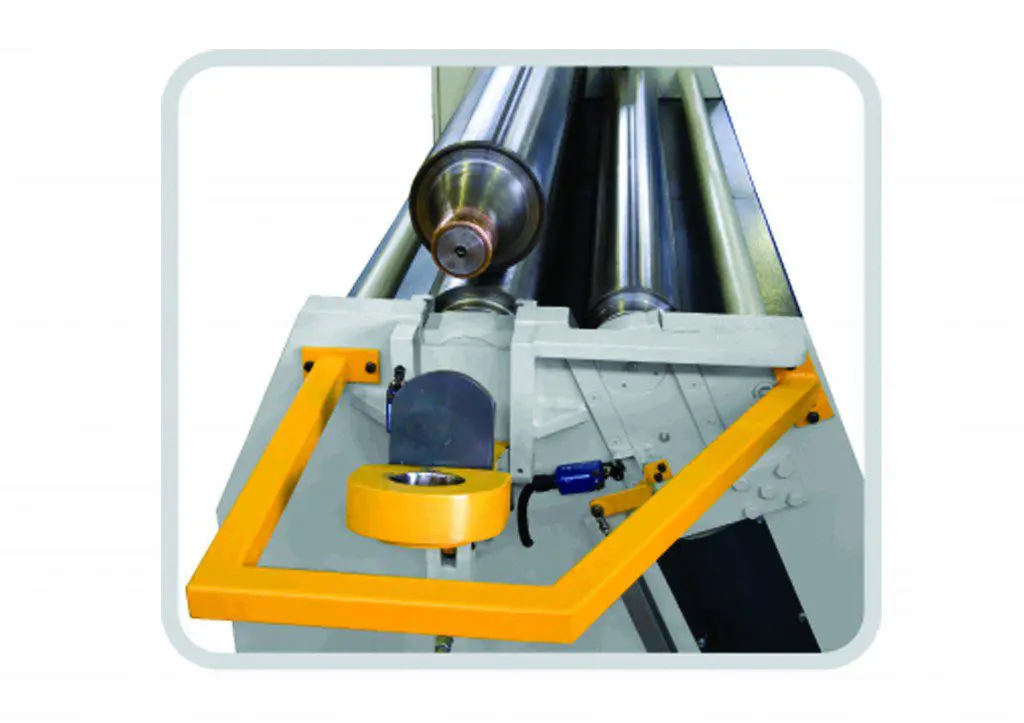

Side view of the machine with the top end loweredSide view of the machine with the top end lowered
Morgan Rushworth ASBH Powered Hydraulic Bending Rolls image 3Morgan Rushworth ASBH Powered Hydraulic Bending Rolls image 3
  BENDING LENGTH TOP/BOTTOM ROLL DIA SIDE ROLL DIA ROLLING CAPACITY PRE-BENDING CAPACITY ROLLING CAPACITY
(AT 5 X TOP ROLL DIA)
PRE-BENDING CAPACITY
(AT 5 X TOP ROLL DIA)
ROLLING SPEED
(AT 1.5 X TOP ROLL DIA)
MOTOR
(AT 1.5 X TOP ROLL DIA)
LENGTH WIDTH HEIGHT WEIGHT
MODEL STOCK CODE mm mm mm mm mm mm mm m/min mm mm mm kg
ASBH 650/80 M3656 650 80 80 3.5 3 3 2.5 5 1.1 + 0.75 1950 950 960 800
ASBH 1050/80 M3657 1050 80 80 2.5 2 2 1.5 5 1.1 + 0.75 2350 950 960 920
ASBH 1270/80 M3658 1270 80 80 2 1.5 1.5 1 5 1.1 + 0.75 2570 950 960 950
ASBH 1270/100 M3659 1270 100 90 3 2 2 1.5 6.5 1.1 + 0.75 2570 950 960 1150
ASBH 1270/130 M3660 1270 130 130 5 4 4 3 5 2.2 + 0.75 3020 1150 1110 1750
ASBH 1270/150 M3661 1270 150 130 7 5 5 4 6 2.2 + 1.1 3020 1150 1110 1825
ASBH 1270/180 M3662 1270 180 150 10 7.5 7.5 5.5 5 4.0 + 1.1 3070 1350 1290 2100
ASBH 1270/200 M3663 1270 200 180 12 10 10 8 6 4.0 + 1.5 3070 1350 1290 2200
ASBH 1550/80 M3664 1550 80 80 1.5 1 1 0.5 5 1.1 + 0.75 2850 950 960 1100
ASBH 1550/100 M3665 1550 100 90 2 1.5 1.5 1 6.5 1.1 + 0.75 2850 950 960 1200
ASBH 1550/130 M3666 1550 130 130 4.5 3.5 3.5 2.5 5 2.2 + 0.75 3300 1150 1110 1850
ASBH 1550/150 M3667 1550 150 130 6.5 4.5 4.5 3.5 6 2.2 + 1.1 3300 1150 1110 2000
ASBH 1550/180 M3668 1550 180 150 9 7 7 5 5 4.0 + 1.1 3350 1350 1290 2310
ASBH 1550/200 M3669 1550 200 180 11 9 9 7 6 4.0 + 1.5 3350 1350 1290 2450
ASBH 1550/220 M3670 1550 220 180 12 10 10 8 5 5.5 + 1.5 3500 1500 1370 3250
ASBH 1550/250 M3671 1550 250 200 15 12 12 1 5 7.5 + 1.5 3500 1500 1370 3600
ASBH 2050/130 M3672 2050 130 130 4 3 3 2 5 2.2 + 0.75 3800 1150 1110 2050
ASBH 2050/150 M3673 2050 150 130 6 4 4 3 6 2.2 + 1.1 3800 1150 1110 2250
ASBH 2050/180 M3674 2050 180 150 8 6 6 4 5 4.0 + 1.1 3850 1350 1290 2690
ASBH 2050/200 M3675 2050 200 180 10 8 8 6 6 4.0 + 1.5 3850 1350 1290 2950
ASBH 2050/220 M3676 2050 220 180 11 9 9 7 5 5.5 + 1.5 4000 1500 1370 3750
ASBH 2050/250 M3677 2050 250 200 12 10 10 8 5 7.5 + 1.5 4000 1500 1370 4200
ASBH 2550/150 M3678 2550 150 130 4 3 3 2 6 2.2 + 1.1 4300 1150 1110 2500
ASBH 2550/180 M3679 2550 180 150 6 4 4 3 5 4.0 + 1.1 4350 1350 1290 3070
ASBH 2550/200 M3680 2550 200 180 8 6 6 4 6 4.0 + 1.5 4350 1350 1290 3450
ASBH 2550/220 M3681 2550 220 180 9 7 7 5 5 5.5 + 1.5 4500 1500 1370 4250
ASBH 2550/250 M3682 3050 250 200 10 8 8 6 5 7.5 + 1.5 4500 1500 1370 4800
ASBH 3100/180 M3683 3050 180 150 4 3 3 2 5 4.0 + 1.1 4850 1350 1290 3450
ASBH 3100/200 M3684 3050 200 180 6 4 4 3 6 4.0 + 1.5 4850 1350 1290 3950
ASBH 3100/220 M3685 3050 220 180 8 6 6 4 5 5.5 + 1.5 5000 1500 1370 4750
ASBH 3100/250 M3686 3050 250 200 9 7 7 5 5 7.5 + 1.5 5000 1500 1370 5400

Capacities are given for 250 N/mm² plate yielding strength

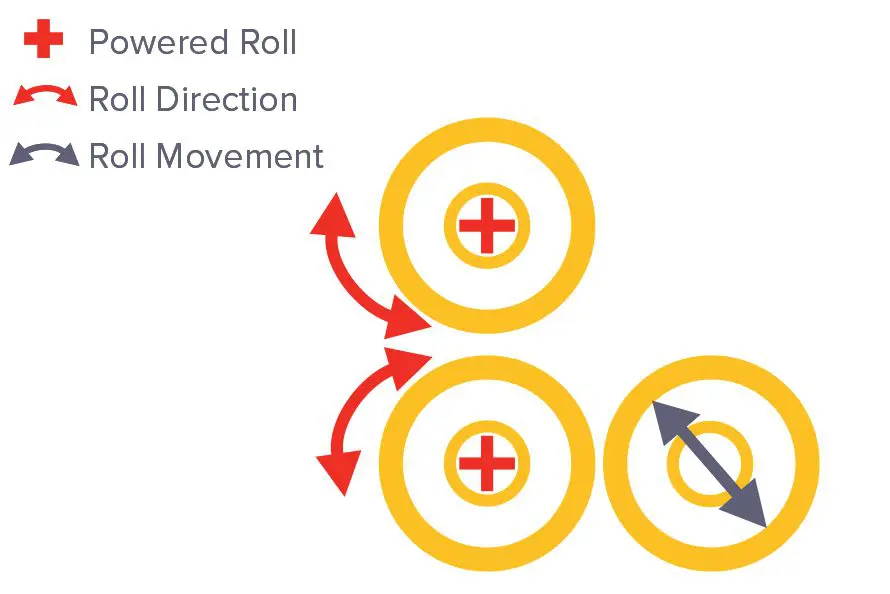

Features

Hydraulic drop end to ensure easy material remove (Top roll tilt 275mm and 300mm dia top roll models).

  • Heavy duty strong welded steel construction
  • Hydraulic side roll for up/down translation
  • Electrically driven top and bottom roll rotation with plenatery gearbox
  • DRO for side and lower roll position
  • Induction hardened rolls
  • Asymmetric roll configuration
  • Cone bending device
  • High powered production range

Options

  • Hydraulic centre support
  • Hydraulic side supports
  • Two speed rotation
  • Hydraulically driven top/bottom roll rotation on 220-250 top roll models
