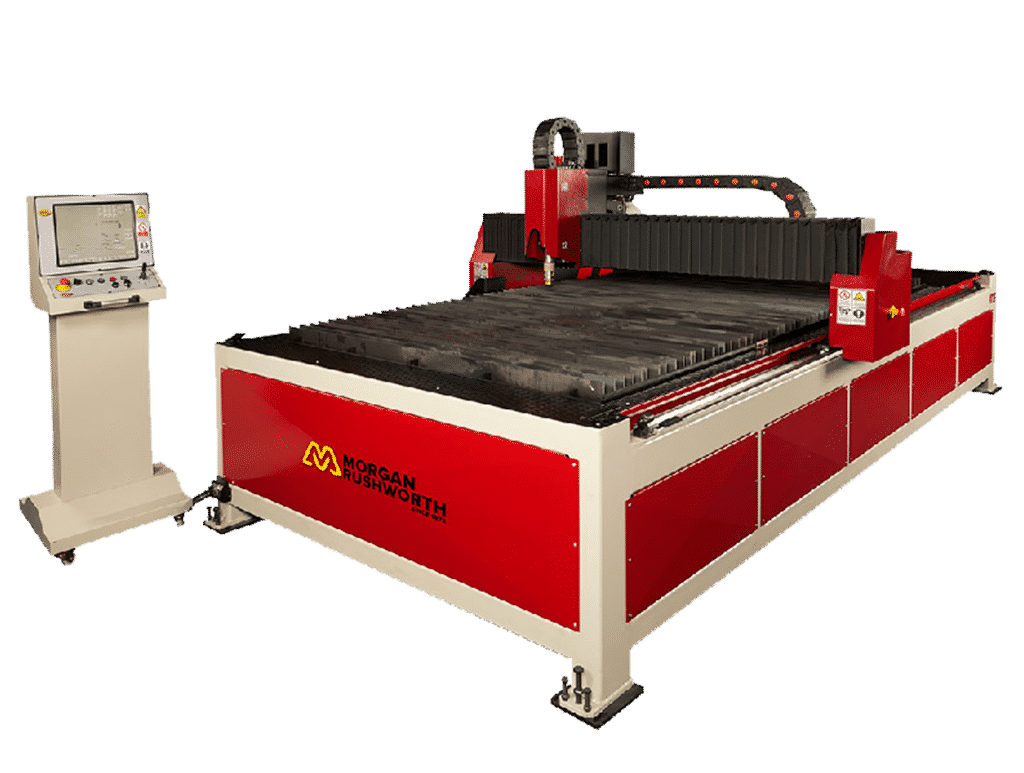

Morgan Rushworth ACP CNC HPR High Definition Plasma Cutting Machine
The Morgan Rushworth ACP CNC Compact Plasma cutting machines have been especially designed for simple but accurate cutting of sheet and plate material and are fitted with an operator friendly Windows based CNC controller.
Subject to initial specification, they can be either equipped with the class leading Hypertherm Powermax 105 power source utilising single gas plasma technology. Hypertherm power upgrades include the MAXPRO200 and the renowned HPR130XD providing XD Truehole technology.
The result is a high quality machine delivering low initial and operating costs, high productivity, superior cut quality and unsurpassed reliability.
| MODEL | ACP 1530/105 | ACP 15 60/105 | ACP 2040/105 | ACP 2060/105 | ||
| Plasma Output | Amps | 105 | 105 | 105 | 105 | |
| Capacity from Pierce | Mild Steel | mm | 20 | 20 | 20 | 20 |
| Stainless Steel | mm | 20 | 20 | 20 | 20 | |
| Aluminium | mm | 20 | 20 | 20 | 20 | |
| Capacity from Edge Start | Mild Steel | mm | 40 | 40 | 40 | 40 |
| Stainless Steel | mm | 32 | 32 | 32 | 32 | |
| Aluminium | mm | 32 | 32 | 32 | 32 | |
| Table Width | mm | 1600 | 1600 | 2075 | 2075 | |
| Table Length | mm | 3100 | 6100 | 4285 | 6285 | |
| X Axis Stroke | mm | 1550 | 1550 | 2050 | 2050 | |
| Y Axis Stroke | mm | 3050 | 6050 | 4050 | 6050 | |
| Z Axis Stroke | mm | 150 | 150 | 150 | 150 | |
| Table Height | mm | 800 | 800 | 925 | 925 | |
| Length | mm | 4420 | 7420 | 6084 | 8084 | |
| Width | mm | 2350 | 2350 | 2720 | 2720 | |
| Height | mm | 1710 | 1710 | 1723 | 1723 | |
| Weight | kg | 2550 | 4950 | 3950 | 5600 | |
Features
- Hypertherm Powermax 105 high definition multi gas plasma source
- Windows based Hypertherm MicroEDGE Pro CNC controller
- Hypertherm Nesting Software options

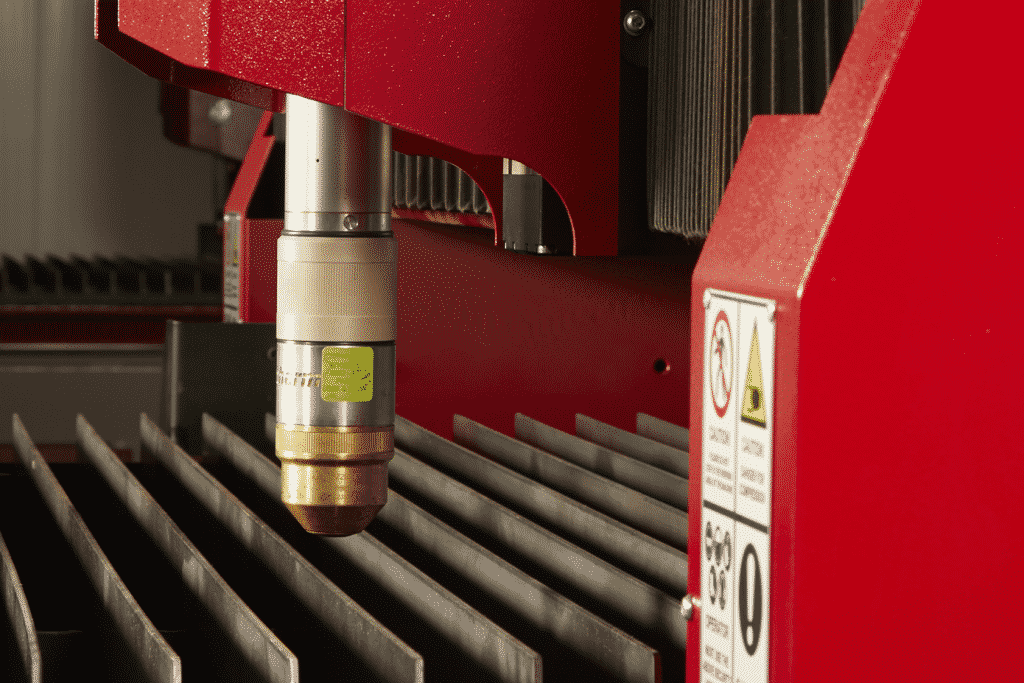

- Automatic torch height control
- Torch collision protection system
- Automatic ventilation and smoke extraction system ready to be connected to a filtration system
- Positioning speed 30 m/min maximum
- Positioning accuracy +/- 0.02mm
- LMT 25 mm high accuracy linear rail
- High quality Eisele gearbox
- Mitsubishi servo motor
- Atlanta rack and pinion system

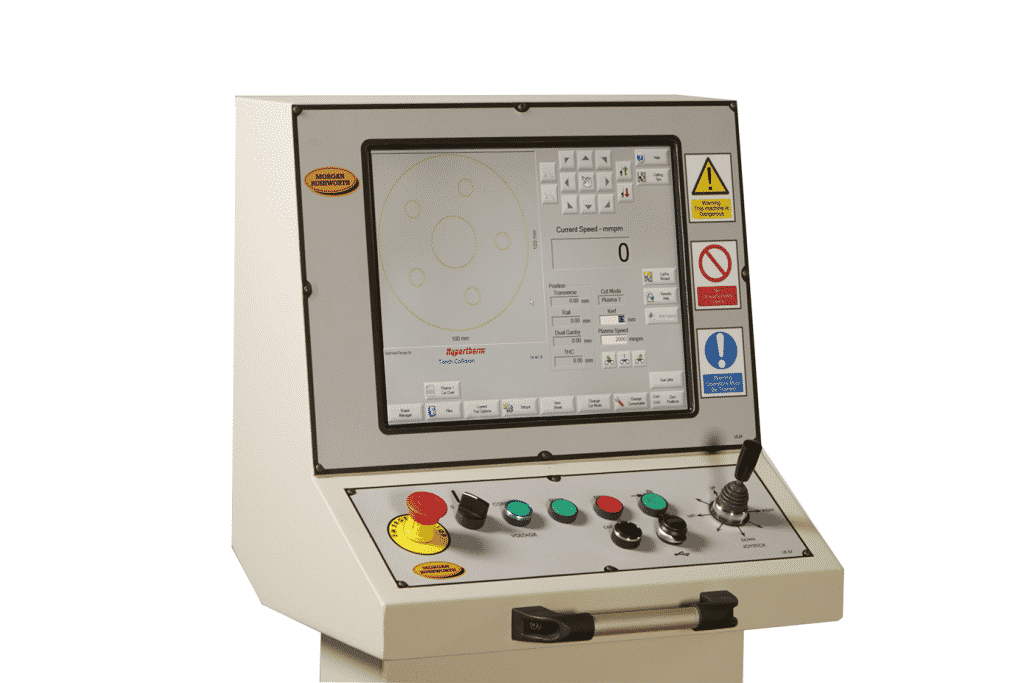

- Moveable Control Panel with gantry control joystick
Options
- NestMaster automatic nesting software
- TurboNest nesting software and additional productivity modules
- ProNest nesting software and additional productivity modules
- Extraction/filtration system
- Automatic gas console
