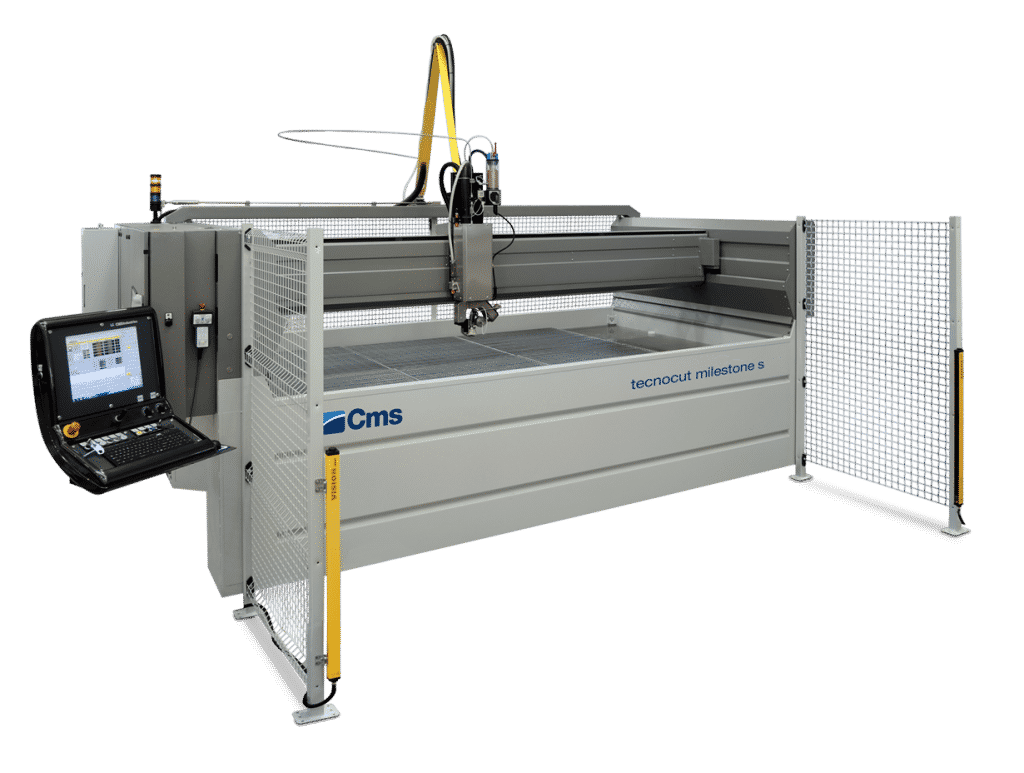

Milestone Waterjet Cutter
The Milestone waterjet offers all customers an easy and essential cutting machine.This system is capable of cutting a wide variety of materials using a very high pressure jet of water or a mixture of water and abrasive. Waterjet cutting is often used during fabrication of machine parts. It is the preferred method when the materials being cut are sensitive to the high temperatures generated by other methods. Waterjet cutting is used in various industries including mining and aerospace for cutting, shaping and reaming.
| MILESTONE | 1730 | 2040 |
| X Axis | 3000mm | 4000mm |
| Y Axis | 1700mm | 2000mm |
| Z Axis | 350mm | 250mm |
| Rest Surface | 3700 x 2025mm | 4650 x 2350mm |
| Overall Dimensions | 5700 x 2700 x 3700mm | 6400 x 4910 x 3800mm |
Features
- Cutting robot management hardware and software
- Precise rack and pinion transmission
- Monolithic base with side openings for loading and unloading
- Light barriers
- Support plate
- 330kg abrasive feeding system
Options
- 30/60/120Hp Jetpower Evo Pressure Intensifer
- 5-axis cutting head with IKC technology
- Probe with anti-collision
- Additional cutting heads
- Dredge
- Laser pointer
- Drilling Unit
- Electronic Hopper
- 2000kg Abrasive Feeding System
