MG F Series Powered 2-Roll Plate Bending Rolls
The MG 2-roll bending machines are designed for the production rolling of complete cylinders in sheet metal material and are available in a range of length and thickness capacities. The urethane rubber coated lower roll provides immediate pre-bending of the material, while the upper roll can be fitted with a larger mandrel to achieve a particular diameter. A complete cylinder is finished in one pass and is left with a minimal flat part resulting in very fast cycle time to a completed component.
| MODEL | STOCK CODE | BENDING LENGTH | ROLLING CAPACITY | TOP ROLL dia | BOTTOM ROLL dia | MOTOR | LENGTH | WIDTH | HEIGHT | WEIGHT |
| mm | mm | mm | mm | kw | mm | mm | mm | kg | ||
| F 03 A | 22031 | 350 | 1.2 | 60 | 160 | 4 | ||||
| F 05 A | 21887 | 550 | 1.2 | 80 | 220 | 4 | 1,600 | 830 | 1,025 | 950 |
| F 07 A | 21888 | 750 | 1.2 | 90 | 220 | 5.5 | 1,850 | 830 | 1,025 | 1,045 |
| F 10 A | 21889 | 1,050 | 1.2 | 100 | 300 | 5.5 | 2,340 | 1,000 | 1,240 | 1,700 |
| F 12 A | 21890 | 1,250 | 1.2 | 110 | 300 | 5.5 | 2,540 | 1,000 | 1,240 | 1,850 |
| F 15 B | 21891 | 1,550 | 4 | 150 | 300 | 7.5 | 2,840 | 1,000 | 1,240 | 1,950 |
| F 17 B | 22032 | 1,750 | 4 | 140 | 300 | 7.5 | ||||
| F 20 B | 21892 | 2,050 | 4 | 160 | 300 | 7.5 | 3,500 | 1,485 | 1,485 | 2,400 |
Capacities are given for 250 N/mm² plate yielding strength
Features
- 2-roll design with urethane rubber coated lower roll to provide instant pre-bending
- Top roll mandrels can fit over the standard top roll to achieve a particular diameter
- Finished diameter is completed in one pass

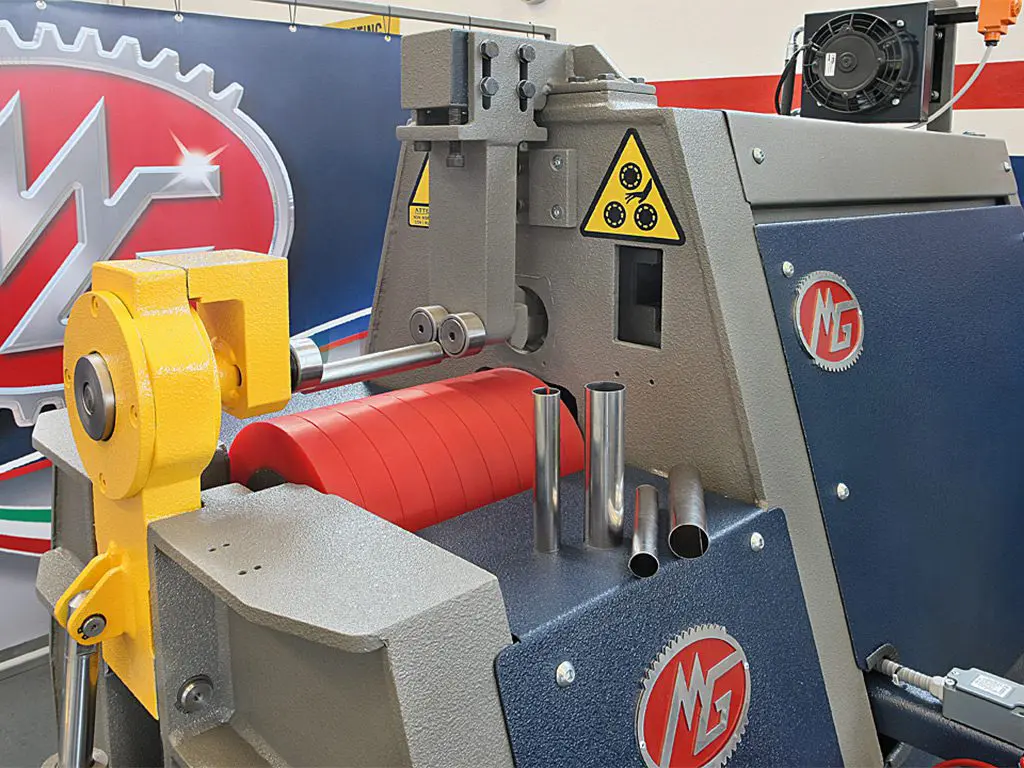

- Rolled components have a straight part of only 1.5 to 2 times the material thickness
- Fast bending cycle
- Hydraulic pinching of lower roll
- Hydraulic drop end for component removal
- Electro welded and stress relieved frame construction
- Permanent lubrication system; all parts are lubricated and sealed during assembly

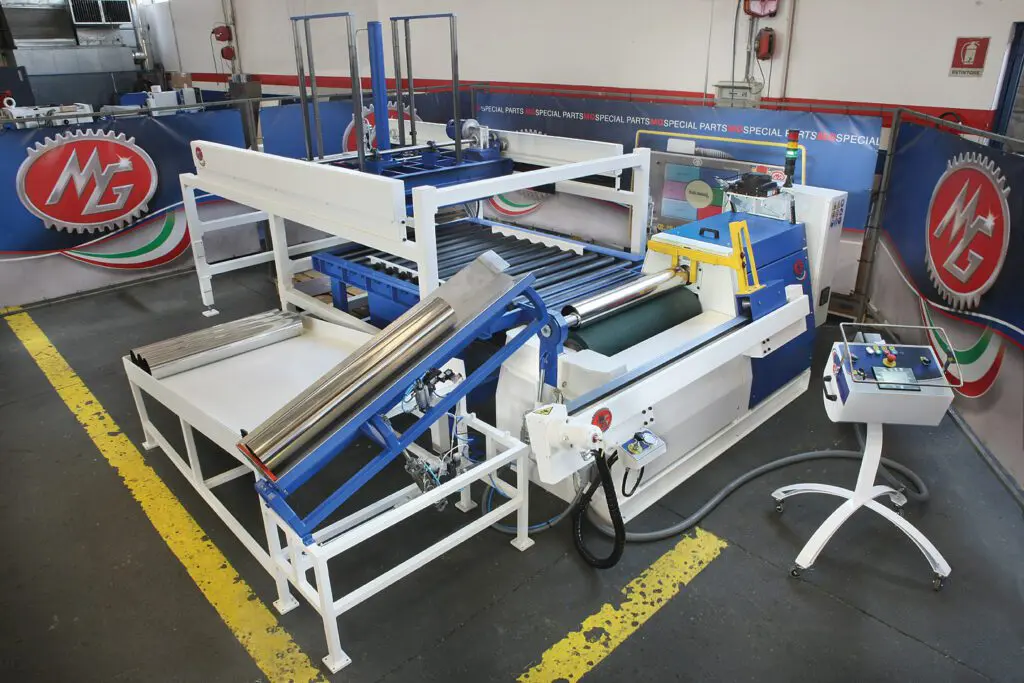

Options
- Top roll mandrels in a range of diameters
- Overhead support

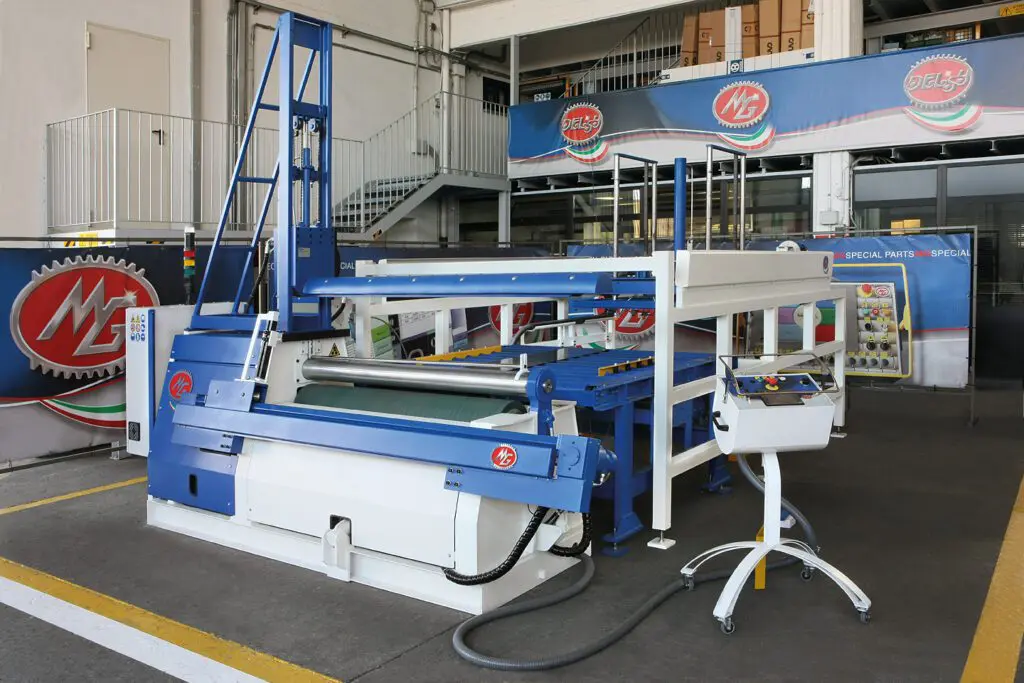

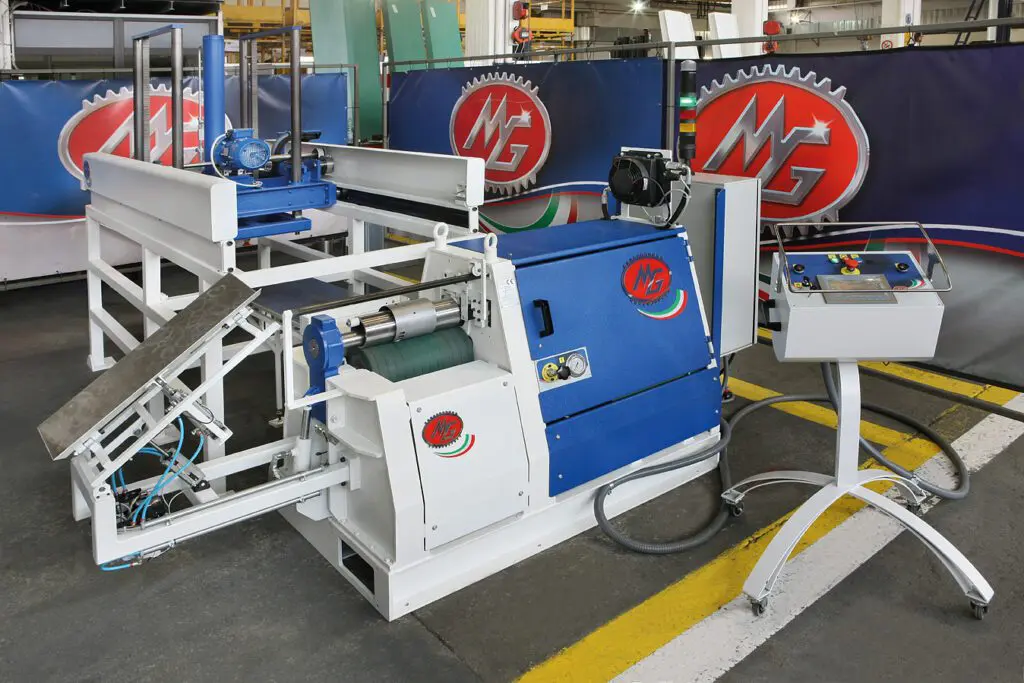

- Loading system
- Part ejector system
- NC control

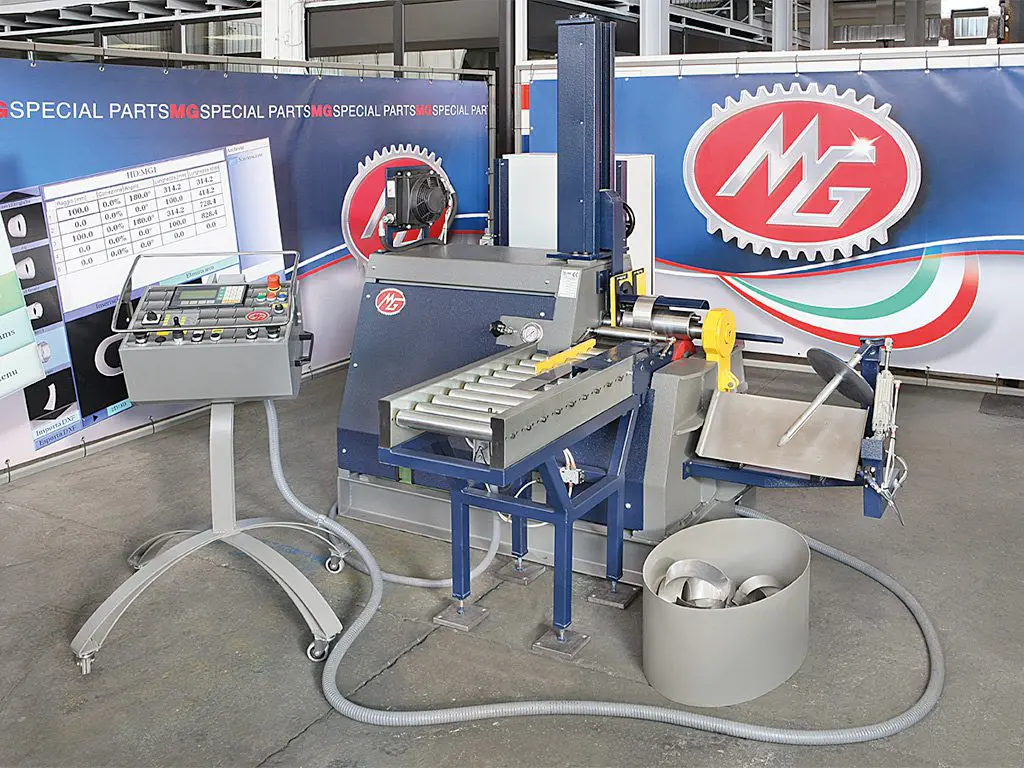

- Automated production cell
