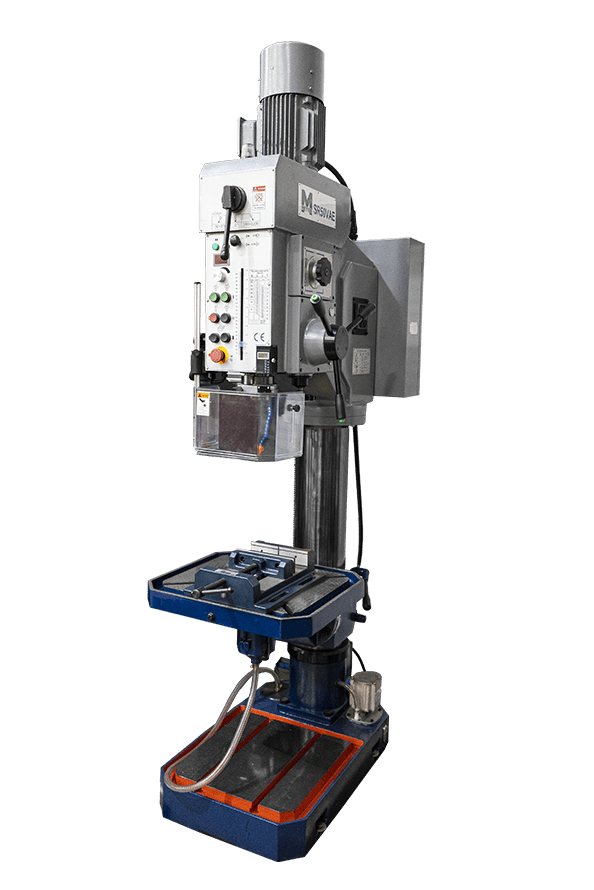

Meyer SR50VAE Geared Head Drilling Machine 415v
The Meyer range of powerful geared head drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.
The Meyer SR50VAE is our largest Pillar Drill; with Auto feed drilling and tapping and variable drill speed.
| MODEL | SR25 | SR32 | SR32AE | SR50VAE | |
| STOCKCODE | 18046 | 18041 | 18042 | 18066 | |
| Capacity | mm | 25 | 32 | 32 | 50 |
| Column dia | mm | 95 | 120 | 120 | 180 |
| Spindle Taper | MT no | 3 | 4 | 4 | 4 |
| Motor | Kw | 0.75 | 1/1.2 | 1/1.2 | 3 |
| Speeds | rpm | 125 – 2825 (stepped) | 125 – 3030 (stepped) | 125 – 3030 (stepped) | 50 – 2200 (variable) |
| Spindle Stroke | mm | 110 | 160 | 160 | 240 |
| Work Table | mm | 350 x 400 | 500 x 420 | 500 x 420 | 580 x 460 |
| Base Plate | mm | 340 x 340 | 330 x 330 | 320 x 320 | 440 x 450 |
| Throat | mm | 240 | 320 | 320 | 360 |
| Coolant | No | Standard | Standard | Standard | |
| Auto Feed | No | No | Yes | Yes | |
| Tapping Facility | No | No | Yes | Yes | |
| RPM Digital Read Out | No | No | Yes | Yes | |
| Length | mm | 700 | 830 | 830 | 980 |
| Width | mm | 450 | 510 | 510 | 650 |
| Height | mm | 1900 | 2180 | 2180 | 2370 |
| Weight | Kg | 400 | 470 | 510 | 655 |
Features
- Geared head
- Exceptional heavy construction
- Large work tables
- Auto tool release
- Eye shield with interlock switch
- Low voltage lamp
- Rise and fall table
- Rise and fall head
- Forward and reverse
- Coolant
- Auto feed
- Tapping Facility
- Digital Read Out of live RPM count
- Variable Drill Speed
Options
- Drill Press Vice: 18009
- Universal Cross Table: 18047
The Meyer range of powerful geared head drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.
A mainstay of virtually every fabrication shop in the country, a pillar drill allows for quick and efficient hole drilling and tapping. With morse taper drill bits, you can quickly hot swap drill bits for different requirements.
Large work tables, guarding and rise and fall tables and heads, the Meyer range is extremely versatile for whatever material you are working with.
All bar the SR25 features a coolant system. The SR32AE and SR50VAE feature auto feed and tapping facility. The SR50VAE also features a variable drill speed, ideal for getting that perfect drill pierce quality.
The Meyer SR Geared Head Drilling Machine range will not disappoint.
