Meyer Precision Centre Lathes

View Product Downloads / Full Specification Sheet

Request A Quote

The Meyer Precision Lathes range from 360mm to 660mm swing capacities and from 1000mm to 3000mm distance between centres. The sturdy SB industrial lathes are ideal for the tool room and for jobbing operations. The heavy duty SG machines are available in eight different sizes and have the added benefit of 2-axis DRO and the super quick tool change system fitted as standard. The ST range are large capacity industrial lathes with a 660mm swing with the distances between centres available up to 3000mm. Power traverse is fitted as standard equipment to all ST models which are operator friendly for the longer length machines.

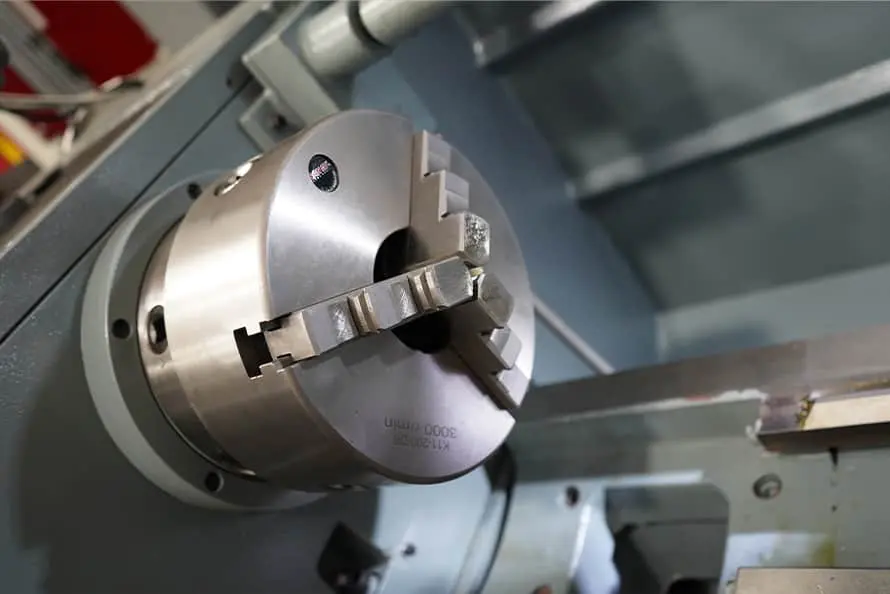

All Meyer industrial lathes are of the Gap Bed design with precision ground bed and saddle. Meyer machines are equipped with generous levels of standard equipment including 3 and 4 jaw chucks and face plate.

View Product Downloads / Full Specification Sheet

Request A Quote

Gallery & Video

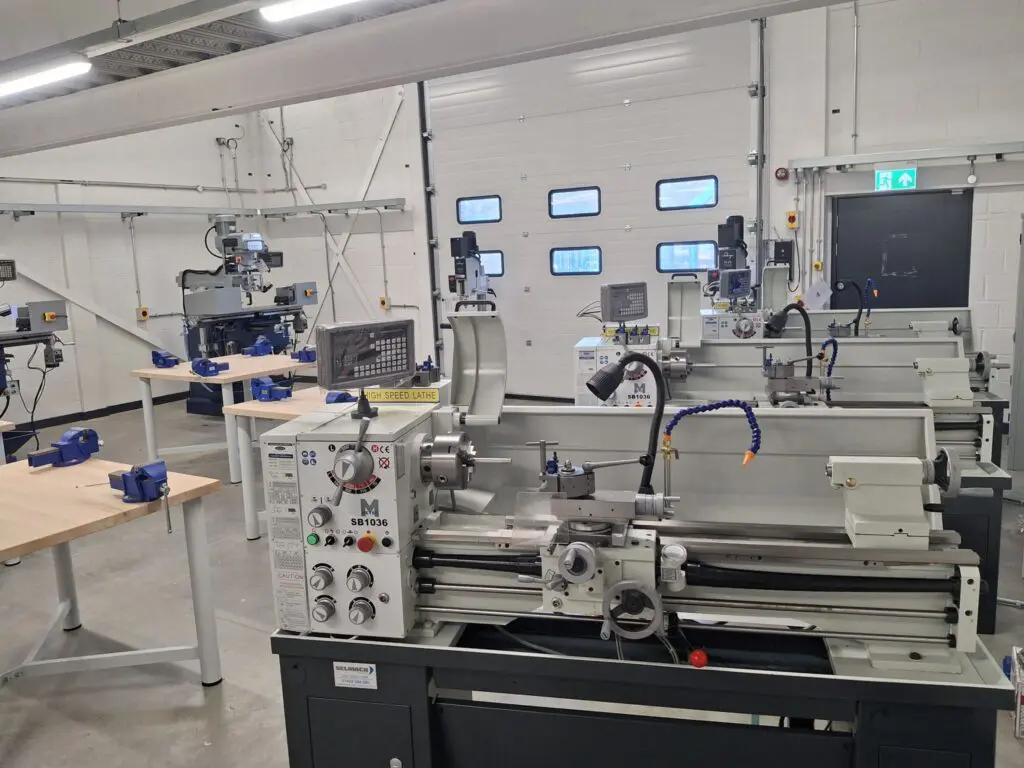

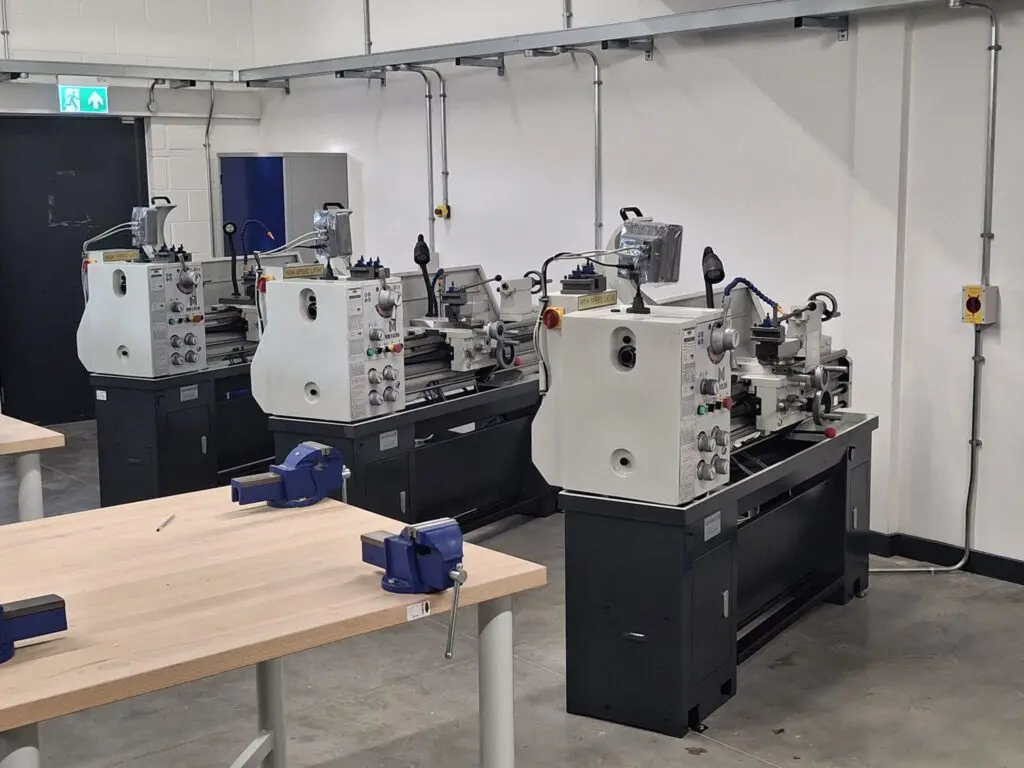

Meyer Precision Centre Lathes imageMeyer Precision Centre Lathes image
Video thumbnail showing the Meyer Precision Centre Lathes

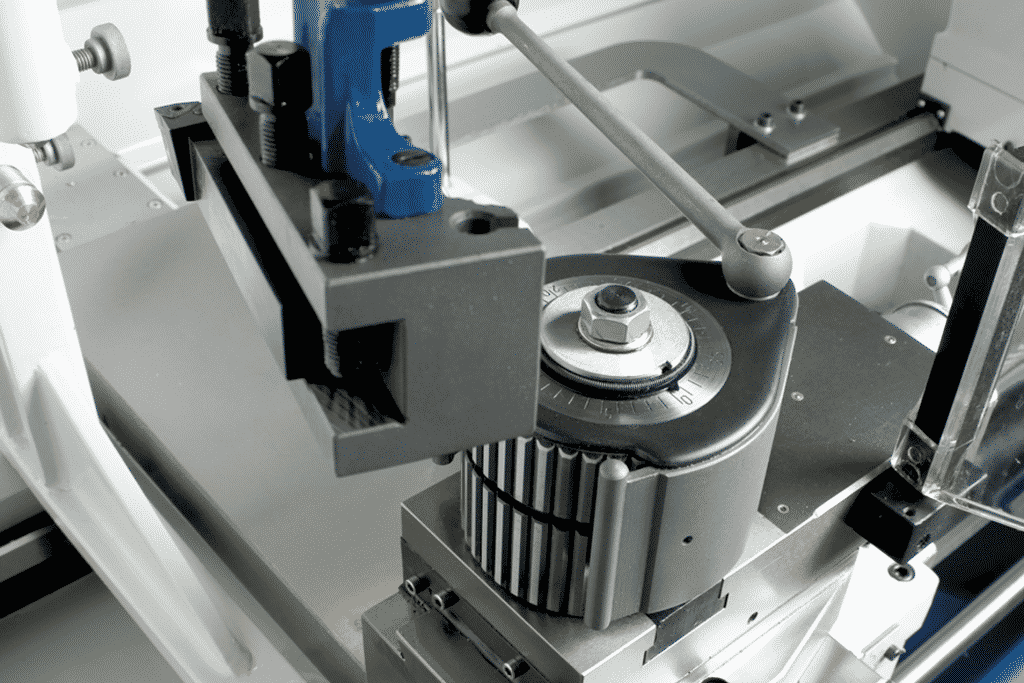

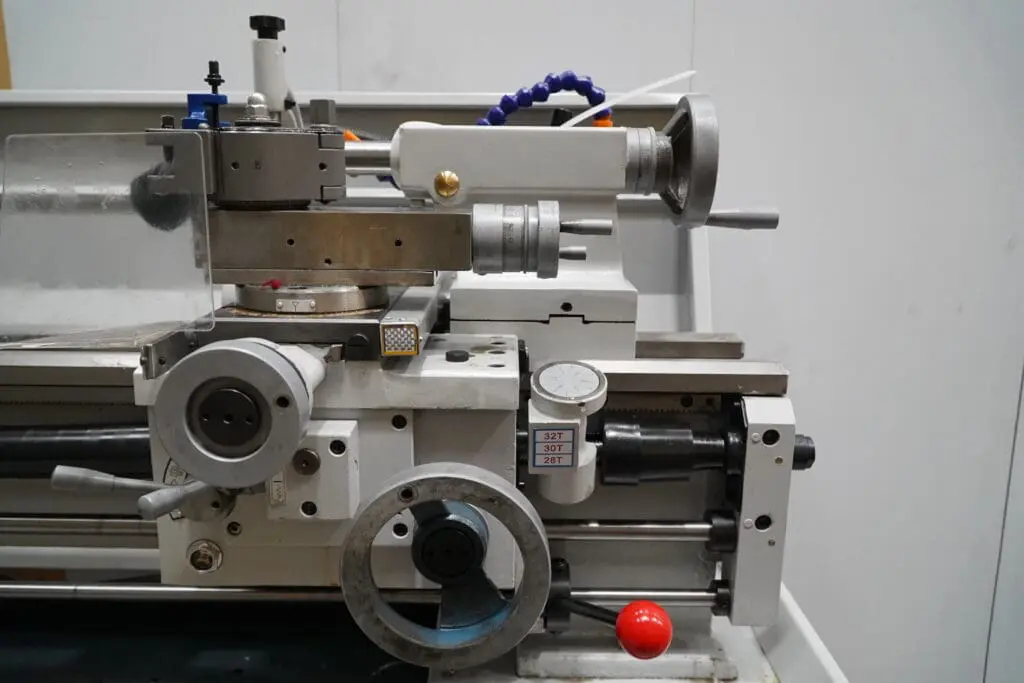

Detail of Meyer-Lathe-Quick-Change-Tool-Post-Detail-Optional-for-SB-range,-Standard-on-SG-and-ST-RangesDetail of Meyer-Lathe-Quick-Change-Tool-Post-Detail-Optional-for-SB-range,-Standard-on-SG-and-ST-Ranges
Detail of Meyer-Lathe-Quick-Change-Tool-Post-Detail-Optional-for-SB-range,-Standard-on-SG-and-ST-RangesDetail of Meyer-Lathe-Quick-Change-Tool-Post-Detail-Optional-for-SB-range,-Standard-on-SG-and-ST-Ranges

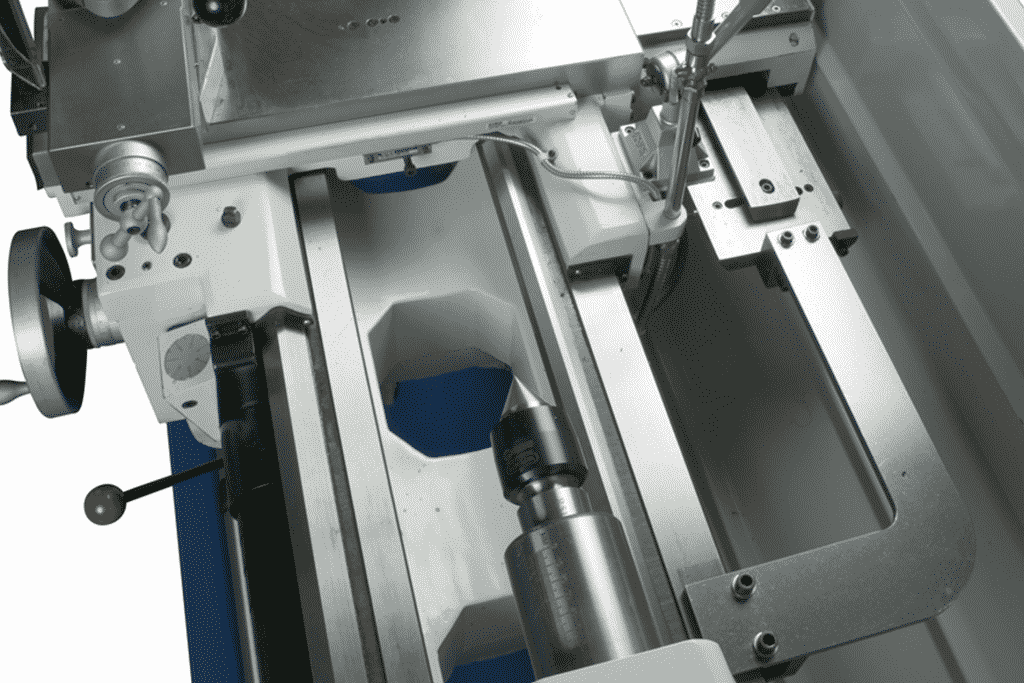

Detail of Meyer-Lathe-optional-Taper-Turning-AttachmentDetail of Meyer-Lathe-optional-Taper-Turning-Attachment

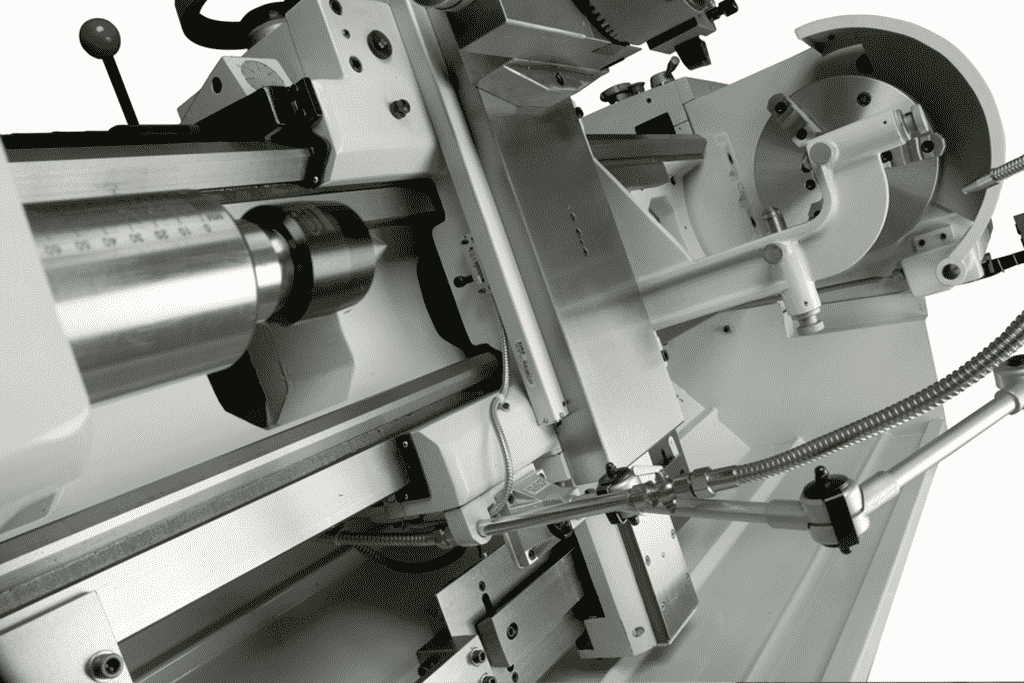

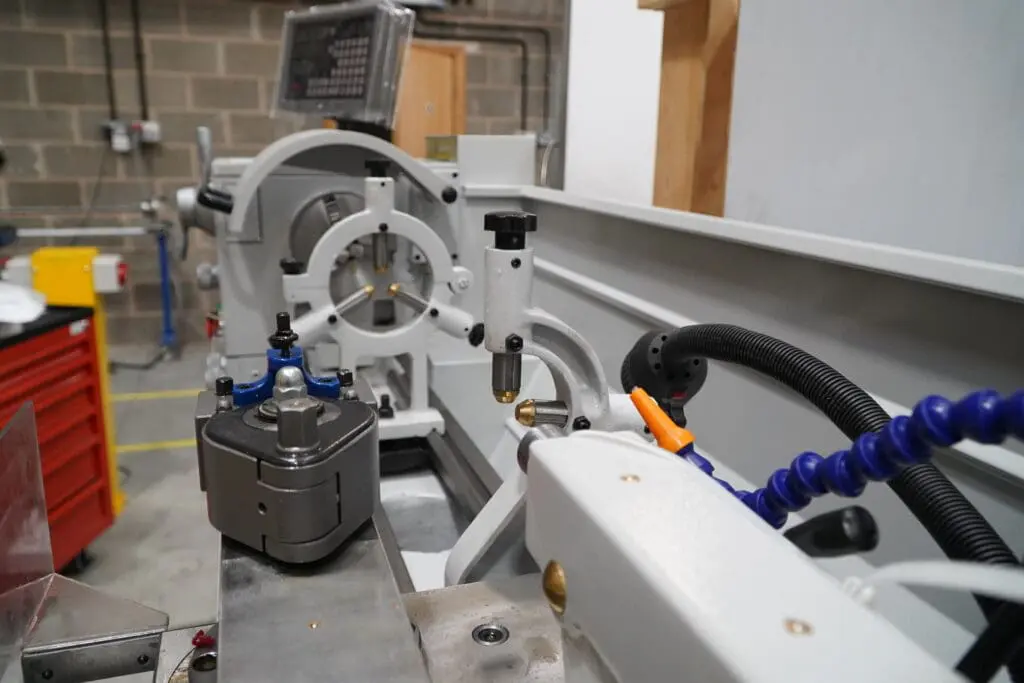

View-through-the-bed-and-saddle-SG Meyer Lathe-rangeView-through-the-bed-and-saddle-SG Meyer Lathe-range
Meyer Precision Centre Lathes image 7Meyer Precision Centre Lathes image 7
Meyer Precision Centre Lathes image 8Meyer Precision Centre Lathes image 8
Meyer Precision Centre Lathes image 9Meyer Precision Centre Lathes image 9

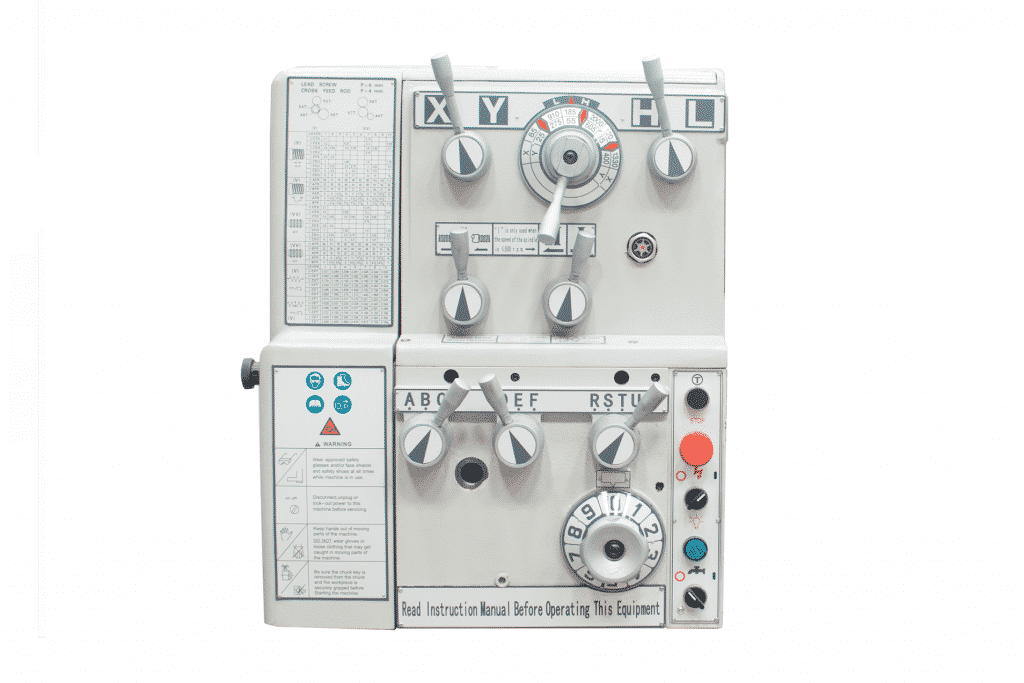

Detail of Meyer-Lathe-SG-Control-PanelDetail of Meyer-Lathe-SG-Control-Panel

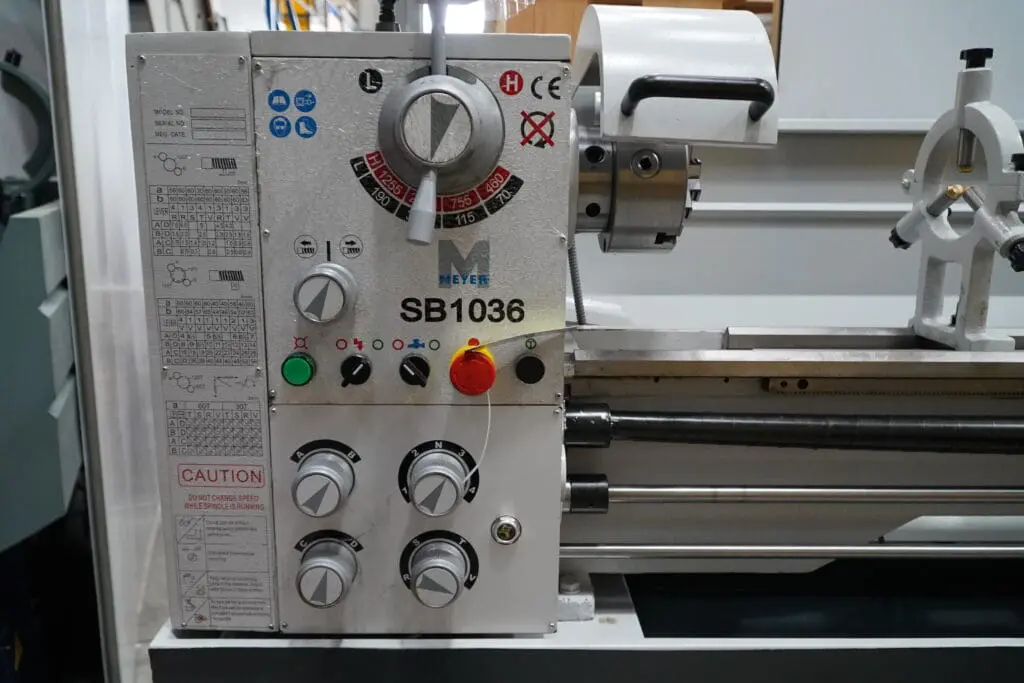

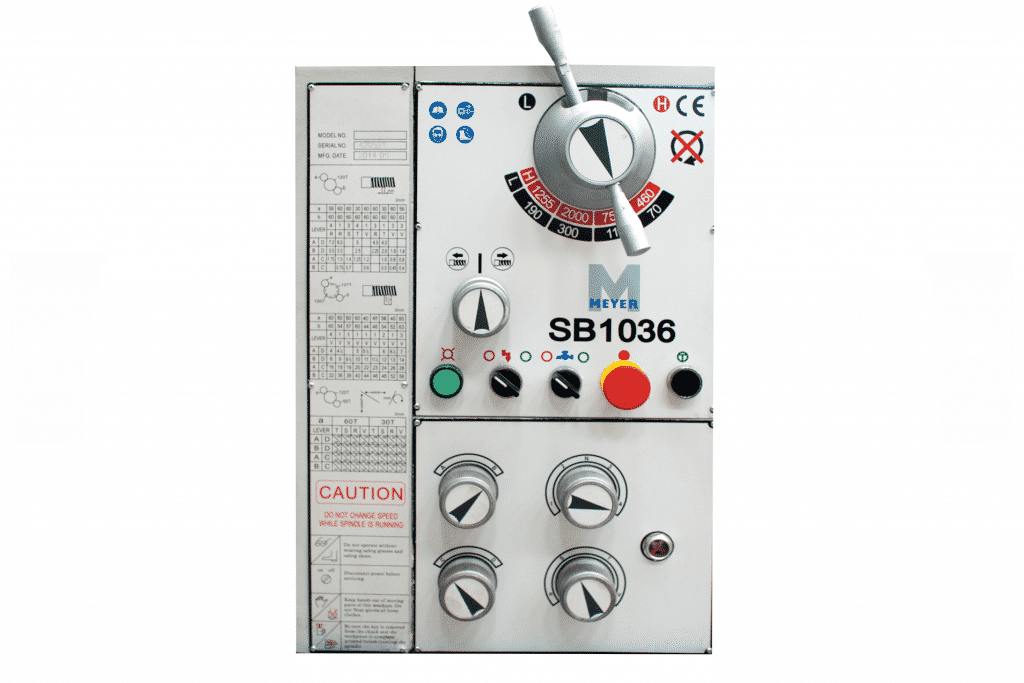

Detail of Meyer-Lathe-SB-Control-PanelDetail of Meyer-Lathe-SB-Control-Panel
Detail View through the bed and saddle - ST RangeDetail View through the bed and saddle - ST Range
Detail 2 Axis Digital Readout on ST Meyer Lathe RangeDetail 2 Axis Digital Readout on ST Meyer Lathe Range
Detail of the Meyer ST Lathe Control PanelDetail of the Meyer ST Lathe Control Panel

Technical Specs

SG1056 (1)
SG1556 (2)
SG1041 (1) SG1046 (1) SG2056 (3) ST2066 (1)
SB1036 SM1041 SG1541 (2) SG1546 (2) SG3056 (4) ST3066 (2)
Capacities
Swing over Bed mm 360 410 410 460 560 660
Swing over Cross Slide mm 212 255 224 274 350 440
Swing over Gap mm 491 580 640 690 788 900
Length of Gap mm 210 250 155 155 200 250
Distance between Centres (1) mm 1000 1000 1000 1000 1000 2000
Distance between Centres (2) mm – – 1500 1500 1500 3000
Distance between Centres (3) mm – – – – 2000 –
Distance between Centres (4) mm – – – – 3000 –
Width of Bed mm 187 250 300 300 350 400
Feed Rates
Longitudinal – no.of steps – 36 36 42 42 35 25
Longitudinal – range mm/rev 0.050-0.696 0.050-0.696 0.031-1.7 0.031-1.7 0.059-1.646 0.022 – 0.74
Cross – no.of steps – 36 36 42 42 35 25
Cross – range mm/rev 0.013-0.188 0.013-0.188 0.014-0.784 0.014-0.784 0.02-0.573 0.044 – 1.48
Max. Travel of Cross Slide mm 118 160 290 290 326 368
Max. Travel of Compound Rest mm 68 68 120 120 130 230
Thread Cutting
Metric – no. of steps – 28 28 41 41 47 54
Metric – range mm 0.2-5.0 0.2-5.0 0.1-14 0.1-14 0.2-14 .45 – 120
Imperial – no. of steps – 36 36 60 60 60 54
Imperial – range TPI 8-112 8-112 2-112 2-112 2-112 7/16 – 80
Diametric – no of steps – 36 36 50 50 50 42
Diametric – range DP 8-112 8-112 4-112 4-112 4-112 7/8 – 160
Module – no. of steps – 22 22 34 34 39 42
Module – range MP 0.2-3 0.2-3 0.1-7 0.1-7 0.1-7 0.25- 60
Lead Screw Pitch mm 3 3 6 6 6 2 or 12
Headstock
Spindle Nose D1-4 D1-6 D1-6 D1-6 D1-8 D1-8
Spindle Bore mm 38 52 58 58 80 105
Spindle Bore Taper MT 5 6 6 6 7 5
Spindle Speeds – no. of steps – 8 16 12 12 12 16
Spindle Speeds – range rpm 70-2000 45-1800 25-2000 25-2000 25-1600 26-1700
Tailstock
Quill Diameter mm 32 50 60 60 75 90
Quill Travel mm 100 120 120 120 180 235
Quill Taper MT 3 4 4 4 5 5
Power
Motor kW 1.5 3.3 4 4 7.5 7.5
Dimensions
Length (1) mm 1900 1940 2170 2170 2400 3710
Length (2) mm – – 2720 2720 2900 4720
Length (3) mm – – – – 3400
Length (4) mm – – – – 3900
Width mm 700 850 1040 1040 1120 –
Height mm 1250 1320 1340 1370 1460 1230
Weight (1) kg 670 1550 1670 1720 2020 1600
Weight (2) kg – – 1970 2020 2370 2950
Weight (3) kg – – – – 2720 3320
Weight (4) kg – – – – 3065 –

Features & Options

Features

  • Heavy duty.
  • Chuck guard with interlock switch.
  • Halogen lamp.
  • Steady rest
  • Follow rest
  • 4 jaw chuck.
  • 3 jaw chuck.
  • Face plate.
  • Coolant system.
  • 2 axis DRO
  • Super quick tool change system with 4 holders
  • ST – Power traverse

Options

  • Taper turning attachment – SG/ST only.
