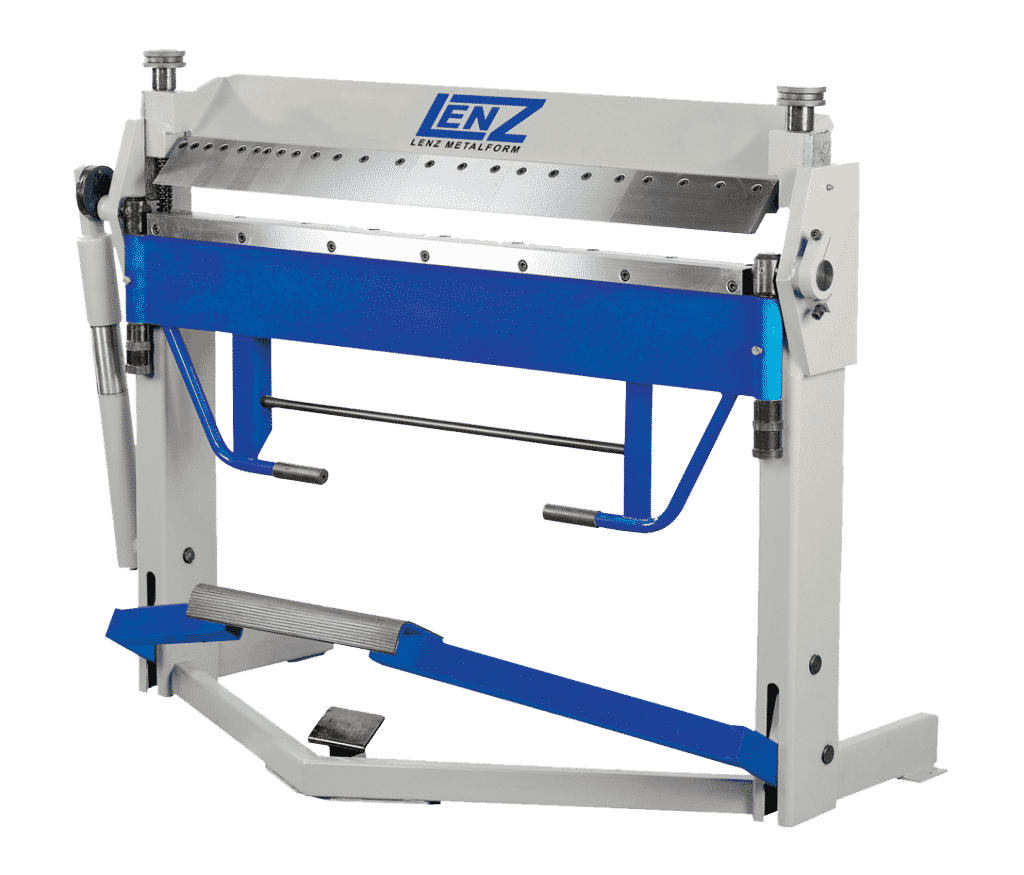

Lenz Metalform LTBP Treadle Box and Pan Folder
The Lenz Metalform LTBP folder treadle system has been designed for hands free operation to position the material with the aid of a foot operated beam clamp. A spring loaded strut ensures easy bending operation. The two adjusting screws at the top of the machine can be altered according to material thickness. The fingers are machined to 45° providing a maximum bending angle of 135°.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES
| MODEL | LTBP 1020/2.5 | LTBP 1220/2.0 | |
| STOCK CODE | 21543 | 21544 | |
| Capacity | mm | 2.5 | 2 |
| Bending Length | mm | 1020 | 1220 |
| Maximum Folding Angle | 135° | 135° | |
| Quantity & Size of Fingers | mm 1 ea | 25, 30, 35, 40, | 23, 30, 35, 40, |
| 45, 50, 75, 100 | 45, 50, 75, 100 | ||
| 150, 200, 270 | 150, 200, 250, 270 | ||
| Length | mm | 1400 | 1700 |
| Width | mm | 850 | 850 |
| Height | mm | 1150 | 1150 |
| Weight | Kg | 285 | 320 |
Features
* Heavy duty with spring assisted bending.
* Bends heavy gauge material.
* Treadle clamping feature provides both hands available for positioning.
* Box and pan design.
* Hardened and ground fingers.
