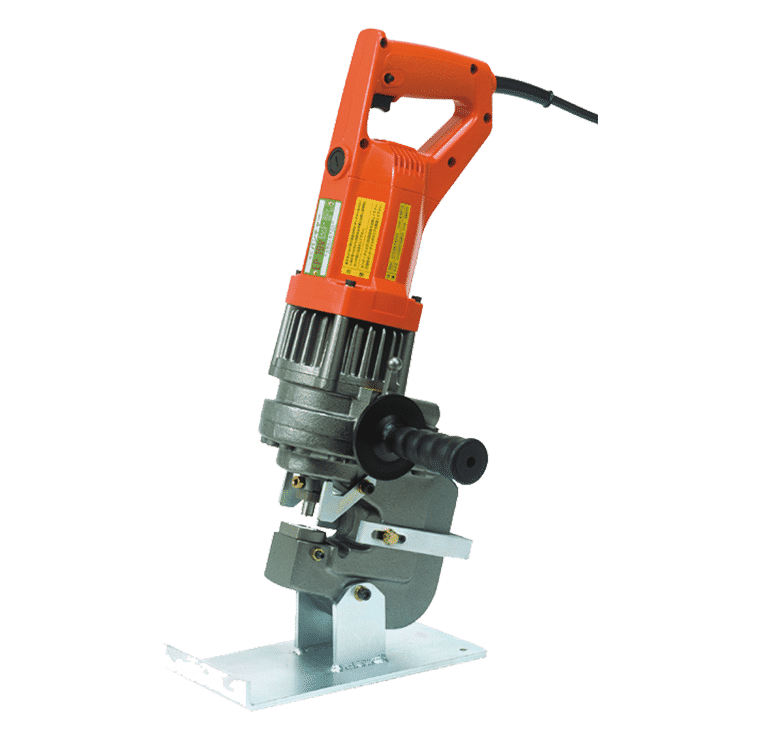

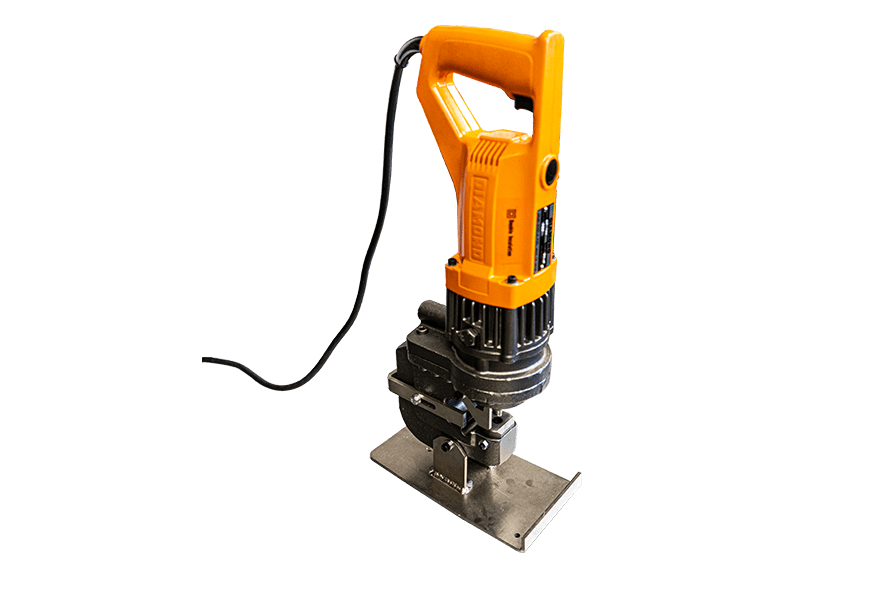

EP Punch EP V Portable Punching Machines
The Diamond EP Punch portable punching machines are ideal for punching I beams and a whole host of applications, saving considerable time compared to drilling. Available in various capacities and throat depths there is a machine for most requirements.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES

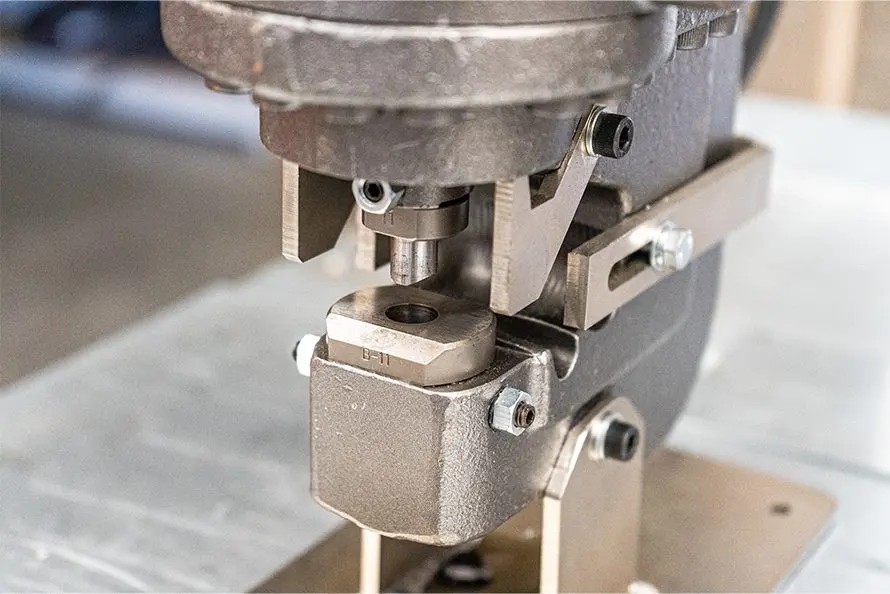

Punch assembly

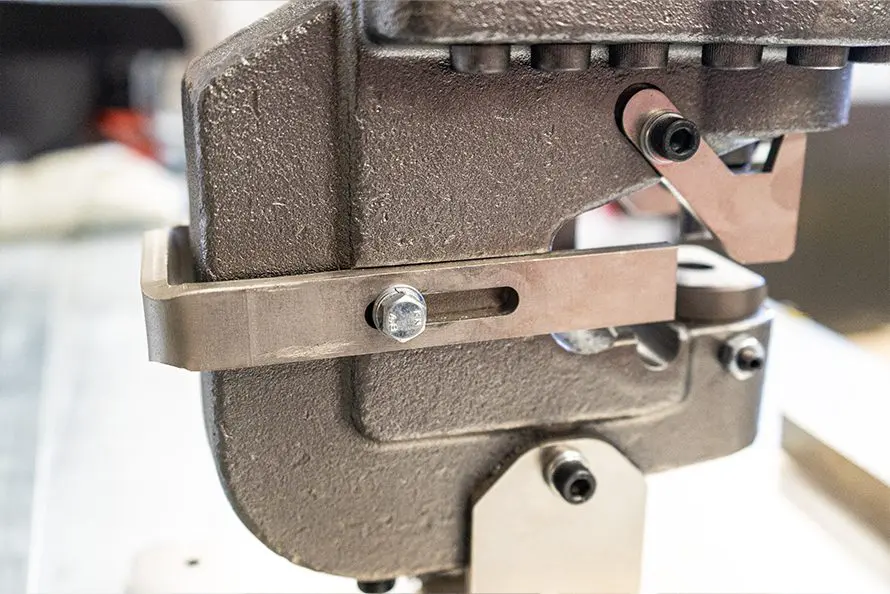

Adjustable depth stop
| MODEL | EP-1475V | EP-19V | EP-2110V | |
| STOCK CODE | 16512 / 16513 | 16514 / 16515 | 16516 / 16517 | |
| Rated Capacity | tonnes | 11 | 16 | 30 |
| Maximum Capacities | mm | 14 x 6 | 19 x 6 | 22 x 10 |
| Maximum Punching Thickness | mm | 6 | 6 | 10 |
| Punching Stroke | mm | 10 | 10 | 13 |
| Voltage | V | 110 / 240 | 110 / 240 | 110 / 240 |
| Throat Depth | mm | 37.5 | 55 | 65 |
| Weight | kg | 10 | 14.5 | 21 |
| Punching Time | sec | 2 | 2 | 2 |
| Return Time | sec | 2 | 2 | 2 |
Features
- Fast punching
- Light weight
- Compact size
- Self contained – no additional powerpack
- Punches round and slotted holes
- Considerable time savings
- Adjustable depth stop
- Ideal for site applications
- Supplied with base for bench work
- Steel case included.
