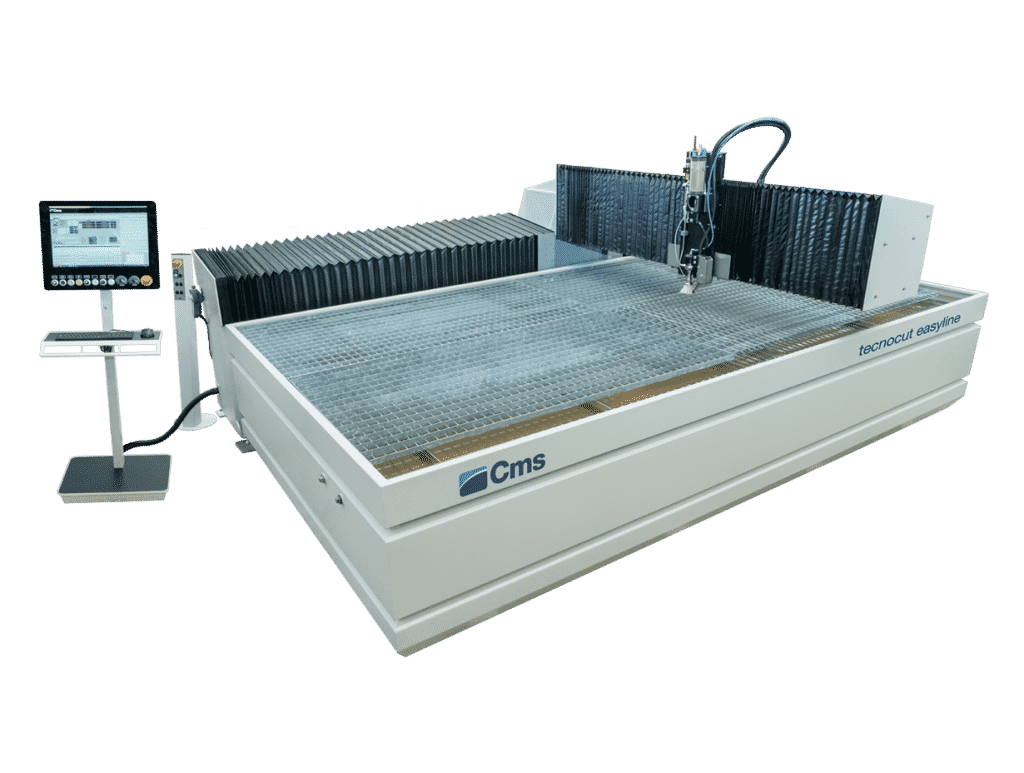

Easyline Waterjet Cutter
The Easyline waterjet offers all customers an entry level accurate, cost effective waterjet cutting system. This system is capable of cutting a wide variety of materials using a very high pressure jet of water or a mixture of water and abrasive. Waterjet cutting is often used during fabrication of machine parts. It is the preferred method when the materials being cut are sensitive to the high temperatures generated by other methods. Waterjet cutting is used in various industries including mining and aerospace for cutting, shaping and reaming.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES
| Model | 1010 | 2020 | 2040 | 2060 |
| Stockcode | ||||
| X axis | 1000mm | 2000mm | 4000mm | 6000mm |
| Y axis | 1000mm | 2000mm | 2000mm | 2000mm |
| Z axis | 220mm | 220mm | 220mm | 220mm |
| Rest Surface | 1210 x 1225mm | 2210 x 2225mm | 4210 x 2225mm | 6210 x 2225mm |
| Overall Dimensions | 1936 x 2393mm | 2936 x 3393mm | 4936 x 3393mm | 6936 x 3393mm |
Features
- Mobile Console with Notebook PC
- Accurate linear motion by rack and pinion, protected by heat welded bellows ensuring perfect tightness against water and dust
- Automatic lubrication system
- Cutting head equipped with touch feeler to adjust automatically the cutting head height
- Working surfaces dedicated to different cutting applications
- Cyclone abrasive removal system
- Protection of the work area by light barriers
- Cantilever with independent tank which allows an ease of access from the three open sides
- 180kg Abrasive Feeding System
Options
- 30/60 Hp Easy Pump Pressure Intensifer
- 30/60/120 Hp Jetpower Evo Pressure Intensifer
- Xstream Pressure Intensifer
- Laser pointer
- Anti-collision feeler
- Drilling Unit
- Electronic Hopper
- 330kg /2000kg Abrasive Feeding System
