Delem DA-69T Controller

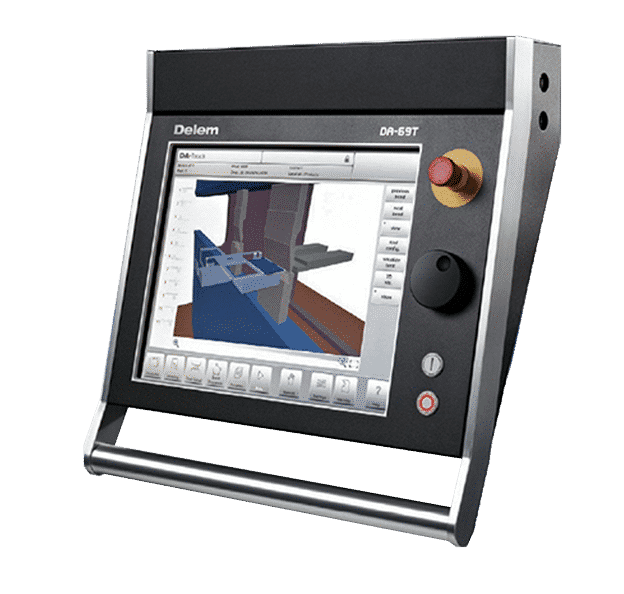

Main view Delem DA69T Control Panel

Request A Quote

The new generation DA-Touch controls offer an ever higher grade of efficiency in programming, operation and control of today’s pressbrakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.

The touch screen screen gives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.

The DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.

Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using pressbrakes easier, more efficient and more versatile than ever. The OEM-panel located above the screen reserved for machine functions and OEM-applicationswitches, is integrated in the design and can be used depending the required application.

Main view Delem DA69T Control Panel
Request A Quote

Gallery & Video

Main view Delem DA69T Control PanelMain view Delem DA69T Control Panel
Delem DA-69T Controller image 2Delem DA-69T Controller image 2
Delem-DA-69TDelem-DA-69T

Technical Specs

General

  • Real-time embedded Windows OS
  • Multitasking environment
  • Instant shut off
  • Delem Modusys compatible

Electrical / Interfacing

  • Power supply: 24V
  • Modusys HSB bus
  • RS232 port x2
  • Network interface (100Mb/10Mb)
  • USB port x2
  • Safety PLC interfacing
  • Protractor interfacing
  • Angel control interfacing

Control

  • Servo / 2 speed AC control
  • Unipolair / frequency inverter control
  • Direct pressure valve control
  • Direct proportional valve Y1, Y2 control
  • Direct crowning control
  • Multiple digital function outputs
  • Tandem operation

Programming

  • Alphanumeric product naming
  • 2D/3D real-scale product
  • Programming and visualisation
  • Automatic bend sequence calculation in 2D and 3D
  • Easy graphical bend sequence swap and move
  • Hemmed products programming table
  • One page programming table
  • Graphical product and tool selection
  • Programmable material properties
  • Programmable axis speed
  • Free material programming
  • Product & tool search filter
  • Millimeters/inches, Kn/Ton selection
  • Stock counter
  • Product notes

Tooling

  • Graphical tool configuration
  • Multiple tool station set-ups
  • Tool segmentation visualisation
  • Alphanumeric tool identification
  • Free graphical tool programming
  • Hemming tools
  • Radius tools
  • Tool adapter support

Computed

  • Tooling safety zones
  • Press force
  • Bend allowance
  • Crowning adjustment
  • Developed length
  • Bottom force
  • Hemming force
  • Auto bumping calculation
  • Radius programming
  • Bend allowance table
  • Learned angle correction database

Miscellaneous

  • ‘Teach-in’ on all axes
  • Handwheel movement of all axes
  • Operator selectable dialogue languages
  • Integrated help functions
  • Error messaging system
  • Diagnostic program
  • Internet Explorer (web browser)
  • Remote diagnosis
  • User specific applications support
  • Machine time + stroke counter
  • On board Analysis Tool
  • Sequencer functionality (PLC)

Features & Options

Features

  • 3D and 2D graphical touch screen programming mode
  • 3D visualisation in simulation and production
  • 17″ high resolution colour TFT, high brightness
  • Standard Windows application suite
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • Open system architecture
  • Sensor bending and correction interface
  • Colour LCD display
  • 1280 x 1024 picels, 32 bit colour
  • Full touch screen controll (IR-touch)
  • Storage capacity 2GB
  • Emergency switch
  • Integrated OEM-panel

Options

  • Part support control
  • X1-X2 angle programming
  • Barcode reader interfacing
  • Protractor interfacing
  • Frame deflection compensation
  • Sensor bending and correction interfacing
  • Sheet thickness measurement and compensation system
