CybTouch 8 NC Controller with CNC Features

Main view Cybelec-Cybtouch-8-Control-Panel

Request A Quote

An NC controller with CNC features, (available as CybTouch 8G and the CybTouch 8W) the CybTouch 8, with its user-friendly touch screen interface, means it can be operational in no time. Compatible with a vast range of sheet and plate metalworking machinery this controller will allow you to do a variety of angle adjustments and corrections and is suitable for general fabrication and doing one off productions. All made with a simple fingertip touch. Its memory holds up to 10 types of material and 200 programmes.

Main view Cybelec-Cybtouch-8-Control-Panel
Request A Quote

Gallery & Video

Main view Cybelec-Cybtouch-8-Control-PanelMain view Cybelec-Cybtouch-8-Control-Panel
Video thumbnail showing the CybTouch 8 NC Controller with CNC Features

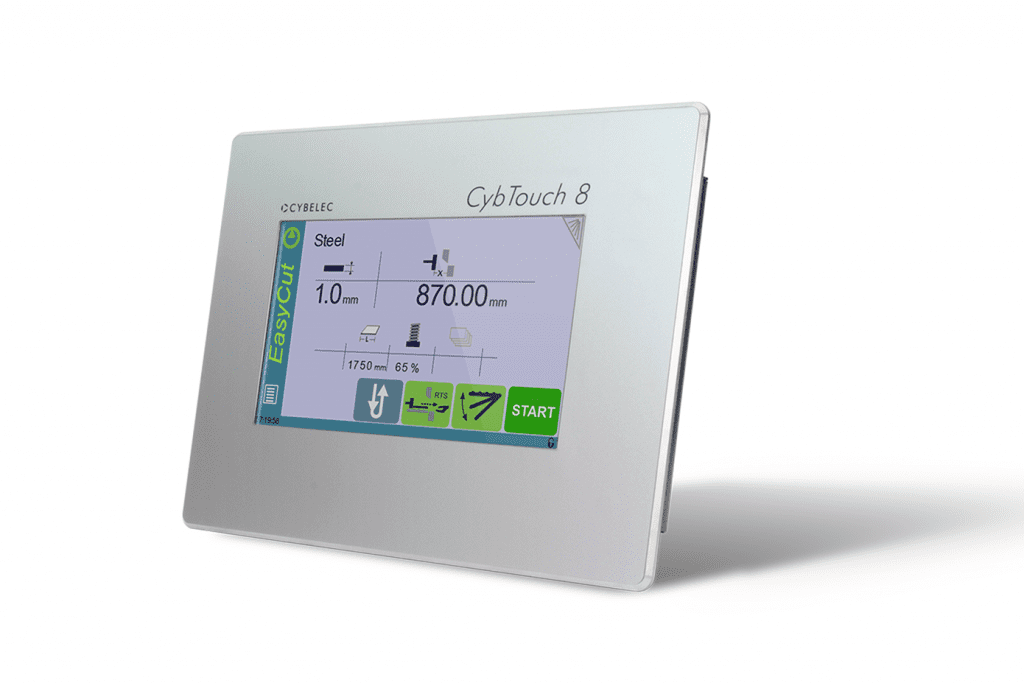

Left view Cybelec-Cybtouch-8-Control-PanelLeft view Cybelec-Cybtouch-8-Control-Panel

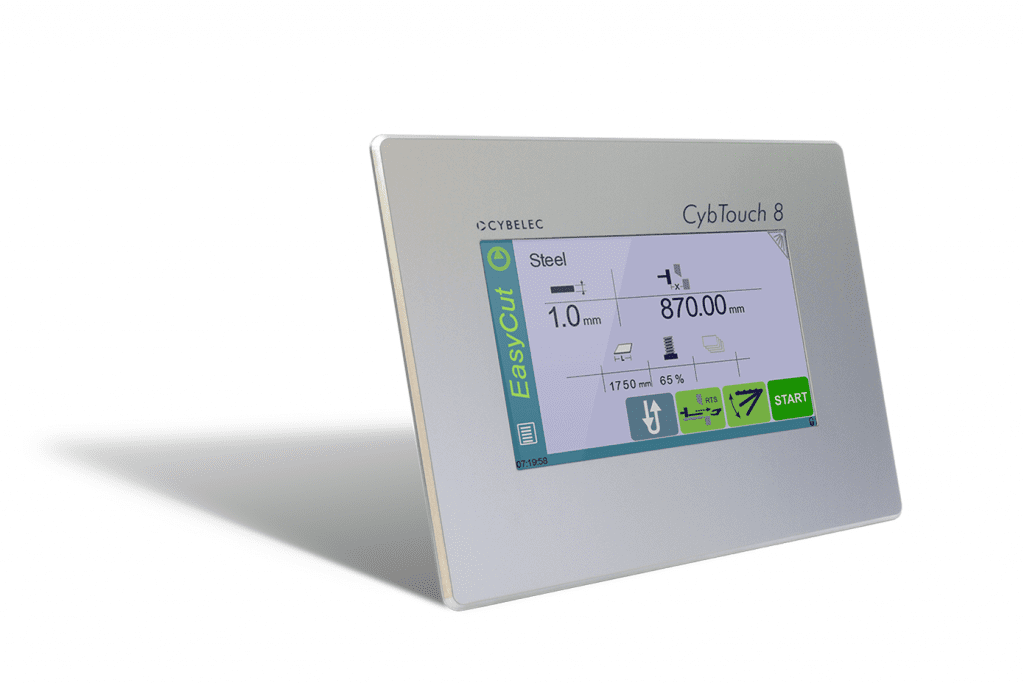

Right View Cybelec-Cybtouch-8-Control-PanelRight View Cybelec-Cybtouch-8-Control-Panel

Technical Specs

Screen: 5.7” color graphic CRT screen, 640 x 480 pixels with LED backlight control.
Working Memory: SRAM
System Memory: FLASH memory with firmware update via RFlink.
Communication: Cybelec RFlink (radio frequency link).
Axis: • ± 10VDC management of AC/DC drives and motors.

• 0-10 VDC frequency converter for AC asynchronous motors.

• SP-SN-HS 2 speeds mode. • SP-SN 0-10 VDC 2 adjustable speeds.
Units: inch/mm conversion.
Power Supply: • Numerical control: stabilized + 24VDC -15% / + 20% 15W

• Digital inputs/outputs: stabilized + 24VDC -15% / + 20%
Encoders Input: 5 VDC or 12 VDC* or 24 VDC* (* = external power supply). Complementary signals are not necessary, but recommended.
Power supplies for encoders: 5 VDC Supplied by CybTouch. Max. 250 mA for each encoder
Digital Outputs: 16 Optocoupled.
Analog Inputs: 2 0-10 VDC.
Digital Outputs: 12 Optocoupled and short circuit proof. 24 VDC source mode, max. 3.0 A. Possibility to configure twice the same output to double the current.
Analog Outputs: 4 ±10 VDC Impedance < 100 Ω, short circuit proof. Load ≥ 2 kΩ (max 15 mA).
Reference Voltage: One of the above analog outputs is used for the 10VDC reference.
Operating Conditions Min. 5° Celsius, max. 45° Celsius. Relative humidity 10 to 85% non-condensing.
EC Directives: IEC61131-2.
Available Languages: English, Français, Deutsch, Italiano, Nederlands, Español, Português, Português Brasil, Český, Türkçe, 中文, 台灣, Polski, Pусский



Features & Options

Features

Features availability depends on the number of available axes and inputs/outputs on the machine.

Back / front gauge axis

  • Wizards and auto-tuning of the axes.
  • High precision and fast positioning algorithm for frequency converter axes.
  • Retraction of the back gauge during the cutting process can be configured.
  • Back gauge management or front gauge management.
  • Indexing in several modes.
  • Inch / mm.

Common shear features

  • Eco mode.
  • Linearization of the blade gap curve for optimal positioning accuracy.
  • Backgauge clearance during the cutting process (yes / no).
  • Sequence repetition.
  • AutoCut (Flying Cut or continuous cut) function.
  • Management of sheet support with 2 or 3 positions integrated in machine cycle.
  • RTS (Return to sender) function.
  • Screen button for cutting laser / light guide.
  • Part counter with auto-stop (up or down).
  • Time and stroke counters for oil service.
  • Sheet offset (multiple-cuts in the middle of the machine with reduced TDC).
  • Pump start button.

Shear features for CybTouch 6 G

  • Automatic management of blade gap, cutting angle and cutting length.
  • System pressure management with ramp for pressure proportional valve.
  • Cutting length management by potentiometer or encoder.
  • Blade gap with 1 or 2 actuators.
  • Mechanical or hydraulic foldaway.

Shear features for CybTouch 6 W

  • Automatic management of blade gap OR cutting angle.
  • Cutting length management by timer.
  • Blade gap with 1 actuator (motor).
  • Mechanical foldaway

Options

  • S-OPT-RFLINK RFlink USB key for PC including CybTouchTools software
  • S-OPT-CBT6/EKIT Earthing kit
  • S-MVP-100/A Pressure valve amplifier
