CybTouch 6 NC Controller with CNC Features

Side view of the Cybelec-Cybtouch-6-Control-Panel

Request A Quote

An NC controller with CNC features, (available as CybTouch 6G and the CybTouch 6W) the CybTouch 6, with its user-friendly touch screen interface, means it can be operational in no time. Compatible with a vast range of sheet and plate metalworking machinery this controller will allow you to do a variety of angle adjustments and corrections and is suitable for general fabrication and doing one off productions. All made with a simple fingertip touch. Its memory holds up to 10 types of material and 200 programmes.

Side view of the Cybelec-Cybtouch-6-Control-Panel
Request A Quote

Gallery & Video

Side view of the Cybelec-Cybtouch-6-Control-PanelSide view of the Cybelec-Cybtouch-6-Control-Panel
Video thumbnail showing the CybTouch 6 NC Controller with CNC Features
Cybtouch6 Line DiagramCybtouch6 Line Diagram

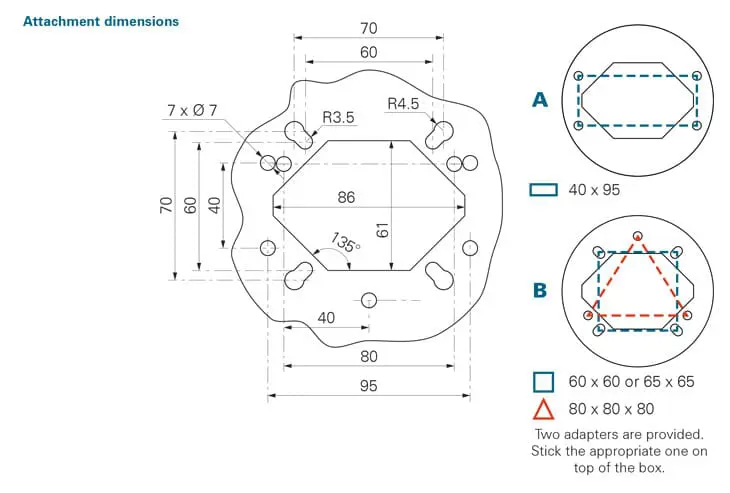

Cybtouch6 Line Diagram AttachmentsCybtouch6 Line Diagram Attachments
