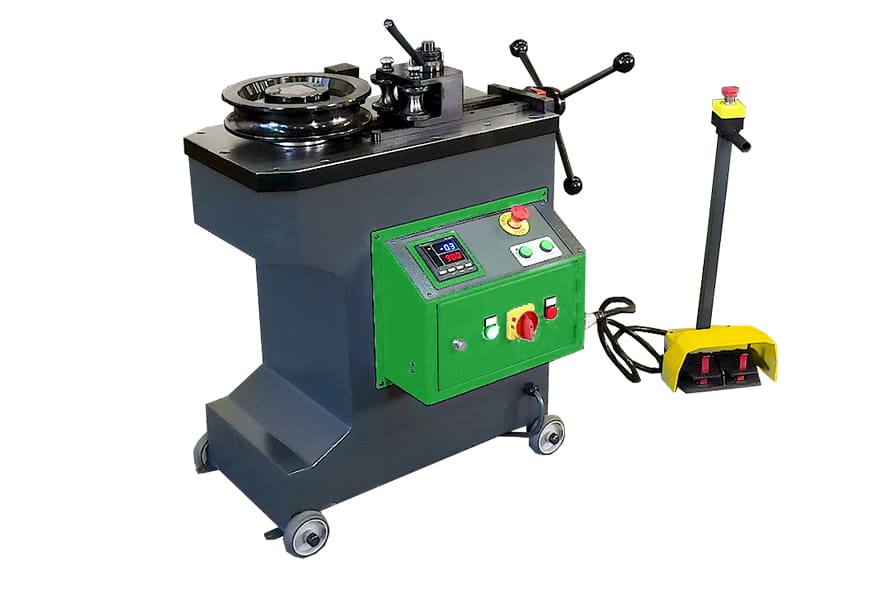

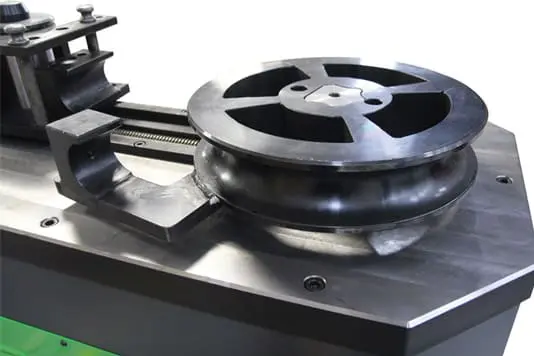

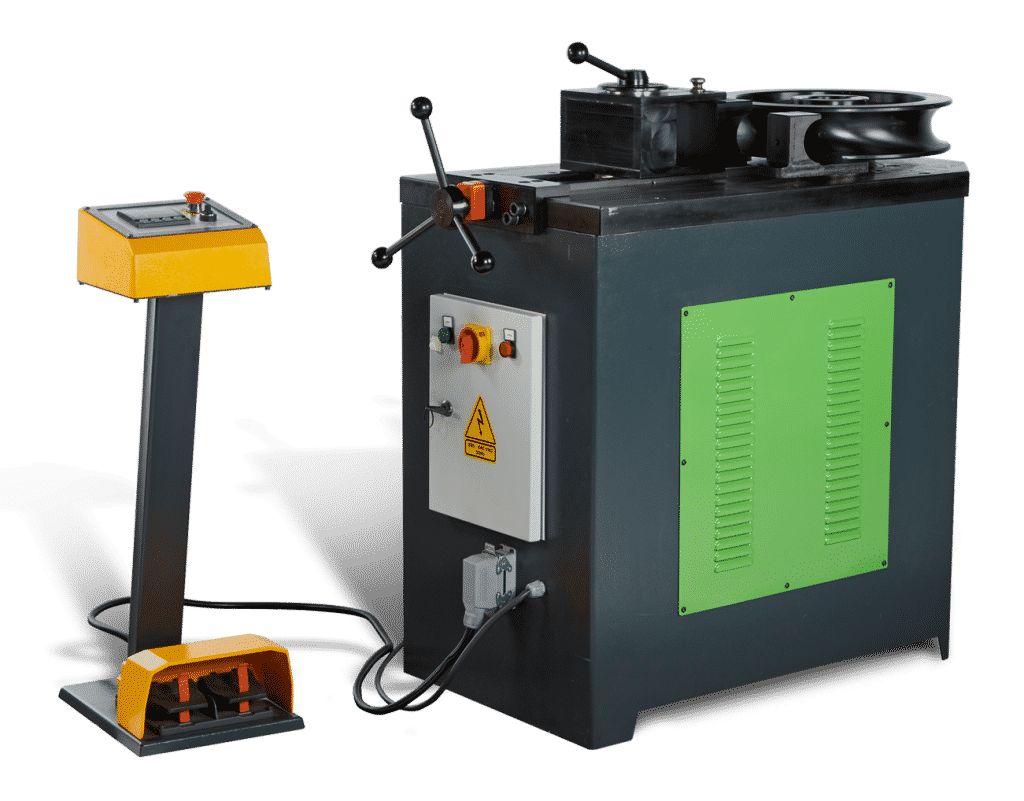

Curvassi RTS Tube Bender
The Curvassi range of rotary tube bending machines have been designed for high quality bending of both metric and imperial tube sizes with a wall thickness sufficient to bend without a mandrel. Tooling can be supplied any tube diameter within the capacity of the machine and in a variety of centre line radii. Three models are available with tube bending capacities of up to 60mm, 76mm and 114mm diameter, based on mild steel tube.
| MODEL | RTS 60 | RTS76 | RTS 114 | |
| STOCK CODE | 21730 | 21731 | 21732 | |
| Tube Capacity (Mild Steel) | mm | 60.3 x 4 | 76.1 x 4 | 114 x 4 |
| Square Capacity (Mild Steel) | mm | 40 | 60 | 80 |
| Maximum Bending Radius | mm | 450 | 500 | 500 |
| Maximum Bending Angle | deg | 180 | 180 | 180 |
| Motor | Kw | 1.5 | 4.0 | 7.5 |
| Bending Speed | RPM | 0 – 3 | 0 – 3 | 2.2 |
| Length | mm | 1,200 | 1,300 | 1,600 |
| Width | mm | 600 | 700 | 1,000 |
| Height | mm | 1,200 | 1,300 | 1,600 |
| Weight | Kg | 400 | 500 | 1,200 |
Features
- Heavy duty construction
- Excellent bend quality
- Quick release guide block
- Digital read out of bending angle
- Counter read out for guide block position
- Variable bending speed
- Complete tooling service
