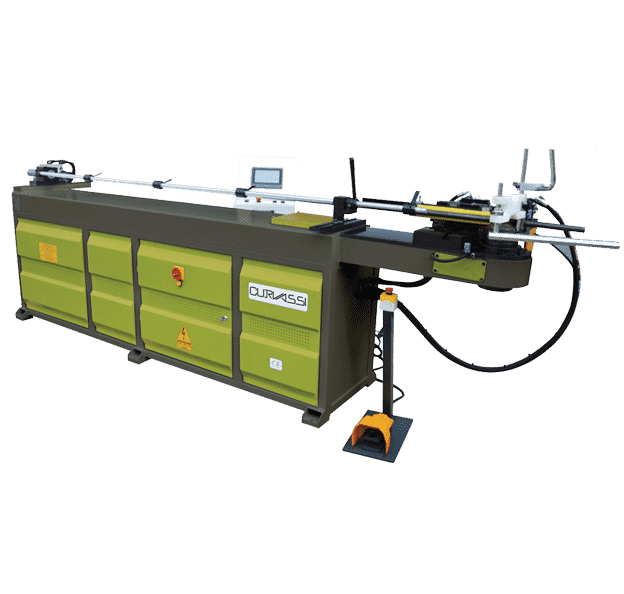

Curvassi MTX 90 NC Mandrel Tube Benders
| MODEL | MTX 90 NC | |
| Max Pipe Diameter | mm | 90 |
| Max Wall Thickness | mm | 4 |
| Max Bending Radius | mm | 250 |
| Max Bending Angle | (°) | 190 |
| Bending Speed | (0/sn) | 30 |
| Motor | kw | 15 |
| Weight | kg | 2500 |
| Length | mm | 4250 |
| Width | mm | 1300 |
| Height | mm | 1250 |
Features
- Built according to EC Safety Directives (CE-Mark Approved)
- Heavy Duty Construction
- Excellent bend quality
- Very Easy To Use
- Geared Motor Drive
- 4.7” Touch Screen Angle Programmer With Multiple Steps
- Foot Pedal Control
- Hydraulic Clamping Movement
- Manual Flip Length Stop System
- Electrical Parts – Simens/Telemecanique
- Complete tooling service
Options
