Curvassi MTX 32H Mandrel Tube Benders

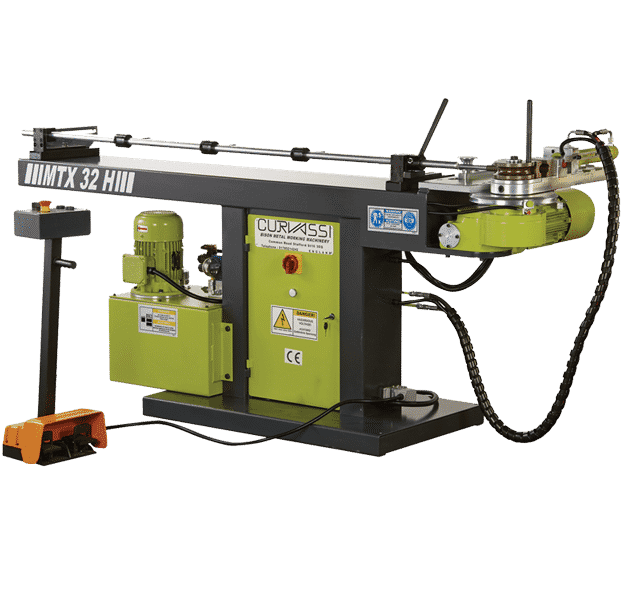

Main view Curvassi-MTX-32H-Mandrel-Tube-Bender

The Curvassi range of bending machines achieve fast and accurate bending in round and square tube, flat bar, round bar and square bar. Thin wall tube is effortlessly bend to a tight radius with the aid of a mandrel bar. The machines are ideally suited to production environments as a 180° bend is performed in just three seconds.

Main view Curvassi-MTX-32H-Mandrel-Tube-Bender
Main view Curvassi-MTX-32H-Mandrel-Tube-BenderMain view Curvassi-MTX-32H-Mandrel-Tube-Bender

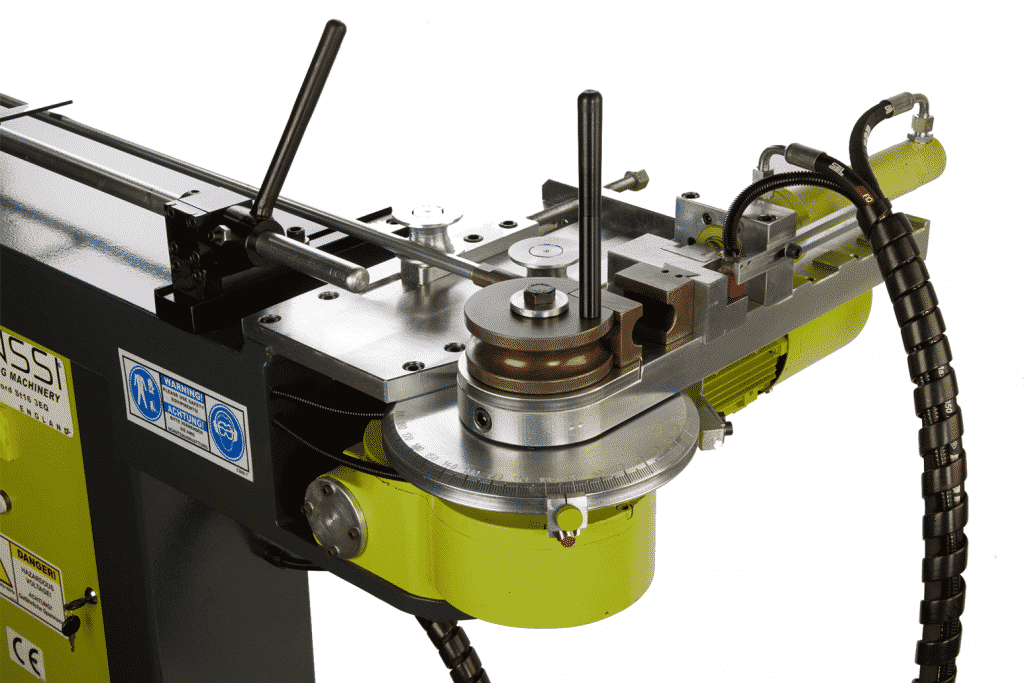

Curvassi-MTX32H-Mandrel-Tube-Bender-DetailCurvassi-MTX32H-Mandrel-Tube-Bender-Detail
MODEL MTX 32H
Max Pipe Diameter mm 32
Max Wall Thickness mm 2
Max Bending Radius mm 275
Max Bending Angle (°) 190
Bending Speed (0/sn) 60
Motor kw 2.2
Weight kg 400
Length mm 1950
Width mm 1000
Height mm 1050

Features

  • Built according to EC Safety Directives (CE-Mark Approved)
  • Heavy Duty Construction
  • Excellent bend quality
  • Very Easy To Use
  • Geared Motor Drive
  • 4.7” Touch Screen Angle Programmer With Multiple Steps
  • Foot Pedal Control
  • Hydraulic Clamping Movement
  • Manual Flip Length Stop System
  • Electrical Parts – Simens/Telemecanique
  • Complete tooling service

Options

  • Featured with hydraulic vice
