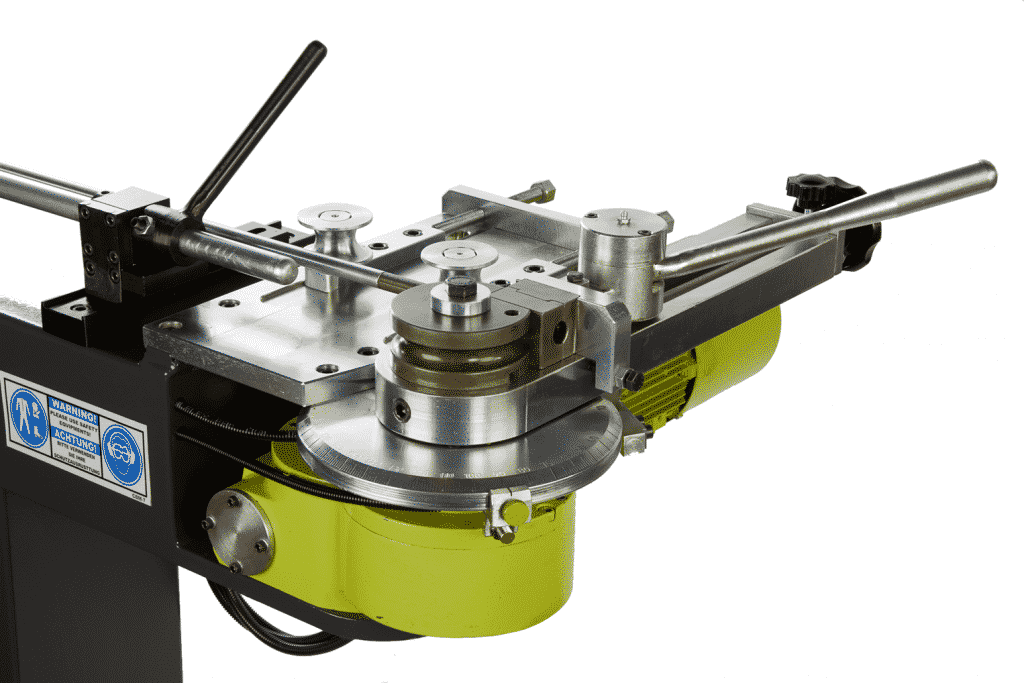

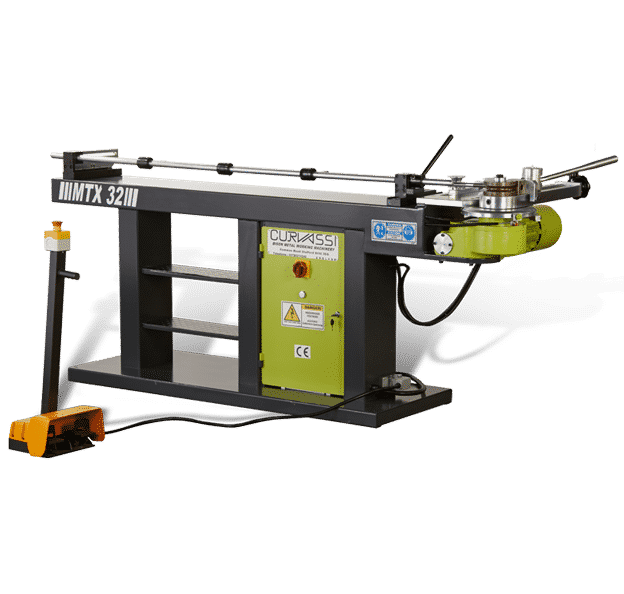

Curvassi MTX 32 Mandrel Tube Benders
The Curvassi range of bending machines achieve fast and accurate bending in round and square tube, flat bar, round bar and square bar. Thin wall tube is effortlessly bend to a tight radius with the aid of a mandrel bar. The machines are ideally suited to production environments as a 180° bend is performed in just three seconds.
| MODEL | MTX 32 | |
| Max Pipe Diameter | mm | 32 |
| Max Wall Thickness | mm | 2 |
| Max Bending Radius | mm | 300 |
| Max Bending Angle | (°) | 190 |
| Bending Speed | (0/sn) | 68 |
| Motor | kw | 2.2 |
| Weight | kg | 280 |
| Length | mm | 1950 |
| Width | mm | 850 |
| Height | mm | 950 |
Features
- Built according to EC Safety Directives (CE-Mark Approved)
- Heavy Duty Construction
- Excellent bend quality
- Very Easy To Use
- Geared Motor Drive
- 4.7” Touch Screen Angle Programmer With Multiple Steps
- Foot Pedal Control
- Hydraulic Clamping Movement
- Manual Flip Length Stop System
- Electrical Parts – Simens/Telemecanique
- Complete tooling service
