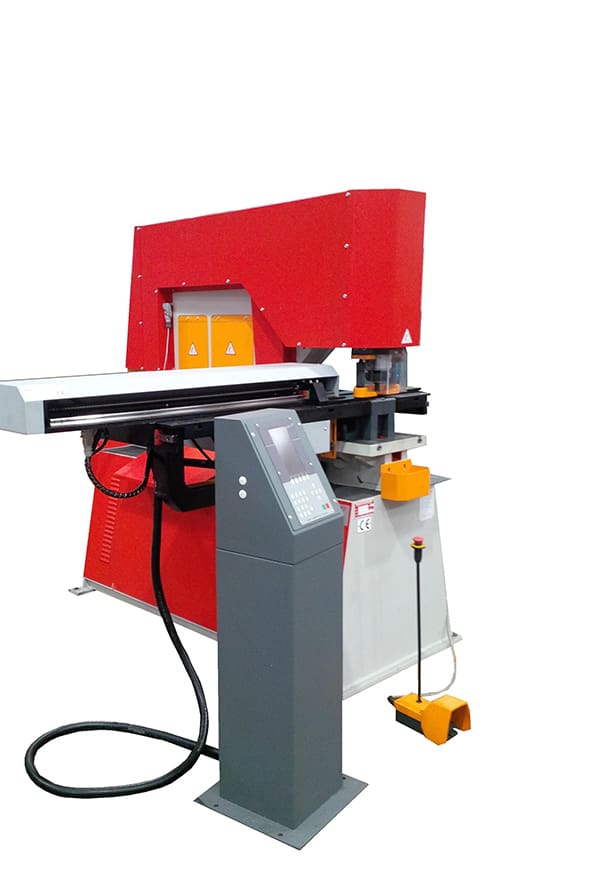

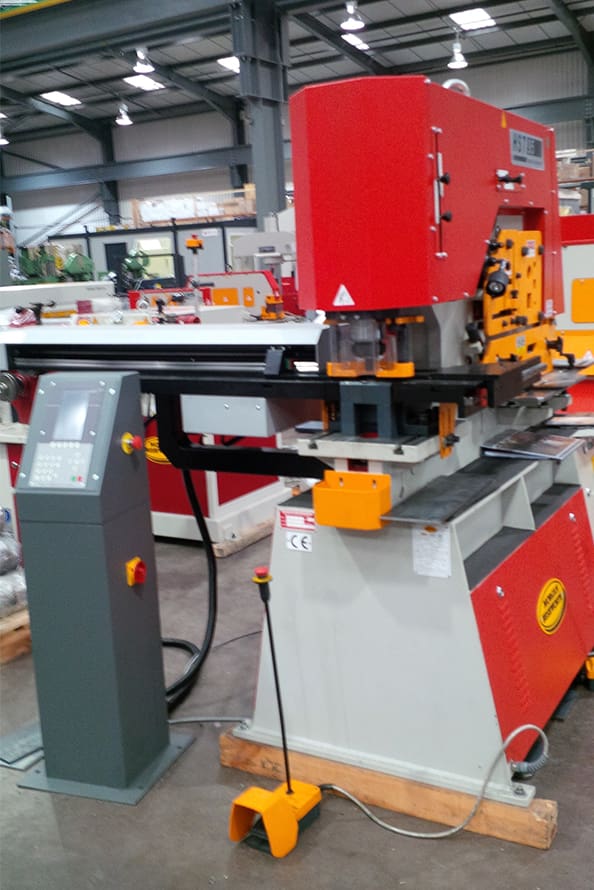

CNC X-Y Positioning Table 415V
The PEHU XY range of CNC coordinate tables are supplied with a PEHU 212 – 3.3 Nm servo control, which is the ideal positioning system for your punch press, drill, press and spot welder.

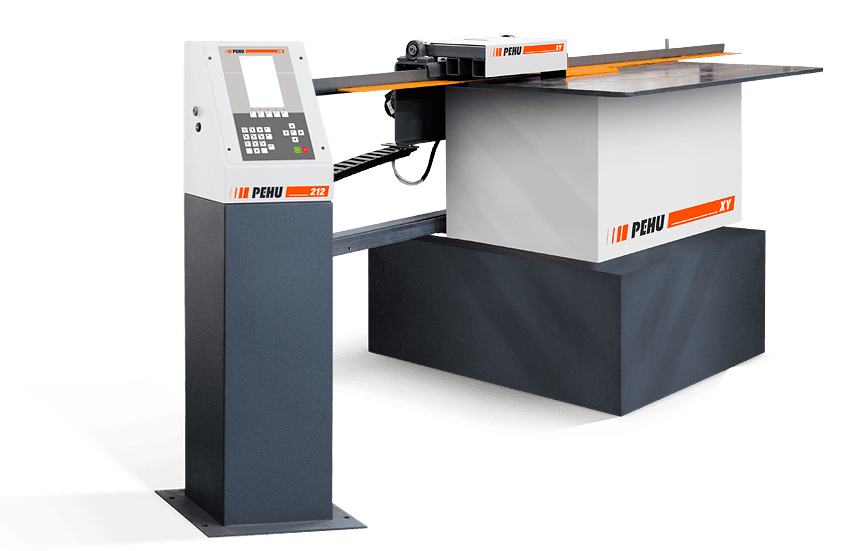

The PEHU XY CNC coordinate table has a standard working range of 1500 mm in X and 300 mm in Y direction and is a stand-alone unit that is easy to place on any machine tool.

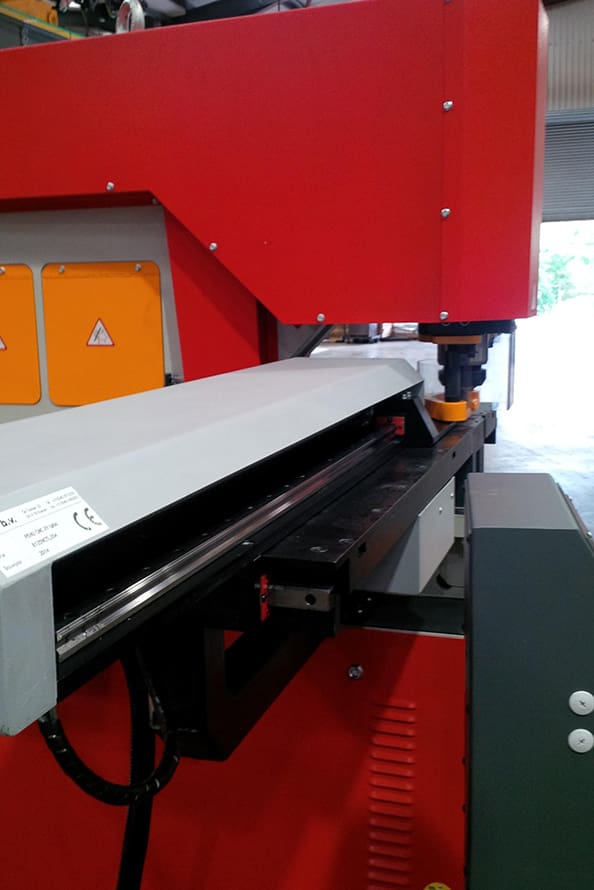

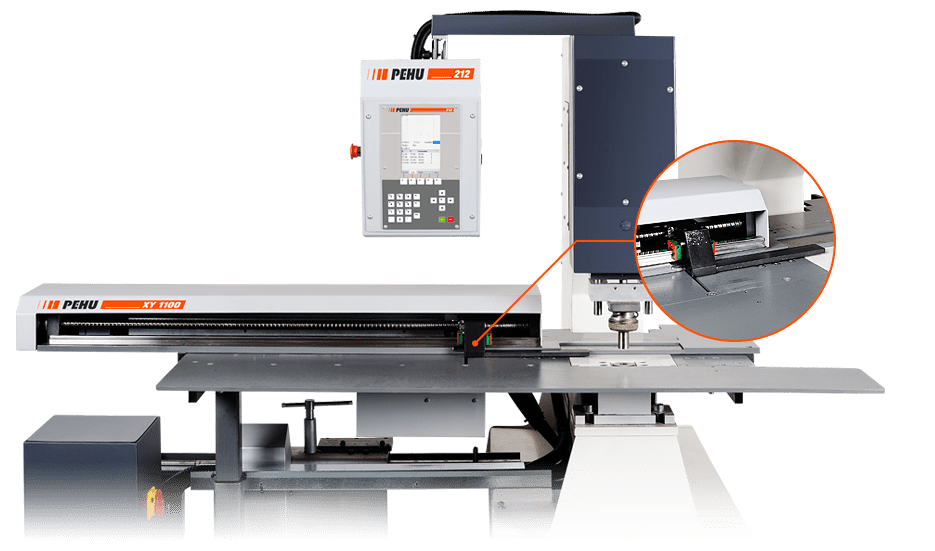

The PEHU XY 1100/2100 is equipped with ballscrews in combination with linear guides. The drive is provided by two servo motors. The PEHU XY 1100/2100 CNC coordinate table is easy to mount on any punching machine. All 3 options come as standard with the PEHU 212 – 3.3 Nm, a 2-axis servo controller that is very easy to operate. In addition, the servo controller offers the option of program storage for regularly used jobs.
| MODEL | Sevo Control | X Length | Y Length | Positioning Accuracy | Application |
| mm | mm | mm | |||
| PEHU XY Table | 212S 3.3Nm Servo Control | 1500 | 300 | +/-0.1 | Punch Press, Drill, Press and Spot Welder |
| PEHU XY 1100 | 212S 3.3Nm Servo Control | 1100 | 400 | +/-0.1 | Any punching machine |
| PEHU XY 2100 | 212S 3.3Nm Servo Control | 2100 | 400 | +/-0.1 | Any punching machine |
Features
- Positioning accuracy +/- 0.1 mm
- Easy to operate for everyone
- No CNC training required
- Fits any punch, drill, press and spot welder
Options
- Extend to any desired length in X and Y direction*
(XY Table Only)
