CBC UNI Tube Bending Machine

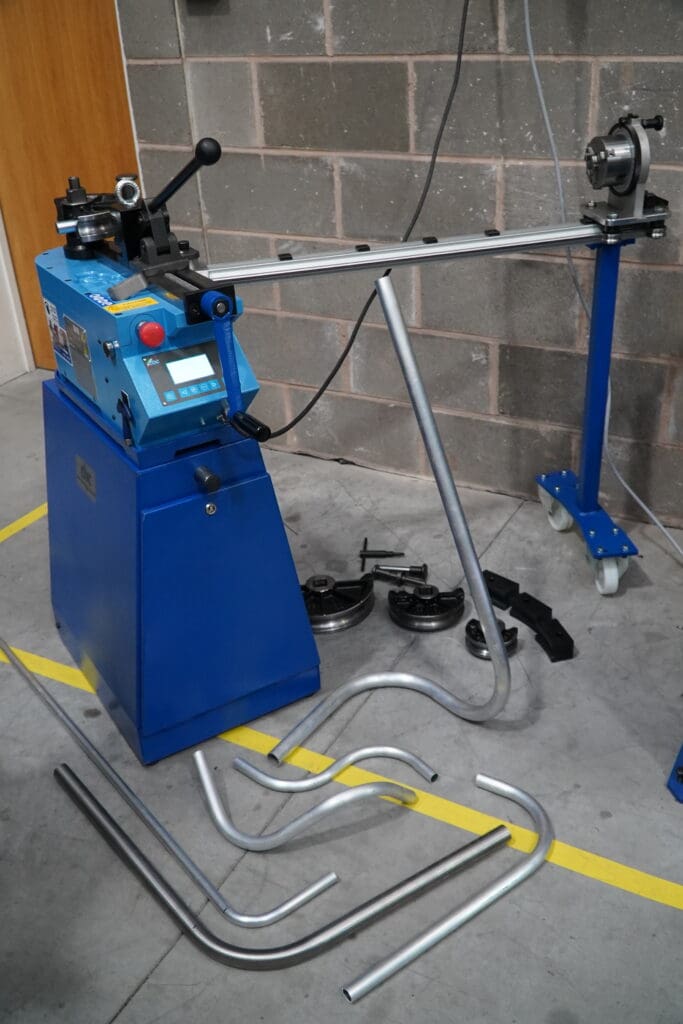

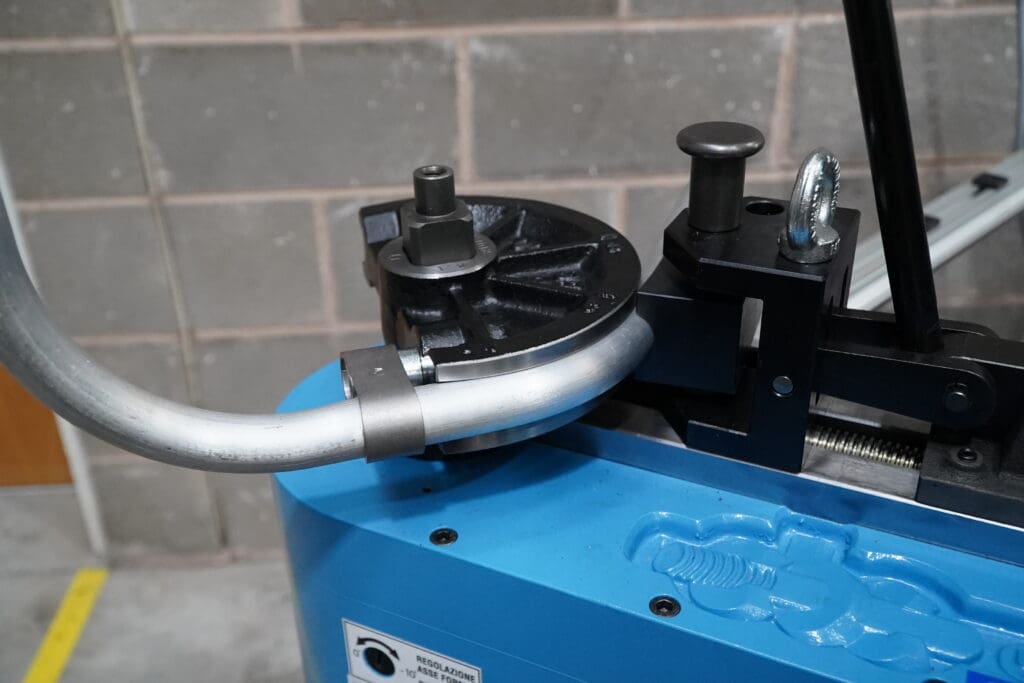

The CBC tube bending machines range from ‘easy to use’ simple machines to precision programmable production machines. A comprehensive tooling range ensures high bend quality on all models. All formers can be specified with either counter formers or guide rollers depending on material and wall thickness. Optional equipment includes moving arm with positioning stops and plane of bend indicator. The new large capacity CBC UNI 89 can effortlessly bend 88.9mm x 8mm wall mild steel tube.
| MODEL | UNI 30 | UNI 42 MAN | UNI 42 | UNI 42 DIG | UNI 60 | UNI 60 DIG | UNI 70/C | UNI 76 | UNI 89 | |
| STOCK CODE | 21374 | 21194 | 21195 | 21196 | 21197 | 21198 | 21199 | 21314 | 21364 | |
| Capacity mm (Mid Steel) | 33.7 x 3.2 | 42.4 x 3.2 | 42.4 x 3.2 | 42.4 x 3.2 | 48.3 x 3.2 | 48.3 x 3.2 | 60.0 x 4 | 76.0 x 6 | 88.9 x 8 | |
| Maximum Bending Angle | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | |
| Motor | Kw | 1.1 | – | 0.56 | 0.56 | 0.98 | 0.98 | 1.5/2.2 | 3/4 | 4.8 |
| Programs | 50 | – | – | 50 | – | 50 | 70 | 50 | 50 | |
| Bends/Program | 9 | – | – | 9 | – | 9 | 6 | 9 | 9 | |
| Weight | Kg | 120 | 18 | 35 | 35 | 60 | 60 | 210 | 450 | 650 |
| Length | mm | 740 | 400 | 520 | 520 | 520 | 520 | 810 | 1000 | 1200 |
| Width | mm | 900 | 200 | 170 | 170 | 210 | 210 | 400 | 710 | 650 |
| Height | mm | 1000 | 250 | 350 | 350 | 410 | 410 | 1100 | 1100 | 1200 |
Features

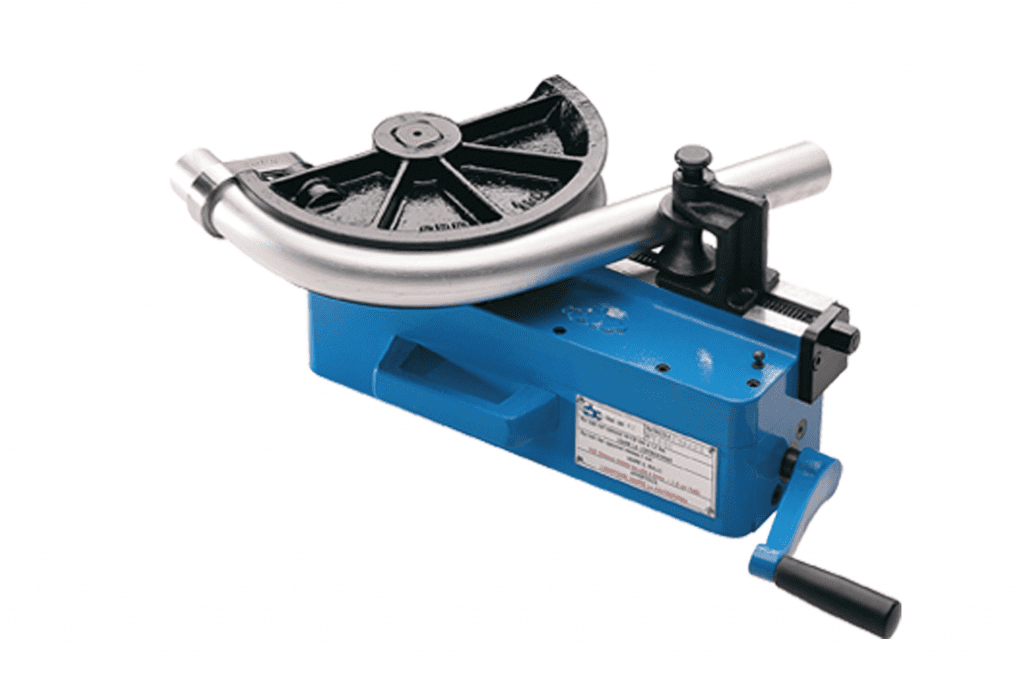

- Manual UNI 42 provides quality bending at competitive pricing.
- NEW UNI 30 for fast bending of tubes up to 1” gas.
- Superb bend quality.
- Complete tooling service.
- Adjustable limit switch with angle scale standard on UNI 42 and UNI 60. Programmer with memories including ‘spring back’ allowance standard on
- UNI42 digital, UNI 60 digital, UNI 70/C.
- NEW CBC UNI 89 with large 88.9mm x 8mm bending capacity.
Options

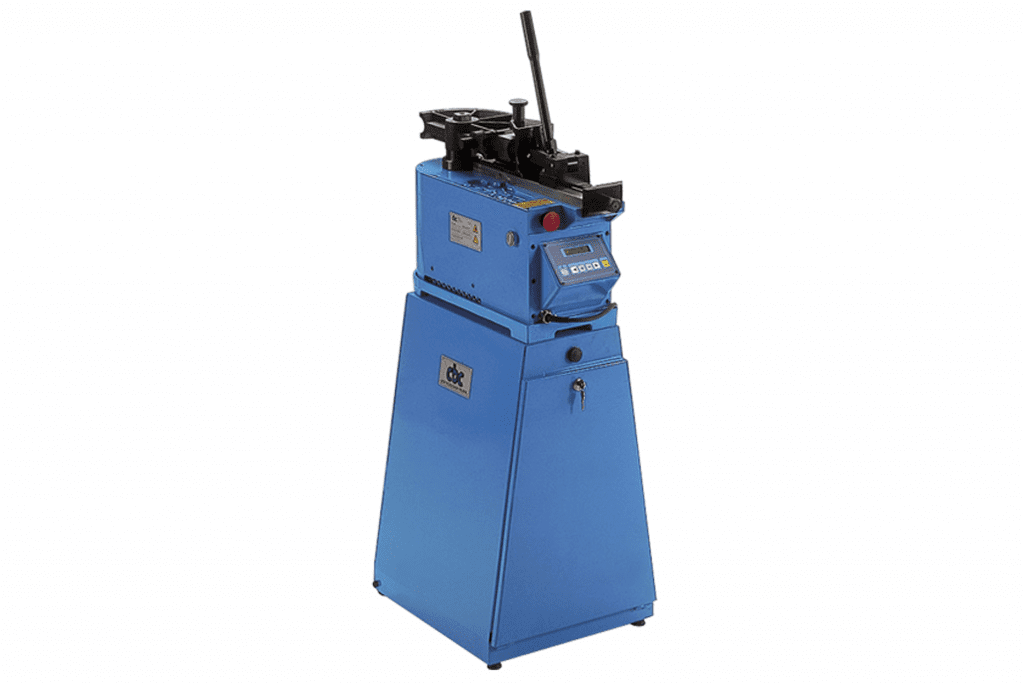

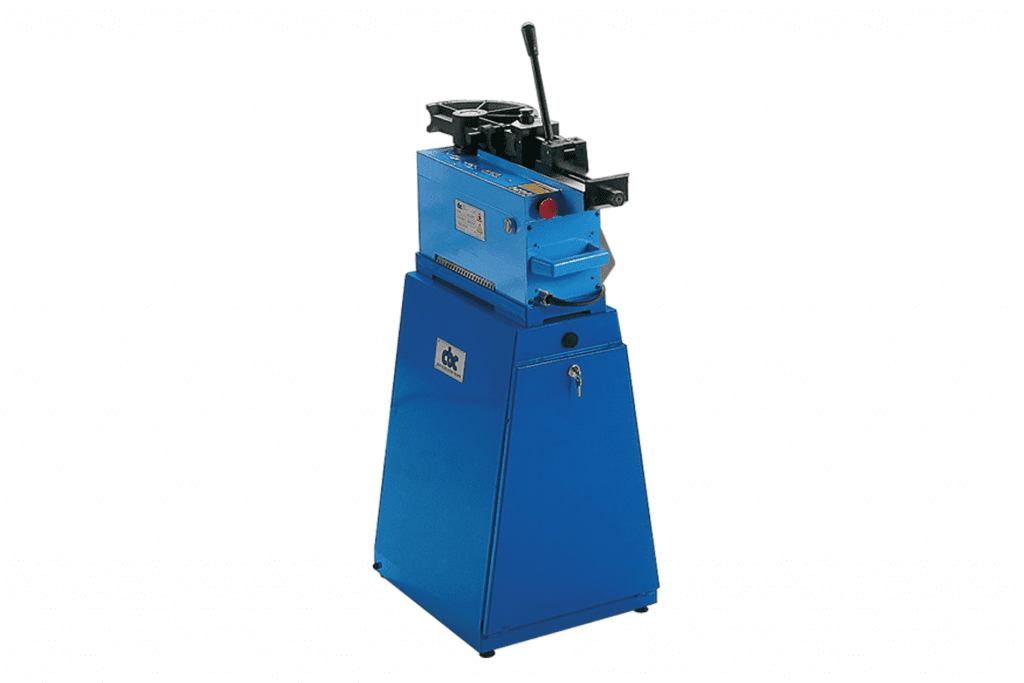

- 2 wheeled cabinet available for UNI 42, UNI 42 digital, UNI 60 and UNI 60 digital.

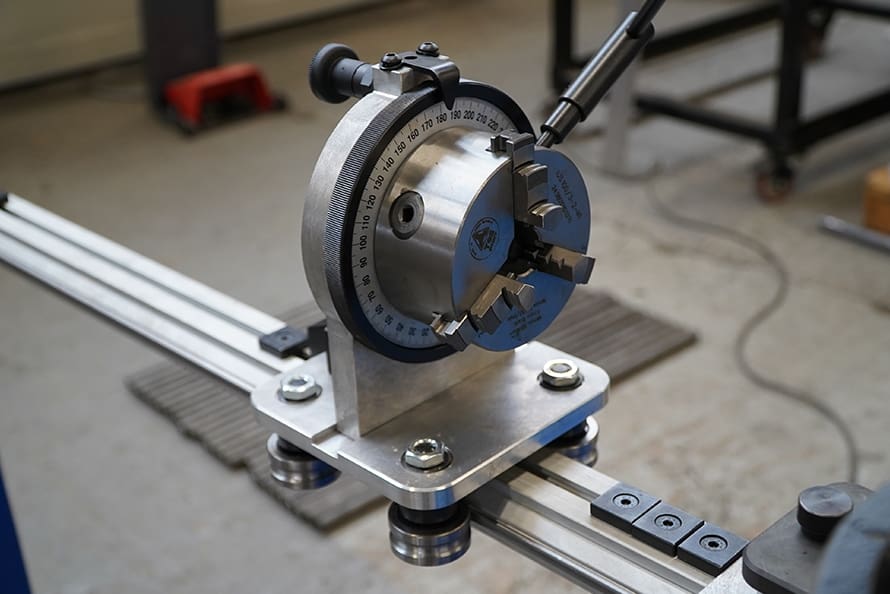

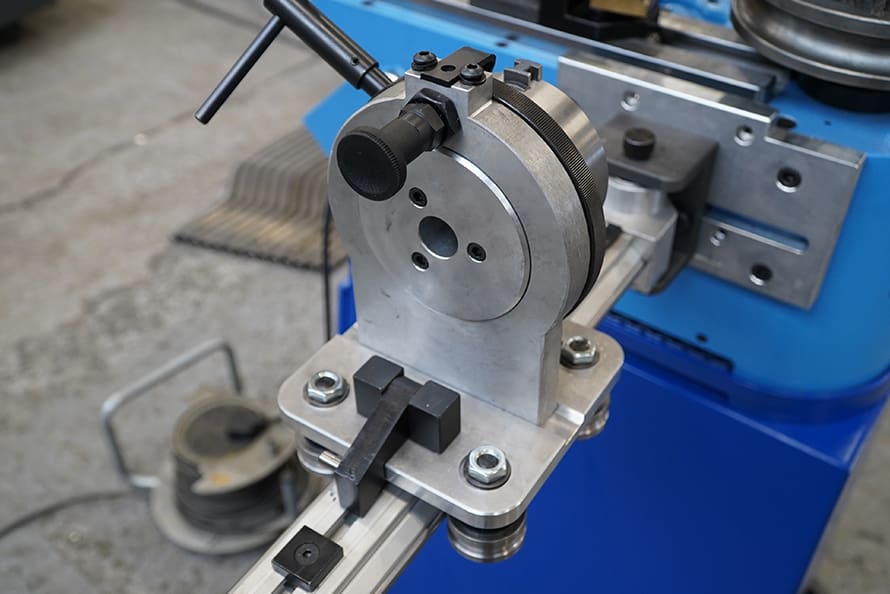

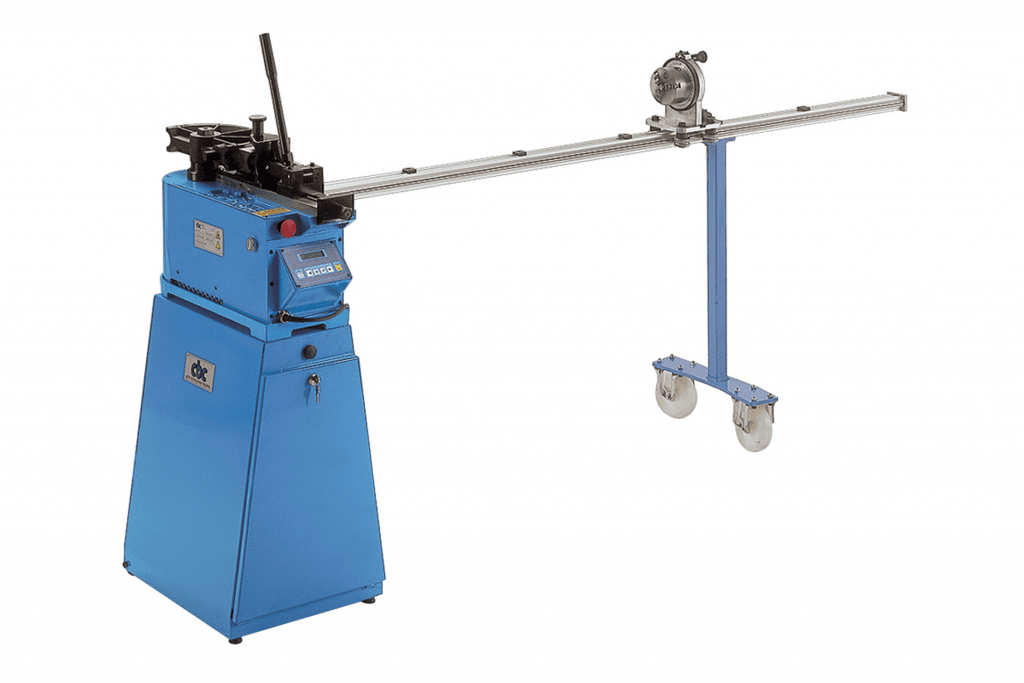

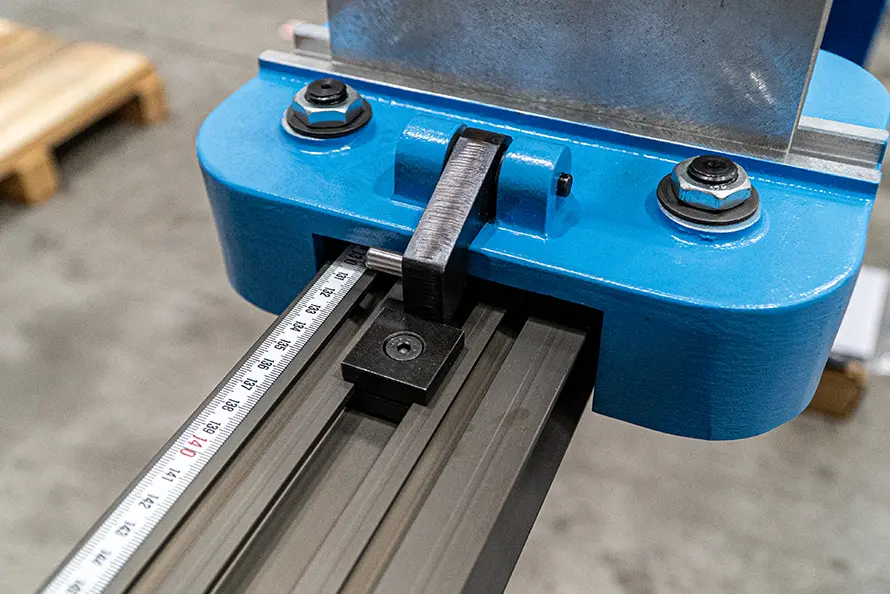

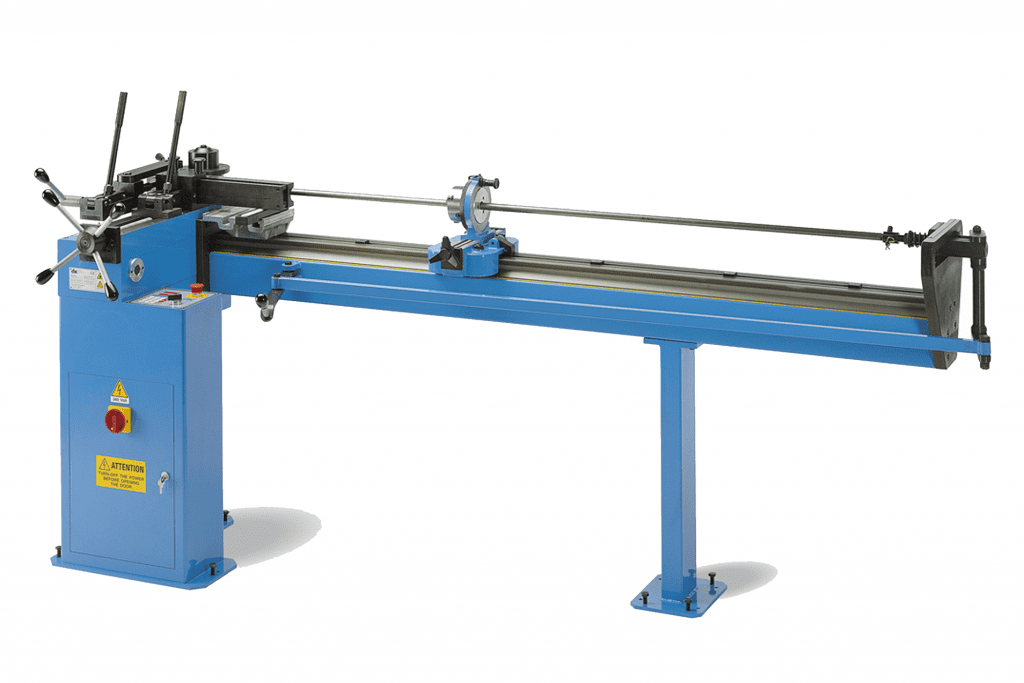

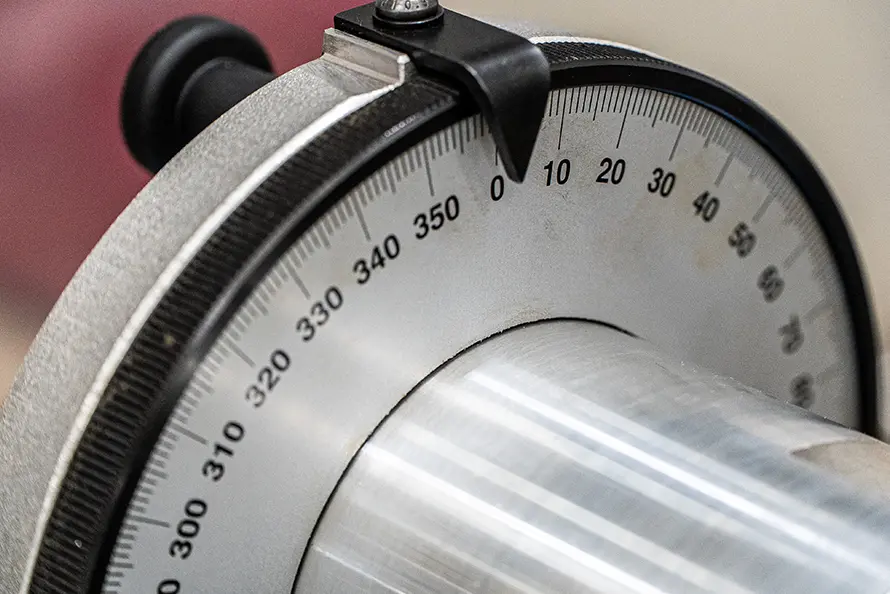

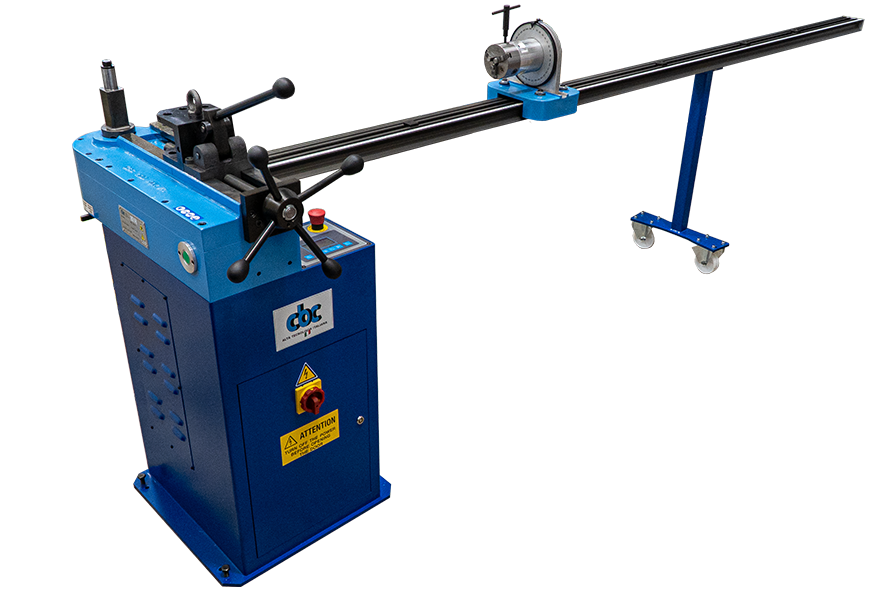

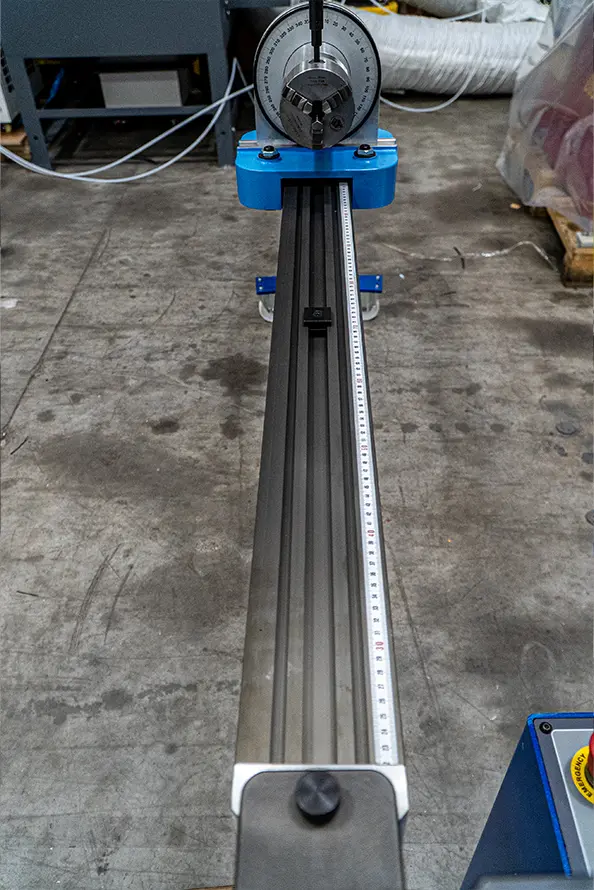

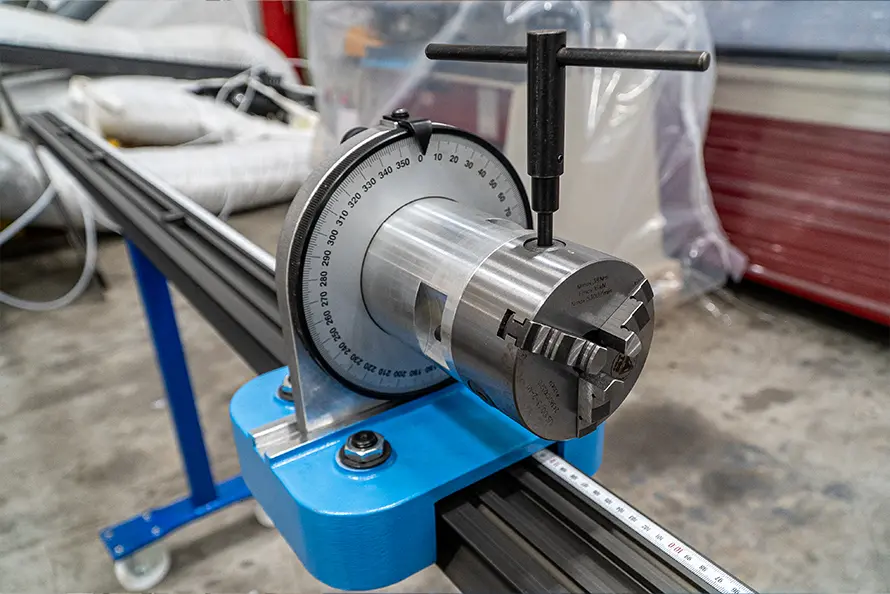

- Moving arm with plane of bend indicator available for UNI 42, UNI 42 Digital, UNI 60 and UNI 60 Digital.
- 110V models.
