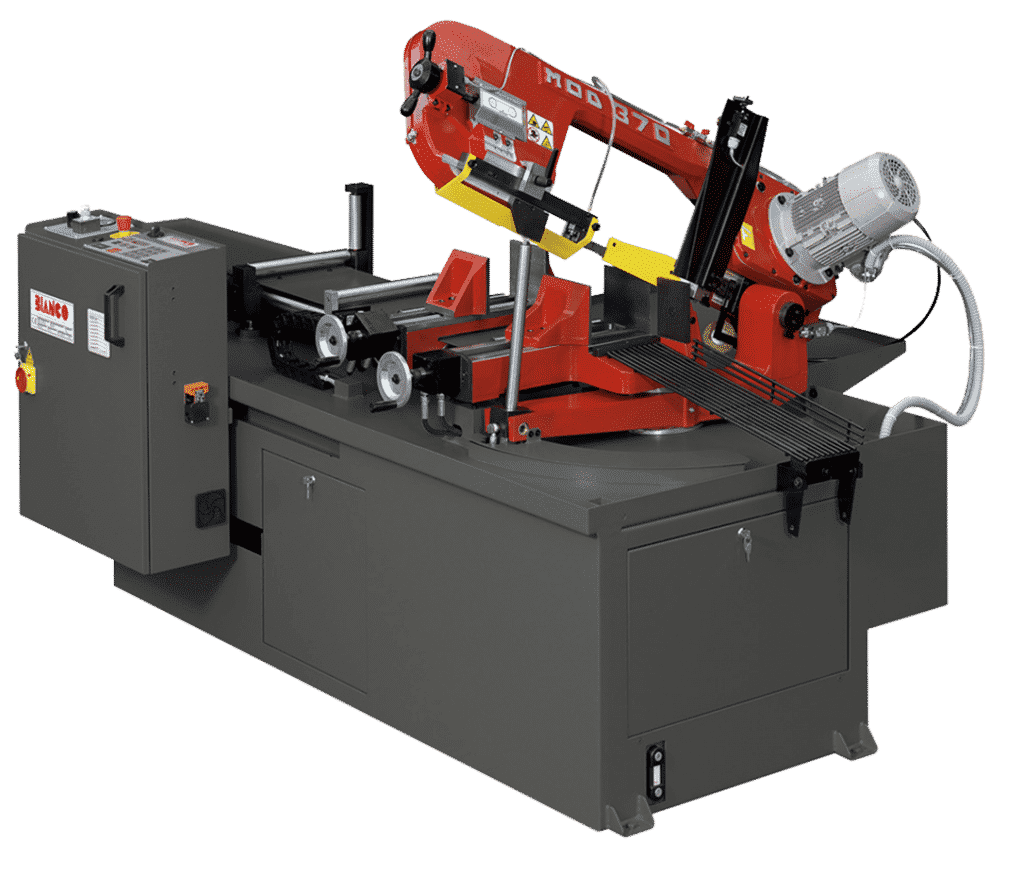

Bianco A CNC Single Mitre Fully Automatic Bandsaw 415V
The Bianco A CNC Fully Automatic Single Mitre Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.
Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.
| MODEL | 330A CNC | 370A CNC | 420A CNC | |||||||||
| STOCKCODE | 15512 | 15114 | 15510 | |||||||||
| Capacity | 90° | 45° | 60° | 90° | 45° | 60° | 90° | 45° | 60° | |||
| ◯ Tube | mm | 260 | 200 | 120 | 280 | 225 | 140 | 300 | 240 | 165 | ||
| □ Box Section | mm | 240 | 190 | 115 | 240 | 215 | 140 | 240 | 230 | 170 | ||
| ▭ Widest Cut | mm | 330 x 120 | 200 x 130 | 120 x 100 | 330 x 240 | 230 x 140 | 140 x 130 | 420 x 200 | 270 x 140 | 170 x 170 | ||
| Bed Height | mm | 835 | 835 | 835 | ||||||||
| Blade Size | mm | 3010 x 27 x 0.9 | 3120 x 27 x 0.9 | 3270 x 27 x 0.9 | ||||||||
| Cutting Speed | m/min | 20 – 100 | 20 – 100 | 20 – 100 | ||||||||
| Motor | Kw | 1.5 | 1.5 | 1.5 | ||||||||
| Length | mm | 2800 | 2800 | 2800 | ||||||||
| Width | mm | 2050 | 2050 | 2050 | ||||||||
| Height | mm | 1900 | 1900 | 1900 | ||||||||
| Weight | Kg | 1090 | 1090 | 1090 | ||||||||
| Operation | Automatic | Automatic | Automatic | |||||||||
| Vice | Hydraulic | Hydraulic | Hydraulic | |||||||||
| Remnant Piece | mm | 220 | 220 | 220 | ||||||||
| Carriage Stroke | mm | 800 | 800 | 800 |
*When cutting solid bar, a maximum of 150mm is recommended in Auto mode, beyond should be cut in manual mode.
Features

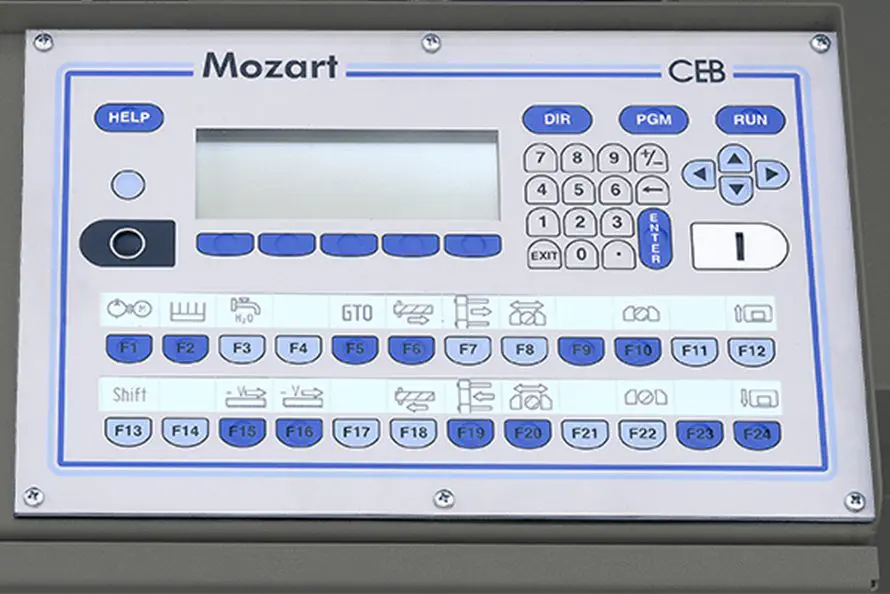

- CNC control programmer for varying cutting lengths and quantities
- Front hydraulic ram for increased bow support
- Hydraulic cutting with variable pressure and variable speed
- Hydraulic vice
- Fast approach with auto bow height return setting
- Cast bow construction
- Carbide blade guides for high accuracy

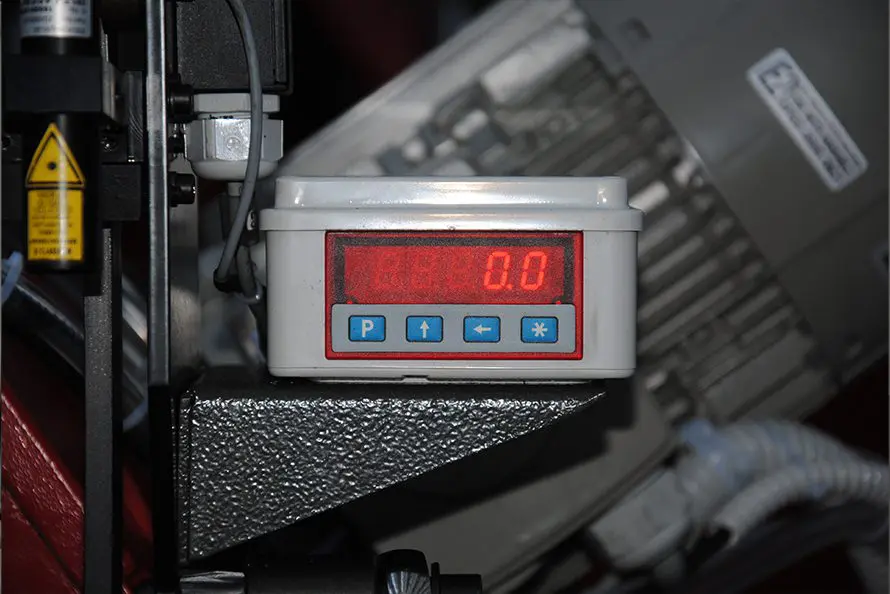

- Quick mitring swivel head up to 60°
- Fully automatic cutting cycle with hydraulic vice feed system
- Shuttle vice facility for long cutting lengths
- Scrap length 220mm
Options

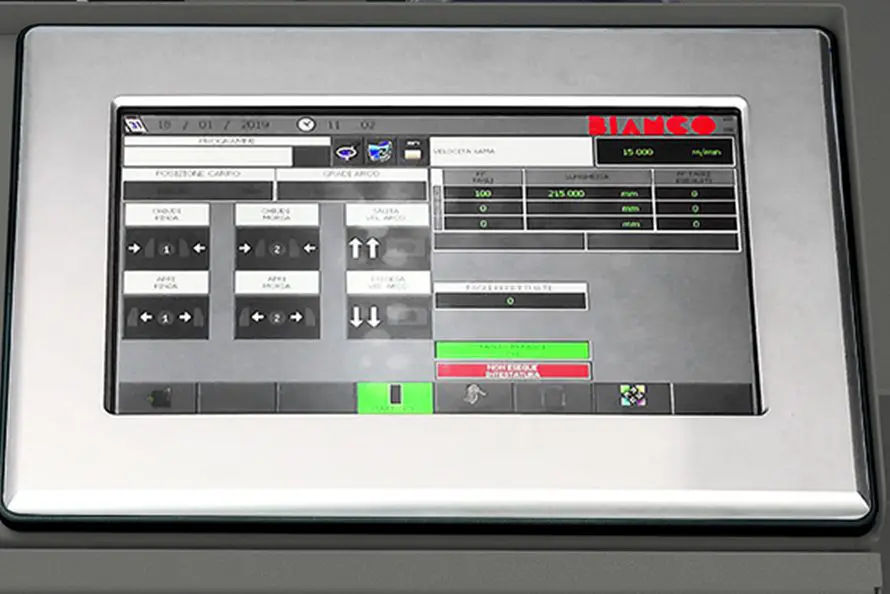

- Touch Screen Controller (Highly recommended)
- Blade speed variation
- Spray mist cooling system
- Chip conveyor

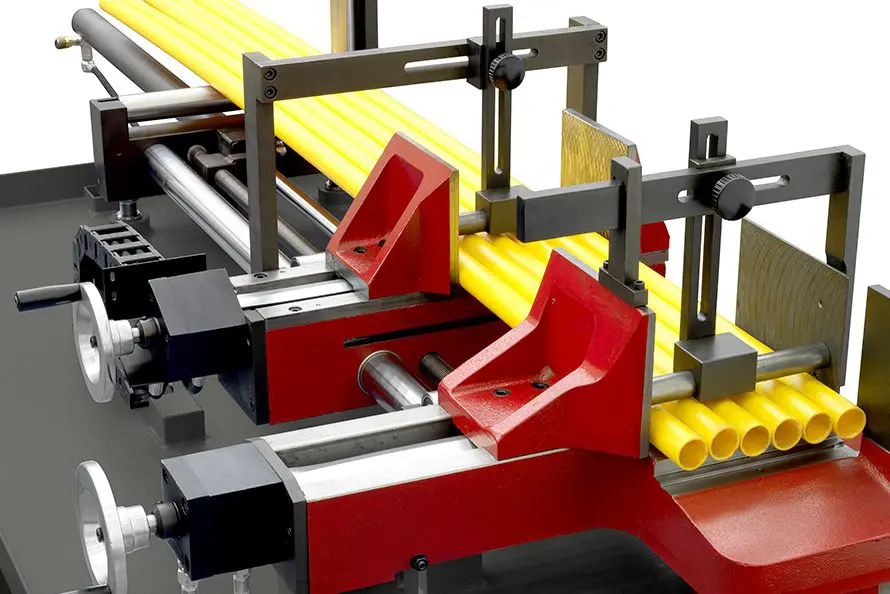

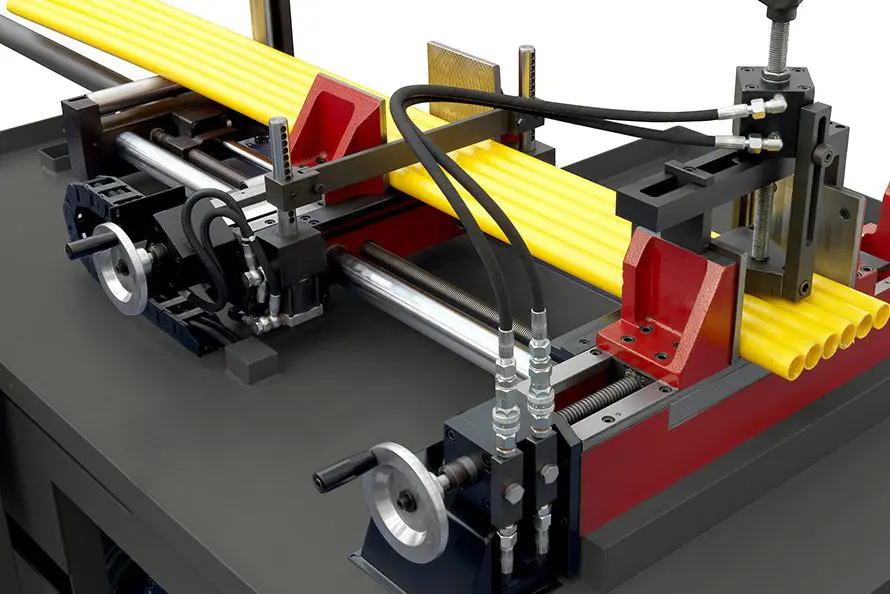

- Hydraulic bundle cutting

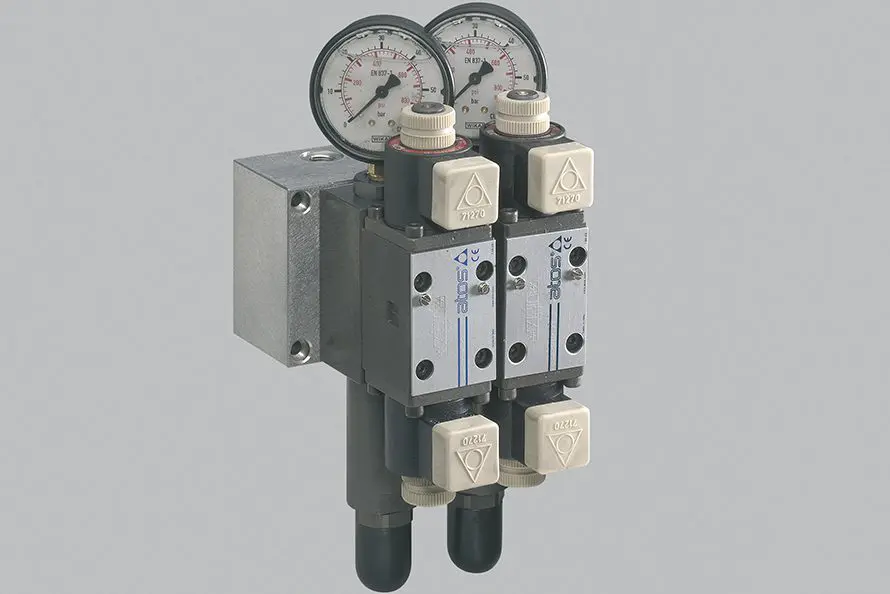

- Variable clamping pressure
- Roller track and measuring systems
The Bianco A CNC Fully Automatic Single Mitre Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.
Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.
Ideal for cutting round, square or rectangular section, bandsaws like this Bianco A CNC Fully Automatic Single Mitre Bandsaw are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
