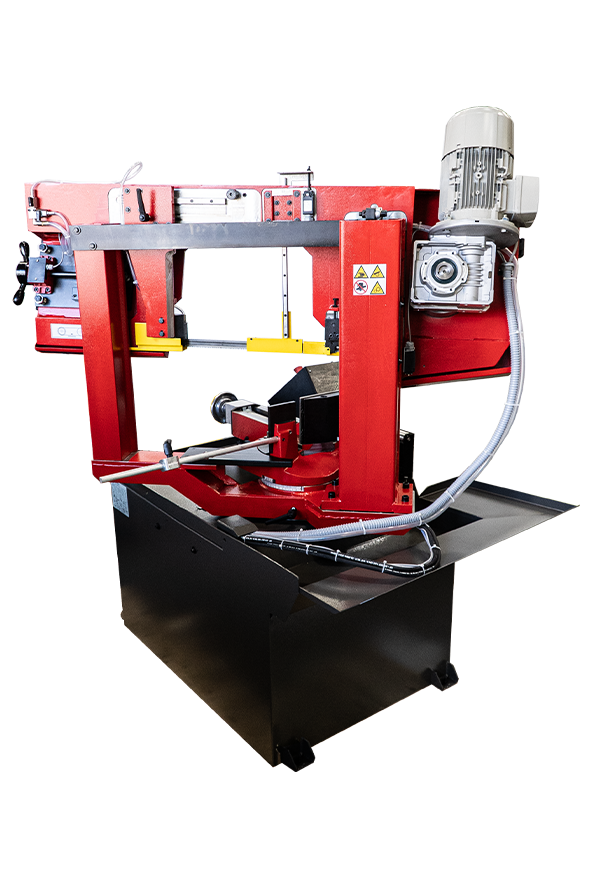

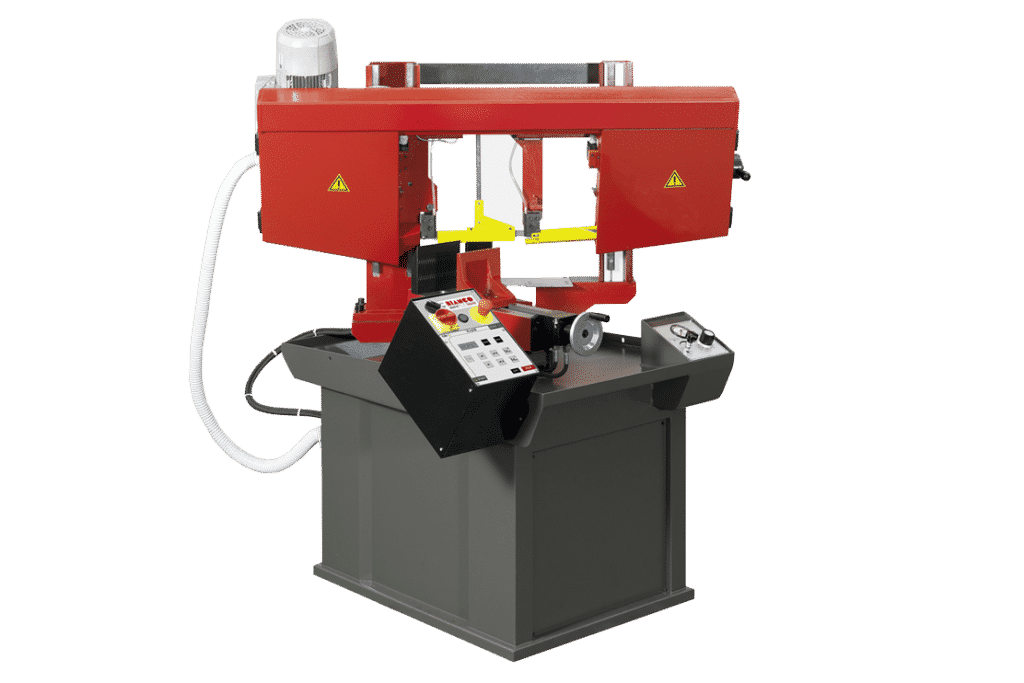

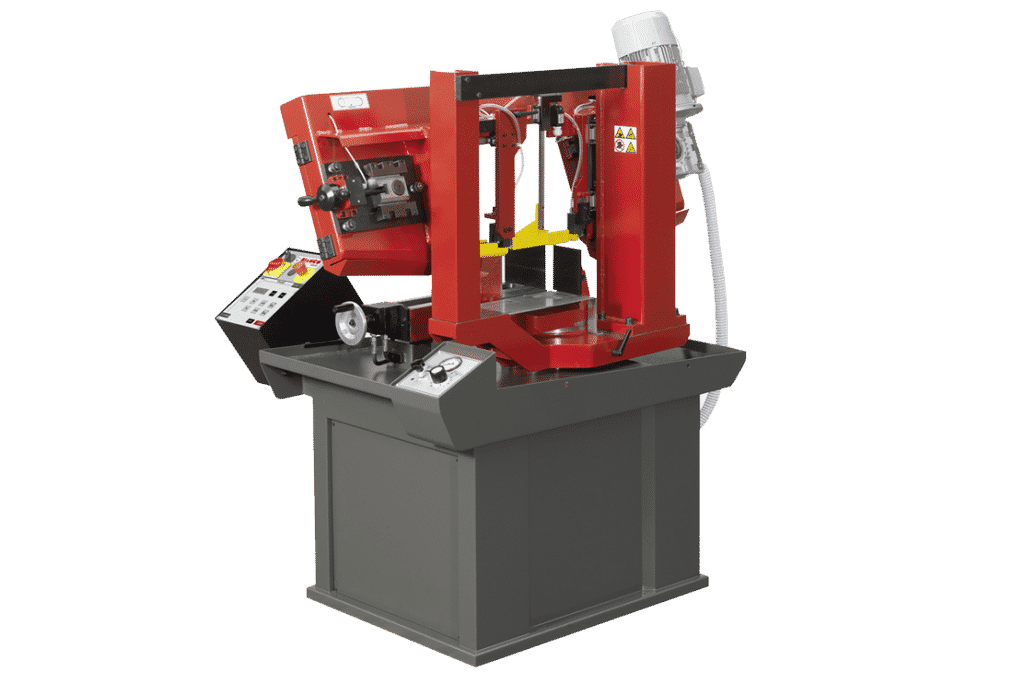

Bianco 370 SA 60° DV Twin Column Bandsaw 415v

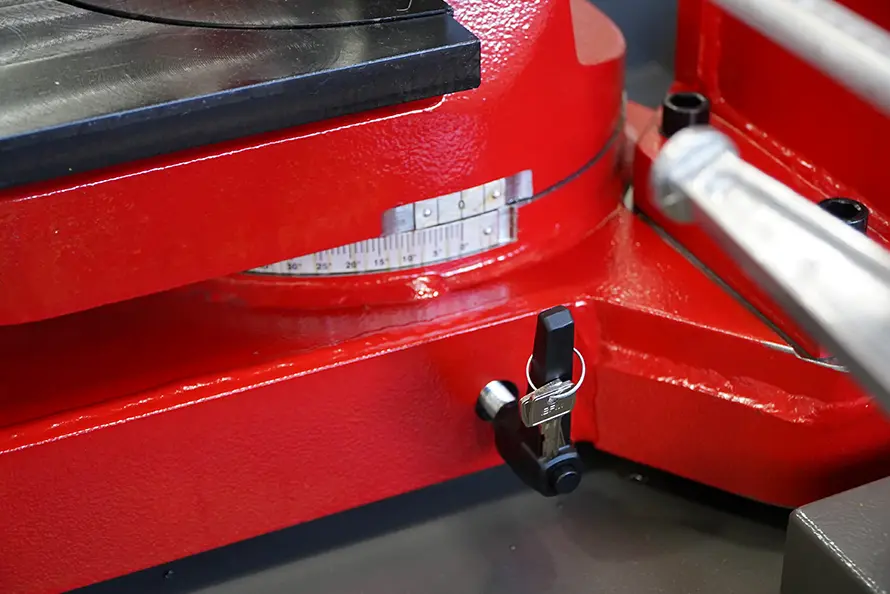

The Bianco 370 SA 60° DV Twin Column Bandsaw is ideal for cutting solid sections and bundle cutting of medium-size structural material. With a mitre rotation up to 60° on the right, the bow slides on ball bearing guides. The machine’s durable design combined with the high grade components and technical features, guarantee a high precision cut quality.
| Model | 370 SA 60° DV | |||
| 90° | 45° | 60° | ||
| ◯ Tube / Round | mm | 300 | 260 | 125 |
| □ Square Box Section / Solid | mm | 300 | 260 | 125 |
| ▭ Rectangle Box Section / Solid | mm | 400 x 300 | 300 X 260 | 125 X 125 |
| Band dim. (L x W x H) | mm | 3230 x 27 x 0.9 | ||
| Cutting Speed (Standard) | m/min | 35 – 70 | ||
| Cutting Speed (On request) | m/min | 20 – 100 | ||
| Fast Descent | mm/min | 350 | ||
| Working Descent | mm/min | 0 – 200 | ||
| Working Surface Height | mm | 870 | ||
| Blade Motor Standard | kw | 0.9 | ||
| Blade Motor On Request | kw | 1.1 | ||
| Hydraulic Pump Motor | kw | 0.18 | ||
| Cooling Pump Motor | kw | 0.03 | ||
| Length | mm | 1900 | ||
| Width: | mm | 1400 | ||
| Height: | mm | 1600 | ||
| Weight: | kg | 600 | ||
| Operation: | Semi-Automatic | |||
| Vice: | Hydraulic |
Features

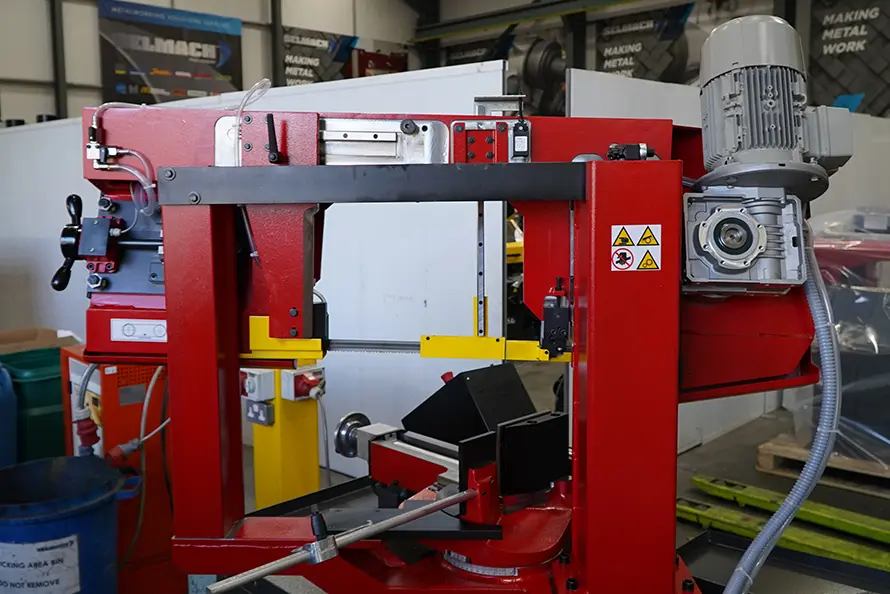

- Base and bow in welded structure

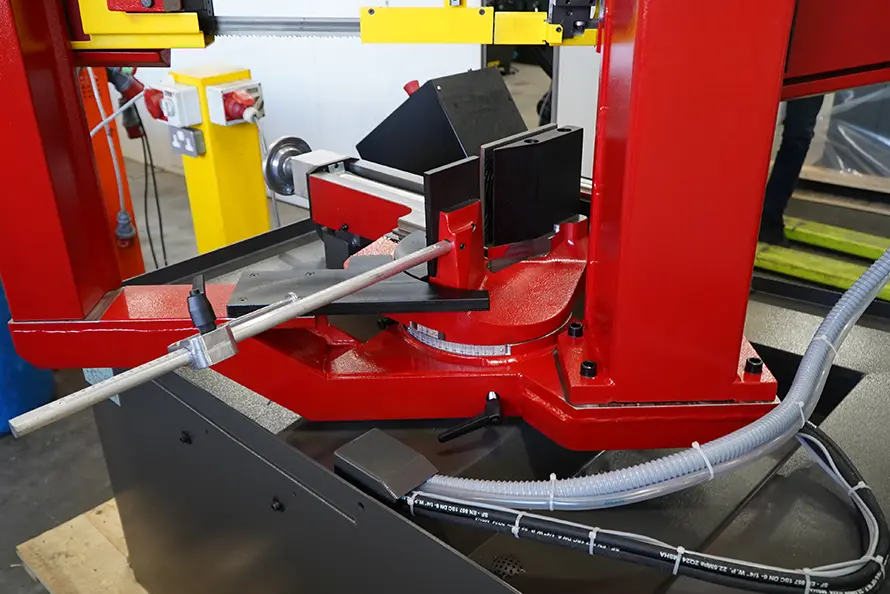

- Vice unit made from spheroidal cast iron

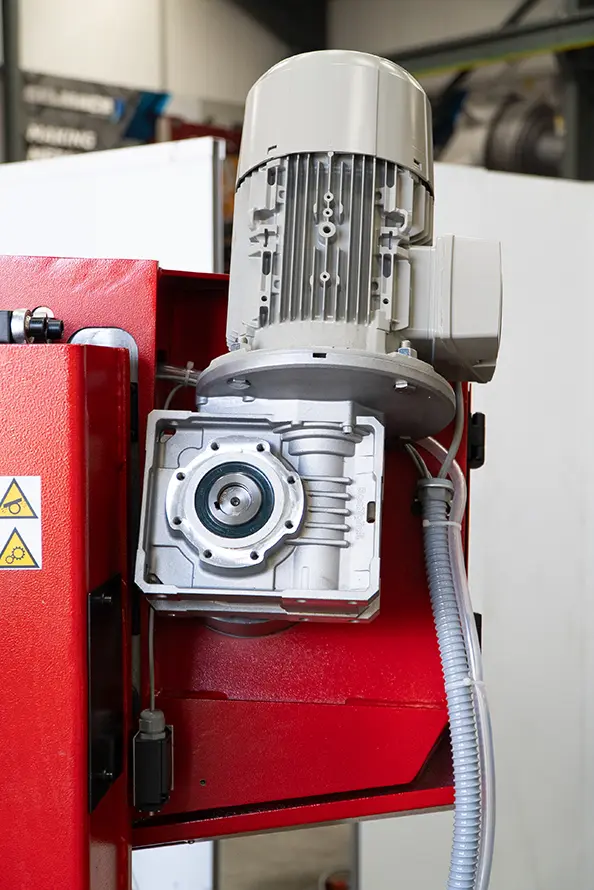

- Worm gear reducer unit

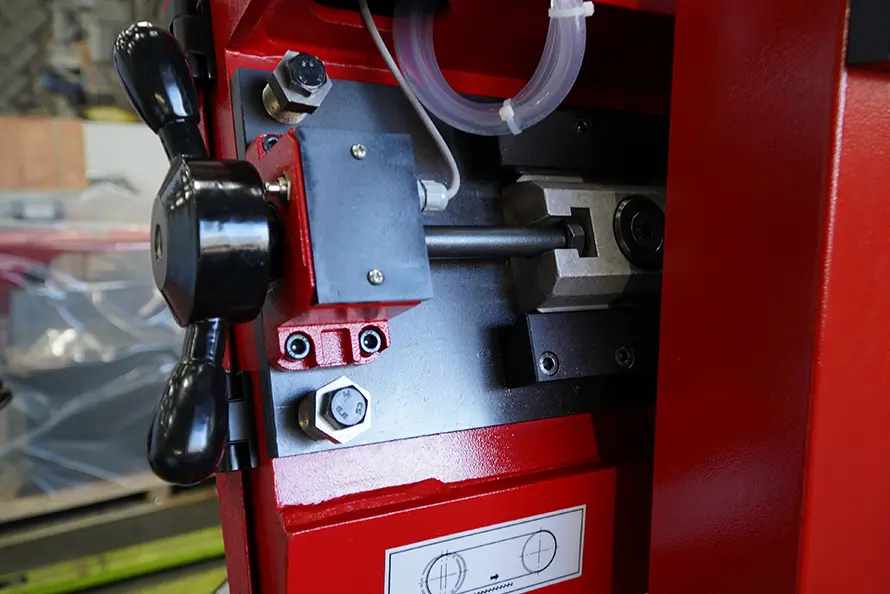

- Electrical mechanical blade tensioning

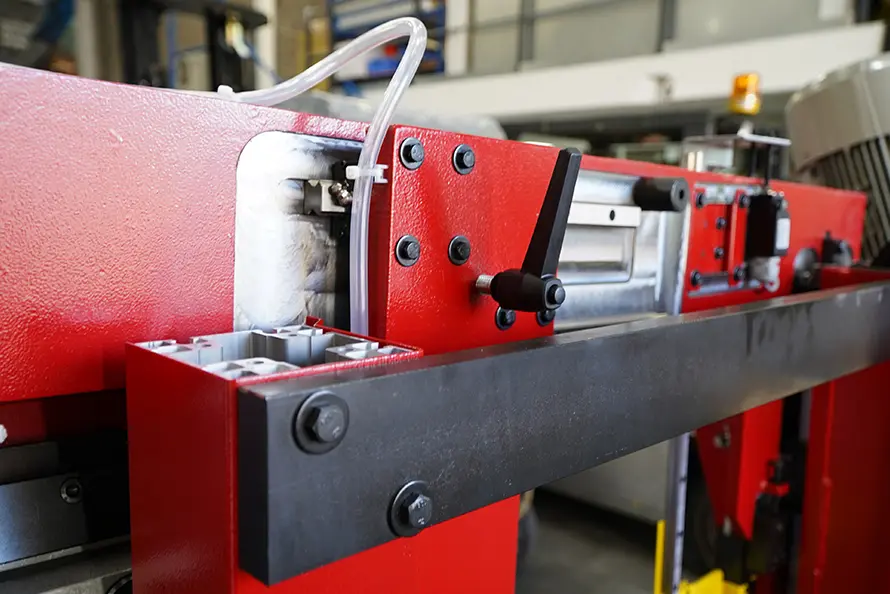

- Adjustable blade-guide bearings with carbide plates

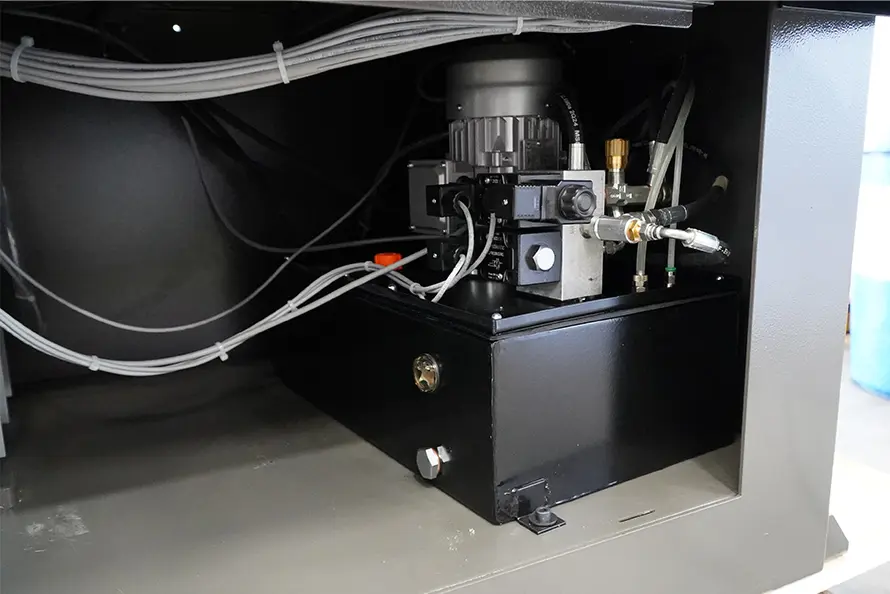

- Hydraulic power unit
- Automatic fast approach bow with auto height return
- Hydraulic adjustable cutting pressure
- Double safety button for cycle start-up
- Automatic vice cycle
- Low voltage Electrical system according to CE norms
- 0 – 500 graduated length stop
- In-feed rollers
- Manual swarf cleaning brush
Options
- Material in-feed/out-feed roller track available in various sizes with millimeter rule and mechanical length stop
- Mechanical blade speed variator 20/100 m/1′
- Frequency converter for blade speed variation (inverter) 20/100 m/1′

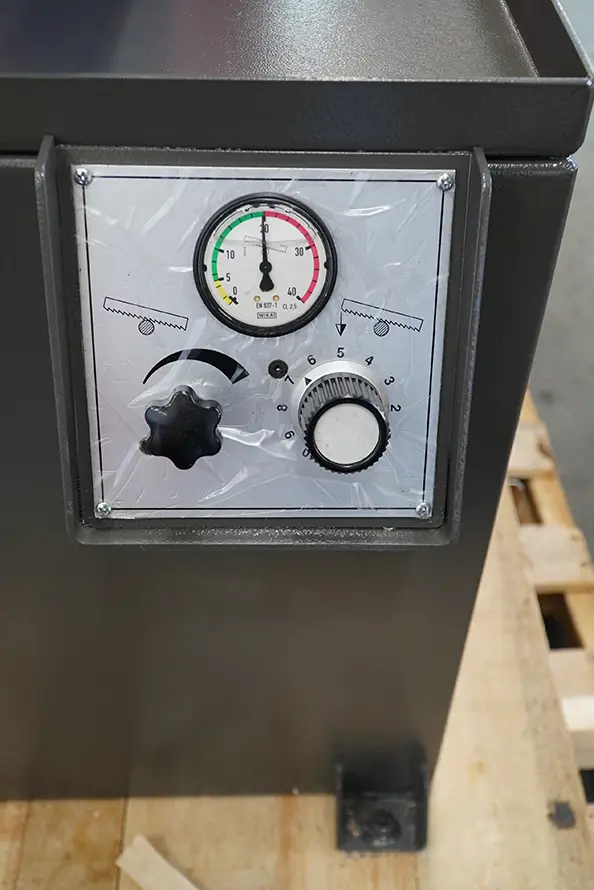

- Vice pressure regulation
- Dry cooling device
- Mechanical Bundle clamping
The Bianco 370 SA 60° DV Twin Column Bandsaw is ideal for cutting solid sections and bundle cutting of medium-size structural material. With a mitre rotation up to 60° on the right, the bow slides on ball bearing guides. The machine’s durable design combined with the high grade components and technical features, guarantee a high precision cut quality.
Ideal for cutting round, square or rectangular section, bandsaws like this Bianco 370 SA 60° DV Twin Column Bandsaw are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
