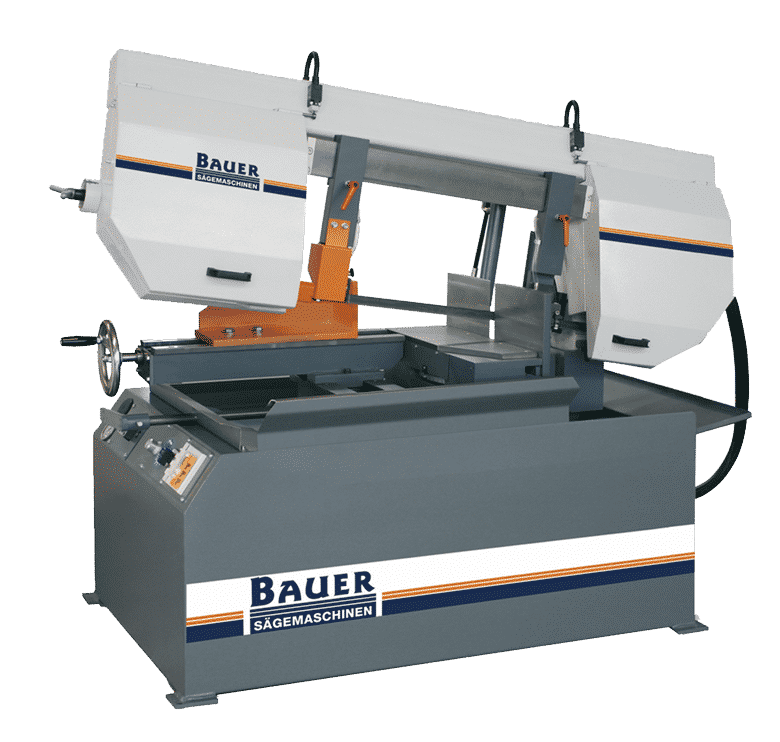

Bauer S DGSA Semi Automatic Double Mitre Bandsaw 415v
Bauer have been designing and manufacturing bandsaws in Germany since 1937, with thousands of machines installed worldwide. Bauer products have firmly established a reputation for long life and reliability with many machines still in use today in the UK after many years of service. The DG machines are large capacity double mitre bandsaws available in manual and semi automatic operation.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES
| MODEL | S320DGSA | |||
| STOCKCODE | 15117 | |||
| Capacity | 90° | 45° L&R | 60° R | |
| Round | mm | 320 | 320 | 180 |
| Square | mm | 305 | 305 | 210 |
| Rectangle | mm | 520 x 160 | 325 x 240 | 210 x 240 |
| Blade Size | mm | 4150 x 34 x 1.1 | ||
| Cutting Speed | m/min | 35/70 | ||
| Motor | Kw | 1.1 – 1.4 | ||
| Length | mm | 2040 | ||
| Width | mm | 1000 | ||
| Height | mm | 1300 | ||
| Weight | Kg | 870 | ||
| Operation | Semi-automatic | |||
| Vice | Hydraulic |
Features
- Semi automatic with hydraulic vice and automatic bow lift.
- Made in Germany.
- Heavy duty.
- Carbide blade guides for high accuracy.
- Double mitring head.
- Coolant system.
- Large easy to read mitre scales
- Automatic down feed with variable control.
Options
- Hydraulic Vice
- Hydraulic Bow Lift
